Summary of Contents for Ingenico 7780

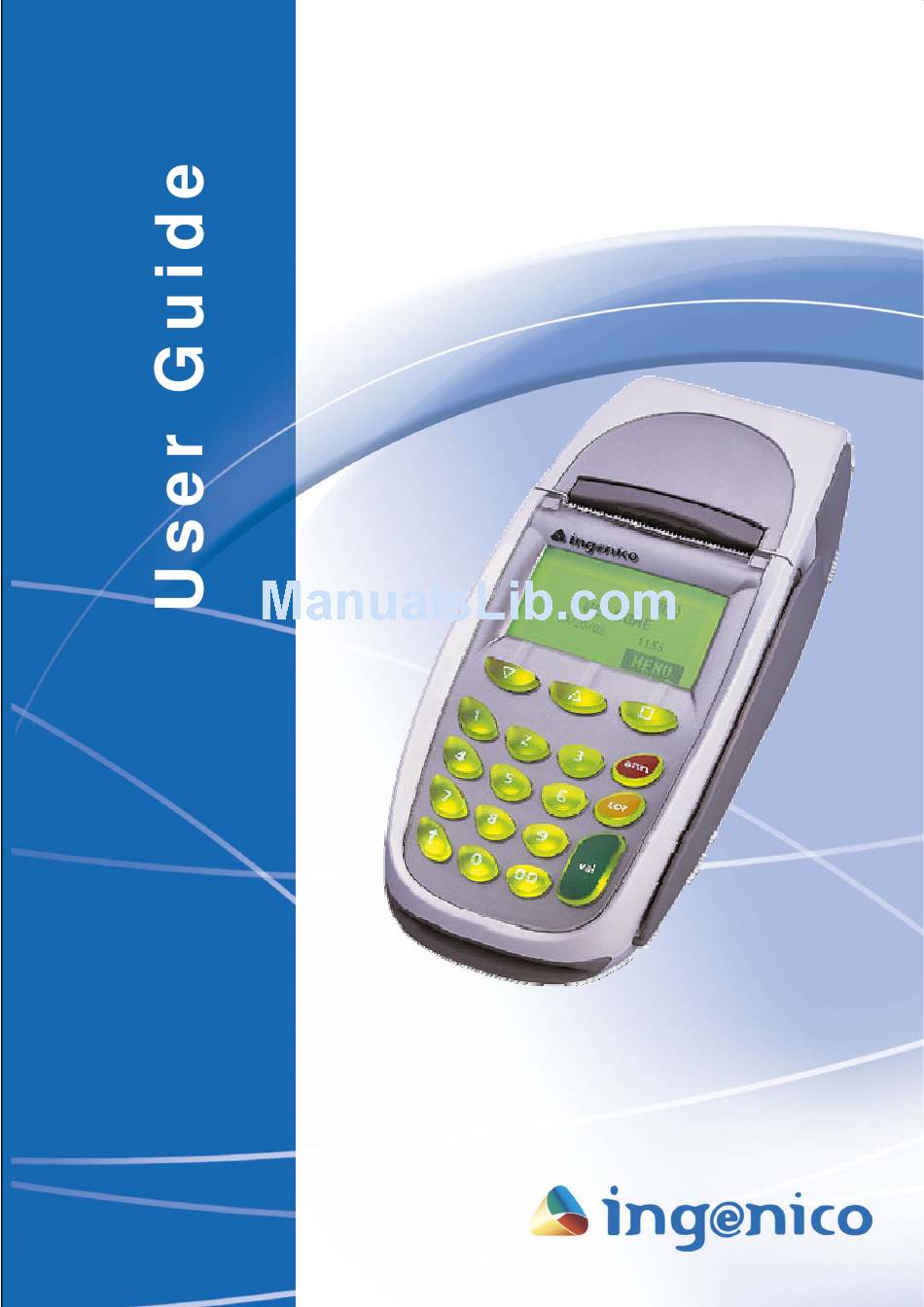

- Page 1 I n g e n i c o 7780 Secure transaction and payment solutions...
-
Page 3: Table Of Contents
Contents Presentation ....................5 Overview of Ingenico 7780 ..............6 Keyboard details and functionality ............7 Use........................9 Card reading ..................11 Terminal maintenance ................. 11 Changing the roll of paper ..............12 Installation and starting................13 Location of the terminal and the base..........13 Battery set up and charging .............. - Page 4 Your model, the Ingenico 7780 is a portable Bluetooth technology terminal; Effective, processor 32-bits inside; Highly secured, EMV level 2 certified. Ingenico 7780 features a new ergonomic design that provides a friendly interface for the user: "Easy loading" printer to load paper easier and quicker, Large graphic display with adjustable contrast, Fast communications.
-
Page 5: Presentation
1 Presentation Ingenico 7780 is an electronic payment terminal designed to accept payment using magnetic stripe and smart cards. The terminal box contains: The power supply unit power supply unit supplied specially designed for the terminal. Do not The terminal and base use any other unit. -
Page 6: Overview Of Ingenico 7780
Ingenico 7780 1.1 Overview of Ingenico 7780 "easy loading" printer Backlit graphic screen 18-key backlit keyboard Magnetic stripe reader Smart card reader... -
Page 7: Keyboard Details And Functionality
1.2 Keyboard details and functionality This chapter describes the key functions for a terminal with no specific application. Some keys can have other functions according to the applications that are present in the terminal. The navigation keys navigate in The function key accesses the the terminal menus different system and application menus... - Page 8 Ingenico 7780...
-
Page 9: Use
11/07/02 15h01 Date and time In order to extend battery life, the Ingenico 7780 terminal goes automatically into stand-by after a few dozen seconds when it is not on the base. The terminal comes back on if: it is placed on the base, the green key is pressed. - Page 10 Ingenico 7780 Because of the Bluetooth technology transmission it is not necessary to place the terminal on the base to use the serial link, the modem or to perform an authentication. The symbol on the upper left hand corner of the screen indicates that the terminal is assigned to its base and that it is in the Bluetooth technology field (the research phase last typically less than 10s).
-
Page 11: Card Reading
2.1 Card reading Magnetic stripe card The card can be read either from bottom to top or from top to bottom, with the stripe facing the terminal. Use a regular movement in order to ensure a reliable card reading. Smart card Insert the card horizontally with the metal chip facing upwards and leave in position throughout the transaction. -
Page 12: Changing The Roll Of Paper
Ingenico 7780 2.3 Changing the roll of paper Ingenico 7780 features an "easy loading" printer, for easy paper roll replacement. Switch the terminal off before doing this operation. Don’t touch the printer mechanism. Take care the paper cutter is very sharp and... -
Page 13: Installation And Starting
3 Installation and starting 3.1 Location of the terminal and the base The ideal place for the base is in the centre of the zone to be covered with a large open area around. The inside antenna is on the left side. It's mandatory to avoid docking the terminal on a metal surface and to place the hand under the printer during a communication, the range is strongly reduced. -
Page 14: Battery Set Up And Charging
Ingenico 7780 Operating temperatures +5°C to +40°C. Humidity 20% to 90% without condensation. Storage temperature -10°C to +60°C. 3.2 Battery set up and charging Your terminal is supplied with a removable rechargeable NIMH (optional Lithium-ion) battery. This battery recharges when the terminal is placed on its base. Only use the battery pack supplied with your terminal. - Page 15 Installing the battery pack Don’t touch the terminal on battery connectors Hold the battery with the connectors facing downwards, Position the battery lugs in the two terminal housings, Press the battery to close; you should hear a "click".
-
Page 16: Terminal Connections
Ingenico 7780 3.3 Terminal connections All the Ingenico 7780 connections are made via the base. RS-232 serial ports Telephone line Power supply plug SELV TNV-3 SELV * SELV : Separated Extra Low Voltage ** TNV-3 : Telecommunication network voltage The power supply socket and telephone socket should comply with applicable standards. - Page 17 Connect the telephone cable connector to the socket marked with the symbol EXT LINE. Telephone line extension [TNV-3**] All options are not available for the Ingenico 7780 model. Connecting to a peripheral Switch the base off and connect the peripheral cable to the base on the RS232 input/output marked COM2 or COM3.
- Page 18 Ingenico 7780 Power supply Power supply unit supply voltage 230 VAC Frequency 50 Hz Voltage output 18 VDC-0.7A to 21 VDC-0,6A RS232 COM2 and COM3 Interface Logic levels (RS 232C levels) speed: 300 to 115200 bauds format: 7 or 8 bits...
-
Page 19: Installing A Sim Card And A Full Format Card
3.4 Installing a SIM card and a full format card The SIM card and full format card connectors are located in the battery compartment located under the terminal. Don’t touch the terminal on battery connectors Installing the SIM card Remove the battery, Unlock the connector by sliding the metallic part in the direction of the Full format... - Page 20 Ingenico 7780 Installing the full format card Remove the battery, Slide the card into the housing connector to connector, Put the battery pack back in place; the battery pack keeps the off-the-shelf board in position. The full format card is used to identify the trader. This card is required for certain...
-
Page 21: Troubleshooting
3.5 Troubleshooting The terminal does not turn on Check that the battery is charged (see chapter 3.2 “Battery set up and charging”). Check base and wall support connections (both electric and telephone connections). You cannot connect to the telephone network Check base and wall support connections (both electric and telephone connections). - Page 22 Ingenico 7780...
-
Page 23: Recommendations
4 Recommendations 4.1 Security Your terminal fulfills the VISA security requirements, as well as high security requirements from Northern European and Asia-Pacific zone. In order to ensure that software integrity self-test is performed periodically, it is necessary to restart (disconnect-reconnect) the terminal at least once per day. 4.2 Safety As this terminal does not have a power off switch, the disconnecting device is the main transformer;... -
Page 24: Switched Telephone Network (Stn)
Ingenico 7780 4.3 Switched Telephone Network (STN This equipment has been certified according to the 98/482/EC decision made by the Pan European committee concerning the connection of equipments to the switched telephone network. The certification does not however provide unconditional assurance of optimum operation when connecting to the telephone network. -
Page 25: Weee
Potentially Explosive Atmospheres Turn your terminal OFF when in any area with a potentially explosive atmosphere. It is rare, but your terminal could generate sparks. Sparks in such areas could cause an explosion or fire resulting in injury or death. Areas with a potentially explosive atmosphere are often, but not always marked. -
Page 26: Index
Ingenico 7780 5 Index Battery ..........9, 14 Magnetic stripe card......11 Card reading .........11 Paper roll ..........12 Charge...........14 Power supply........18 Connecting a telephone to the base..17 Connecting peripherals......17 Connecting to the electric network ..17 Connections ..........16 Removing the SIM card....... 19 Full format card ........19... - Page 27 « Code de la propriété intellectuelle ». INGENICO keeps the right without notice to modify the characteristics and the functions of this device. INGENICO is not responsible for any use of this device, which would be non consistent with the present document.
- Page 28 Your contact Ingenico 192 avenue Charles de Gaulle 92200 Neuilly sur Seine_France Tél. : 01 46 25 82 00 - Fax : 01 47 72 56 95 www.ingenico.com...
