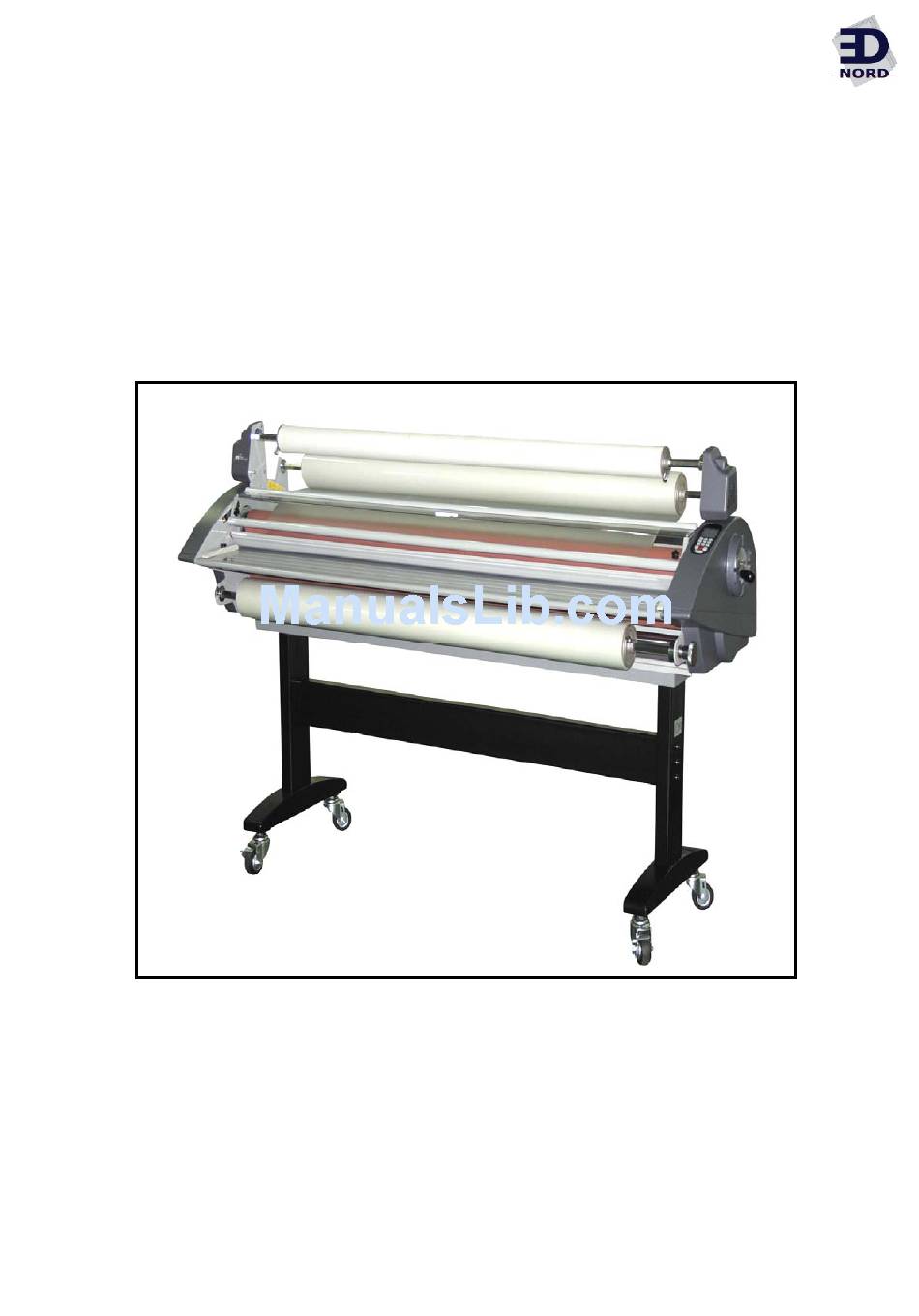

- Page 1 LAMINATORS Royal Sovereign OWNER'S MANUAL RSC-1650H/1650C PLEASE READ AND SAVE INSTRUCTIONS - 1 - EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TOPICS INSTRUCTION --------------------------------------------------------------- SAFETY PRECAUTIONS CHARACTERISTICS ----------------------------------------------------------- SPECIFICATIONS --------------------------------------------------------------- NAMES OF MAJOR PARTS OF MACHINE------------------------------------ SETTING UP FILM ------------------------------------------------------------- HANGING FILM ---------------------------------------------------------------- CONTROL OF ROLLER PRESSURE INSTRUCTIONS FOR CONTROL PANEL 1.FUNCTIONS OF CONTROL PANEL ---------------------------------- 2.HOW TO USE BUTTONS LAMINATING STEPS ------------------------------------------------------------ METHOD FOR USING CUTTER ------------------------------------------------... -
Page 3: Instruction
Thank you for purchasing a Royal Sovereign Roll Laminator. It has been designed and manufactured to provide years of continuous service in the professional environment. To insure high quality lamination, please read this instruction manual thoroughly. This manual will provide you with complete operating and maintenance information. -
Page 4: Characteristics
RS Roll Laminator Line is advanced laminators with time transcendental design, utilizing the latest in laminating technology. It is designed for you to set temperature and speed as necessary. Also you can laminate anything at high speed,regardless of thickness of material and type of film.It is also designed for convenient use by anyone through the simple procedure of adjusting film tension in accordance with the thickness of film and materials to be laminated. -
Page 5: Names Of Major Parts Of Machine
NAMES OF MAJOR PARTS OF MACHINE PART NAME FRAME-GUIDE,PAPER TAKE-UP SWITCH TAKE-UP BOBBIN IDLE BAR TABLE-FRONT HOT ROLLER ASS'Y-STAND CONTROL PANEL PRESSURE LEVER TENSION CONTROL KNOB SAFETY COVER FOOT SWITCH REMOCON SWITCH EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500 RSC-1650H UPPER ROLLER - 5 -... -
Page 6: Setting Up Film
주 주 름 름 방 방 지 지 부 부 표 시 창 1. Set the glossy side of upper/lower film to face the heat. ( Glossy side is PET film and matte side is thermal polymer laminating film.) 2. Like picture 1, insert core into the left side of upper/lower film shaft. 3. -
Page 7: Hanging Film
TAKE UP DEVICE PAPER BACK HOT ROLLER PAPER BACK 1. Set up cold film below the upper bar of the machine. (Set the same as methord of the HOT film for protect paper of lower part) 2. Set the pressure lever to the 15mm, open mode. 3. -
Page 8: Control Of Roller Pressure
CONTROL OF ROLLER PRESSURE ***Methods of controlling pressure of the roller** 1. For setting, pull the pressure lever out and turn the lever to following the indication 2. OPEN/15mm(Board) : For laminating 15mm thick board (RSC-1650H/1650C) 3. 10~13mm(Board) : For laminating 10~13mm thick board 4. -
Page 9: Instructions For Control Panel
INSTRUCTIONS FOR CONTROL PANEL We designed this machine standing by user’s convenience. You can manipulate speed and temperature . EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500 ***Terms*** - 9 -... -
Page 10: Functions Of Control Panel
1. FUNCTIONS OF CONTROL PANEL RUN/STOP BUTTON SPEED BUTTON LED OF SPEED : Display or speed LED OF TEMP. : Display temperature TEMP.BUTTON : Increase or decrease temperature REVERSE BUTTON 2.HOW TO USE BUTTONS RUN / STOP BUTTON Push the button in order to run rollers and push button to stop it. -
Page 11: Laminating Steps
1. Put cold roll film on upper bar.(Set the same as methord of the HOT film for protect paper of lower part) 2. Pull COLD film, and fix it so that backside protecting paper can be wound on take-up mandrel clockwise. -
Page 12: Method For Using Cutter
METHOD FOR USING CUTTER **Cross Cutter** EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500 1. It is on the back side of the machine. 2. After lamination, move cutter to a point about 1/3 of the width of lamination. 3. -
Page 13: Important Safety Concerns
IMPORTANT SAFETY CONCERNS 1.Please be cautious that neck tie, necklace, long hair, clothes are kept well away while operation. 2.Prevent children from accessing the machine Extreme Heat Will Cause Injury 3.Place the machines on the plated place in order to prevent the machine from damage. 4.Make certain that the machine is connecterd to an adequate power souce. -
Page 14: It's Not Out Of Order
3. Check if the emergency switch is off. 4. Check the s/w of safety cover is right. 1. Adjust film tension. ASSEMBLY PARTS MODEL PART NAME Bolt(M8X12) Washer(Φ8) RSC-1650H RSC-1650C BOLT CORE - 14 - CHECK POINT MODEL RSC-1650H RSC-1650C... -
Page 15: Warranty
1. For six month from the date of purchase, Royal Sovereign International Corporation or its authorized service center will repair this product free of charge if it is defective in material or workmanship. 2. This Limited Warranty does not include cleaning, or damage caused by accident, neglect, misuse or...
