X10SRL-F
USER'S MANUAL
Revision 1.1a

Advertisement

Table of Contents
loading

Related Manuals for Supero X10SRL-F

Summary of Contents for Supero X10SRL-F

  • Page 1 X10SRL-F USER’S MANUAL Revision 1.1a...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: Preface

    This manual is written for system integrators, IT professionals, and knowledgeable end users. It provides information for the installation and use of the X10SRL-F motherboard. About This Motherboard X10SRL-F supports a single Intel ® E5-2600/1600 Series processor in an LGA2011 R3 socket. With the Intel ®...

  • Page 4: Conventions Used In The Manual

    X10SRL-F User’s Manual Conventions Used in the Manual: Special attention should be given to the following symbols for proper system instal- lation: Warning: Critical information given to prevent damage to the components or injury to yourself. Note: Additional Information provided for correct system setup.

  • Page 5: Contacting Supermicro

    Contacting Supermicro Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...

  • Page 6: Table Of Contents

    X10SRL-F User’s Manual Table of Contents Preface About This Motherboard ....................iii Manual Organization ..................... iii Conventions Used in the Manual: .................iv Contacting Supermicro ....................v Chapter 1 Introduction Overview ......................1-1 Checklist ......................1-1 Motherboard Features ..................1-6 Chipset Overview ................... 1-9 Intel ®...
  • Page 7 Table of Contents Memory Support .................... 2-14 Memory Population Guidelines ..............2-14 Connectors/IO Ports ..................2-17 Backplane I/O Panel ..................2-17 Universal Serial Bus (USB) ..............2-18 Ethernet Ports ..................2-19 Serial Ports (COM1/COM2)..............2-19 Unit Identifier Switch/UID LED Indicator ..........2-20 VGA Port ....................
  • Page 8 Main Setup ...................... 4-2 The following Main menu items will be displayed: ........4-3 System Date/System Time ................ 4-3 Supermicro X10SRL-F ................4-3 BIOS Version: This item displays the version of the BIOS ROM used in the system......................4-3 Build Date: This item displays the date when the version of the BIOS ROM used in the system was built.
  • Page 9 Table of Contents Total Memory: This item displays the total size of memory available in the system......................4-3 Memory Speed: This item displays the default speed of the memory modules installed in the system..............4-3 Advanced Setup Configurations..............4-4 ...
  • Page 10 X10SRL-F User’s Manual XHCI Hand-Off ..................4-15 EHCI Hand-Off ..................4-15 Port 60/64 Emulation ................4-15 USB 3.0 Support ..................4-15 EHCI1 ....................... 4-15 EHCI2 ....................... 4-15 XHCI Pre-Boot Driver ................4-16  SATA Configuration ..................4-16 SATA Controller ..................4-16 Configure SATA as ...................
  • Page 11 Table of Contents VGA Priority ....................4-22 Network Stack ..................4-22  Super IO Configuration ................4-22  Serial Port 1 Configuration/Serial Port 2 Configuration ......4-22 Serial Port 1/Serial Port 2 ................ 4-22 Device Settings ..................4-22 Change Port 1 Settings/Change Port 2 Settings ........4-22 Serial Port 2 Attribute ................
  • Page 12 X10SRL-F User’s Manual IPMI ....................... 4-31 IPMI Firmware Revision ................4-31 IPMI Status ....................4-31  System Event Log ..................4-31 Enabling/Disabling Options ..............4-31 SEL Components ..................4-31 Erasing Settings ..................4-31 Erase SEL ....................4-31 When SEL is Full ..................4-32 ...
  • Page 13 Table of Contents Appendix C UEFI BIOS Recovery Instructions An Overview to the UEFI BIOS ..............C-1 How to Recover the UEFI BIOS Image ............C-1 To Recover the Main BIOS Block Using a USB-Attached Device....C-1 Appendix D Dual Boot Block on Grantley Platforms Overview ........................D-1 Before Startup ......................D-1 When to Use Dual Boot Block ...................D-1...
  • Page 14 X10SRL-F User’s Manual Notes...

  • Page 15: Chapter 1 Introduction

    Chapter 1: Introduction Chapter 1 Introduction Overview Checklist Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. Please check that the following items have all been included with your motherboard.

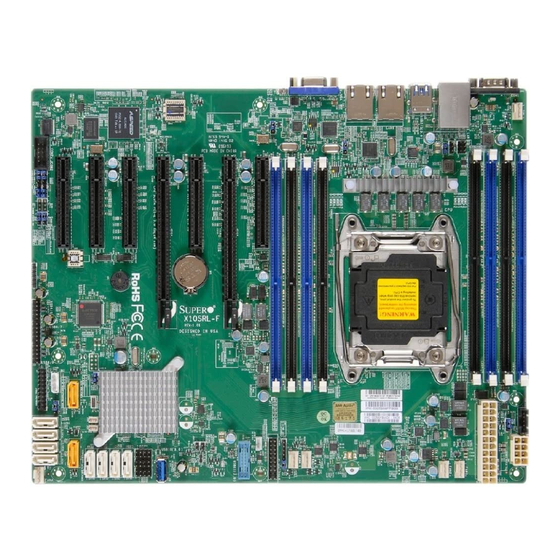

  • Page 16 X10SRL-F User’s Manual X10SRL-F Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. Your motherboard or components may or may not look exactly the same as the graphics shown in this manual.
  • Page 17 Chapter 1: Introduction X10SRL-F Motherboard Layout UID LED - LE1 COM1 UID - SW USB2/3(3.0) USB0/1 FAN5 IPMI_LAN LAN2 LAN1 LEDM1 JPL2 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 X10SRL-F IPMI Rev: 1.01 DESIGNED IN USA BAR CODE...
  • Page 18 X10SRL-F User’s Manual X10SRL-F Quick Reference UID LED - LE1 COM1 UID - SW USB2/3(3.0) USB0/1 FAN5 LAN2 LAN1 IPMI_LAN LEDM1 JPL2 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 IPMI X10SRL-F Rev: 1.01 DESIGNED IN USA BAR CODE...
  • Page 19 Backpanel USB 3.0 Ports 2/3 USB 4/5, 6/7, 8/9 Front Panel Accessible USB 2.0 Headers 4/5, 6/7, 8/9 USB 10, 11 (3.0) Front Panel Accessible USB 3.0 Ports 10, 11 Backpanel VGA Port X10SRL-F LED Indicators Description State/Color Status UID LED Blue: On...

  • Page 20: Motherboard Features

    X10SRL-F User’s Manual Motherboard Features Single Intel ® E5-2600/1600 Series processor in an LGA2011 R3 socket. Memory Eight (8) ECC/Non-ECC DDR4 RDIMM/LRDIMM at 1333/1600/1866/2133 MHz memory (1 DPC) up to 256GB RDIMM or 512GB LRDIMM. Dual-channel memory DIMM sizes RDIMM...
  • Page 21 Chapter 1: Introduction BIOS 128 Mb AMI BIOS ® SPI Flash BIOS Plug and Play (PnP), DMI 2.3, PCI 2.3, ACPI 1.0/2.0/3.0, USB Keyboard and SMBIOS 2.5 Power Configuration APM 1.2, APCI 2.3, ACPI 1.0/2.0/3.0/4.0, USB Keyboard, Plug & Play (PnP) and SMBIOS 2.3 Main Switch Override Mechanism Power-on mode for AC power recovery PC Health Monitoring...

  • Page 22: System Block Diagram

    X10SRL-F User’s Manual X10SRL-F Block Diagram VR12.5 5 PHASE 145W DMI2 2C/D 2A/B 3C/D 3A/B PCIe3.0 x8 SLOT6 PCIe3.0 x16 PCIe3.0 x4 PCIe3.0 x8 PCIe3.0 x8//x4 SLOT7 PCIe3.0 x8 SLOT3 PCIe3.0 x8 PCI-E PCIe3.0 x4 PCIe3.0 x0//x4 SWITCH SLOT2 PCIe3.0 x8 PCIe3.0 x8...

  • Page 23: Chipset Overview

    Direct Media Interface (DMI) for chip-to-chip true isochronous communication, providing up to 5 GT/s of software-transparent data transfer rate on each read/write direction. In addition, the X10SRL-F also features a TCO timer which allows the system to recover from a software/hardware lock and perform tasks, including Function Disable and Intruder Detect.

  • Page 24: Special Features

    X10SRL-F User’s Manual Special Features Recovery from AC Power Loss Basic I/O System (BIOS) provides a setting for you to determine how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off, (in which case you must press the power switch to turn it back on), or for it to automatically return to a power-on state.

  • Page 25: Acpi Features

    Chapter 1: Introduction ACPI Features ACPI stands for Advanced Configuration and Power Interface. The ACPI specifica- tion defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a PC system, including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as CD-ROMs, network cards, hard disk drives and printers.
  • Page 26 X10SRL-F User’s Manual Notes 1-12...

  • Page 27: Chapter 2 Installation

    Chapter 2: Installation Chapter 2 Installation Standardized Warning Statements The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assis- tance.
  • Page 28 X10SRL-F User’s Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re- emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-...

  • Page 29: Product Disposal

    Chapter 2: Installation Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要が あり ます。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 30: Static-Sensitive Devices

    X10SRL-F User’s Manual ‫القىانين واللىائح الىطنية‬ ‫جميع‬ ‫وفقا ل‬ ‫ينبغي التعامل معه‬ ‫هذا المنتج‬ ‫من‬ ‫التخلص النهائي‬ ‫عند‬ 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

  • Page 31: Motherboard Installation

    USB0/1 FAN5 LAN2 LAN1 IPMI_LAN LEDM1 JPL2 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 X10SRL-F IPMI Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 BIOS LICENSE JSD2 JWD1 MAC CODE S-SATA3 JSTBY1 S-SATA2...

  • Page 32: Installing The Motherboard

    X10SRL-F User’s Manual Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. (See the previous page.) 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 33: Processor And Heatsink Installation

    Chapter 2: Installation Processor and Heatsink Installation Warning: When handling the processor package, avoid placing direct pressure on the label area of the fan. Notes: • Always connect the power cord last, and always remove it before adding, re- moving or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink.
  • Page 34 X10SRL-F User’s Manual 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Press down on Load Pull lever away from Lever 'Close 1st' the socket 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the lever labelled 'Open 1st' to open the load plate.
  • Page 35 Chapter 2: Installation 4. Using your thumb and the index finger, remove the 'WARNING' plastic cap from the socket. 5. Using your thumb and index finger, hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6.
  • Page 36 X10SRL-F User’s Manual 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labelled 'Close 1st' first, then lock the lever labelled 'Open 1st' second.

  • Page 37: Installing A Passive Cpu Heatsink

    Chapter 2: Installation Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the Motherboard's and the Heatsink Bracket under- neath.

  • Page 38: Removing The Heatsink

    X10SRL-F User’s Manual Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to prevent damage to the CPU or the CPU socket.

  • Page 39: Installing Ddr4 Memory

    For complete memory population in- USB4/5 USB6/7 structions, see the "Memory Popu- USB8/9 JBT1 JIPMB1 IPMI X10SRL-F Rev: 1.01 lation Guidelines" section on the DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1...

  • Page 40: Removing Memory Modules

    DIMMA2 DIMMC1 DIMMA1 The X10SRL-F supports eight ECC/Non-ECC DDR4 RDIMM/LRDIMM at 1333/1600/1866/2133 MHz memory (1 DPC) up to 256GB RDIMM or 512GB LRDIMM. Populating these DIMM modules with a pair of memory modules of the same type and size will result in interleaved memory, which will improve memory performance.
  • Page 41 Chapter 2: Installation Populating RDIMM Memory Modules 2 Slots per Channel RDIMM Population Configurations Configuration POR Speed DIMM1 DIMM0 Number DDR4-2133, Empty Single-rank 1866, 1600 DDR4-2133, Empty Dual-rank 1866, 1600 DDR4-1866, Single-rank Single-rank 1600 DDR4-1866, Single-rank Dual-rank 1600 DDR4-1866, Dual-rank Dual-rank 1600 Populating LRDIMM Memory Modules...
  • Page 42 X10SRL-F User’s Manual Notes: • Be sure to use memory modules of the same type and speed on the same motherboard. Mixing of memory modules of different types and speeds is not allowed. • Due to memory allocation to system devices, the amount of memory that remains available for operational use will be reduced when 4 GB of RAM is used.

  • Page 43: Connectors/Io Ports

    FAN5 IPMI_LAN LAN2 LAN1 JPL2 LEDM1 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 IPMI X10SRL-F Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 BIOS LICENSE JSD2 JWD1 MAC CODE S-SATA3 JSTBY1 S-SATA2 5V STBY...

  • Page 44: Universal Serial Bus (Usb)

    X10SRL-F User’s Manual Universal Serial Bus (USB) Four Universal Serial Bus ports (USB 3.0 ports 2/3 and USB 2.0 ports 0/1) are located on the I/O back panel. In addition, three USB 2.0 headers (USB 4/5, 6/7, 8/9), and two USB 3.0 connectors (USB 10, USB 11) are also located on the motherboard to provide USB 3.0 support using USB cables (not included).

  • Page 45: Ethernet Ports

    USB0/1 LAN2 LAN1 IPMI_LAN LEDM1 JPL2 E. COM2 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 X10SRL-F IPMI Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 JSD2 BIOS LICENSE JWD1 MAC CODE S-SATA3 JSTBY1...

  • Page 46: Unit Identifier Switch/Uid Led Indicator

    X10SRL-F User’s Manual Unit Identifier Switch/UID LED Indicator UID Switch A Unit Identifier (UID) switch and an LED Pin# Definition Indicator are located on the motherboard. Ground The UID switch is located next to the VGA Ground port on the backplane. The UID LED (LE1) Button In is located next to the UID switch.

  • Page 47: Front Control Panel

    FAN5 LAN2 LAN1 IPMI_LAN LEDM1 JPL2 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 IPMI X10SRL-F Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 BIOS LICENSE JSD2 JWD1 MAC CODE S-SATA3 JSTBY1 S-SATA2 JSD1...

  • Page 48: Front Control Panel Pin Definitions

    X10SRL-F User’s Manual Front Control Panel Pin Definitions NMI Button NMI Button Pin Definitions (JF1) The non-maskable interrupt button Pin# Definition header is located on pins 19 and 20 Control of JF1. Refer to the table on the right Ground for pin definitions.

  • Page 49: Hdd Led

    NIC2 LED P3V3_STB P3V3_STB NIC1 LED HDD LED P3V3_STB USB4/5 P3V3 Power LED USB6/7 USB8/9 JBT1 JIPMB1 IPMI X10SRL-F Ground Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 JSD2 BIOS LICENSE JWD1 MAC CODE S-SATA3...

  • Page 50: Overheat (Oh)/Fan Fail/Pwr Fail/Uid Led

    X10SRL-F User’s Manual Overheat (OH)/Fan Fail/PWR Fail/ OH/Fan Fail/ PWR Fail/Blue_UID UID LED LED Pin Definitions (JF1) Pin# Definition Connect an LED cable to pins 7 and P5V_STB 8 of Front Control Panel to use the Red_LED-Cathode/OH/Fan Fail/ Overheat, Fan Fail, and Power Fail Power Fail connections.

  • Page 51: Reset Button

    NIC2 LED P3V3_STB P3V3_STB NIC1 LED HDD LED P3V3_STB P3V3 Power LED USB4/5 USB6/7 USB8/9 JBT1 Ground JIPMB1 X10SRL-F IPMI Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 BIOS LICENSE JSD2 JWD1 MAC CODE S-SATA3...

  • Page 52: Connecting Cables

    X10SRL-F User’s Manual Connecting Cables This section provides brief descriptions and pin-out definitions for onboard headers and connectors. Be sure to use the correct cable for each header or connector. For information on Backpanel USB and Front Panel USB ports, refer to page 2-17.

  • Page 53: Fan Headers (Fan 1-Fan 5 & Fan A )

    Chapter 2: Installation Fan Headers (Fan 1-Fan 5 & Fan A ) Fan Header Pin Definitions The X10SRL-F has six fan headers (Fan 1-Fan Pin# Definition 5 & Fan A). These fans are 4-pin fan headers. Ground (Black) Although pins 1-3 of the onboard fan headers 2.5A/+12V...

  • Page 54: Internal Speaker/Buzzer

    X10SRL-F User’s Manual Internal Speaker/Buzzer Internal Buzzer Pin Definition The Internal Speaker/Buzzer (SP1) is Pin# Definitions used to provide audible indications for Pin 1 Pos. (+) Beep In various beep codes. See the table on Pin 2 Neg. (-) Alarm the right for pin definitions.

  • Page 55: Dom Pwr Connector

    USB0/1 LAN2 LAN1 IPMI_LAN LEDM1 JPL2 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 IPMI X10SRL-F Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 JSD2 BIOS LICENSE JWD1 MAC CODE S-SATA3 JSTBY1 S-SATA2 5V STBY...

  • Page 56: T-Sgpio 1/2/3 Headers

    X10SRL-F User’s Manual T-SGPIO 1/2/3 Headers T-SGPIO/6-SGPIO Pin Definitions Two Serial-Link General Purpose Input/ Pin# Definition Definition Output headers (T-SGPIO 1/2/3) are located on the motherboard. T-SGPIO Data Ground 1/2/3 support onboard SATA interface. Ground Load See the table on the right for pin defini- Clock tions.

  • Page 57: Tpm Header/Port 80 Header

    LAN2 LAN1 IPMI_LAN JPL2 LEDM1 B. VGA Port CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 X10SRL-F IPMI Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 JSD2 BIOS LICENSE JWD1 MAC CODE S-SATA3 JSTBY1...

  • Page 58: Jumper Settings

    X10SRL-F User’s Manual Jumper Settings Explanation of Jumpers To modify the operation of the mother- board, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 59: Cmos Clear

    FAN5 IPMI_LAN LAN2 LAN1 JPL2 LEDM1 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 IPMI X10SRL-F Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 BIOS LICENSE JSD2 JWD1 MAC CODE S-SATA3 JSTBY1 S-SATA2 5V STBY...

  • Page 60: Manufacture Mode Select

    X10SRL-F User’s Manual Manufacture Mode Select ME Mode Select Jumper Settings Close this jumper (JPME2) to bypass Pin# Definition SPI flash security and force the system Normal (Default) to use the Manufacture Mode which will Manufacture Mode allow the user to flash the system firm- ware from a host server to modify system settings.

  • Page 61: Watch Dog Enable/Disable

    FAN5 LAN2 LAN1 IPMI_LAN LEDM1 JPL2 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 IPMI X10SRL-F Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 BIOS LICENSE JSD2 JWD1 MAC CODE S-SATA3 JSTBY1 S-SATA2 5V STBY...

  • Page 62: Bmc Enable/Disable (Jpb1)

    X10SRL-F User’s Manual BMC Enable/Disable (JPB1) BMC IPMI Enable/Disable Jumper Settings JPB1 is used to enable or disable Pin # Definition the BMC (Baseboard Management Enabled (Default) Control) chip and the onboard IPMI Disabled connection. This jumper is used to- gether with the IPMI settings in the BIOS.

  • Page 63: Onboard Indicators

    FAN5 IPMI_LAN LAN2 LAN1 JPL2 LEDM1 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 IPMI X10SRL-F Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 BIOS LICENSE JSD2 JWD1 MAC CODE S-SATA3 JSTBY1 S-SATA2 5V STBY...

  • Page 64: Onboard Power Led

    BMC Heartbeat LED BMC Heartbeat LED Status A BMC Heartbeat LED is located at Color/State Definition LEDM1 on the X10SRL-F. See the table Green: BMC: Normal Blinking on the right for more information. A. BMC LED B. Onboard Power LED...

  • Page 65: 2-10 Sata Connections

    USB0/1 FAN5 IPMI_LAN LAN2 LAN1 JPL2 LEDM1 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 X10SRL-F IPMI Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1 I-SATA5 JSD2 BIOS LICENSE JWD1 MAC CODE S-SATA3 JSTBY1 S-SATA2...
  • Page 66 X10SRL-F User’s Manual Notes 2-40...

  • Page 67: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any hardware components.

  • Page 68: No Video

    X10SRL-F User’s Manual No Video 1. If the power is on, but you have no video--in this case, you will need to re- move all the add-on cards and cables first. 2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A for details on beep codes.)

  • Page 69: Technical Support Procedures

    Chapter 3: Troubleshooting Technical Support Procedures Before contacting Technical Support, please make sure that you have followed all the steps listed below. Also, Note that as a motherboard manufacturer, Supermicro does not sell directly to end users, so it is best to first check with your distributor or reseller for troubleshooting services.

  • Page 70: Frequently Asked Questions

    Frequently Asked Questions Question: What type of memory does my motherboard support? Answer: The X10SRL-F supports up to 256GB of RDIMM and 512Gb of LRDIMM DDR4 1333/1600/1866/2133 MHz in eight memory slots. See Section 2-5 for details on installing memory.

  • Page 71: Battery Removal And Installation

    Chapter 3: Troubleshooting Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock out- wards to unlock it.

  • Page 72: Returning Merchandise For Service

    X10SRL-F User’s Manual Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. For faster service, you may also obtain RMA authorizations online (http://www.supermicro.

  • Page 73: Chapter 4 Bios

    BIOS Introduction This chapter describes the AMI BIOS setup utility for the X10SRL-F. The ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS setup utility screens.

  • Page 74: How To Start The Setup Utility

    X10SRL-F User’s Manual How to Start the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the AMI BIOS setup utility. From the main menu, you can access the other setup screens.

  • Page 75: The Following Main Menu Items Will Be Displayed

    Day MM/DD/YYYY format. The time is entered in HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. Supermicro X10SRL-F BIOS Version: This item displays the version of the BIOS ROM used in the system.

  • Page 76: Advanced Setup Configurations

    X10SRL-F User’s Manual Advanced Setup Configurations Use the arrow keys to select Advanced setup and press <Enter> to access the submenu items: Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction.

  • Page 77: Wait For 'F1' If Error

    Chapter 4: AMI BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture"...

  • Page 78: Cpu Configuration

    X10SRL-F User’s Manual CPU Configuration  Warning! Setting the wrong values in the following sections may cause the system to malfunction. CPU Configuration The following CPU information will be displayed: • Processor Socket • Processor ID • Processor Frequency •...

  • Page 79: Execute Disable Bit (Available If Supported By The Os & The Cpu)

    Chapter 4: AMI BIOS Execute Disable Bit (Available if supported by the OS & the CPU) Set to Enabled for Execute Disable Bit support which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to over- whelm the processor or damaging the system during a virus attack.

  • Page 80: X2Apic (Extended Advanced Programmable Interrupt Controller)

    X10SRL-F User’s Manual X2APIC (Extended Advanced Programmable Interrupt Controller) Based on the Intel Hyper-Threading technology, each logical processor (thread) is assigned 256 APIC IDs (APIDs) in 8-bit bandwidth. When this item is set to En- able, the APIC ID will be expanded from 8 bits to 16 bits to provide 512 APIDs to each thread to enhance CPU performance.
  • Page 81 Chapter 4: AMI BIOS P-state Coordination Use this item to configure the processor's P-State coordination settings. During a P-State, the voltage and frequency of the processor will be reduced when it is in operation. This makes the processor more energy efficient, resulting in further energy gains.

  • Page 82: Ioat Configuration

    X10SRL-F User’s Manual Chipset Configuration North Bridge This feature allows the user to configure the settings for the Intel North Bridge. IIO Configuration EV DFX (Device Function On-Hide) Feature When this feature is set to Enable, the EV_DFX Lock Bits that are located on a processor will always remain clear during electric tuning.

  • Page 83: Intel Vt For Directed I/O (Vt-D)

    Chapter 4: AMI BIOS No Snoop Select Enable to support no-snoop mode for each CB device. The options are Disable and Enable. Relaxed Ordering Select Enable to enable Relaxed Ordering support which will allow certain trans- actions to violate the strict-ordering rules of PCI and to be completed prior to other transactions that have already been enqueued.

  • Page 84: Memory Configuration

    X10SRL-F User’s Manual COD Enable (Available when the OS and the CPU support this feature) Select Enabled for Cluster-On-Die support to enhance system performance in cloud computing. The options are Enabled and Disabled. Early Snoop (Available when the OS and the CPU support this feature) Select Enabled for Early Snoop support to enhance system performance.

  • Page 85: Dimm Information

    Chapter 4: AMI BIOS A7 Mode Select Enabled to support A7 (Addressing) Mode to improve memory perfor- mance. The options are Enable and Disable. DIMM Information This item displays the status of a DIMM module specified. • DIMMA1 • DIMMA2 •...
  • Page 86 X10SRL-F User’s Manual Patrol Scrub Patrol Scrubbing is a process that allows the CPU to correct correctable memory errors detected in a memory module and send the correction to the requestor (the original source). When this item is set to Enable, the IO hub will read and write back one cache line every 16K cycles if there is no delay caused by internal processing.

  • Page 87: South Bridge

    Chapter 4: AMI BIOS South Bridge  The following South Bridge information will display:\ • USB Configuration • USB Module Version • USB Devices Legacy USB Support Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only.

  • Page 88: Xhci Pre-Boot Driver

    X10SRL-F User’s Manual XHCI Pre-Boot Driver Select Enabled to enable XHCI (Extensible Host Controller Interface) support on a pre-boot drive specified by the user. The options are Enabled and Disabled. SATA Configuration  When this submenu is selected, the AMI BIOS automatically detects the presence...

  • Page 89: If The Item Above "Configure Sata As" Is Set To Ide, The Following Items Will Display

    Chapter 4: AMI BIOS Port 0 ~ Port 5 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to initialize the device. The options are Enabled and Disabled. Port 0 ~ Port 5 SATA Device Type Use this item to specify if the SATA port specified by the user should be con- nected to a Solid State drive or a Hard Disk Drive.

  • Page 90: Ssata Configuration

    X10SRL-F User’s Manual Port 0~ Port 5 Select Enabled to enable a SATA port specified by the user. The options are Disabled and Enabled. Port 0 ~ Port 5 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization to the device.

  • Page 91: If The Item Above "Configure Ssata As" Is Set To Ide, The Following Items Will Display

    Chapter 4: AMI BIOS sSATA Port 0~ Port 3 Select Enabled to enable an sSATA port specified by the user. The options are Disabled and Enabled. sSATA Port 0 ~ Port 3 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization to the device.

  • Page 92: Server Me (Management Engine) Configuration

    X10SRL-F User’s Manual • Software Preserve Support sSATA Port 0~ Port 3 Select Enabled to enable an sSATA port specified by the user. The options are Disabled and Enabled. sSATA Port 0 ~ Port 3 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization to the device.

  • Page 93: Pci Perr/Serr Support

    Chapter 4: AMI BIOS PCI PERR/SERR Support Select Enabled to allow a PCI device to generate a PERR/SERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. Above 4G Decoding (Available if the system supports 64-bit PCI decoding) Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address.

  • Page 94: Onboard Lan Option Rom Type

    X10SRL-F User’s Manual Select Enabled to enable Option ROM support to boot the computer using a de- vice installed on the slot specified by the user. The options are Disabled, Legacy and EFI. Onboard LAN Option ROM Type Use this item to select the Onboard LAN Option ROM type. The options are Legacy and EFI.

  • Page 95: Serial Port 2 Attribute

    Chapter 4: AMI BIOS The options for Serial Port 1 are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12). The options for Serial Port 2 are Auto, (IO=3F8h;...
  • Page 96 X10SRL-F User’s Manual Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd.

  • Page 97: Sol/Com2

    Chapter 4: AMI BIOS Redirection After BIOS Post Use this feature to enable or disable legacy Console Redirection after BIOS POST. When set to Bootloader, legacy Console Redirection is disabled before booting the OS. When set to Always Enable, legacy Console Redirection remains enabled when booting the OS.
  • Page 98 X10SRL-F User’s Manual Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd.

  • Page 99: Serial Port For Out-Of-Band Management/Windows Emergency Management Services (Ems)

    Chapter 4: AMI BIOS Redirection After BIOS Post Use this feature to enable or disable legacy Console Redirection after BIOS POST. When set to Bootloader, legacy Console Redirection is disabled before booting the OS. When set to Always Enable, legacy Console Redirection remains enabled when booting the OS.

  • Page 100: Acpi Settings

    X10SRL-F User’s Manual Flow Control Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty.

  • Page 101: Event Logs

    Chapter 4: AMI BIOS Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.

  • Page 102: Erasing Settings

    X10SRL-F User’s Manual Erasing Settings Erase Event Log Select Enabled to erase all error events in the SMBIOS (System Management BIOS) log before an event logging is initialized at bootup. The options are No and Yes. When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full.

  • Page 103: Ipmi

    Chapter 4: AMI BIOS IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system. System Event Log ...

  • Page 104: When Sel Is Full

    X10SRL-F User’s Manual When SEL is Full This feature allows the user to determine what the BIOS should do when the sys- tem event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.
  • Page 105 Chapter 4: AMI BIOS Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253). 4-33...

  • Page 106: Security

    X10SRL-F User’s Manual Security This menu allows the user to configure the following security settings for the system. Password Check Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility.

  • Page 107: Boot

    Chapter 4: AMI BIOS Boot Use this feature to configure Boot Settings: Setup Prompt Timeout Use this item to indicate the length of time (the number of seconds) for the BIOS to wait before rebooting the system when the setup activation key is pressed. Enter the value of 65535 (0xFFFF) for the BIOS to wait indefinitely.

  • Page 108: Delete Boot Option

    X10SRL-F User’s Manual • Dual Boot Order #7 • Dual Boot Order #8 • Dual Boot Order #9 • Dual Boot Order #10 • Dual Boot Order #11 • Dual Boot Order #12 • Dual Boot Order #13 • Dual Boot Order #14 •...

  • Page 109: Save & Exit

    Chapter 4: AMI BIOS Save & Exit Select the Save & Exit tab from the BIOS setup screen to configure the settings below. Discard Changes and Exit Select this option to quit the BIOS setup without making any permanent changes to the system configuration, and reboot the computer.

  • Page 110: Restore Optimized Defaults

    X10SRL-F User’s Manual Restore Optimized Defaults To set this feature, select Restore Optimized Defaults from the Exit menu and press <Enter>. These are factory settings designed for maximum system performance but not for maximum stability. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>.

  • Page 111: Appendix A Bios Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue with bootup.
  • Page 112 X10SRL-F User’s Manual Notes...

  • Page 113: Appendix B Software Installation Instructions

    Appendix B: Software Installation Instructions Appendix B Software Installation Instructions B-1 Installing Software Programs The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 114: B-2 Installing Superdoctor5

    X10SRL-F Motherboard User’s Manual B-2 Installing SuperDoctor5 The Supermicro SuperDoctor® 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 115: C-1 An Overview To The Uefi Bios

    Appendix C: UEFI BIOS Recovery Appendix C UEFI BIOS Recovery Instructions Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 116 X10SRL-F User’s Manual 1. Using a different machine, copy the "Super.ROM" binary image file into the disc Root "\" Directory of a USB device or a writeable CD/DVD. Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www.supermicro.com to download the BIOS image into...
  • Page 117 Appendix C: UEFI BIOS Recovery 6. After the process of BIOS Recovery is complete, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a bootable USB flash drive. 8. When a DOS prompt appears, enter FLASH.BAT BIOSname.### at the prompt.
  • Page 118 X10SRL-F User’s Manual 9. After seeing the message that BIOS update is completed, unplug the AC pow- er cable from the power supply to clear CMOS, and then plug the AC power cable in the power supply again to power on the system.

  • Page 119: Appendix D Dual Boot Block On Grantley Platforms

    Appendix D: Dual Boot Block Appendix D Dual Boot Block on Grantley Platforms Overview On X10 Grantley platforms, Supermicro introduces the Dual Boot Block feature that revives the system from an inert state if the primary boot block in the ROM chip is damaged.

  • Page 120: D-1 Ipmi Gui Browser

    X10SRL-F User’s Manual D-1 IPMI GUI Browser To perform perform the Dual Boot Block through the IPMI GUI browser, follow the instructions below: 1. After the IPMI GUI browser log-in, click on the Miscellaneous tab, then BIOS Resilience, then the Resile button.
  • Page 121 Appendix D: Dual Boot Block 3. Click on the Remote Control tab, then Console Redirection, then the Launch Console button to open the Java iKVM Viewer. 4. In the Java iKVM Browser, click on the Virtual Media tab, then Virtual Stor- age to open the Virtual Media Loader.
  • Page 122 X10SRL-F User’s Manual 5. In the Virtual Media loader, click on the Device1 tab, then Logical Drive Type drop-down menu, then select the USB flash drive with Super.ROM. Click Plug In, then OK. 6. Click on the Remote Control tab, then Power Control, then check the Power On Server button.
  • Page 123 Appendix D: Dual Boot Block 7. After the system powers on, the secondary boot block starts to initialize the essential hardware components and locates Super.ROM in the USB flash drive, which was mounted earlier. If Super.ROM is found, the on-duty boot block boots to it and finishes the rest of the POST processes.
  • Page 124 X10SRL-F User’s Manual 9. A message box will appear to indicate the BIOS recovery flash process is complete. Press ENTER to finish. The system will do a power cycle to deacti- vate the dual boot block feature and produce a normal BIOS POST.

  • Page 125: D-2 Ipmi Command Sets

    Appendix D: Dual Boot Block D-2 IPMI Command Sets To perform perform the Dual Boot Block through the IPMI Command Sets, follow the instructions below: 1. After the IPMI GUI browser log-in, click on the Remote Control tab, then Console Redirection, then the Launch Console button to open Java iKVM Viewer.
  • Page 126 X10SRL-F User’s Manual 3. Enable BIOS Resilience mode in remote IPMI and confirm. • To enable, type the following command in the command prompt: ipmi raw 30 70 C2 D5 00 00 • To confirm, type the following command in the command prompt: impi raw 30 70 C3 D5 4.

  • Page 127: User Approach

    Appendix D: Dual Boot Block 5. Power on the remote system for BIOS recovery flash. • To power on, type: ipmi power up After the system powers on, the secondary boot block initializes the essential hardware components and locates Super.ROM in the USB flash drive, which are the same as Steps 7-9 in Section D-1.
  • Page 128 X10SRL-F User’s Manual Notes D-10...
  • Page 129 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.

Table of Contents
