  • Page 1 X10SRL-F USER’S MANUAL Revision 1.0c...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: Preface

    ® Server Platform Services (Intel SPS), offering great system enhancement to high performance storage platforms. Please refer to our website (http://www.supermicro.com/products/) for processor and memory support updates. This product is intended to be installed and serviced by professional technicians. Manual Organization...

  • Page 4: Conventions Used In The Manual

    X10SRL-F User’s Manual Conventions Used in the Manual: Special attention should be given to the following symbols for proper system instal- lation: Warning: Critical information given to prevent damage to the components or injury to yourself. Note: Additional Information provided for correct system setup.

  • Page 5: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 6: Table Of Contents

    X10SRL-F User’s Manual Table of Contents Preface About This Motherboard ....................iii Manual Organization ..................... iii Conventions Used in the Manual: .................iv Contacting Supermicro ....................v Chapter 1 Introduction Overview ......................1-1 Checklist ......................1-1 Motherboard Features ..................1-6 Chipset Overview ................... 1-9 Intel C612 Express Chipset Features .............
  • Page 7 Table of Contents DIMM Installation ..................2-13 Removing Memory Modules ................. 2-14 Memory Support .................... 2-14 Memory Population Guidelines ..............2-14 Connectors/IO Ports ..................2-17 Backplane I/O Panel ..................2-17 Universal Serial Bus (USB) ..............2-18 Ethernet Ports ..................2-19 Serial Ports (COM1/COM2)..............
  • Page 8 Main Setup ...................... 4-2 The following Main menu items will be displayed: ........4-2 System Date/System Time ................ 4-3 Supermicro X10SRL-F ................4-3 BIOS Version: This item displays the version of the BIOS ROM used in the system......................4-3 Build Date: This item displays the date when the version of the BIOS ROM used in the system was built.
  • Page 9 Table of Contents Memory Information ................... 4-3 Total Memory: This item displays the total size of memory available in the system......................4-3 Memory Speed: This item displays the default speed of the memory modules installed in the system..............4-3 Advanced Setup Configurations..............
  • Page 10 X10SRL-F User’s Manual IIO Configuration ..................4-12  Intel VT for Directed I/O (VT-d) ..............4-13 QPI (Quick Path Interconnect) Configuration ..........4-14  South Bridge ....................4-18 Legacy USB Support ................4-18 XHCI Hand-Off ..................4-18 EHCI Hand-Off ..................4-18 USB Mass Storage Driver Support ............
  • Page 11 Table of Contents ASPM Support ..................4-25 MMIOHBase ..................... 4-26 MMIO High Size ..................4-26 PCH SLOT1 PCI-E 2.0 x4 (in x8) OPPROM, CPU SLOT2 PCI-E 3.0 x4 (in x8) OPPROM, CPU SLOT3 PCI-E 3.0 x8 OPPROM, CPU SLOT4 PCI-E 3.0 x8 (in x16) OPPROM, CPU SLOT5 PCI-E 3.0 x8 OPPROM, CPU SLOT6 PCI-E 3.0 x16 OPPROM, CPU SLOT7 PCI-E 3.0 x8 OPPROM, ...
  • Page 12 X10SRL-F User’s Manual Event Logs ....................4-34  Change SMBIOS Event Log Settings ............4-34 Enabling/Disabling Options ..............4-34 SMBIOS Event Log .................. 4-34 Runtime Error Logging Support ............... 4-34 Memory Corrected Error Enabling (Available when the item above-Runtime Error Logging Support is set to Enable) ..........4-34 PCI-Ex (PCI-Express) Error Enable ............
  • Page 13 Table of Contents  Hard Disk Drive BBS Priorities ............. 4-41  Network Drive BBS Priorities ..............4-41  UEFI Application Boot Priorities ............4-41 Save & Exit ....................4-42 Discard Changes and Exit ..............4-42 Save Changes and Reset ................ 4-42 Save Options ....................
  • Page 14 X10SRL-F User’s Manual Notes...

  • Page 15: Chapter 1 Introduction

    Checklist Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. Please check that the following items have all been included with your motherboard.

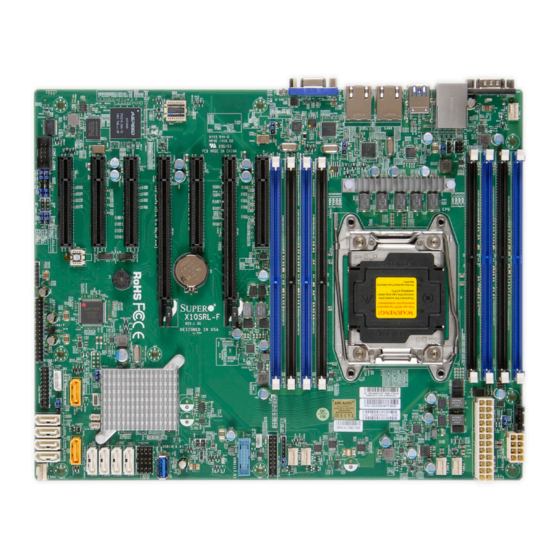

  • Page 16 X10SRL-F User’s Manual X10SRL-F Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. Your motherboard or components may or may not look exactly the same as the graphics shown in this manual.
  • Page 17 Chapter 1: Introduction X10SRL-F Motherboard Layout UID LED - LE1 COM1 UID - SW USB2/3(3.0) USB0/1 FAN5 IPMI_LAN LAN2 LAN1 LEDM1 JPL2 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 X10SRL-F IPMI Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1...

  • Page 18: Jumper Description

    X10SRL-F User’s Manual X10SRL-F Quick Reference UID LED - LE1 COM1 UID - SW USB2/3(3.0) USB0/1 FAN5 LAN2 LAN1 IPMI_LAN LEDM1 JPL2 CTRL JVR1 JPL1 CTRL USB4/5 USB6/7 USB8/9 JBT1 JIPMB1 IPMI X10SRL-F Rev: 1.01 DESIGNED IN USA BAR CODE Intel PCH IPMI CODE JPI2C1...
  • Page 19 Chapter 1: Introduction X10SRL-F Headers/Connectors Connector Description Battery (BT1) Onboard Battery COM1/COM2 COM1 (Port)/COM2 (Header) Fan1 - Fan5, FanA System/CPU Fan Headers 24-pin Main ATX Power Connector Speaker/Buzzer (Pins 1-3: Power LED, Pins 4-7: Speaker) Front Panel Control Header JIPMB1 4-pin External BMC I C Header (for an IPMI Card) Chassis Intrusion Header...

  • Page 20: Motherboard Features

    X10SRL-F User’s Manual Motherboard Features Single Intel ® E5-2600/1600 Series processor in an LGA2011 R3 socket. Memory Eight (8) ECC/Non-ECC DDR4 RDIMM/LRDIMM/UDIMM at 1333/1600/1866/2133 MHz memory (1 DPC) up to 256GB RDIMM, 512GB LRDIMM, or 64GB UDIMM. Dual-channel memory DIMM sizes RDIMM 1GB, 2 GB, 4GB, 8GB, 16GB, and 32GB...
  • Page 21 Chapter 1: Introduction BIOS 128 Mb AMI BIOS ® SPI Flash BIOS Plug and Play (PnP), DMI 2.3, PCI 2.3, ACPI 1.0/2.0/3.0, USB Keyboard and SMBIOS 2.5 Power Configuration APM 1.2, APCI 2.3, ACPI 1.0/2.0/3.0/4.0, USB Keyboard, Plug & Play (PnP) and SMBIOS 2.3 Main Switch Override Mechanism Power-on mode for AC power recovery PC Health Monitoring...

  • Page 22: System Block Diagram

    X10SRL-F User’s Manual X10SRL-F Block Diagram VR12.5 5 PHASE 145W DMI2 2C/D 2A/B 3C/D 3A/B PCIe3.0 x8 SLOT6 PCIe3.0 x16 PCIe3.0 x4 PCIe3.0 x8 PCIe3.0 x8//x4 SLOT7 PCIe3.0 x8 SLOT3 PCIe3.0 x8 PCI-E PCIe3.0 x4 PCIe3.0 x0//x4 SWITCH SLOT2 PCIe3.0 x8 PCIe3.0 x8 DMI2 SLOT4...

  • Page 23: Chipset Overview

    Chapter 1: Introduction Chipset Overview The X10SRL-F supports a single Intel ® E5-2600/1600 Series Processor in an LGA2011 R3 socket. Built upon the functionality and the capability of the Intel ® C612 Express chipset, the motherboard provides substantial enhancement to system performance and storage capability for high performance platforms in a sleek package.

  • Page 24: Special Features

    X10SRL-F User’s Manual Special Features Recovery from AC Power Loss Basic I/O System (BIOS) provides a setting for you to determine how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off, (in which case you must press the power switch to turn it back on), or for it to automatically return to a power-on state.

  • Page 25: Acpi Features

    Chapter 1: Introduction ACPI Features ACPI stands for Advanced Configuration and Power Interface. The ACPI specifica- tion defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a PC system, including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as CD-ROMs, network cards, hard disk drives and printers.

  • Page 26: Super I/O

    X10SRL-F User’s Manual Super I/O The Super I/O supports two high-speed, 16550 compatible serial communication ports (UARTs). Each UART includes a 16-byte send/receive FIFO, a programmable baud rate generator, complete modem control capability and a processor interrupt system. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed modems.

  • Page 27: Chapter 2 Installation

    The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assis- tance. Only certified technicians should attempt to install or configure components.
  • Page 28 X10SRL-F User’s Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re- emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen- dado por el fabricante.

  • Page 29: Product Disposal

    Chapter 2: Installation Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要が あり ます。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 30: Static-Sensitive Devices

    X10SRL-F User’s Manual ‫القىانين واللىائح الىطنية‬ ‫جميع‬ ‫وفقا ل‬ ‫ينبغي التعامل معه‬ ‫هذا المنتج‬ ‫من‬ ‫التخلص النهائي‬ ‫عند‬ 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

  • Page 31: Motherboard Installation

    Chapter 2: Installation Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both motherboard and chassis match. Although a chassis may have both plastic and metal mounting fas- teners, metal ones are highly recommended because they ground the motherboard to the chassis.

  • Page 32: Installing The Motherboard

    X10SRL-F User’s Manual Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. (See the previous page.) 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 33: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the LGA2011 Processor 1. There are two load levers on the LGA2011 socket. To open the socket cover, first press and release the load lever labeled 'Open 1st'.
  • Page 34 X10SRL-F User’s Manual 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Press down on Load Pull lever away from Lever 'Close 1st' the socket 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the lever labelled 'Open 1st' to open the load plate.
  • Page 35 Chapter 2: Installation 4. Using your thumb and the index finger, remove the 'WARNING' plastic cap from the socket. 5. Using your thumb and index finger, hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6.
  • Page 36 X10SRL-F User’s Manual 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labelled 'Close 1st' first, then lock the lever labelled 'Open 1st' second.

  • Page 37: Installing A Passive Cpu Heatsink

    Chapter 2: Installation Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the Motherboard's and the Heatsink Bracket under- neath.

  • Page 38: Removing The Heatsink

    X10SRL-F User’s Manual Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to prevent damage to the CPU or the CPU socket. 1.

  • Page 39: Installing Ddr4 Memory

    Chapter 2: Installation Installing DDR4 Memory Note: Check the Supermicro website for recommended memory mod- ules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. DIMM Installation UID LED - LE1 UID - SW COM1 USB2/3(3.0)

  • Page 40: Removing Memory Modules

    X10SRL-F User’s Manual Removing Memory Modules Reverse the steps above to remove the DIMM modules from the motherboard. Memory Support DIMMD2 DIMMB2 DIMMD1 DIMMB1 DIMMC2 DIMMA2 DIMMC1 DIMMA1 The X10SRL-F supports eight ECC/Non-ECC DDR4 RDIMM/LRDIMM/UDIMM at 1333/1600/1866/2133 MHz memory (1 DPC) up to 256GB RDIMM, 512GB LRDIMM, or 64GB UDIMM.
  • Page 41 Chapter 2: Installation Populating RDIMM Memory Modules 2 Slots per Channel RDIMM Population Configurations Configuration POR Speed DIMM1 DIMM0 Number DDR4-2133, Empty Single-rank 1866, 1600 DDR4-2133, Empty Dual-rank 1866, 1600 DDR4-1866, Single-rank Single-rank 1600 DDR4-1866, Single-rank Dual-rank 1600 DDR4-1866, Dual-rank Dual-rank 1600 Populating LRDIMM Memory Modules...
  • Page 42 X10SRL-F User’s Manual Notes: • Be sure to use memory modules of the same type and speed on the same motherboard. Mixing of memory modules of different types and speeds is not allowed. • Due to memory allocation to system devices, the amount of memory that remains available for operational use will be reduced when 4 GB of RAM is used.

  • Page 43: Connectors/Io Ports

    Chapter 2: Installation Connectors/IO Ports The I/O ports are color coded in conformance with the industry standards. See the figure below for the colors and locations of the various I/O ports. Backplane I/O Panel UID LED - LE1 COM1 UID - SW USB2/3(3.0) USB0/1 FAN5...

  • Page 44: Universal Serial Bus (Usb)

    X10SRL-F User’s Manual Universal Serial Bus (USB) Four Universal Serial Bus ports (USB 3.0 ports 2/3 and USB 2.0 ports 0/1) are located on the I/O back panel. In addition, three USB 2.0 headers (USB 4/5, 6/7, 8/9), and two USB 3.0 connectors (USB 10, USB 11) are also located on the motherboard to provide USB 3.0 support using USB cables (not included).

  • Page 45: Ethernet Ports

    Chapter 2: Installation Ethernet Ports LAN Ports Pin Definition Two Gigabit Ethernet ports (LAN1/LAN2) Pin# Definition and an IPMI_LAN port are located on SGND TD0+ the I/O Backpanel to provide network TD0- connections. These ports accept RJ45 TD3+ Link 1000 LED type cables.

  • Page 46: Unit Identifier Switch/Uid Led Indicator

    Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website @ http:// www.supermicro.com. A. VGA VGA Port B. UID Switch The onboard VGA port is located next to C.

  • Page 47: Front Control Panel

    These connectors are designed spe- cifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators. Refer to the following section for descriptions and pin definitions.

  • Page 48: Front Control Panel Pin Definitions

    X10SRL-F User’s Manual Front Control Panel Pin Definitions NMI Button NMI Button Pin Definitions (JF1) The non-maskable interrupt button Pin# Definition header is located on pins 19 and 20 Control of JF1. Refer to the table on the right Ground for pin definitions.

  • Page 49: Hdd Led

    Chapter 2: Installation HDD LED HDD LED Pin Definitions (JF1) The HDD LED connection is located Pin# Definition on pins 13 and 14 of JF1. Attach a P3V3_STB cable here to indicate HDD activ- HD Active ity. See the table on the right for pin definitions.

  • Page 50: Overheat (Oh)/Fan Fail/Pwr Fail/Uid Led

    X10SRL-F User’s Manual Overheat (OH)/Fan Fail/PWR Fail/ OH/Fan Fail/ PWR Fail/Blue_UID UID LED LED Pin Definitions (JF1) Pin# Definition Connect an LED cable to pins 7 and P5V_STB 8 of Front Control Panel to use the Red_LED-Cathode/OH/Fan Fail/ Overheat, Fan Fail, and Power Fail Power Fail connections.

  • Page 51: Reset Button

    Chapter 2: Installation Reset Button Reset Button Pin Definitions (JF1) The Reset Button connection is located Pin# Definition on pins 3 and 4 of JF1. Attach it to a Reset hardware reset switch on the computer Ground case. Refer to the table on the right for pin definitions.

  • Page 52: Connecting Cables

    X10SRL-F User’s Manual Connecting Cables This section provides brief descriptions and pin-out definitions for onboard headers and connectors. Be sure to use the correct cable for each header or connector. For information on Backpanel USB and Front Panel USB ports, refer to page 2-17. ATX Power 24-pin Connector ATX Main PWR &...

  • Page 53: Fan Headers (Fan 1-Fan 5 & Fan A )

    Chapter 2: Installation Fan Headers (Fan 1-Fan 5 & Fan A ) Fan Header Pin Definitions The X10SRL-F has six fan headers (Fan 1-Fan Pin# Definition 5 & Fan A). These fans are 4-pin fan headers. Ground (Black) Although pins 1-3 of the onboard fan headers 2.5A/+12V are backward compatible with the traditional (Red)

  • Page 54: Internal Speaker/Buzzer (Sp1)

    X10SRL-F User’s Manual Internal Speaker/Buzzer (SP1) Internal Buzzer Pin Definition The Internal Speaker/Buzzer (SP1) is Pin# Definitions used to provide audible indications for Pin 1 Pos. (+) Beep In various beep codes. See the table on Pin 2 Neg. (-) Alarm the right for pin definitions.

  • Page 55: Dom Pwr Connector (Jsd1)

    Chapter 2: Installation DOM PWR Connector (JSD1) DOM PWR Pin Definitions The Disk-On-Module (DOM) power Pin# Definition connectors, located at JSD1 and JSD2, provide 5V power to a solid Ground state DOM storage device connected Ground to one of the SATA ports. See the table on the right for pin definitions.

  • Page 56: T-Sgpio 1/2/3 Headers

    X10SRL-F User’s Manual T-SGPIO 1/2/3 Headers T-SGPIO/6-SGPIO Pin Definitions Two Serial-Link General Purpose Input/ Pin# Definition Definition Output headers (T-SGPIO 1/2/3) are located on the motherboard. T-SGPIO Data Ground 1/2/3 support onboard SATA interface. Ground Load See the table on the right for pin defini- Clock tions.

  • Page 57: Tpm Header/Port 80 Header

    Chapter 2: Installation TPM Header/Port 80 Header TPM/Port 80 Header Pin Definitions A Trusted Platform Module/Port 80 Pin # Definition Pin # Definition header is located at JTPM1 to provide LCLK TPM support and Port 80 connection. LFRAME# <(KEY)> Use this header to enhance system LRESET# +5V (X) performance and data security.

  • Page 58: Jumper Settings

    X10SRL-F User’s Manual Jumper Settings Explanation of Jumpers To modify the operation of the mother- board, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 59: Cmos Clear (Jbt1)

    Chapter 2: Installation CMOS Clear (JBT1) JBT1 is used to clear the saved system setup configuration stored in the CMOS chip. To clear the contents of the CMOS, completely shut down the system, remove the AC power cord and then short JBT1 with a jumper. Remove the jumper before powering on the system again.

  • Page 60: Manufacture Mode Select

    X10SRL-F User’s Manual Manufacture Mode Select ME Mode Select Jumper Settings Close this jumper (JPME2) to bypass Jumper Setting Definition SPI flash security and force the system Normal (Default) to use the Manufacture Mode which will Manufacture Mode allow the user to flash the system firm- ware from a host server to modify system settings.

  • Page 61: Watch Dog Enable/Disable

    Chapter 2: Installation Watch Dog Enable/Disable Watch Dog Jumper Settings Watch Dog (JWD1) is a system moni- Jumper Setting Definition tor that can reboot the system when a Pins 1-2 Reset (default) software application hangs. Close Pins Pins 2-3 1-2 to reset the system if an applica- Open Disabled tion hangs.

  • Page 62: Onboard Indicators

    X10SRL-F User’s Manual Onboard Indicators LAN1/LAN2 Activity LED Link LED LAN 1/LAN 2 LEDs Two LAN ports (LAN 1/LAN 2) are located GLAN 1/2 Activity Indicator on the I/O backplane of the motherboard. LED Settings Each Ethernet LAN port has two LEDs. Color Status Definition...

  • Page 63: Onboard Power Led (Le2)

    Chapter 2: Installation Onboard Power LED (LE2) Onboard PWR LED Indicator LED Status An Onboard Power LED is located Status Definition at LE2 on the motherboard. When System Off LE2 is on, the AC power cable is System on, or connected.

  • Page 64: 2-10 Sata Connections

    X10SRL-F User’s Manual 2-10 SATA Connections SATA Connections SATA/SAS Connectors Pin Definitions Ten SATA 3.0 connectors (I-SATA 0-5) and (S- Pin# Signal SATA 0-3) are located on the board. I-SATA 0-5 Ground ports are supported by the AHCI controller and SATA_TXP are compatible with RAID 0, 1, 5, 10.

  • Page 65: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any hardware components.

  • Page 66: No Video

    X10SRL-F User’s Manual No Video 1. If the power is on, but you have no video--in this case, you will need to re- move all the add-on cards and cables first. 2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A for details on beep codes.) 3.

  • Page 67: Technical Support Procedures

    Before contacting Technical Support, please make sure that you have followed all the steps listed below. Also, Note that as a motherboard manufacturer, Supermicro does not sell directly to end users, so it is best to first check with your distributor or reseller for troubleshooting services.

  • Page 68: Frequently Asked Questions

    Answer: We do NOT recommend that you upgrade your BIOS if you are not experiencing any problems with your system. Updated BIOS files are located on our website at http://www.supermicro.com/support/bios/. Please check our BIOS warning message and the information on how to update your BIOS on our website.

  • Page 69: Battery Removal And Installation

    Chapter 3: Troubleshooting Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock out- wards to unlock it.

  • Page 70: Returning Merchandise For Service

    Returned Merchandise Authorization (RMA) number. For faster service, you may also obtain RMA authorizations online (http://www.supermicro. com/RmaForm/). When you return the motherboard to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried.

  • Page 71: Chapter 4 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.

  • Page 72: How To Start The Setup Utility

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam- ages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.

  • Page 73: System Date/System Time

    Day MM/DD/YYYY format. The time is entered in HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. Supermicro X10SRL-F BIOS Version: This item displays the version of the BIOS ROM used in the system.

  • Page 74: Advanced Setup Configurations

    X10SRL-F User’s Manual Advanced Setup Configurations Use the arrow keys to select Advanced setup and press <Enter> to access the submenu items: Warning: Take Caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction.

  • Page 75: Wait For 'F1' If Error

    Chapter 4: AMI BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture"...

  • Page 76: Restore On Ac Power Loss

    X10SRL-F User’s Manual Restore on AC Power Loss Use this feature to set the power state after a power outage. Select Power-Off for the system power to remain off after a power loss. Select Power-On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss.

  • Page 77: Hyper-Threading (All)

    Chapter 4: AMI BIOS Hyper-Threading (ALL) Select Enable to use Intel Hyper-Threading Technology to enhance CPU perfor- mance. The options are Enable and Disable. Cores Enabled Use this feature to select the number of CPU cores to enable. Select 0 to enable all cores.

  • Page 78: Dcu Ip Prefetcher

    X10SRL-F User’s Manual DCU IP Prefetcher If this item is set to Enable, the IP prefetcher in the DCU (Data Cache Unit) will prefetch IP addresses to improve network connectivity and system performance. The options are Enable and Disable. DCU (Data Cache Unit) Mode Use this item to set the DCU data-prefecting mode.

  • Page 79: Advanced Power Management Configuration

    Chapter 4: AMI BIOS Advanced Power Management Configuration Power Technology Select Energy Efficient to support power-saving mode. Select Custom to custom- ize system power settings. Select Disabled to disable power-saving settings. The options are Disable, Energy Efficient, and Custom. Config TDP Select Enable to allow the user to configure the Thermal Design Power (TDP) settings for the system.
  • Page 80 X10SRL-F User’s Manual CPU C6 Report (Available when Power Technology is set to Custom) Select Enable to allow the BIOS to report the CPU C6 state (ACPI C3) to the operating system. During the CPU C6 state, power to all caches is turned off. The options are Enable and Disable.
  • Page 81 Chapter 4: AMI BIOS Averaging Time Window Use this feature to set the effective window for the average of C0 and D0 time. The default setting is 23. P0 Total Time Threshold Low Use this feature to set the low threshold below which the hardware switching mechanism will disable the performance setting (0).

  • Page 82: Chipset Configuration

    X10SRL-F User’s Manual Short Duration Power Limit This item displays the time period during which short duration power is main- tained. The default setting is 0. Package Clamping Limit2 Use this item to set the limit on power performance states for the processor operating in turbo mode, with P0 being the state with the highest frequency (clock speed) and power (consumption), and P1, a step lower in performance than P0, with its frequency and voltage scaled back a notch.

  • Page 83: Intel Vt For Directed I/O (Vt-D)

    Chapter 4: AMI BIOS CPU SLOT6 PCI-E 3.0 X8 (IN X16) This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are Gen 1 (2.5GT/s), Gen 2 (5 GT/s), and Gen 3 (8GT/s). CPU SLOT7 PCI-E 3.0 X8 This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user.

  • Page 84: Qpi (Quick Path Interconnect) Configuration

    X10SRL-F User’s Manual Coherency Support (Non-Isoch) Select Enable for the Non-Iscoh VT-d engine to pass through DMA (Direct Memory Access) to enhance system performance. The options are Enable and Disable. Coherency Support (Isoch) Select Enable for the Iscoh VT-d engine to pass through ATS to enhance system performance.

  • Page 85: Memory Configuration

    Chapter 4: AMI BIOS COD Enable (Available when the OS and the CPU support this feature) Select Enabled for Cluster-On-Die support to enhance system performance in cloud computing. The options are Enabled and Disabled. Early Snoop (Available when the OS and the CPU support this feature) Select Enabled for Early Snoop support to enhance system performance.

  • Page 86: Dimm Information

    X10SRL-F User’s Manual DRAM RAPL (Running Average Power Limit) Baseline Use this feature to set the run-time power-limit baseline for DRAM modules. The options are Disable, DRAM RAPL Mode 0, and DRAM RAPL Mode 1. Set Throttling Mode Throttling improves reliability and reduces power consumption in the proces- sor via automatic voltage control during processor idle states.
  • Page 87 Chapter 4: AMI BIOS Memory RAS (Reliability Availability Serviceability) Configuration Use this submenu to configure the following Memory RAS settings. RAS Mode Select Enable to enable RAS support to enhance reliability, availability and ser- viceability of onboard memory modules. The options are Enable and Disable. Lockstep x4 DIMMs Select Enable to enable Lockstep Technology support for x4 DIMM modules.

  • Page 88: South Bridge

    X10SRL-F User’s Manual South Bridge  The following South Bridge information will display:\ • USB Configuration • USB Module Version • USB Devices Legacy USB Support Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only.

  • Page 89: Ehci2

    Chapter 4: AMI BIOS EHCI2 Select Enabled to enable EHCI (Enhanced Host Controller Interface) support on USB 2.0 connector #2 (-at least one USB 2.0 connector should be enabled for EHCI support.) The options are Disabled and Enabled. XHCI Pre-Boot Driver Select Enabled to enable XHCI (Extensible Host Controller Interface) support on a pre-boot drive specified by the user.

  • Page 90: If The Item Above "Configure Sata As" Is Set To Ide, The Following Items Will Display

    X10SRL-F User’s Manual SATA Port 0~ Port 5 This item displays the information detected on the installed SATA drive on the particular SATA port. • Model number of drive and capacity • Software Preserve Support Port 0~ Port 5 Select Enabled to enable a SATA port specified by the user. The options are Disabled and Enabled.

  • Page 91: If The Item Above "Configure Sata As" Is Set To Raid, The Following Items Will Display

    Chapter 4: AMI BIOS *If the item above "Configure SATA as" is set to RAID, the following items will display: Support Aggressive Link Power Management When this item is set to Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity, and will return the link to an active state when I/O activity resumes.

  • Page 92: Ssata Configuration

    X10SRL-F User’s Manual sSATA Configuration  When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the SCU controller and displays the following items: sSATA Controller This item enables or disables the onboard SATA controller supported by the Intel SCU chip.

  • Page 93: If The Item Above "Configure Ssata As" Is Set To Ide, The Following Items Will Display

    Chapter 4: AMI BIOS sSATA Port 0 ~ Port 3 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization to the device. The options are Enabled and Disabled. Port 0 ~ Port 3 sSATA Device Type Use this item to specify if the sSATA port specified by the user should be con- nected to a Solid State drive or a Hard Disk Drive.

  • Page 94: Server Me (Management Engine) Configuration

    X10SRL-F User’s Manual sSATA Port 0~ Port 3 Select Enabled to enable an sSATA port specified by the user. The options are Disabled and Enabled. sSATA Port 0 ~ Port 3 Hot Plug This feature designates this port for hot plugging. Set this item to Enabled for hot-plugging support, which will allow the user to replace an sSATA drive without shutting down the system.

  • Page 95: Pcie/Pci/Pnp Configuration

    Chapter 4: AMI BIOS PCIe/PCI/PnP Configuration The following PCI information will be displayed: • PCI Bus Driver Version • PCI Devices Common Settings: VGA Palette Snoop Select Enabled to support VGA palette register snooping which will allow a PCI card that does not contain its own VGA color palette to examine a video card pal- ette and mimic it for proper color display.

  • Page 96: Mmiohbase

    X10SRL-F User’s Manual MMIOHBase Use this item to select the base memory size according to memory-address map- ping for the IO hub. The base memory size must be between 4032G to 4078G. The options are 56T, 48T, 24T, 512G, and 256G.\ MMIO High Size Use this item to select the high memory size according to memory-address mapping for the IO hub.

  • Page 97: Super Io Configuration

    Chapter 4: AMI BIOS Super IO Configuration  Super IO Chip AST2400  Serial Port 1 Configuration/Serial Port 2 Configuration Serial Port 1/Serial Port 2 Select Enabled to enable the onboard serial port specified by the user. The options are Enabled and Disabled. Device Settings This item displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

  • Page 98: Com1 Console Redirection Settings

    X10SRL-F User’s Manual COM1 Console Redirection Settings Terminal Type This feature allows the user to select the target terminal emulation type for Con- sole Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Char- acter Set.

  • Page 99: Sol/Com2

    Chapter 4: AMI BIOS Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Dis- abled and Enabled.
  • Page 100 X10SRL-F User’s Manual Bits Per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.

  • Page 101: Serial Port For Out-Of-Band Management/Windows Emergency Management Services (Ems)

    Chapter 4: AMI BIOS Legacy OS Redirection Resolution Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25. Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS.

  • Page 102: Trusted Computing (Available When A Tpm Device Is Installed And Detected By The Bios)

    X10SRL-F User’s Manual Bits Per Second This item sets the transmission speed for a serial port used in Console Redirec- tion. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

  • Page 103: Acpi Settings

    Chapter 4: AMI BIOS ACPI Settings  WHEA Support Select Enabled to support the Windows Hardware Error Architecture (WHEA) plat- form and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment to reduce system crashes and to enhance system recovery and health monitoring.

  • Page 104: Event Logs

    X10SRL-F User’s Manual Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.

  • Page 105: Memory Correctable Error Threshold

    Chapter 4: AMI BIOS Memory Correctable Error Threshold Use this item to enter the threshold value for correctable memory errors. The default setting is 10. Erasing Settings Erase Event Log Select Enabled to erase all error events in the SMBIOS (System Management BIOS) log before an event logging is initialized at bootup.

  • Page 106: Ipmi

    X10SRL-F User’s Manual IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system. System Event Log ...

  • Page 107: When Sel Is Full

    Chapter 4: AMI BIOS When SEL is Full This feature allows the user to determine what the BIOS should do when the sys- tem event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately. Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.
  • Page 108 X10SRL-F User’s Manual Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253). 4-38...

  • Page 109: Security

    Chapter 4: AMI BIOS Security This menu allows the user to configure the following security settings for the system. Password Check Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are Setup and Always.

  • Page 110: Boot

    X10SRL-F User’s Manual Boot Use this feature to configure Boot Settings: Setup Prompt Timeout Use this item to indicate the length of time (the number of seconds) for the BIOS to wait before rebooting the system when the setup activation key is pressed. Enter the value of 65535 (0xFFFF) for the BIOS to wait indefinitely.

  • Page 111: Delete Boot Option

    Chapter 4: AMI BIOS • Dual Boot Order #8 • Dual Boot Order #9 • Dual Boot Order #10 • Dual Boot Order #11 • Dual Boot Order #12 • Dual Boot Order #13 • Dual Boot Order #14 • Dual Boot Order #15 ...

  • Page 112: Save & Exit

    X10SRL-F User’s Manual Save & Exit Select the Save & Exit tab from the BIOS setup screen to configure the settings below. Discard Changes and Exit Select this option to quit the BIOS setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit from the Exit menu and press <Enter>.

  • Page 113: Save As User Defaults

    Chapter 4: AMI BIOS Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>. This enables the user to save any changes to the BIOS setup for future use. Restore User Defaults To set this feature, select Restore User Defaults from the Exit menu and press <En- ter>.
  • Page 114 X10SRL-F User’s Manual Notes 4-44...

  • Page 115: Appendix A Bios Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue with bootup.
  • Page 116 X10SRL-F User’s Manual Notes...

  • Page 117: Appendix B Software Installation Instructions

    Appendix B Software Installation Instructions B-1 Installing Software Programs The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 118: B-2 Installing Superdoctor5

    X10SRL-F Motherboard User’s Manual B-2 Installing SuperDoctor5 The Supermicro SuperDoctor® 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 119: Appendix C Uefi Bios Recovery Instructions

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.
  • Page 120 Root "\" Directory of a USB device or a writeable CD/DVD. Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www.supermicro.com to download the BIOS image into a USB flash device and rename it "Super ROM" for BIOS recovery use.
  • Page 121 Appendix C: UEFI BIOS Recovery 6. After the process of BIOS Recovery is complete, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a bootable USB flash drive. 8. When a DOS prompt appears, enter AMI.BAT BIOSname.### at the prompt. Note: Do not interrupt this process until BIOS flashing is completed.
  • Page 122 X10SRL-F User’s Manual 9. After seeing the message that BIOS update is completed, unplug the AC pow- er cable from the power supply to clear CMOS, and then plug the AC power cable in the power supply again to power on the system. 10.

  • Page 123: Appendix D Dual Boot Block On Grantley Platforms

    Dual Boot Block on Grantley Platforms Overview On X10 Grantley platforms, Supermicro introduces the Dual Boot Block feature that revives the system from an inert state if the primary boot block in the ROM chip is damaged. A boot block carries critical codes to boot the system with minimum hardware requirements for the BIOS recovery flash.

  • Page 124: D-1 Ipmi Gui Browser

    X10SRL-F User’s Manual D-1 IPMI GUI Browser To perform perform the Dual Boot Block through the IPMI GUI browser, follow the instructions below: 1. After the IPMI GUI browser log-in, click on the Miscellaneous tab, then BIOS Resilience, then the Resile button. 2.
  • Page 125 Appendix D: Dual Boot Block 3. Click on the Remote Control tab, then Console Redirection, then the Launch Console button to open the Java iKVM Viewer. 4. In the Java iKVM Browser, click on the Virtual Media tab, then Virtual Stor- age to open the Virtual Media Loader.
  • Page 126 X10SRL-F User’s Manual 5. In the Virtual Media loader, click on the Device1 tab, then Logical Drive Type drop-down menu, then select the USB flash drive with Super.ROM. Click Plug In, then OK. 6. Click on the Remote Control tab, then Power Control, then check the Power On Server button.
  • Page 127 Appendix D: Dual Boot Block 7. After the system powers on, the secondary boot block starts to initialize the essential hardware components and locates Super.ROM in the USB flash drive, which was mounted earlier. If Super.ROM is found, the on-duty boot block boots to it and finishes the rest of the POST processes.
  • Page 128 X10SRL-F User’s Manual 9. A message box will appear to indicate the BIOS recovery flash process is complete. Press ENTER to finish. The system will do a power cycle to deacti- vate the dual boot block feature and produce a normal BIOS POST.

  • Page 129: D-2 Ipmi Command Sets

    Appendix D: Dual Boot Block D-2 IPMI Command Sets To perform perform the Dual Boot Block through the IPMI Command Sets, follow the instructions below: 1. After the IPMI GUI browser log-in, click on the Remote Control tab, then Console Redirection, then the Launch Console button to open Java iKVM Viewer.
  • Page 130 X10SRL-F User’s Manual 3. Enable BIOS Resilience mode in remote IPMI and confirm. • To enable, type the following command in the command prompt: ipmi raw 30 70 C2 D5 00 00 • To confirm, type the following command in the command prompt: impi raw 30 70 C3 D5 4.

  • Page 131: User Approach

    Appendix D: Dual Boot Block 5. Power on the remote system for BIOS recovery flash. • To power on, type: ipmi power up After the system powers on, the secondary boot block initializes the essential hardware components and locates Super.ROM in the USB flash drive, which are the same as Steps 7-9 in Section D-1.
  • Page 132 X10SRL-F User’s Manual Notes D-10...
  • Page 133 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.

This manual is also suitable for:

X10srl-f

Table of Contents
