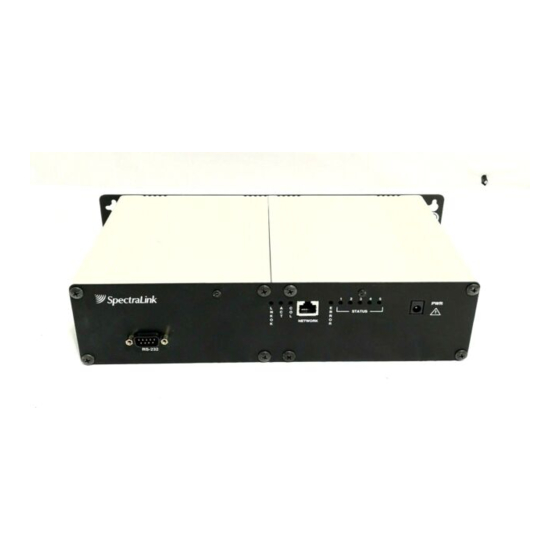

NetLink SVP Server
SVP100
SVP020
SVP010
Installation, Configuration, and Administration
Within IP environments
PN 72-0178-01
Issue C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVP100 and is the answer not in the manual?

Questions and answers

Related Manuals for SpectraLink SVP100

Summary of Contents for SpectraLink SVP100

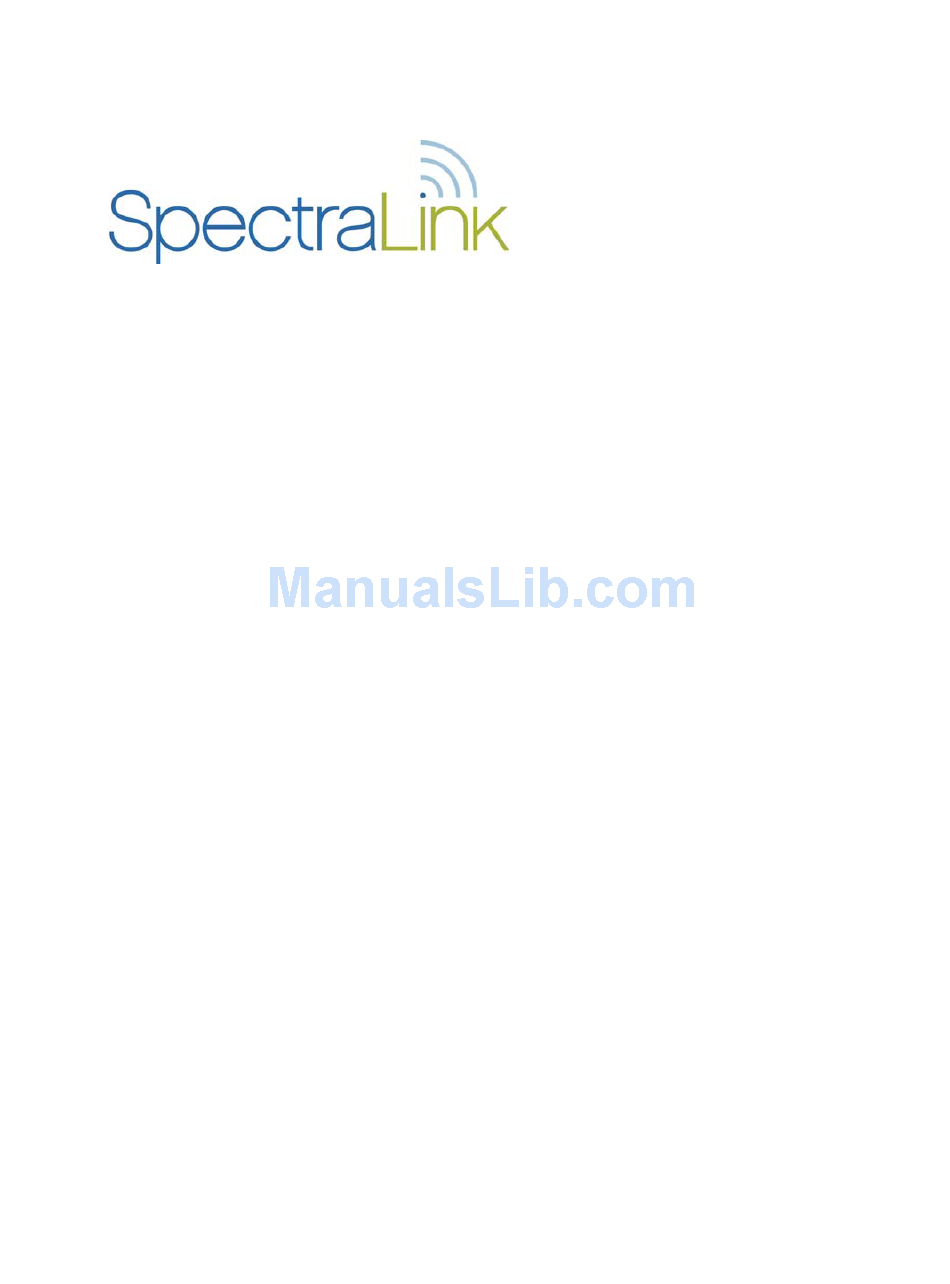

  • Page 1 NetLink SVP Server SVP100 SVP020 SVP010 Installation, Configuration, and Administration Within IP environments PN 72-0178-01 Issue C...
  • Page 2 No representation or other affirmation of fact contained in this document including but not limited to statements regarding capacity, response-time performance, suitability for use, or performance of products described herein shall be deemed to be a warranty by SpectraLink for any purpose, or give rise to any liability of SpectraLink whatsoever.

  • Page 3: Important Safety Information

    Note concerning shielded cable: SpectraLink recommends the use of shielded cable for all external signal connections in order to maintain FCC Part 15 emissions requirements. Note concerning the NetLink Wireless Telephones: This device complies with Part 15 of the FCC Rules.

  • Page 4: Table Of Contents

    SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) Table of Contents 1. About This Document SpectraLink Corporation Model Numbers Related Documents Customer Support Hotline Icons and Conventions 2. NetLink SVP Server Overview SpectraLink Voice Priority (SVP)

  • Page 5: About This Document

    Deploying NetLink Wireless Telephones: Best Practices white paper. Available at http://www.spectralink.com/consumer/resources/white_papers.jsp. Customer Support Hotline SpectraLink wants you to have a successful installation. If you have questions please contact . The hotline is SpectraLink Customer Support Hotline at (800) 775-5330 open Monday through Friday, 6 a.m.

  • Page 6: Netlink Svp Server Overview

    IP telephony server. SpectraLink Voice Priority (SVP) SpectraLink Voice Priority (SVP) is the SpectraLink quality of service (QoS) mechanism that is implemented in the Wireless Telephone and access point (AP) to enhance voice quality over the wireless network.

  • Page 7: Multiple Svp Servers/Master Svp Server

    SVP Server. Up to four SVP010 models or up to two SVP020 models may be installed in any one subnet. Up to 16 models of SVP100 Servers may be installed in any one subnet. All SVP Servers must be in the same subnet.
  • Page 8 Installation, Configuration, and Administration NetLink SVP Server (within IP environments) NetLink SVP100 Server Capacity The capacity of the SVP100 Server is determined by active calls. The table below shows the capacity of an IP gateway in a multiple SVP Server environment. SVP Servers...

  • Page 9: Notes On System Configuration

    SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) Notes on System Configuration In an IP system using subnets to differentiate telephony areas, each subnet must have its own access points. Each subnet may require an SVP Server to maintain voice quality, but this depends on traffic volume and router capacity.

  • Page 10: System Diagram

    SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) System Diagram The following diagram shows multiple NetLink SVP Servers residing on a network with an IP telephony gateway and IP telephony server, wireless LAN access points, and Ethernet switch:...

  • Page 11: System Components

    Typically, the requirements for use of NetLink Wireless Telephones are similar to that of wireless data devices. Contact SpectraLink, or a certified SpectraLink distributor, for specific information about your facility’s needs.
  • Page 12 SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) Administrative computer Required for setup and maintenance of the NetLink SVP Server. This computer may be temporarily connected directly to the component or to the network, a dedicated computer is not required.

  • Page 13: 2.10 The Front Panel Of The Netlink Svp Server

    : Currently unused (power jack): Connects to the AC adapter supplying power to the system. Use only the SpectraLink-provided Class II AC Adapter with output 24VDC, 1A. Note that the model designation may be found on the label which is on the side of the SVP Server.

  • Page 14: Installing The Netlink Svp Server

    Required Materials The following equipment must be provided by the customer. • Power Outlet: Must accept SpectraLink provided AC adapter. • Backboard space: The NetLink SVP Server is designed to be wall mounted to ¾” plywood securely screwed to the wall.
  • Page 15 SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) 3. Screw the other end of the two mounting plates (oblong screw holes) to the rack. 4. Repeat steps 1-3 for each additional SVP Server. The mounting plate is designed to provide the correct minimum spacing between units.

  • Page 16: Configuring The Netlink Svp Server

    SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) Configuring the NetLink SVP Server During initial setup of the NetLink SVP Server the IP address is established and the maximum number of active calls per access point is set. Optionally, you may enter a hostname and a location for software updates via TFTP.

  • Page 17: The Netlink Svp-Ii System Menu

    Network Configuration Allows you to set network configuration options, including IP address and hostname. Change Password Allows you to change the password for NetLink SVP Server access. SVP-II is a designation used internally by SpectraLink Engineering. PN: 72-0178-01-C.doc Page 17...

  • Page 18: Network Configuration

    This is also where you may optionally establish a hostname and Configuration enter the IP address of the location of any software updates you may obtain from SpectraLink. See section 6, the Software Maintenance section, of this document for more information about installing software updates via TFTP. Scroll to and select by pressing Enter.
  • Page 19 SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) To change the IP address of the master SVP Server, change it in this menu and reboot the system. Then you may change alias IP addresses in each of the other SVP Servers without error.
  • Page 20 SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) When the name services are set up correctly, the NetLink SVP Server can translate hostnames to IP addresses. Using telnet, it is also possible to access the NetLink SVP Server using its hostname instead of the IP address.

  • Page 21: Svp Server Configuration

    SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) SVP Server Configuration screen is where you set the mode of the NetLink SVP Server. SVP-II Configuration It is also where you can lock the NetLink SVP Server for maintenance and reset the NetLink SVP Server after maintenance.
  • Page 22 NetLink Wireless Telephone. These IP addresses must be entered as a range and must be assigned solely for this purpose. When multiple SVP100 Servers are installed, a different range must be configured in each SVP Server. In determining how many addresses to configure per SVP Server, use this formula: (# of handsets / # of SVP Servers) + 30%.
  • Page 23 SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) Enable H.323 Gatekeeper In certain H.323 protocol systems, the SVP Server may function as a gatekeeper. Enter Y to have the SVP Server function as the gatekeeper in the H.323 protocol environment.
  • Page 24 SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) QoS Configuration DSCP tags set packet priorities for QoS. DSCP Tag (Differentiated Services Code Point) is a QoS mechanism for setting relative priorities. Packets are tagged with a DSCP field in the IP header for type of service.

  • Page 25: Change Password

    A screen similar to the following will Change Password appear: Enter the information and either select or press the key to set the new Set Password password. If you forget a password, call SpectraLink Customer Service for assistance. PN: 72-0178-01-C.doc Page 25...

  • Page 26: Swapping/Adding/Deleting Svp Servers

    SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) Swapping/Adding/Deleting SVP Servers Whenever an SVP Server is removed from the system, Wireless Telephones that are using the SVP Server will be affected. If the removal of the SVP Server is intentional, the administrator should lock and idle the system prior to removing an SVP Server.

  • Page 27: Software Maintenance

    NetLink SVP Server (within IP environments) Software Maintenance The NetLink SVP Server uses proprietary software programs written and maintained by SpectraLink Corporation. The software versions that are running on the system components can be displayed via the screen. System Status You may obtain information about software updates from SpectraLink or its authorized dealer.

  • Page 28: Troubleshooting Via System Status Menu

    Displays information about the Ethernet network to which the NetLink SVP Server is connected. Software Versions Lists the software version for each SpectraLink component. Gatekeeper Database Allows you to view activity of the gatekeeper database. Options on the System Status Menu provide a window into the real time operation of the components of the system.

  • Page 29: Error Status

    NetLink SVP Server (within IP environments) Error Status screen displays any alarms that indicate some system malfunction. Error Status Some of these alarms are easily remedied and others require a call to SpectraLink’s Customer Support Department. From the select . The screen displays active alarms on...

  • Page 30: Network Status

    —The number of days, hours and minutes since the NetLink SVP System Uptime Server was last reset. —The type of connection to the Ethernet switch currently utilized. See SVP100 Capacity for more information. Data is transmitted over SpectraLink components by proprietary technology developed by SpectraLink Corporation.
  • Page 31 SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) —Ethernet statistics concerning the received packets during System Uptime. : bytes received bytes : packets received packets : Sum of all receive errors (long packet, short packet, CRC, overrun,...

  • Page 32: Software Version

    Software Version the NetLink SVP Server. This information will help you determine if you are running the most recent version and will assist SpectraLink engineering and/or customer support in troubleshooting software problems. This screen also displays the model type.

  • Page 33: Gatekeeper Database

    SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) Gatekeeper Database screen lists the registered extension numbers and the IP Gatekeeper Database address currently being used by each. —phone identifier. Alias/Phone Number —(Registration Admission Status) IP address.
  • Page 34 SpectraLink Corporation Installation, Configuration, and Administration NetLink SVP Server (within IP environments) Index Access point, description, 10 NetLink SVP Server Mounting, 13 Alarms, 27 NetLink SVP Server Configuration Mounting, 14 Initial setup, 17 NetLink SVP Server Alarms, 27 Customer Support Hotline, 5...
