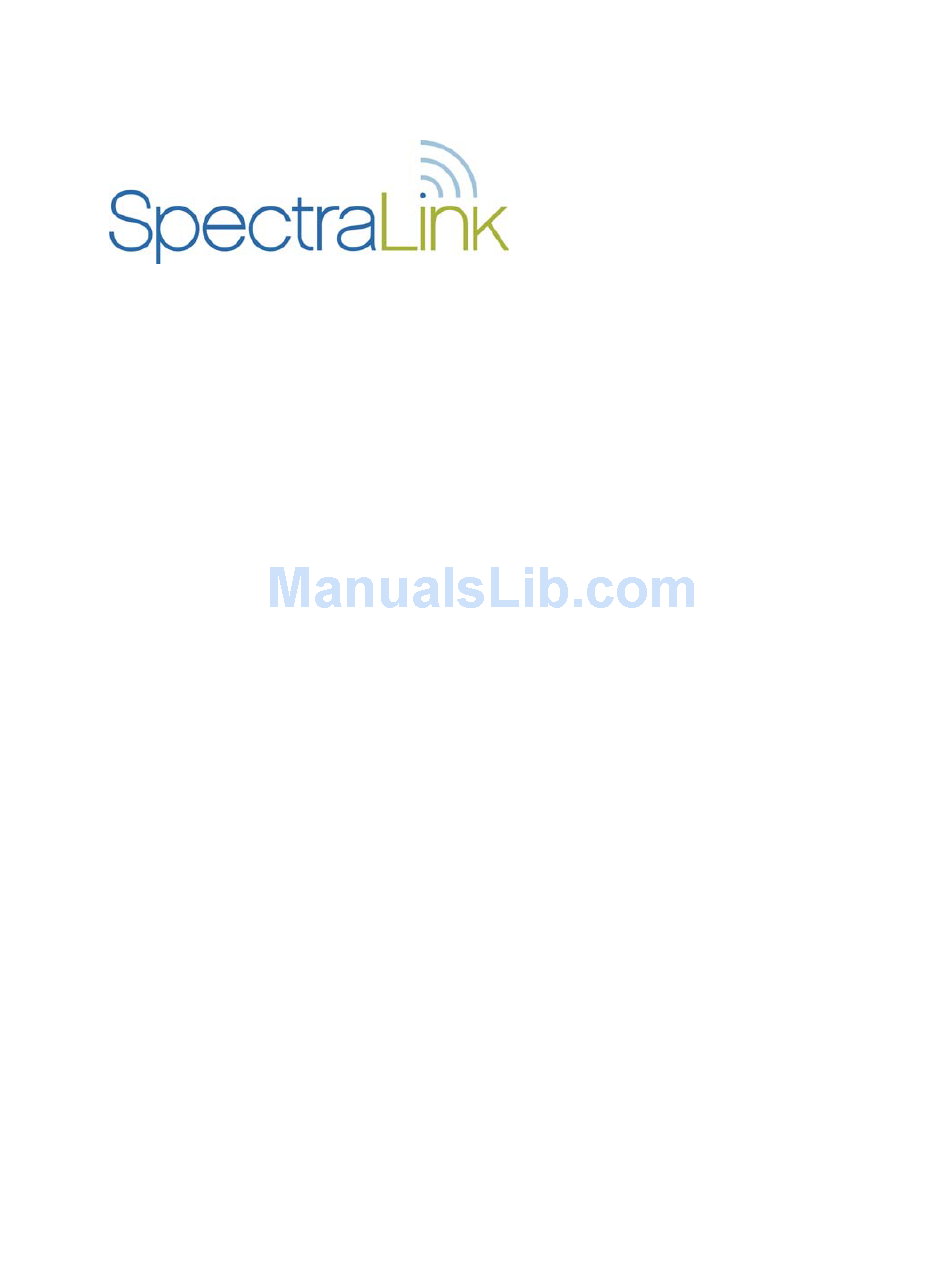

- Page 1 NetLink SVP Server SVP100 SVP020 SVP010 Installation, Configuration, and Administration For Cisco and Mitel IP environments PN 72-0178-01 Issue F...
-
Page 2: Trademark Information
No representation or other affirmation of fact contained in this document including but not limited to statements regarding capacity, response-time performance, suitability for use, or performance of products described herein shall be deemed to be a warranty by SpectraLink for any purpose, or give rise to any liability of SpectraLink whatsoever. -
Page 3: Important Safety Information
Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. • Use caution when installing or modifying telephone lines Please visit spectralink.com to view regulatory declarations. PN: 72-0178-01-F.doc Installation, Configuration, and Administration NetLink SVP Server (within IP environments) -
Page 4: Table Of Contents
SpectraLink Corporation 1. About This Document SpectraLink Corporation Model Numbers Related Documents Customer Support Hotline Icons and Conventions 2. NetLink SVP Server Overview SpectraLink Voice Priority (SVP) SVP Server Models The Timing Function Internal Gatekeeper Multiple SVP Servers/Master SVP Server... -
Page 5: About This Document
Available at http://www.spectralink.com/resources/white_papers.jsp. Customer Support Hotline SpectraLink wants you to have a successful installation. If you have questions please contact the Customer Support Hotline at (800) 775-5330. The hotline is open Monday through Friday, 6 a.m. to 6 p.m. Mountain time. -
Page 6: Netlink Svp Server Overview
IP telephony server. SpectraLink Voice Priority (SVP) and Quality of Service SpectraLink Voice Priority (SVP) is the SpectraLink quality of service (QoS) mechanism that is implemented in the wireless telephone and AP to enhance voice quality over the wireless network. -
Page 7: Multiple Svp Servers/Master Svp Server
Multiple SVP Server environments are those which have more than one NetLink SVP Server. Up to four SVP010 models or up to two SVP020 models may be installed in any one subnet. Up to 16 models of SVP100 Servers may be installed in any one subnet. - Page 8 SpectraLink Corporation the Erlang calculation for telephony traffic. The possible installed handsets figures are approximate and meant as a guideline and not as an absolute recommendation for any facility. Number of Number of calls installed handsets possible Servers per Server An Erlang is a unit of telecommunications traffic measurement.
-
Page 9: Notes On System Configuration
SpectraLink Corporation Notes on System Configuration In an IP system using subnets to differentiate telephony areas, each subnet must have its own APs. Each subnet may require an SVP Server to maintain voice quality, but this depends on traffic volume and router capacity. -
Page 10: System Diagram
SpectraLink Corporation System Diagram The following diagram shows multiple NetLink SVP Servers residing on a network with an IP telephony gateway and IP telephony server, wireless LAN APs, and Ethernet switch: access point Wireless Telephones access point optional Wireless Device supplied by SpectraLink PN: 72-0178-01-F.doc... -
Page 11: System Components
Contact SpectraLink, or a certified SpectraLink distributor, for specific information about your facility’s needs. The NetLink system must connect to APs that utilize SpectraLink Voice Priority (SVP). Contact SpectraLink, or a certified SpectraLink distributor, to verify that your AP and its software version are supported. -
Page 12: Tftp Server
SpectraLink Corporation TFTP Server Required in an IP system to distribute software to the wireless telephones and SVP Server. May be on a different subnet than the IP gateway, IP telephony server, and APs. PN: 72-0178-01-F.doc Installation, Configuration, and Administration... -
Page 13: 2.10 The Front Panel Of The Netlink Svp Server
: Currently unused. (power jack): Connects to the AC adapter supplying power to the system. Use only the SpectraLink-provided Class II AC Adapter with output 24VDC, 1A. Note that the model designation may be found on the label which is on the side of the SVP Server. -
Page 14: Installing The Netlink Svp Server
Required Materials The following equipment must be provided by the customer. • Power Outlet – AC adapter provided by SpectraLink.. • Backboard space – the NetLink SVP Server is designed to be wall- mounted to ¾" plywood securely screwed to the wall. - Page 15 SpectraLink Corporation Screw the other end of the two mounting plates (oblong screw holes) to the rack. Repeat steps 1-3 for each additional SVP Server. The mounting plate is designed to provide the correct minimum spacing between units. When mounting multiple units, stack the units in the rack as closely as possible.
-
Page 16: Configuring The Netlink Svp Server
SpectraLink Corporation Configuring the NetLink SVP Server During initial setup of the NetLink SVP Server the IP address is established and the maximum number of active calls per AP is set. Optionally, you may enter a hostname and a location for software updates via TFTP. -
Page 17: The Netlink Svp-Ii System Menu
Allows you to set network configuration options, including IP address and hostname. Change Password Allows you to change the password for NetLink SVP Server access. SVP-II is a designation used internally by SpectraLink Engineering. PN: 72-0178-01-F.doc Installation, Configuration, and Administration NetLink SVP Server (within IP environments) -
Page 18: Network Configuration
This is also where you may optionally establish a hostname and Configuration enter the IP address of the location of any software updates you may obtain from SpectraLink. See section 6, the Software Maintenance section, of this document for more information about installing software updates via TFTP. Scroll to... - Page 19 SpectraLink Corporation To change the IP address of the master SVP Server, change it in this menu and reboot the system. Then you may change alias IP addresses in each of the other SVP Servers without error. The following options must be configured:...
- Page 20 SpectraLink Corporation When the name services are set up correctly, the NetLink SVP Server can translate hostnames to IP addresses. Using telnet, it is also possible to access the NetLink SVP Server using its hostname instead of the IP address.
-
Page 21: Svp Server Configuration
SpectraLink Corporation SVP Server Configuration SVP-II Configuration Server. It is also where you can lock the NetLink SVP Server for maintenance and reset the NetLink SVP Server after maintenance. The type of gateway you are using determines the mode of the NetLink SVP Server. - Page 22 SpectraLink Corporation The following options must be configured: Phones per Access Point AP specifications are detailed in the Configuration Notes for each brand and type. Refer to these notes when entering the number of simultaneous calls supported for your type.
- Page 23 SpectraLink Corporation Alias IP Addresses are not necessary in Cisco systems. Enable H.323 Gatekeeper In certain H.323 protocol systems, the SVP Server may function as a gatekeeper. Enter Y to have the SVP Server function as the gatekeeper in the H.323 protocol environment.
- Page 24 SpectraLink Corporation QoS Configuration DSCP tags set packet priorities for QoS. DSCP Tag DSCP (Differentiated Services Code Point) is a QoS mechanism for setting relative priorities. Packets are tagged with a DSCP field in the IP header. The decimal value may be set as a number from 0-63 and may be different for each traffic class listed on the screen.
- Page 25 SpectraLink Corporation • If any of the than Default setting. Traffic Class WT (In call) Priority High WT (Standby) Priority Med Priority High Priority Med Inter-SVP2 Priority Med Administration Priority Low Note: Default DSCP settings will mark traffic for Best Effort handling under normal circumstances.
-
Page 26: Change Password
Change Password appear: Enter the information and either select new password. If you forget a password, call SpectraLink Customer Service for assistance. PN: 72-0178-01-F.doc Installation, Configuration, and Administration NetLink SVP Server (within IP environments) from the main menu. A screen similar to the following will... -
Page 27: Swapping/Adding/Deleting Svp Servers
SpectraLink Corporation Swapping/Adding/Deleting SVP Servers Whenever an SVP Server is removed from the system, wireless telephones that are using the SVP Server will be affected. If the removal of the SVP Server is intentional, the administrator should lock and idle the system prior to removing an SVP Server. -
Page 28: Software Maintenance
Software Maintenance The NetLink SVP Server uses proprietary software programs written and maintained by SpectraLink Corporation. The software versions that are running on the system components can be displayed via the You may obtain information about software updates from SpectraLink or its authorized dealer. -
Page 29: Troubleshooting Via System Status Menu
Displays information about the Ethernet network to which the NetLink SVP Server is connected. Software Versions Lists the software version for each SpectraLink component. Gatekeeper Database Allows you to view activity of the gatekeeper database. Options on the System Status Menu provide a window into the real time operation of the components of the system. -
Page 30: Error Status
SpectraLink Corporation Error Status screen displays any alarms that indicate some system malfunction. Error Status Some of these alarms are easily remedied and others require a call to SpectraLink’s Customer Support Department. From the System Status Menu, on the NetLink SVP Server. -
Page 31: Network Status
Data is transmitted over SpectraLink components by proprietary technology developed by SpectraLink Corporation. The SpectraLink Radio Protocol (SRP) packets and bytes can be differentiated from other types of transmissions and are used to evaluate system functioning by SpectraLink customer support and engineering personnel. PN: 72-0178-01-F.doc... - Page 32 SpectraLink Corporation – Ethernet statistics concerning the received packets during System Uptime. bytes – bytes received – packets received packets errors – Sum of all receive errors (long packet, short packet, CRC, overrun, alignment) drop – packets dropped due to insufficient memory –...
-
Page 33: Software Version
NetLink SVP Server. This information will help you determine if you are running the most recent version and will assist SpectraLink engineering and/or customer support in troubleshooting software problems. This screen also displays the model type. -
Page 34: Gatekeeper Database
SpectraLink Corporation Gatekeeper Database Gatekeeper Database address currently being used by each. Alias/Phone Number —(Registration Admission Status) IP address. RAS IP address CSA IP address —(Call Signaling Address) IP address. Expiration (secs) A wireless telephone IP address is renewed every 90 seconds. - Page 35 SpectraLink Corporation Access point, description, 10 Alarms, 27 Configuration Initial setup, 17 Customer Support Hotline, 5 Download master, 18 Downloading Software Updates, 25 Error Status, 27 Ethernet switch, description, 10 Hotline, 5 NetLink SVP Server Front Panel, 12 NetLink SVP Server, 6, 11...
