SATA-2 Primary Master RAID and SATA-2 Secondary Master
RAID
These fields are used to enable or disable the RAID function of
Serial ATA's second channel (SATA 3 and SATA 4).

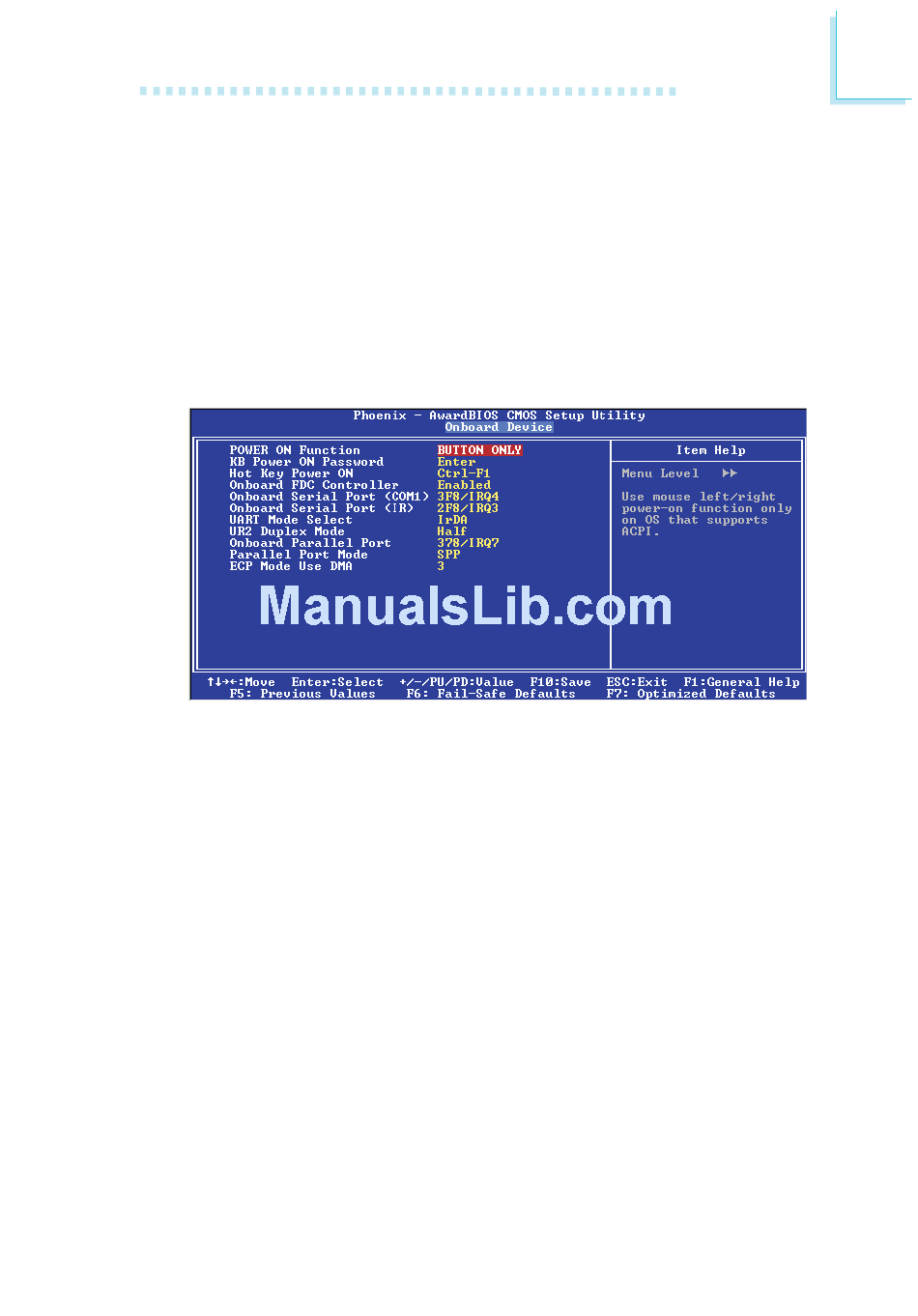

Onboard Device
Move the cursor to this field and press <Enter>. The following
screen will appear.
The settings on the screen are for reference only. Your version may not be identical
to this one.
Power On Function
This field allows you to use the keyboard or PS/2 mouse to power-
on the system.
Button only
Password
Hot Key
Mouse Left
Default setting. Uses the power button to power
on the system.
When this option is selected, set the password you
would like to use to power-on the system in the
"KB Power On Password" field.
When this option is selected, select the function key
you would like to use to power-on the system in
the "Hot Key Power On" field.
When this option is selected, double-click the left
button of the mouse to power-on the system.
3
BIOS Setup
81
