Cooling Fan Connectors
3
1
Sense
Ground
Power
System fan

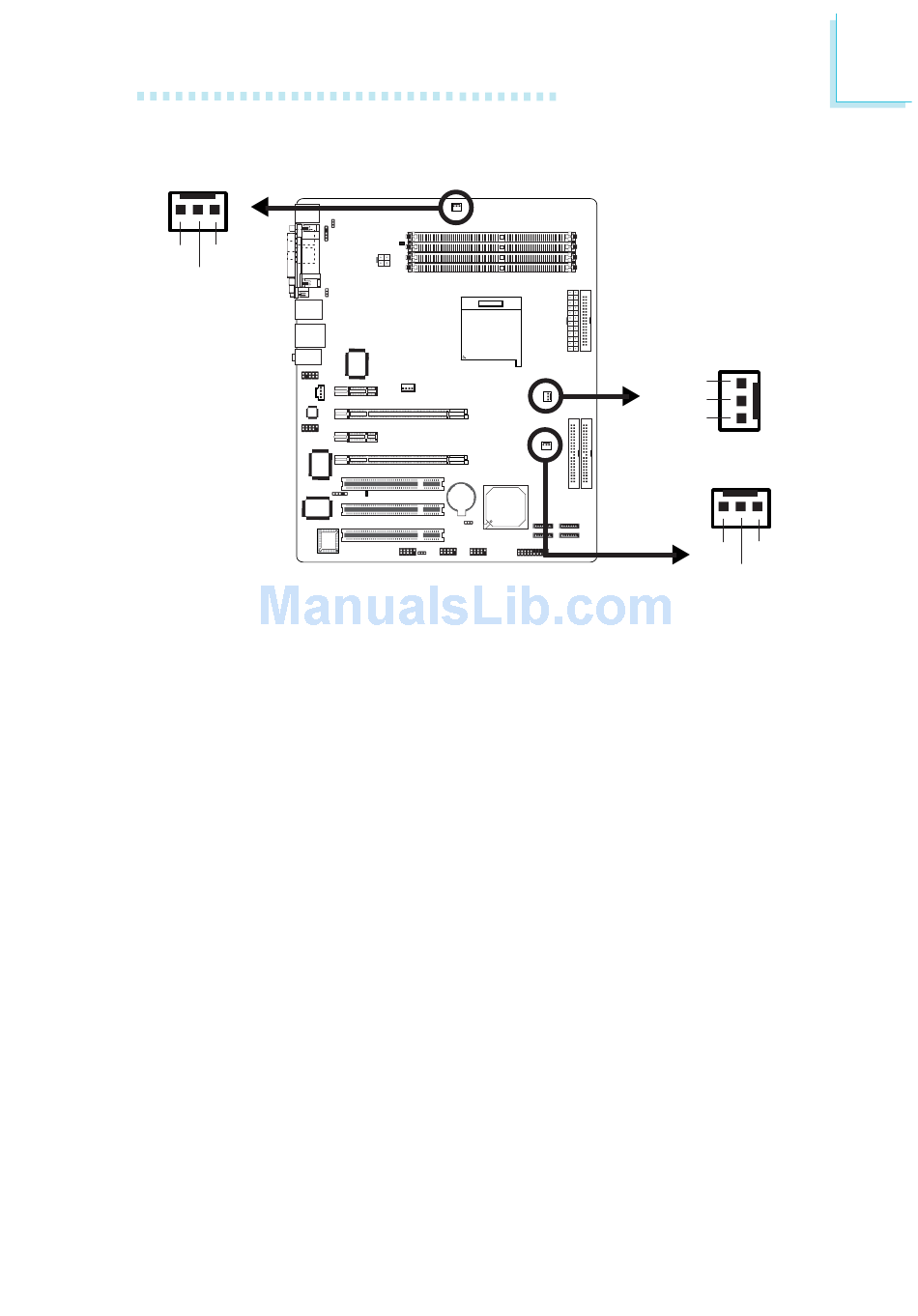

Connect the CPU fan's cable connector to the CPU fan connector
(J30) on the system board. The system fan (J31) and chipset fan
(J32) are used to connect additional cooling fans. The cooling fans will
provide adequate airflow throughout the chassis to prevent
overheating the CPU and system board components.
BIOS Setting
The "PC Health Status" submenu of the BIOS will display the current
speed of the cooling fans. Refer to chapter 3 for more information.
Hardware Installation
CPU fan
Sense
Power
Ground
Chipset fan
3
Sense
Power
2
3
1
1
Ground
51
