3
PANEL DESCRIPTION

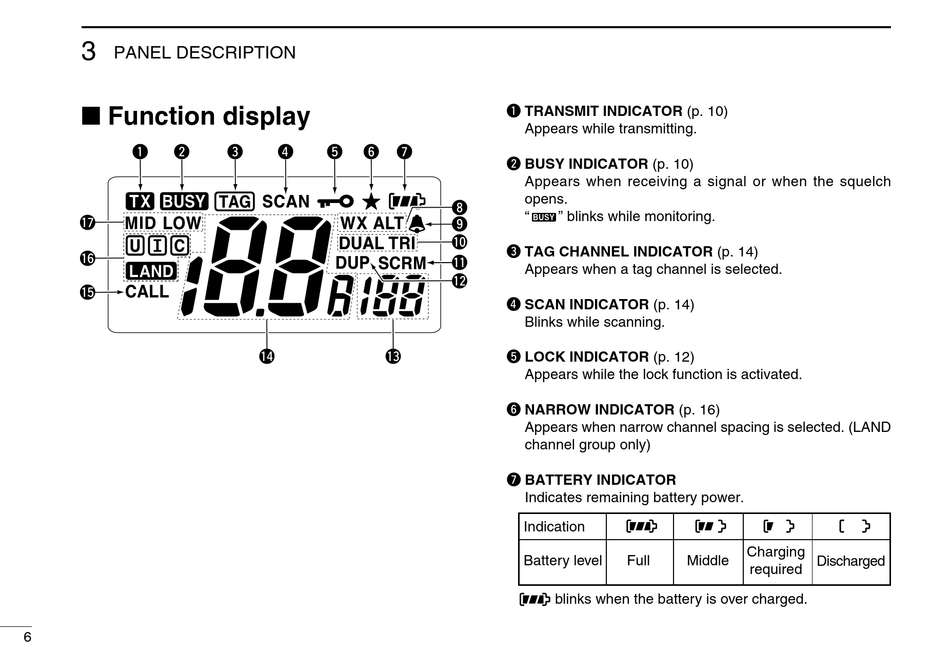

■ Function display

q w
!7
!6
!5
6
e r t y u
!4 !3
q TRANSMIT INDICATOR (p. 10)
Appears while transmitting.
w BUSY INDICATOR (p. 10)
Appears when receiving a signal or when the squelch
opens.
i
" " blinks while monitoring.
o
!0
e TAG CHANNEL INDICATOR (p. 14)
!1
Appears when a tag channel is selected.
!2
r SCAN INDICATOR (p. 14)
Blinks while scanning.
t LOCK INDICATOR (p. 12)
Appears while the lock function is activated.
y NARROW INDICATOR (p. 16)
Appears when narrow channel spacing is selected. (LAND
channel group only)
u BATTERY INDICATOR
Indicates remaining battery power.
Indication
Battery level Full
blinks when the battery is over charged.
Charging
Middle Discharged
required
