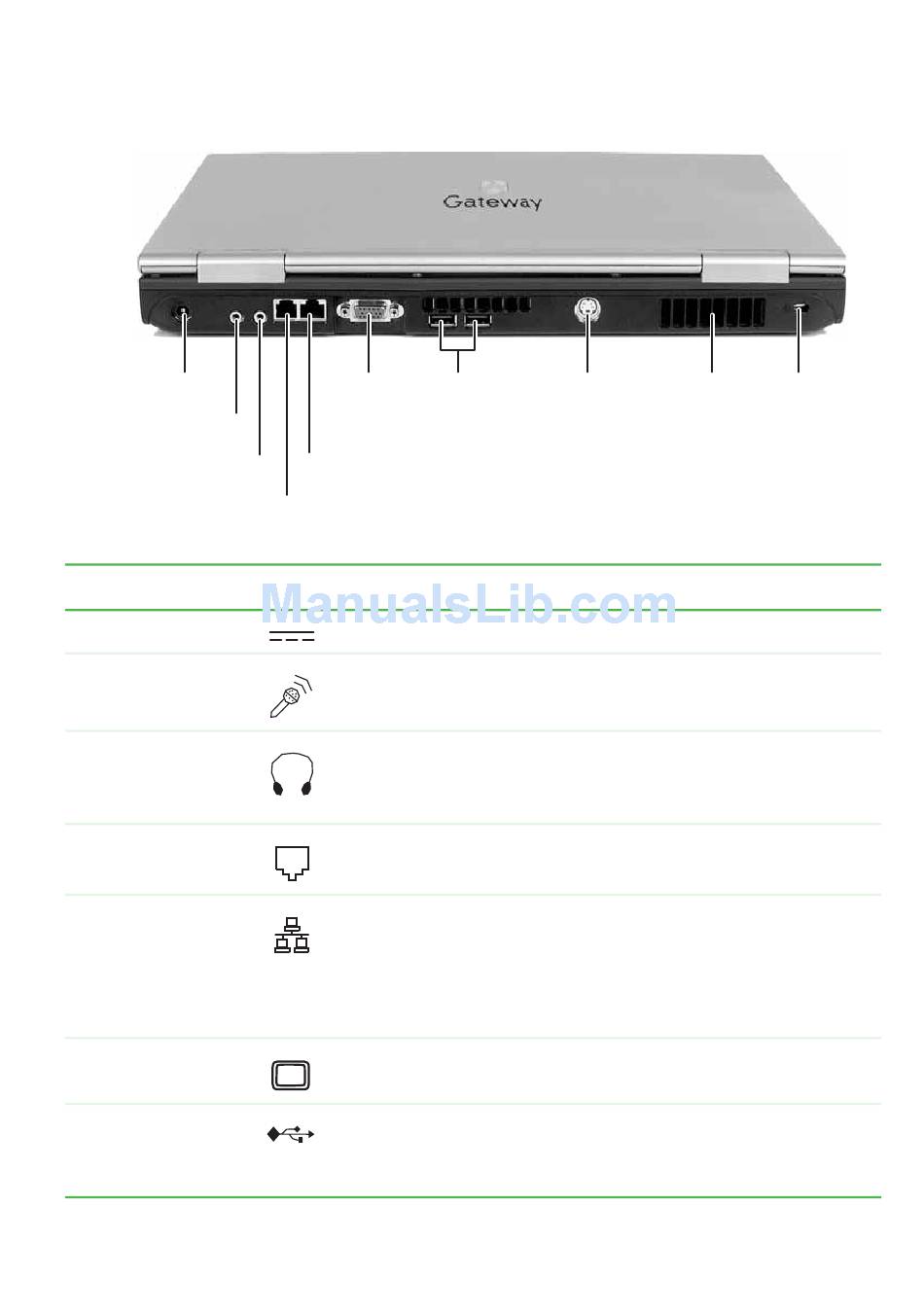

Back - Gateway Notebook User Manual

Back

Power connector
Microphone jack
Headphone jack
Modem jack
Component
Power connector
Microphone jack
Headphone jack
Modem jack
Ethernet jack
Monitor port
USB ports
Monitor USB
port ports
Ethernet jack
Icon Description
Plug the AC adapter cable into this connector.
Plug a microphone into this jack.
Plug amplified speakers or headphones into this jack. The
built-in speakers are turned off when speakers or
headphones are plugged into this jack.
Plug a modem cable into this jack. For more information,
see "Connecting the dial-up modem" on page
Plug a 10/100/1000 Ethernet network cable into this jack.
The other end of the cable can be plugged into a cable
modem, DSL modem, or an Ethernet network jack. For
more information, see
modem or to an Ethernet network" on page
Plug an analog VGA monitor or projector into this port.
Plug USB devices (such as a diskette drive, flash drive,
printer, scanner, camera, keyboard, or mouse) into these
ports.
www.gateway.com
S-Video Ventilation
out jack fan
"Connecting to a cable or DSL
Back
Kensington
lock slot
26.
27.
13
