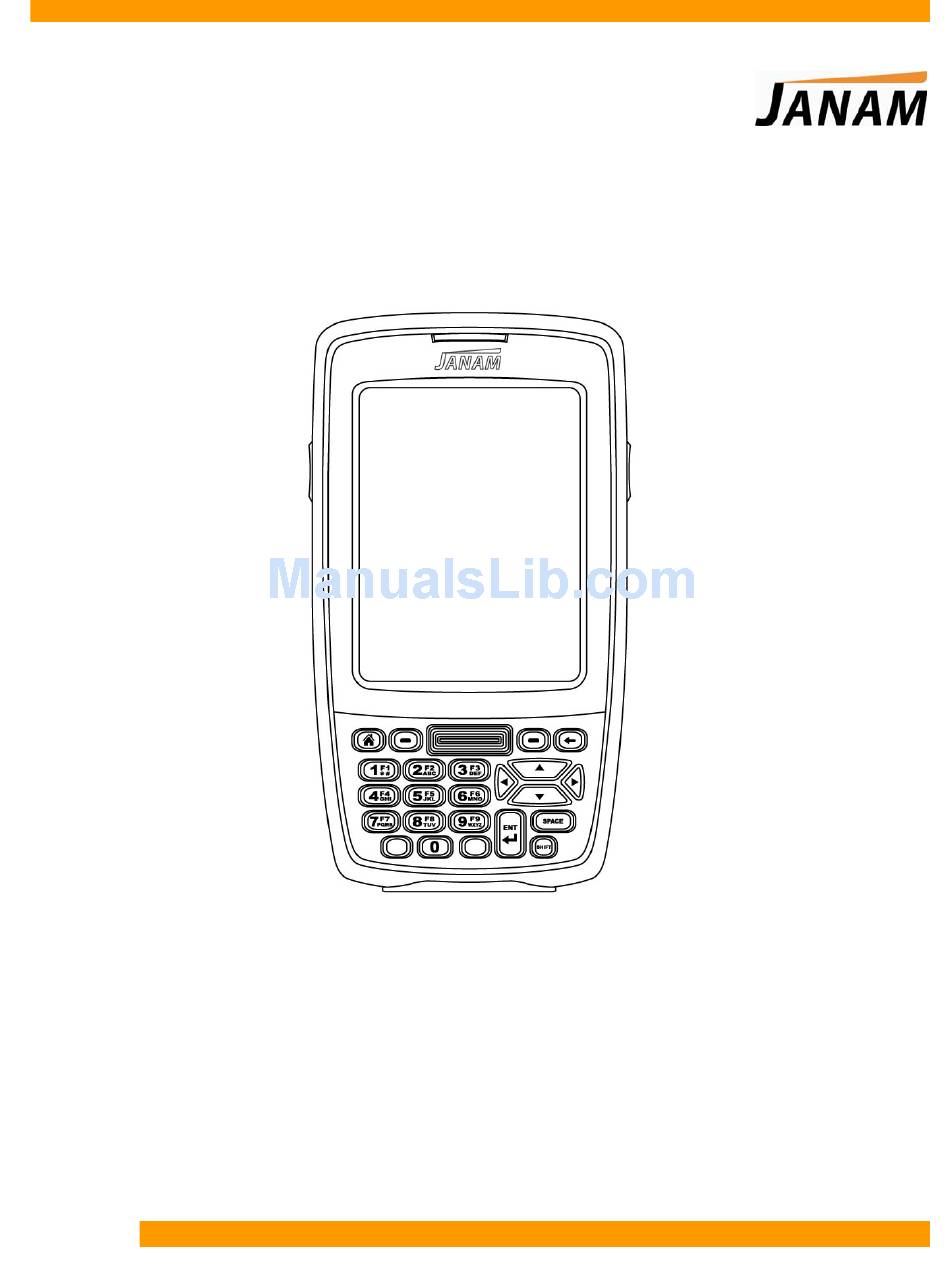

XM60 User Guide
Version 2
April, 2008

Advertisement

Table of Contents
loading

Related Manuals for Janam XM60

Summary of Contents for Janam XM60

  • Page 1 XM60 User Guide Version 2 April, 2008...
  • Page 2 XM60 User Manual Janam Technologies LLC...

  • Page 3: Table Of Contents

    Chapter 3: Bar Code Scanning Demonstration and setup Enable the ScanWedge feature Unlock 2D scanning Enable ScanCapture feature Chapter 4: Set Up Your Janam XM60 Locate front panel controls Locate back panel components Tap versus click Recalibrate the screen Use the regional and language features...
  • Page 4 XM60 User Manual Chapter 8: Bluetooth Manager Start Bluetooth manager Scan Device Wizard Bond Wizard Send files File browser Bluetooth ActiveSync Settings Chapter 9: Beam Information Turn beam on/off Beam information Chapter 10: Regulatory and Maintenance Regulatory and safety approvals...

  • Page 5: Chapter 1: Introduction

    4-foot/1.2m drops to concrete across a wide temperature range. Further enhancing its value, the XM60 features integrated 1D barcode scanning as well as built-in 2D barcode scanning capability. Janam’s 2D scanning solution enables users to upgrade barcode scanning capability from 1D to 1D/2D on any device at any time with a simple firmware upgrade.

  • Page 6: Specifications

    XM60 Series Specifications TECHNICAL Operating System Microsoft ® Windows ® CE 5.0 Processor Freescale™ MX21-266MHz Memory 64MB SDRAM 64MB NAND Expansion User accessible mini-SD slot; compatible with up to 2GB mini-SD card Battery Swappable 3.7V 1880mAh rechargeable Li-ion Backup Battery...

  • Page 7: Hardware Overview

    XM60 User Manual Hardware overview Indicator LED Power On/Off Left Trigger Right Trigger Scan Trigger Function Backspace Home Navigation Space Programmable Shift Enter Alpha/Numeric shift Connector Top View Bottom View Syncing/Charging Power On/Off Barcode Scan Window Connector Janam Technologies LLC...
  • Page 8 XM60 User Manual Hand Strap Connector Stylus Speaker Battery Compartment IrDA Window Stylus Slot Reset Button Microphone Battery Door Battery Screw Janam Technologies LLC...

  • Page 9: Chapter 2: Get Started

    Serial syncing/charging cable with AC adapter Recommended host computer configuration/requirements The Janam XM Series Development Kit helps assist programmers with the development of applications for Janam XM Series rugged barcode scanners running the Microsoft® Windows® CE 5.0 operating system. It contains all necessary details and instructions for developing applications that access Janam XM Series libraries, including scanning, imaging and hardware utilities.

  • Page 10: Remove The Battery From Spare Charging Well

    To charge the battery: Important Note: The main battery charges the backup battery in the XM60. Once the main battery is fully charged, do not remove it from the unit for 24 hours. If the battery is removed during this period, the device cannot maintain any user data.

  • Page 11: Understanding The Desktop

    XM60 User Manual Understanding the desktop Command bar Your XM60 mobile computer desktop includes a command bar with the following features. Toggle between desktop MS Windows icon and applications Current application Keypad/input panel USB Socket status Time/date Battery Boot-uploader procedure NOTE: Only update your boot-loader when requested.

  • Page 12: Update Your Rom

    To check your current ROM version 1. Tap the MS Windows icon or start menu, go to settings and select control panel. 2. Tap twice on the XM60 Panel icon (use scroll down to locate icon). 3. Select Info. •...

  • Page 13: Download The Correct Bin File

    (You will need a login name and password.) 2. Accept the terms and conditions, and go to PartnerZone. 3. Locate the BIN file for the XM60. If the version number matches the version on the web site, there is no need to update the ROM.
  • Page 14 XM60 User Manual 7. Eject the drive after update is completed. • The update ROM process will proceed. • Device will boot up within three minutes. 8. After a hard reset of the device (see next section), the new ROM will be updated in your mobile computer.

  • Page 15: Reset The Xm60

    4. Replace the battery door. To hard reset: A hard reset returns the XM60 to factory settings, removing ALL applications and data from the device. Be sure that all data is backed up before performing a hard reset. To perform a hard reset, do the following: 1.

  • Page 16: Demonstration And Setup

    XM60 User Manual Barcode Scanning The XM60 provides an easy migration path so that minimal application code changes are required for barcode scanning applications. Barcode scanning demonstration and setup To run the demo: 1. Tap the MS Windows icon > programs > XM60 Applications >...

  • Page 17: Enable The Scanwedge Feature

    API or by using the Janam Barcode Test program. Unlock 2D scanning All of Janam’s mobile computers can be upgraded in the field to read both 1D and 2D barcodes with a simple firmware upgrade (Part Number 2D-XP-1). With each upgrade, a key code is provided that unlocks 2D scanning capability on the device.

  • Page 18: Enable Scancapture Feature

    XM60 User Manual After receiving your five-digit key code, follow these steps to enable 2D scanning. 1. Go to the MS Windows icon > settings > XM60 panel. 2. Tap XM60 panel icon. 3. Select scanner tab. 4. Enter your five-digit key code > unlock.
  • Page 19 XM60 User Manual 4. Enter image’s name and select folder. 5. Click OK. 6. Below is the image that is captured. To use continuous preview: 1. Click cont or continue button. 2. Click button again to stop preview. To use intelligent capture: You can use intelligent capture to scan a signature or address that is located some distance away from a barcode.
  • Page 20 XM60 User Manual 3. Select intel button and aim at any support barcode. If you need to capture a 2D barcode, be sure to unlock your 2D feature. Note: the image is always the same position from the barcode. 4. Select save.
  • Page 21 XM60 User Manual Janam Technologies LLC...

  • Page 22: Chapter 4: Set Up Your Janam Xm60

    Do not use a pen, pencil or any other sharp object to write on the screen. Recalibrate the screen The first time you start the Janam XM60 handheld computer, setup instructions appear onscreen. These instructions include a calibration screen, or digitizer. Calibration aligns the internal circuitry of the handheld computer with its touch-sensitive screen so your handheld computer can detect the task you want to perform when you tap an element on the screen.

  • Page 23: Use The Regional And Language Features

    XM60 User Manual Use the regional and language features Your Janam XM60 comes with a variety of regional, language and input settings that are preset before your device is shipped. To change these settings, follow the directions below. WARNING: If you change to a language other than English, you will have to perform a hard reset, which will erase all data on your handheld computer.

  • Page 24: Remove Applications

    3. Select the program you want to delete and click remove. 4. Click OK. Enter data You can enter data into your Janam XM60 in one of five ways: • Using the stylus or touch screen with the onscreen keyboard •...

  • Page 25: Set The Date, Time And Time Zone

    XM60 User Manual Set the date, time and time zone preferences To set the date: Tap MS Windows icon in the command bar > settings > control panel. Tap on calendar date to change, select new time and choose your time zone from the dropdown menu.

  • Page 26: Set The Display Properties

    XM60 User Manual Set the display properties You can easily change the background and appearance on your Janam XM60, including the colors. In addition, you can save battery life by turning off the backlight when not needed. To change the background: Tap MS Windows icon in the command bar >...

  • Page 27: Select Volume And Enable Sounds

    > settings > control panel. Double-tap internet options icon. There are six different tabs in the internet options, so you can customize your XM60 to meet your network requirements. • General (at right): enables you to select your start and search pages, in addition to user agent.
  • Page 28 XM60 User Manual Connection Security Privacy Advanced Popups After you finish making your selections in each screen, click OK to save settings. Janam Technologies LLC...
  • Page 29 XM60 User Manual Janam Technologies LLC...

  • Page 30: Chapter 5: Enter Data

    XM60 User Manual Enter Data You can enter data into your Janam XM60 handheld computer by using the stylus or touch screen with the onscreen keyboard or by scanning barcodes. • Using the stylus or touch screen with the onscreen keyboard •...

  • Page 31: Import Data

    If you have data stored in computer applications such as spreadsheets and databases, or if you want to import data from another device, you can transfer the data to your Janam XM60 handheld computer without having to key it in manually. See chapter 6 for more details on how to transfer files and applications.

  • Page 32: Chapter 6: Activesync

    Create a user profile You can create a user profile to load data into a Janam XM60 without associating that data with a user name. If you didn’t set up a user profile in chapter 4, follow the instructions below.
  • Page 33 8. Add the files you want to sync with the files on your mobile device. 9. Click OK > next to continue the setup. 10. Your partnership setup is complete, and you may need to accept the partnership on your Janam XM60. Janam Technologies LLC...
  • Page 34 1. Go to file > delete partnership in the ActiveSync manager. 2. Click yes when confirmation screen appears. 3. You will need to re-establish the partnership when you connect your Janam XM60 to your PC, or you will need to connect as a guest. To set up a guest partnership: 1.

  • Page 35: Partnership Settings

    XM60 User Manual Partnership settings To change partnership connection settings: 1. Click the ActiveSync icon in your Windows system tray (bottom right corner of taskbar). 2. Choose file > connection settings from the ActiveSync manager menu. 3. Make changes > OK.

  • Page 36: Wireless Local Area Network Access

    XM60 User Manual 802.11 Wireless Configuration The following section details the basic 802.11 wireless configuration for your Janam XM60. Wireless local area network access To add or edit a WLAN: 1. Tap the MS Windows icon in the command bar > settings >...
  • Page 37 XM60 User Manual 4. Tap twice on add new. 5. Enter ESSID, authentication and encryption. 6. After wireless is configured, double tap the network icon to edit or add another WLAN. Janam Technologies LLC...

  • Page 38: Chapter 8: Bluetooth Manager

    There are several ways to set up your computer for wireless access, and the following section details the general instructions needed to set up Bluetooth on your Janam XM60. Please note that complex or custom installations may require additional expertise from Janam’s technical and support team.

  • Page 39: Scan Device Wizard

    XM60 User Manual Scan Device Wizard To use Scan Device Wizard: 1. Tap the scan device icon to start the wizard. 2. Tap next. 3. Wait until searching is finished. 4. Choose the device you want to add > next.

  • Page 40: Send Files

    XM60 User Manual Send files Please note that your target device needs to support OBEX file transfer option. To send files: 1. In the Bluetooth Device Manager, choose send from the file menu. 2. Tap search to start searching the device.

  • Page 41: File Browser

    XM60 User Manual File browser Please note that your target device needs to support OBEX file transfer option. To use the file browser: 1. Choose the device you want to connect to. 2. Input PIN number. 3. If connection is successful, you can view the remote and local files.
  • Page 42 XM60 User Manual 5. Choose Bluetooth ActiveSync on your XM60 device. 6. Pick the device that can accept Bluetooth ActiveSync. • You will see the serial port provided by the PC (make sure that your PC is not currently synching with another device.

  • Page 43: Settings

    XM60 User Manual To use Bluetooth COM service (create a BT virtual COM port): 1. Choose COM service from file menu in the Bluetooth device manager. 2. Pick the device for creating the virtual COM port. 3. Select the COM number to map to.
  • Page 44 XM60 User Manual To check Bluetooth chip setting: 1. Go to tools > about. 2. The next screen will show the chip setting. Janam Technologies LLC...
  • Page 45 XM60 User Manual Janam Technologies LLC...

  • Page 46: Turn Beam On/Off

    XM60 User Manual Beam Information You can beam any file or application between Janam connected handheld devices. Beaming distance to other connected devices may be different. Turn beaming on/off To turn beaming on or off: Go to MS Windows icon > settings > control panel.
  • Page 47 3. Highlight or select the file you want to send. 4. From the top menu, select file > send to > beam files. 5. Aim the sending device IRDA window at the receiving XM60 IRDA window, about 6 inches apart.

  • Page 48: Chapter 10: Regulatory And Maintenance

    For further information, please contact: Janam Technologies; 100 Crossways Park West, Suite 105, Woodbury, NY 11797. Janam Technologies shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.
  • Page 49 The user may find the following booklet helpful: “Something about Interference.” This is available at local FCC regional offices. Janam is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connective cables and equipment other than those specified by our company.

  • Page 50: For European Community Users

    The terminal can be cleaned with a damp cloth. For European Community users Janam Technologies complies with Directive 2002/69/EC of THE EUROPEAN PARLIAMENT AND OF THE COUNCIL OF 27 January 2003 on waste electrical and electronic equipment (WEEE). Waste electrical and electronic equipment (WEEE) information This product has required the extraction and use of natural resources for its production.

  • Page 51: General Information

    DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Use only Janam approved batteries such as the BA-XP-1 and recharge batteries using only Janam approved chargers. Use only easily accessible wall outlets that are easily reached with the length of the supplied power cables.
