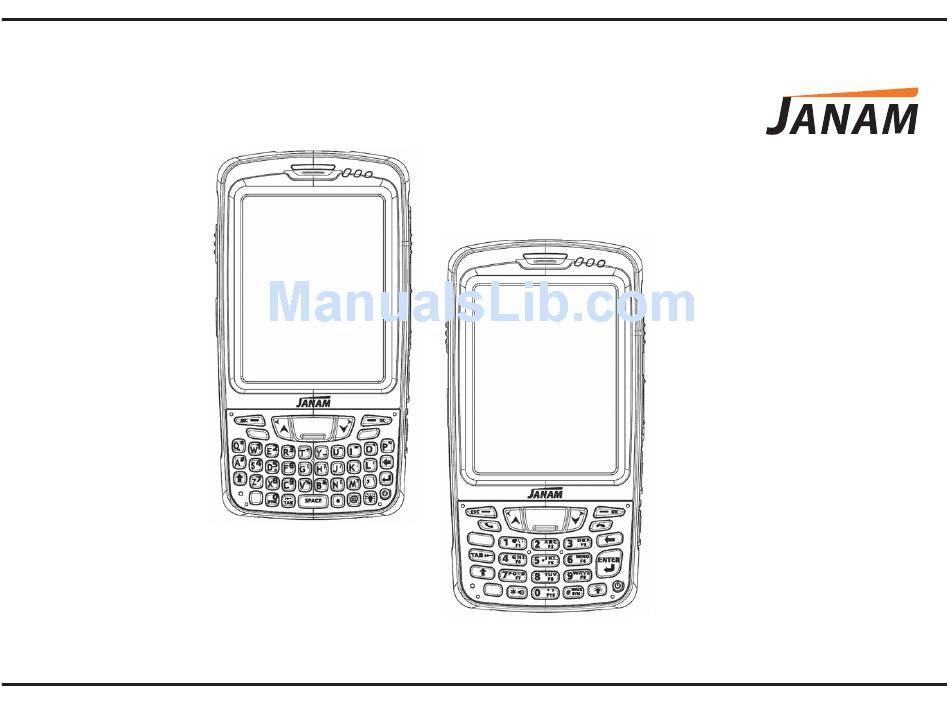

- Page 1 XT Series ™ Quick Start Guide ® Technology at Work. 022613XTFSQSG2...
- Page 2 XT Series Quick Start Guide Copyright 2013 Janam Technologies LLC. All rights reserved. XT Series, Janam and the Janam logo are trademarks of Janam Technologies LLC. Other product and brand names may be trademarks or registered trademarks of their respective owners.
- Page 3 Content and Additional Resources To help you get started with your XT Series mobile computer, this guide features: Hardware Overview Getting Started A. Install the Battery B. Charge the Battery C. Attach the Handstrap D. Remove the Battery E. Access the SIM Card Slot and microSD Card Slot Contents of this guide are subject to change.
-
Page 4: Hardware Overview
14. Left Trigger 15. Push-to-Talk Button 16. Scan Trigger 17. Phone Connect Key 18. Shift Key 19. Microphone 20. Yellow Function Key 21. Connector 22. Blue Function Key QWERTY Keypad Numeric Keypad (Numeric keypad only) Page 3 XT Series Quick Start Guide... - Page 5 Finger Lift Groove Battery Compartment Speaker Handstrap Retainer Scan Window Lanyard Connector Stylus Camera or IrDA Window 10. Stylus Slot 11. Handstrap Bar 12. Media Card Compartment Cover 13. microSD Card Cover/Slot 14. SIM Card Cover/Slot Page 4 Janam Technologies LLC...
-
Page 6: Getting Started
2. Insert the USB end of the USB cable into the USB port on the AC adapter housing. 3. Insert the micro USB end of the USB cable into the micro USB port on the XT Series unit. 4. Plug in the AC Adapter. -
Page 7: Attach The Handstrap
1. Insert plastic fastener on handstrap into the handstrap retainer face down as shown in diagram. It will click into place. 2. Extend other end of handstrap toward base of XT Series unit (rough side of Velcro should be facing up). Feed through the handstrap bar as shown in diagram. -
Page 8: Regulatory Information
CE marked and does not comply with the Low Voltage Directive. Only use Janam approved and UL listed batteries and charging accessories. FCC and Canadian Compliance XT Series mobile computers meet or exceed all applicable standards and have been manufactured to the highest level of quality. To see the specific labels associated with RF terminals configurations, visit www.janam.com. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. - Page 9 RSS-210:2010 ISSUE 8 (2010-12), RSS-132:2006 ISSUE (2005-09), RSS-133:2009 ISSUE 5(2009-02), ICES-003: 2012 ISSUE 5(2012-08) Europe EN300328 V1.7.1:2006,EN301893 V1.6.1 (2011-11),EN301908-1:V5.2.1(2011-05) EN301893 V1.6.1(2011-11),EN 300 440-2 V1.4.1,EN301 489-1(V1.9.2(2011-09))/-7 (V1.3.1(2005-11))/-7(V2.2.1(2012-09))/-24(V1.5.1:2010), EN62209:2010, EN60950: 2006 A12:2011, EN62311 SAR: 2008, EN50360:2001+A1:2012, Australia AS/NZS 4268:2012 Page 8 XT Series Quick Start Guide...
- Page 10 This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. To maintain compliance with the FCC RF exposure guidelines for body-worn operation, do not use accessories that contain metallic components other than specified by the manufacturer. Page 9 XT Series Quick Start Guide...
- Page 11 Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Hereby, Janam Technologies LLC declares that this product is in compliance with the essential requirements and other relevant provisions of Directive, 1999/5/EC. The equipment is intended for use throughout the European Community.
- Page 12 TO THE INSTRUCTIONS Battery Safety Guidelines Use only Janam batteries and recharge batteries using only Janam approved charging accessories. Observe the following guidelines for safe use of Li-Ion batteries: 1. Do not expose the battery to excessive heat or cold. Do not short-circuit. It may explode.
- Page 13 ® Technology at Work.
