Summary of Contents for Janam XM60

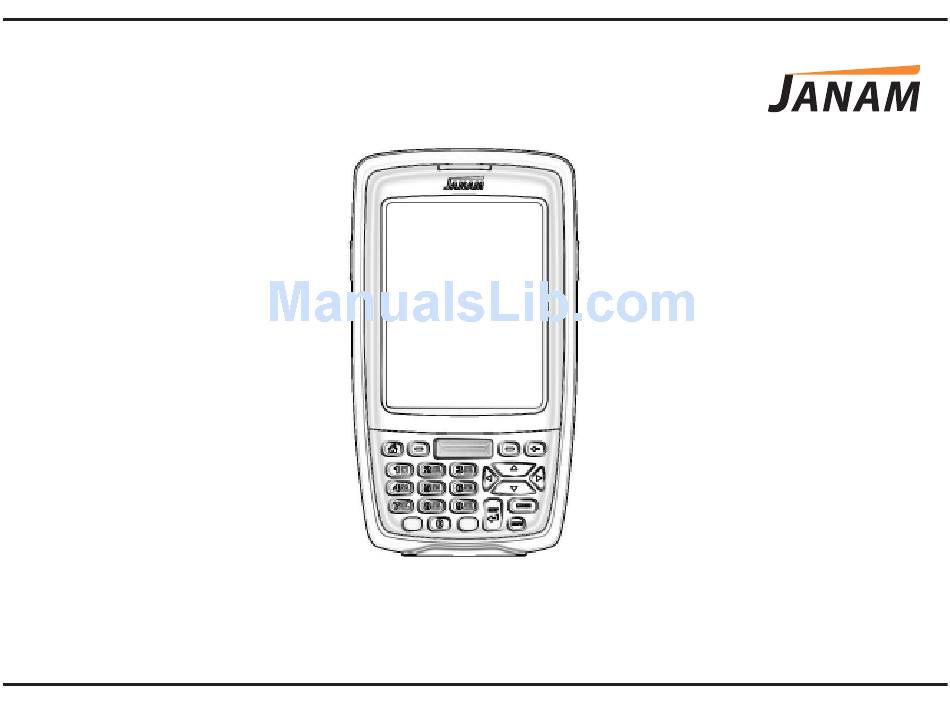

- Page 1 XM Series ™ Quick Start Guide Technology at Work.™ 041608XMCom1...
- Page 2 XM Series Quick Start Guide Copyright 2008 Janam Technologies LLC. All rights reserved. XM Series, XM60, Janam and the Janam logo are trademarks of Janam Technologies LLC. Other product and brand names may be trademarks or registered trademarks of their respective owners.
- Page 3 Content and Additional Resources To help you get started with your XM Series mobile computer, this guide features: For additional product details visit, www.janam.com For Microsoft ® Windows ® CE software updates and information, visit www.microsoft.com. Page 2 Hardware Overview...
-
Page 4: Hardware Overview
Hardware Overview Power Indicator LED Connector Scan Trigger Right Trigger Left Trigger Navigation Home 10. Enter 11. Programmable 12. Function 13. Backspace 14. Alpha/Numeric Shift 15. Space 16. Shift Page 3 XM Series Quick Start Guide... - Page 5 Hardware Overview Page 4 Battery Compartment Battery Door Battery Screw Reset Microphone Speaker IrDA Window Stylus Stylus Slot Lanyard Connector Janam Technologies LLC...
-
Page 6: Installing And Charging The Battery
Installing and Charging the Battery A. INSTALLING THE BATTERY 1. To access the battery compartment, turn the battery screw counterclockwise to open the latch and remove battery cover. 2. Position the battery-lift strap, place the Lithium-ion battery and snap into place. 3. -
Page 7: Getting Started
Getting Started A. CALIBRATING THE SCREEN The fi rst time the device is turned on, the Welcome Utility appears. To set up the device, follow the on-screen instructions using the stylus to tap the exact center of each target Note: If your XM Series device came pre-loaded with a custom software application, the Welcome Utility may not appear. -
Page 8: Regulatory Information
100 Crossways Park West, Suite 105 Woodbury, NY 11797 Janam Technologies shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive. - Page 9 This Class B digital apparatus complies with the Canadian ICES-003. Cet appareil numerique de la Class B est conforme a la norm NMB-003 du Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 10 To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Page 9 Janam Technologies LLC...
-
Page 11: Waste Electrical And Electronic Equipment Information
RF, Regulatory and Safety Approvals Parameter Specifi cation R&TTE EN 300 328 v1.6.1 (2004-11) EN 301 489-1 v1.6.1 (2005-09) EN 301 489-17 v1.2.1 (2002-08) EN 60950-1:2001+A11 EN 50371:2002 Australia AS/NZS CISPR 22:2004 This product is marked with Directive, 1999/5/EC. The equipment is intended for use throughout the European Community. Care and Cleaning of Terminals When needed, clean the image engine window and the LCD display with a clean, non-abrasive, lint-free cloth. -
Page 12: Battery Warning
Battery Warning Use only Janam approved batteries such as the BA-XP-1 and recharge batteries using only Janam approved chargers. Use only easily accessible wall outlets that are easily reached with the length of the supplied power cables. The standard charger provides an easy and convenient way to charge the device. You can purchase the charger through an authorized dealer. - Page 13 Technology at Work.™...
