Summary of Contents for Janam XT2

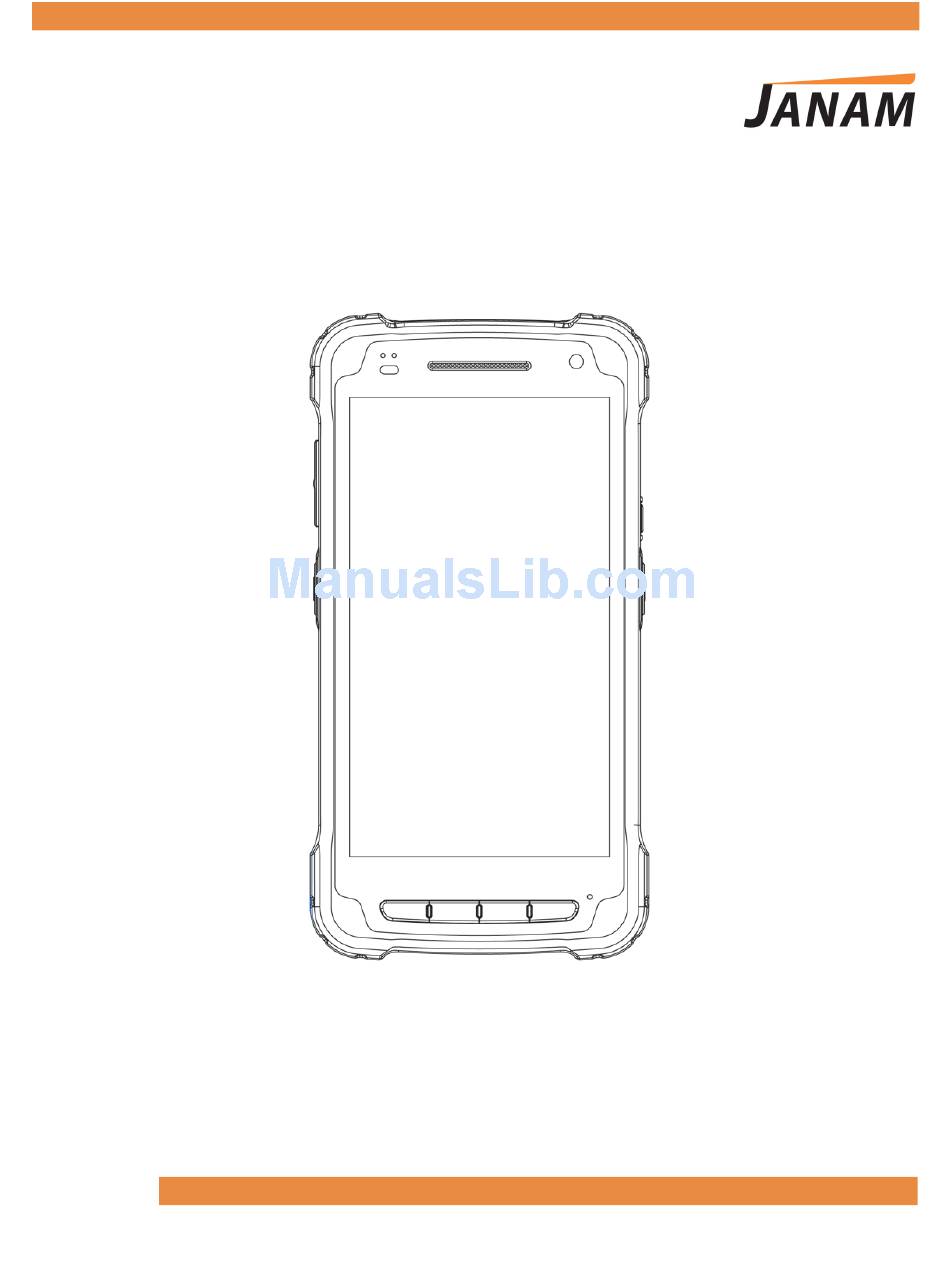

  • Page 1 User Manual Android version Technology at Work ® Version 3 April 2017 ? 2017 Janam Technologies LLC. All rights reserved.
  • Page 2 Intellectual Property rights. Janam Technologies LLC will at no stage be responsible for the inability or failure of the Third Party Materials to operate on this device or in interaction with any other devices of the purchaser. To the maximum extent permitted by law, Janam Technologies LLC disclaims all liability for any claims, de- mands, suits or actions, and more specifically —...
  • Page 3: Table Of Contents

    Options/Prefs: Narrator 3-13 Recommended Host PC Requirements Options/Prefs: Magnify 3-13 Janam XT2 SDK Options/Prefs: High Contrast 3-13 Charging the XT2 — Battery Safety Options/Prefs: Closed Captions 3-13 Installing the Battery 2–3 Charging the XT2 Battery 2–3 XT2 Battery Condition Information 2–4...
  • Page 4 Scan Symbologies XT2 Regulatory Information 15-1 Scan Demo app Regulatory and Safety Approvals 15-1 Scan Wedge app XT2 with WWAN, WLAN and Bluetooth 15-2 XT2 with WLAN and Bluetooth 15-2 Battery Safety Guidelines 15-4 Phone Functionality CH-PG Battery Charger Guidelines...
  • Page 5: Introduction

    As one of the smallest, lightest and fastest rugged mobile computers in its class to run Android, the XT2 is instantly familiar to the vast number of smartphone users already using Android, and fully compatible with the massive number of Android applications available through the Google Play store as well as many other sources.
  • Page 6: Hardware Overview

    20. Dock connector Lanyard port 13. Battery compartment lock 21. Scan trigger Mag card reader 14. Recent apps key 22. Volume rocker Speaker 15. Home key Rear camera 16. Back key Janam Technologies LLC Version 3, April 2017 Introduction 1—2...
  • Page 7: Getting Started Ch-Pg

    500 MB disk space for Android Studio Janam XT2 SDK The Janam XT2 Software Development Kit enables programmers to develop applications for Janam XT2 rugged touch computers running the Android™ operating system. It contains details and instructions for developing applications that access the XT2 embedded scanner.
  • Page 8: Installing The Battery

    JanamCare at 866-915-5311. Use only battery chargers approved for the XT2 by Janam. Janam and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries. Observe the following guidelines for safe use of Li-Ion batteries: 1.
  • Page 9: Charging The Xt2 Battery

    1. Slide the appropriate US/UK/EUR adapter plug onto the AC/DC power adapter housing. 2. Insert the DC power plug into the DC power jack on the bottom of the XT2. 3. Plug in the AC/DC power supply. The XT2 LED indicator will light red while charging and will change to green when fully charged.
  • Page 10 Getting Started User Manual XT2 Battery Condition and Usage Information Android provides information on battery charge level in percent, estimated amount of battery charge remaining, and how much of the battery capacity has been used by various applications and device functions.
  • Page 11 For information about securing the XT2 with a password or pin code, refer to Chapter 3. Unsecured: just swipe up...
  • Page 12: Touch Screen Navigation

    Power Key (marked red in its center). The display will turn off. To turn the XT2 back on from this state of sleep, depress the Power Key again. The welcome screen will come up, and by swiping up you will return you to the last used app.
  • Page 13: Screen Rotation

    User Manual Screen Rotation The XT2 was designed to be used in portrait (vertical) orientation. Many screens and apps, however, can also be used in landscape (horizontal) orientation. By default, the XT2’s internal sensors will automatically present a vertical or horizontal view in sync with the physical orientation of the device.
  • Page 14: The Home Screen

    XT2’s most often used features and applications. The home screen can consist of multiple screens (on the XT2 there are two additional screens to the left of the home screen and two to the right).
  • Page 15: App Screen

    WIDGETS underneath the status bar. Function Keys The Janam XT2 has four physical, metallic function keys with white labels located along the bottom of the display. Depressing these keys, from left to right, brings up 1) recent...
  • Page 16: Microsd Card Storage

    Card About microSD Cards The XT2 rugged touch computer has a microSD flash memory card slot in its battery compartment that is compatible with microSD memory storage cards with a capacity of up to 64GB (FAT32 file format). When inserted, a microSD card provides additional memory storage that is designated by the XT2’s File Manager tool as “MicroSD card”...
  • Page 17: Sim Cards

    If a SIM card provided by your cellular carrier uses the micro or nano format, you need a (readily available) SIM card adapter to use it in the XT2. Contact Janam or your local GSM/GPRS based carrier for more information about SIM cards and wireless service.
  • Page 18: Backup And Restore: Restore

    With the above settings in place, all of the selected data, settings, and configurations will automatically be backed up to Google. Restoring everything simply means logging into your Google account and everything will be restored, even if it is a new device. Janam Technologies LLC Version 3, April 2017 XT2 Setup 3—3...
  • Page 19 Option B: Manual backup onto card Android also offers a backup to local storage media. In the XT2, that’s the removable microSD card. The card can be used to restore the device to its fully configured state. This process can also serve as a rapid deployment tool.
  • Page 20 User Manual Resetting the XT2 to factory condition Resetting the XT2 erases all personal data from internal device storage. This includes Google Account information, information about any other accounts, system and application settings and configurations, and any downloaded applications. In essence, the device is returned to factory condition.
  • Page 21: Android Security

    XT2 Setup User Manual Security Android Security The Android 5.x “Lollipop” operating system installed on the Janam XT2 can inherently provide a high degree of security, centering around three areas: screen lock to guard against unauthorized data access Encryption strong enough to virtually eliminate data breaches...
  • Page 22 Owner info on lock screen (instant identification of device) In addition, there is a SmartLock feature that changes locking depending on certain circumstances. This can make using your XT2 both more con- venient and more secure. On-body detection (device stays unlocked as long as it is held or carried around)
  • Page 23: Device Settings

    XT2 Setup User Manual Device Settings The XT2 can be configured according to your personal preferences. This makes the device easy to use and helps to enhance efficiency and productivity. Display brightness level can be adjusted manually or the XT2 can use its ambient light sensor to adjust the brightness level automatically.
  • Page 24: Device Settings: Storage

    Clear any Launch by default settings assigned to the app. To access the App info screen, touch the app name on the list dis- played under the Downloaded tab on the Settings > Apps screen. Janam Technologies LLC Version 3, April 2017 XT2 Setup 3—9...
  • Page 25: Personal Settings Accounts

    Google Account Settings Since Google account services and settings play a large role in any Android device, some XT2 users may wish to have both a Google account and a corporate, work, business or private account. If so,...
  • Page 26: Personal Settings: Language & Input

    XT2 Setup User Manual Personal Settings (continued) Language & input To configure and customize various language and input settings of your XT2, go to Settings > Language & input. Here you can set: Language: Select from a long list of available languages.
  • Page 27: System Settings

    To change the date format displayed on the screen, touch Choose date format, and then select a format from the list. Accessibility To configure features that make using the XT2 easier for people with certain physical disabilities, go to Settings > System tap Accessibility.
  • Page 28: Introduction

    A given physical area may have multiple wireless local area networks (WLANs), sometimes referred to as Wi-Fi hot spots, which the XT2 can see as it scans for available networks. Typically, wireless local area networks are configured with a security scheme. Wireless devices connected to a wireless network must: A.
  • Page 29 Wireless Network Connection User Manual Connecting the Janam XT2 to a Wireless Local Area Network (WLAN) To initially connect the XT2 to a wireless local area network, go to Settings > Wireless & networks > Wi-Fi. Turn Wi-Fi networking on. The XT2 will begin searching for available Wi-Fi networks. After a few seconds it will list what it has found, including the approximate signal strength and whether or not a network is secured by a password or not.
  • Page 30: Wifi Options

    Wi-Fi networks. Default is off. — Keep Wi-Fi on during sleep: Should Wi-Fi stay on when the XT2 goes to sleep* Can be set to always, only when the device is plugged in, or never. —...
  • Page 31: Introduction

    Introduction Bluetooth is a popular PAN (Personal Area Network) technology used for short-range wireless communication. Devices with Class 2 Bluetooth capabilities, such as the Janam XT2, can send and/or receive information over distances of approximately 10 meters (30 feet). Unlike older infrared technology, Bluetooth does not rely upon uninterrupted line-of-sight between devices that need to exchange information.
  • Page 32: Bluetooth Concepts

    Bluetooth Concepts Bluetooth does not have to be on in order for the XT2 to function. In fact, since the Bluetooth radio consumes power, it should be turned off when it is not needed. You can see that Bluetooth is active...
  • Page 33: Bluetooth Pairing

    As stated above, Bluetooth “services” between two connected devices vary. In this case, the pairing between the XT2 and the MacBook allows the MacBook to send files to the XT2, and the Mac can use the XT2’s cell connection to connect to the Internet.
  • Page 34: Introduction

    Camera Introduction The Janam XT2 rugged touch computer features an 8 megapixel CMOS rear-facing autofocus camera with user-controllable LED flash for capturing crisp still pictures and video clip recording. Both functions are useful for documentation of inventory locations, product damage, procedures and more.
  • Page 35: Camera Controls Overview

    Camera User Manual Camera Controls Overview Front camera location Rear camera location All XT2 camera controls are onscreen. The camera can be used both in portrait or in landscape orientation. Camera controls in portrait mode Camera controls in landscape mode Timer control.
  • Page 36: Camera Settings

    4:3 aspect ratio, the lower ones use the 16:9 aspect ratio. Advanced settings Advanced settings allows toggling manual exposure on and off. This enables setting exposure compensation between -2.0 and +2.0 in 0.5 increments. Janam Technologies LLC Version 3, April 2017 Camera 6—3...
  • Page 37: Camera Zoom

    Details to get a list of very detailed information about the image. This data alone shows that both of the XT2 cameras can do a lot more than the basic camera app sports. You can now tap on the small...
  • Page 38: Editing Pictures

    (such as B/W, vintage, punch, etc.) or a custom preset. Adjusting various aspects of light (exposure, contrast, highlights, etc.) and color (tint, saturation, warmth, skin tone, etc.), and applying “pop.” Cropping, rotating, aspect ratios, etc. Janam Technologies LLC Version 3, April 2017 Camera 6—5...
  • Page 39: Introduction

    Here we explain stock Email. Before setting up an email account on the XT2, be sure that a core email address is active with an email service provider or within a private enterprise (corporate) network to which the XT2 user has access and authorization.
  • Page 40: Manual Email Setup

    During Email Setup During email setup you will be asked how often you want your XT2 to check with your email provider and update email. “Never” means you’ll do it manually. Note that if you set up a Gmail account that you’re also using on other devices (like a laptop...
  • Page 41: General Email Settings

    Server settings Incoming and outgoing server settings may change, and this is where it’s done, including password changes for email. Janam Technologies LLC Version 3, April 2017 Email 7—3...
  • Page 42: Email Inbox

    To delete an email account, go to Settings, tap on Accounts, tap the desired account, make sure sync is off, tap account again, tap for popup, select Remove account. xt2_user@outlook.com xt2_user@outlook.com Janam Technologies LLC Version 3, April 2017 Email 7—4...
  • Page 43: Cpu Settings

    Google Play Store or other sources. The Janam XT2’s Tools folder contains a few examples of such tools. CPU Setting By default the Janam XT2’s...
  • Page 44: Program Buttons

    This feature collects info about the current device state. It cre- ates a report and folder named Bugreports in the root storage that can be sent to a Janam Service Center for analysis. Janam Technologies LLC Version 3, April 2017...
  • Page 45: Scanning With The Janam Xt2

    Barcode Scanning User Manual Barcode Scanning Using the Image Scanner Engine Janam's XT2 is available with an integrated 1D/2D barcode scanner to eliminate the challenges often associated with camera scanners or bulky sled attachments. Scanning with the Janam XT2 The XT2 integrated barcode scan window is located on the top edge of the handheld computer.
  • Page 46: Scan Settings

    User Manual Scan Settings Go to Tools > Scan Set- tings to configure the XT2’s scan engine and software. This is where you set how the scanner will work, how it will announce and commu- nicate results, what all the scan...
  • Page 47 For detailed technical information on the impact of redundancy, security and quiet zone levels, as well as other scan-related settings, please contact your Janam technical representative. Janam Technologies LLC Version 3, April 2017...
  • Page 48 Barcode Scanning User Manual Symbologies The XT2’s scanner can read and decode virtually any 1D or 2D bar code in milliseconds. Go to Settings > Scan Settings > Symbologies view more than 40 code types that are not only supported, but can additionally be configured with their own options and extensions (see options below).
  • Page 49: Scan Demo App

    A range of 4–10 inches (10–25 cm) from the bar code is recommended. To scan, either push one of the XT2’s two scanner buttons or tap the Scan Start button on the screen. Aim the barcode imager beam at the target barcode.
  • Page 50: Scan Wedge App

    For example, with Scan Wedge active, the XT2 can be used to scan barcode data directly into a Microsoft Word or Excel template, or any other app that accepts input data.
  • Page 51: Introduction

    Phone Functionality User Manual Phone Functionality Introduction The Janam XT2, if equipped with an activated SIM card and cellular service, is a full-function smartphone in addition to a professional productivity tool. Phone screen To make a call, tap the dialpad icon on the bottom right of the display.
  • Page 52: During Call Features

    Grayed out options are not available on the call in progress. Answering a Call When a call comes in, the XT2 brings up the phone screen, showing either the number or (if known) the identity of the caller. You then have the option to answer the call...
  • Page 53: Introduction

    Janam XT2 GNSS Support The Janam XT2 provides high-sensitivity positioning both in standalone “GPS” mode where it receives data from satellites directly, as well as in “A-GPS” (Assisted GPS) mode where satellite data is related via cellular and Wi-Fi networks. In general, direct GPS provides the most accurate positioning whereas A-GPS is less precise but quicker.
  • Page 54: Location Service By App

    Before installation, most apps will request permission to use certain services. This may include use of Google location services, Wi-Fi, GPS, the XT2’s own IZat functionality and more. In the example to the right, the...
  • Page 55: Google Play Store

    Apps. This means that purchases made by a user for another Android device are downloadable to the XT2 as long as the purchased app supports the XT2’s hardware and software. You can elect to list all apps you purchased, or just the ones on the device you are currently using.
  • Page 56: Google Play Store Settings

    This way, sys- tems integrators or IT personnel can configure units for specific use and appli- cations, eliminating the temptation that comes with a full load of consumer apps. Janam Technologies LLC Version 3, April 2017 User Applications 12—2...
  • Page 57: Update Via Fota Client

    OS image version is currently installed. If your device OS image version is earlier than 87.07C3, please update the OS image with the “Update from SD card” procedure first. If your XT2 is on OS image version 87.07C3 or later, go to Settings >...
  • Page 58: Advanced Fota Client

    Advanced FOTA Client Note that there is also an Advanced FOTA Client accessible only through Settings > Developer options. Developer options is not normally visible on your XT2. To make it visible, go to Settings > About phone and tap Build number 7 times.
  • Page 59: Janam Xt2 Specifications

    Specifications User Manual Janam XT2 Specifications TECHNICAL Operating System Android 5.1 Lollipop Processor Quad-core Qualcomm MSM8916 CPU @1.2GHz Memory 1GB/8GB (WLAN) or 2GB/16GB (WWAN) Expansion User-accessible microSD card slot with SD and SDHC support Power 3000mAh rechargeable Li-ion battery (4000mAh optional)
  • Page 60: Regulatory And Safety Approvals

    Be sure to make backup copies of all important data on other media to protect against data loss. Follow all usage, charging and maintenance guidelines in the Product User Guide. If you have ques- tions, contact Janam. For a copy of the Product User Guide, visit the online Resource Center at www.janam.com.
  • Page 61: Xt2 With Wwan, Wlan And Bluetooth

    Regulatory and Maintenance User Manual RF, regulatory and safety approvals XT2 with WWAN, WLAN and Bluetooth Parameter Specification 47 CFR FCC Part 15, Subpart B, Class B • FCC Part 22, Subpart H • FCC Part 24, Subpart E • FCC Part 27, Subpart C, L • FCC Part 2 • FCC Part 15, Subpart C •...
  • Page 62 To maintain compliance with the FCC RF exposure guidelines for body- worn operation, do not use accessories that contain metallic components other than specified by the manufacturer. Janam Technologies LLC Version 3, April 2017 Regulatory and Maintenance 15—3...
  • Page 63 Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Hereby, Janam Technologies LLC declares that this product is in compliance with the essential requirements and other relevant provisions of Directive, 1999/5/EC. The equipment is intended for use throughout the European Community.
  • Page 64: Battery Safety Guidelines

    Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture. • To fully disengage the power to the unit, please disconnect the power cord from the AC inlet. Janam Technologies LLC Version 3, April 2017 Regulatory and Mintenance 15—5...
  • Page 65: Troubleshooting

    Check the battery charge level. My device doesn’t charge properly Make sure you are using a Janam Technologies approved charger. Make sure that your battery is not completely discharged; if the battery is completely discharged, it may take around 20 minutes to display the battery charger indicator on the screen.
  • Page 66 Make sure that you have selected the country prefix when calling a foreign country. I am unable to add a contact in my contacts Make sure that your SIM card contacts are not full; delete some files or save the files in Janam Technologies LLC Version 3, April 2017 Troubleshooting 16—2...
  • Page 67 Deactivate Bluetooth, WLAN, or GPS when not in use. The device sometimes gets hot This heating is a normal consequence of the CPU handling excessive data. Ending above actions will make your device return to normal temperatures. Janam Technologies LLC Version 3, April 2017 Troubleshooting 16—3...
