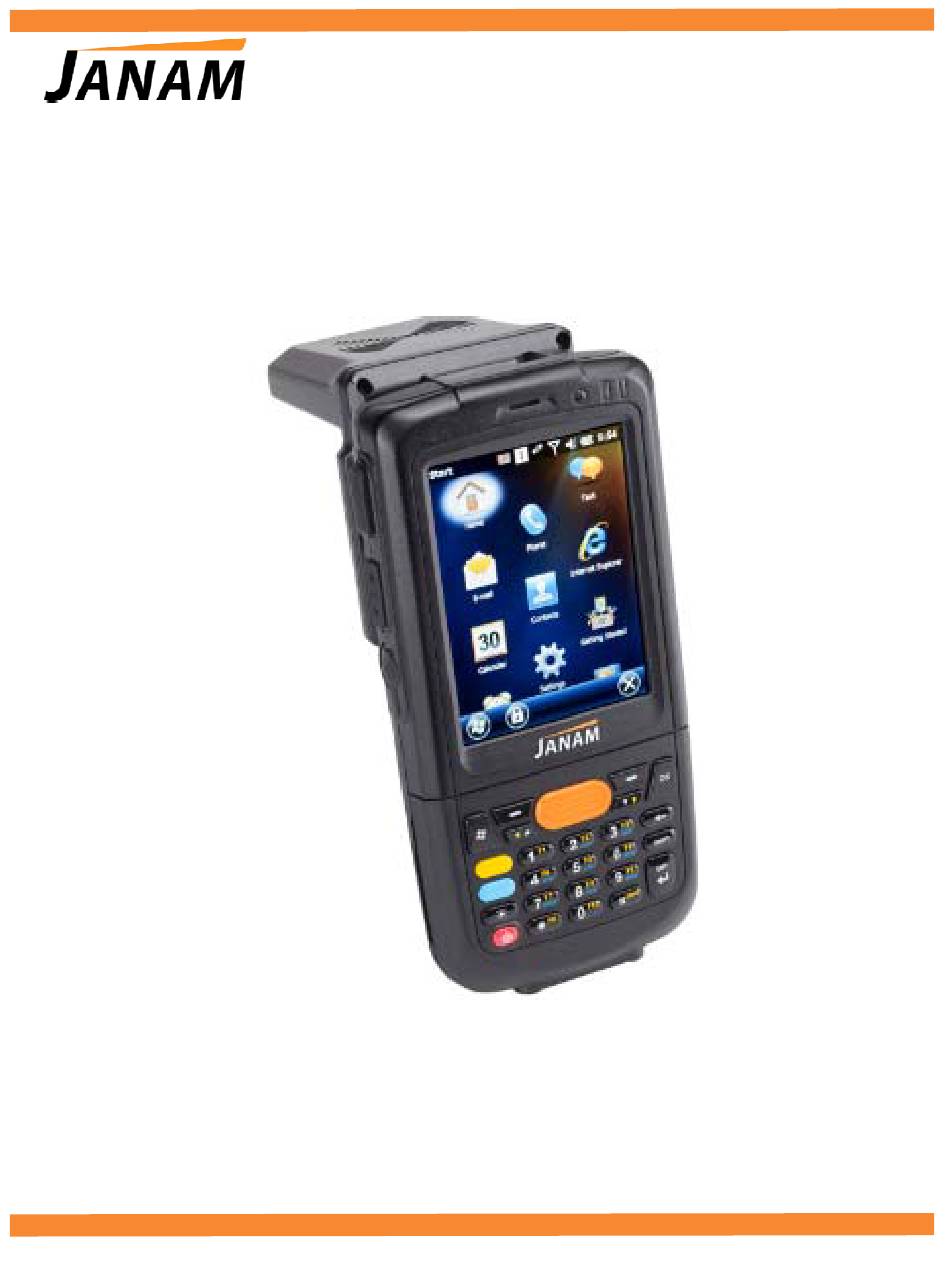

- Page 1 XM2-RFID User Manual Technology at Work®. © 2016 Janam Technologies LLC. All rights reserved.
-
Page 2: Table Of Contents
NSTALLING THE ICRO ARD AND ATTERY RADLING AND HARGING NDERSTANDING THE TARTUP SCREEN UNDAMENTAL AVIGATION 3 SETTING UP YOUR JANAM XM2-RFID EYBOARD CONTROLLED SCREEN NAVIGATION SCREEN OPTIONS AND CALIBRATION ETTING ASIC REFERENCES ETTING BACKGROUND ASSWORD PROTECTION CREEN EYBOARD LOCK EGIONAL SETTINGS... - Page 3 XM2-RFID User Manual USTOM ROGRAMMING RAWING AND RITING 7 SYNCHRONIZING THE XM2-RFID DEVICE REATING A USER PROFILE ANAGING ARTNERSHIPS 8 WLAN 802.11 B/G/N RADIO VERVIEW WLAN R ONFIGURING ADIO 9 USING BLUETOOTH VERVIEW LUETOOTH CONFIGURATION 10 REGULATION AND MAINTENANCE 10-1...
-
Page 4: Introduction
Windows Embedded Handheld 6.5 operating system. XM2-RFID for Rail Janam’s XM2-RFID for Rail is the lightest, fastest and most affordable RFID-reading solution for the railroad industry. A fully rugged, highly capable, handheld RFID reader, the XM2-RFID for Rail offers best-in-class read range and battery life and is the first fully integrated handheld computer to deliver the ability to read Automatic Equipment Identification (AEI) RFID tags to the palm of the hand. -
Page 5: Hardware Overview
Down button Headset plug Rear Top and Bottom View Data capture window Stylus Speaker Label recess Battery cover latch Battery cover Handstrap clip I/O connector lock guide pin I/O Connector Handstrap bar Reset Key Battery cover switch Janam Technologies LLC... -
Page 6: Getting Started
Janam XM2-RFID libraries, including scanning, RFID and hardware utilities. The development kit, which can be downloaded from Janam’s Product Zone site (login required), is designed for use with Microsoft Windows Embedded Handheld and Visual Studio 2005/2008 development environment. -
Page 7: Attaching The Handstrap
To remove the battery: 1. Slide the battery latch to the left. 2. The battery cover will lift up slightly; grasp the battery cover and remove it. 3. Remove the battery, right side first, from the battery compartment. Janam Technologies LLC... -
Page 8: Cradling And Charging
⎯ Internal backup battery takes 8 hours to be fully charged. Battery Status To check battery power, tap the battery icon to open the Power Properties. The Battery tab will display the charge status of the main battery. Janam Technologies LLC... -
Page 9: Understanding The Startup Screen
― Set ring tone ― Transfer music ― Online Help & how-to ― Add/remove Getting Started Once the XM2-RFID device options are set as desired, the Add/remove Getting Started function allows the removal of the Getting Started tab from the home screen menu. -
Page 10: Fundamental Navigation
Windows Icon IMPORTANT NOTE! Always use the supplied stylus for tapping or making strokes on the screen. DO NOT use a pen, pencil or any other object on the touch screen. Key Status Icons & Controls Janam Technologies LLC... - Page 11 Use the left and right arrows to scroll through additional icons. Icon Meaning Open the start menu Access the Wireless Manager Access the Wireless Manager Shows the volume Indicates the Battery Control Panel (CPL) Indicates Clock & Alarm CPL Zoom in/ out Access the Bluetooth radio Janam Technologies LLC...
-
Page 12: Setting Up Your Janam Xm2-Rfid
⎯ To scroll left or right, press the left or right buttons. LCD Screen Options and Calibration The XM2-RFID provides a utility that enables users to customize LCD screen orientation and recalibrate the screen tapping function’s accuracy. Accessing the Screen Menu: 1. -
Page 13: Setting Basic User Preferences
Screen Orientation screen. Setting Basic User Preferences Janam XM2-RFID mobile computers can be customized in many ways to suit task requirements, security and/or individual user preferences. The following is an overview of key XM2-RFID device settings with instructions on how to make changes. The general navigations and actions used to affect these changes are instructive to other similarly controlled settings. -
Page 14: Setting Background
Picture backgrounds can affect the Note: readability of text within some applications. Tapping the Getting Started icon on the Tip: Windows Mobile Start screen is an equally effective means of navigating to the Getting Started menu. Janam Technologies LLC... -
Page 15: Password Protection
Overly simplistic sequences such as “1234, “1111”, etc. will be rejected as unsafe. Strong alphanumeric passwords must include at least 7 characters, 3 of which must be a combination of UPPERCASE and lowercase letters, numerals or punctuation. Examples: Upc4003 UPC?4003 Janam Technologies LLC... -
Page 16: Screen/Keyboard Lock
To unlock the device: Tap Unlock. Regional Settings The style in which numbers, currency, dates and times are displayed is controlled by Regional Settings. XM2-RFID mobile computers are shipped with regional, language and input settings pre- set to English (United States). Janam Technologies LLC... - Page 17 XM2-RFID User Manual To change Regional settings: 1. From the Windows Mobile desktop Start screen; Tap Settings > System > Regional Settings. 2. Select the desired setting from the Regional Settings pull-down menu. Janam Technologies LLC...
-
Page 18: Owner Information
To display owner information: From the Windows Mobile Start menu, tap Settings > Personal > Owner Information. Device Name The XM2-RFID Device name (which may already be assigned) is used to identify the device in the following situations: ― Synchronizing with a PC ―... - Page 19 A to Z and numbers from 0 to 9. Use the underscore character to separate words. IMPORTANT NOTE! To synchronize multiple XM2-RFID devices with the same PC, each device must have a unique name. Janam Technologies LLC...
-
Page 20: Volume And Alert Adjustments
Hardware buttons, tap the preferred setting (Soft or Loud). 4. Select the Notifications tab to assign notifications to specific events such as Incoming calls and ActiveSync activity. 5. From each Events options screen, select the preferred settings. 6. Tap OK. Janam Technologies LLC... -
Page 21: Power Management
Tip: Whenever practical, conserve battery life by: 1. Using the AC adapter to plug the XM2-RFID into an external power source. 2. Manually or auto-suspend device operation as often as is practical. - Page 22 Shorter off delays will increase battery power conservation. Backlight Brightness Adjustment Function To adjust backlight brightness function: 1. Tap Settings on the Windows Mobile Start desktop. 2. Tap System > Backlight. Janam Technologies LLC 3-11...
- Page 23 4. Tap ALL to disable Wi-Fi and Bluetooth connectivity for maximum battery power conservation. a. Alternatively, tap only the connectivity function or functions you prefer to disable. b. Tapping a connectivity function again will re-enable it. Janam Technologies LLC 3-12...
-
Page 24: Opening And Removing Applications
Communication Ports The table below identifies the XM2-RFID Comm Ports that are currently allocated. When selecting a Virtual Comm Port, the Comm Ports below will not be available for use if the XM2-RFID is configured with that function. Will be occupied when the Bluetooth... -
Page 25: Resetting The Xm2-Rfid
2. Wait for the device to boot. Master Reset A master reset or clean boot returns the XM2-RFID to factory settings, removing ALL applications and data stored on the device. Any files or programs stored in the \Application folder or a MicroSD card will remain. -
Page 26: Barcode Scanning
3. Tap to manually select the type of barcode you need. 4. Tap OK to save. 5. Point the scanner at a barcode, and tap the “Scan” tab or any of the barcode scan trigger buttons. The results will display after a successful scan. Janam Technologies LLC... -
Page 27: Scanwedge Feature
6. Tap OK. Note: The ScanWedge function will be disabled if manual scanning is initiated either by a command API or by using the Janam Barcode Test program. Janam Technologies LLC... -
Page 28: Rfid Tag Reading
User Manual RFID Tag Reading The XM2-RFID has two different orderable configurations. The XM2-RFID for Rail reads Automatic Equipment Identification (AEI) RFID tags required on all railcars in North America and widely used globally. The XM2-RFID UHF reads ISO18000-63, EPC Global Class 1 Gen 2 tags. -
Page 29: Entering Data
XM2-RFID mobile computers are capable of running a variety of applications, many of which rely upon or require the input of alphanumeric or special character data. In addition to an alphanumeric physical keypad, the XM2-RFID features the ability to key in data with the supplied stylus on an integrated on-screen keyboard. -
Page 30: Custom Key Programming
Uppercase Keyboard Numeric Keyboard International Keyboard Custom Key Programming A selection of XM2-RFID keypad function keys can be reprogrammed as shortcuts to various actions. To reprogram function keys: 1. Tap Settings from the Windows Mobile desktop. 2. Tap Personal > Buttons. -
Page 31: Drawing And Writing
Drawing and Writing The Notes application accepts input from the physical keypad, the on-screen keyboard and accepts handwriting and drawing using the supplied stylus. To draw or write freehand, tap the Notes icon from the Windows Mobile Start menu. Janam Technologies LLC... -
Page 32: Synchronizing The Xm2-Rfid Device
Microsoft® Windows Mobile Device Center and ActiveSync allow you to synchronize data between an XM2-RFID and a PC. ActiveSync and Windows Mobile Device Center share some similarities. This User Guide includes setup for Windows Mobile Device Center. If you need additional assistance, please contact the JanamCare Service and Support Center. - Page 33 4. From the resulting End a partnership screen, select the partnership to be deleted and click the End partnership button. 5. Click Yes on the resulting confirmation screen. 6. If there is a Synchronized Files folder, a Confirm Folder Deletion screen will appear. 7. Tap Yes to proceed. Janam Technologies LLC...
-
Page 34: Wlan 802.11 B/G/N Radio
WLAN 802.11 b/g/n Radio Overview The XM2-RFID has a 2.4 GHz 802.11 b/g/n WLAN (Wireless Local Area Network) radio. The radio is interoperable with other 802.11 b/g/n, Wi-Fi compliant products, including wireless controllers, access points (Aps), workstations via PC card adapters and other wireless portable devices. - Page 35 4. If your SSID is hidden, create your WLAN profile with the Add New tab from Menu. 5. Enter your Pre-Shared Key/Credentials. 6. Configuration is complete and accurate when Status changes to Connected. 7. To view your IP address, tap the Network tab, then AR6000. Janam Technologies LLC...
-
Page 36: Using Bluetooth
To enable Bluetooth radio: 1. Tap on the Bluetooth icon in Start, Settings. 2. The Bluetooth Manager is launched. 3. Tap Mode to enable the radio. 4. Tap Add new device, the Bluetooth Manager will search for discoverable devices. Janam Technologies LLC... - Page 37 1. Tap on the desired device in the Bluetooth Manager. 2. Tap the Next button on the bottom. 3. Enter 4 digit passkey and tap the Next button. 4. Enter the same passkey on the other device when prompted. 5. Pairing is complete. Janam Technologies LLC...
- Page 38 XM2-RFID User Manual 6. The paired device will show as disconnected while viewing the Bluetooth Manager. 7. For devices like serial printers, select Com Ports and assign a New Outgoing Port. Janam Technologies LLC...
-
Page 39: Regulation And Maintenance
Other product and brand names may be trademarked or registered trademarks of their respective owners. Janam Technologies LLC assumes no responsibility for any damage or loss resulting from the use of this manual. Janam Technologies LLC assumes no responsibility for any loss or claims by third parties which may arise through the use of this product. - Page 40 Janam Technologies LLC 10-2...
- Page 41 EN 300 328 v1.6.1 (2004-11) EN 301 489-1 v1.6.1 (2005-09) EN 301 489-17 v1.2.1 (2002-08) EN 300 440-2 v1.1.2 (2004-07) EN 300 440-1 v1.2.1 (2001-09) Australia EN 301 489-3 v1.4.1 (2002-08) EN 60950-1:2001+A11 EN 50371:2002 AS/NZS CISPR 22:2004 Janam Technologies LLC 10-3...
-
Page 42: Care And Cleaning Of Terminals
XM2-RFID User Manual Hereby, Janam Technologies LLC declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 100/5/EC. The equipment is intended for use throughout the European Community. Care and cleaning of terminals When needed, clean the image engine window and the LCD display with a clean, non-abrasive, lint- free cloth. -
Page 43: Operating Instructions
2. After use, always unplug the charger from the outlet. 3. Ensure that your local power supply system complies with the technical data of the standard charger. For more battery safety and charger safety guidelines, refer to the XM2-RFID Series Quick Start Guide. Janam Technologies LLC... - Page 44 Call Us or Visit Our Showroom 1300 737 998 3/172 The Entrance Rd Erina ...
