XG3 Series
™
Quick Start Guide
®
Technology at Work.
031215XG3miniQSG
www.janam.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XG3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Janam XG3 Series

Summary of Contents for Janam XG3 Series

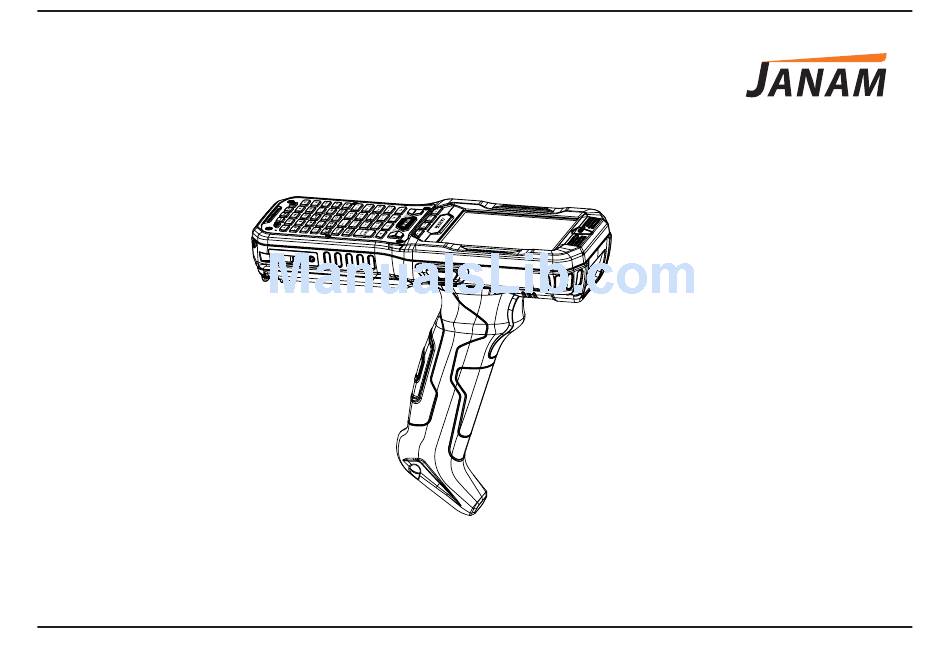

  • Page 1 XG3 Series ™ Quick Start Guide ® Technology at Work. 031215XG3miniQSG www.janam.com...
  • Page 2 XG3 Series Quick Start Guide Copyright 2015 Janam Technologies LLC. All rights reserved. XG3 Series, Janam and the Janam logo are trademarks of Janam Technologies LLC. Other product and brand names may be trademarks or registered trademarks of their respective owners.
  • Page 3 Content and Additional Resources To help you get started with your XG3 Series mobile computer, this guide features: Hardware Overview Getting Started A. Install the Battery B. Charge the Battery C. Remove the Battery D. Access the microSD Card Slot Battery Warning and Safety Guidelines Contents of this guide are subject to change.

  • Page 4: Hardware Overview

    Hardware Overview Power Button Headest with Microphone Indicator LED Notification LED Scan Window Left Scan LED Right Scan LED Left Trigger 10. Scan Trigger 11. Left Bottom Scan LED 12. Microphone 13. Shift Key 14. Yellow Function Key 15. DC Jack 16.
  • Page 5 Hardware Overview Battery Battery Lock Switch Stylus Slot Stylus Lanyard Connector Scan Window Speaker microSD Card Cover/Slot Handstrap Bar Scan Trigger Handstrap Hole Page 4 Janam Technologies LLC...

  • Page 6: Getting Started

    1. Connect the power supply to the cable accessory, then connect the line cord to the power supply. 2. Connect snap-on end of cable accessory to bottom of XG3 Series unit making sure the Janam logo on the connector faces front.
  • Page 7 1. After removing the battery, lift the media card compartment cover using notch at the top (it drops down to open). 2. To access the microSD card slot, slide silver microSD card cover to the left. Operating Temperature Range: -20˚C to 50˚C; -4˚F to 122˚F XG3 Series Quick Start Guide Page 6...

  • Page 8: Battery Warning

    DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. BATTERY SAFETY GUIDELINES Use only Janam XG3 Series batteries and recharge batteries using only Janam approved charging accessories. Observe the following guidelines for safe use of Li-ion batteries: 1. Do not expose the battery to excessive heat or cold. Do not short-circuit. Do not incenerate.
