Summary of Contents for Janam XM Series

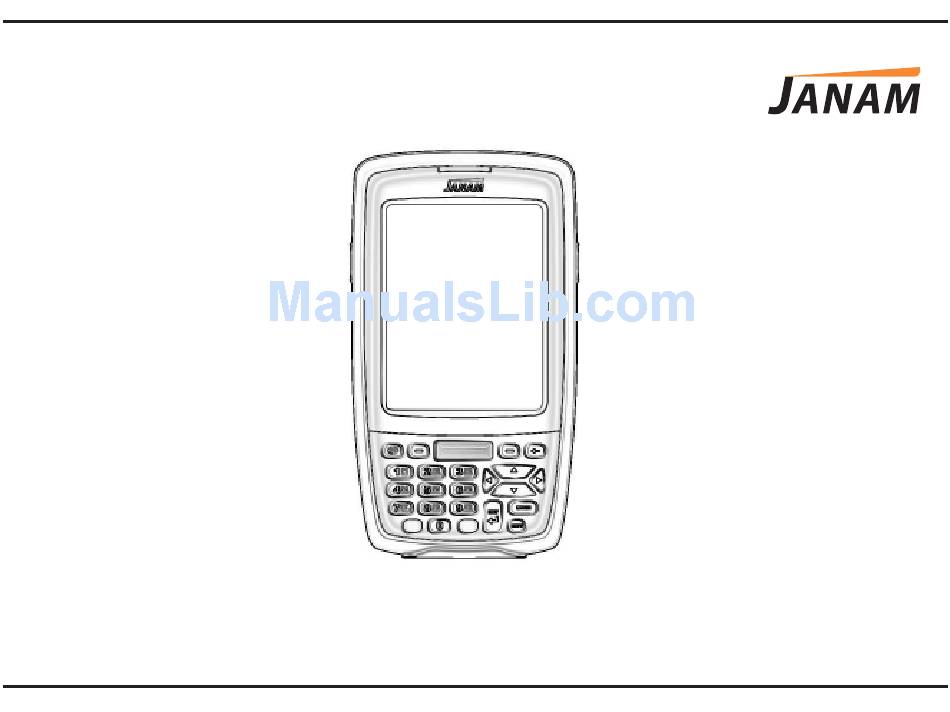

- Page 1 XM Series ™ Quick Start Guide Technology at Work. ® 122809XMCom7...
- Page 2 XM Series Quick Start Guide Copyright 2009 Janam Technologies LLC. All rights reserved. XM Series, Janam and the Janam logo are trademarks of Janam Technologies LLC. Other product and brand names may be trademarks or registered trademarks of their respective owners.
- Page 3 Content and Additional Resources To help you get started with your XM Series mobile computer, this guide features: Hardware Overview Installing and Charging the Battery Getting Started Regulatory Information Contents of this guide are subject to change. For the most current version of this guide and additional product details visit, www.janam.com.
-
Page 4: Hardware Overview
Hardware Overview Power Indicator LED Connector Scan Trigger Right Trigger Left Trigger Navigation Home 10. Enter 11. Programmable 12. Function Shift 13. Backspace 14. Alpha/Numeric Shift 15. Space 16. Shift Page 3 XM Series Quick Start Guide... - Page 5 Hardware Overview Battery Door Battery Screw Reset Microphone Speaker Battery Compartment IrDA Window Stylus Stylus Slot Lanyard Connector 10. Handstrap Screw Port 11. Handstrap Bar 12. MiniSD or MicroSD Card Slot Page 4 Janam Technologies LLC...
-
Page 6: Installing And Charging The Battery
B. CHARGING THE BATTERY Important Note: The main battery charges the backup battery in the XM Series unit. Once the main battery is fully charged, do not remove it from the unit for 24 hours. During this period the device cannot maintain any user data if the battery is removed. -
Page 7: Getting Started
The fi rst time the device is turned on, the Welcome Utility appears. To set up the device, follow the on-screen instructions using the stylus to tap the exact center of each target Note: If your XM Series device came pre-loaded with a custom software application, the Welcome Utility may not appear. -
Page 8: Regulatory Information
CE marked and does not comply with the Low Voltage Directive. FCC and Canadian Compliance XM Series mobile computers meet or exceed all applicable standards and have been manufactured to the highest level of quality. To see the specifi c labels associated with RF terminals confi gurations, visit www.janam.com. - Page 9 (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. XM Series RF Terminals with WLAN and/or Bluetooth RF, Regulatory and Safety Approvals Parameter Specifi...
- Page 10 To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Page 9 Janam Technologies LLC...
- Page 11 Australia AS/NZS CISPR 22:2004 Hereby, Janam Technologies LLC declares that this product is in compliance with the essential requirements and other relevant provisions of Directive, 1999/5/EC. The equipment is intended for use throughout the European Community. Care and Cleaning of Terminals When needed, clean the image engine window and the LCD display with a clean, non-abrasive, lint-free cloth.
- Page 12 TO THE INSTRUCTIONS Battery Safety Guidelines Use only Janam batteries and recharge batteries using only Janam approved charging accessories. Observe the following guidelines for safe use of Li-Ion batteries: 1. Do not expose the battery to excessive heat or cold. Do not short-circuit. It may explode.
- Page 13 Technology at Work. ®...
