XM75WA Android 6.0.1 User Manual

Enterprise Mobility

XM75WA User Manual

For Android 6.0.1

PHONE & WLAN

FCC ID: UTWXM75WA / IC: 6914A-XM75WA

WLAN

FCC ID: UTWXM75WB / IC: 6914A-XM75WB

Note: WLCDMA/LTE feature is optional. Some product options only include WLAN feature.

Table of Contents

Summary of Contents for Janam XM75WA

Page 1: User Manual
For Android 6.0.1 PHONE & WLAN FCC ID: UTWXM75WA / IC: 6914A-XM75WA WLAN FCC ID: UTWXM75WB / IC: 6914A-XM75WB Note: WLCDMA/LTE feature is optional. Some product options only include WLAN feature. © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 2 To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Rev 01 © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 3: Table Of Contents
Factory data reset ................................43 Factory data reset from Settings ..........................43 Force Factory data reset ............................... 45 EmKit ....................................48 EmKit Secure .................................. 49 EmKit Remote ................................. 50 EmKit Tools ..................................52 © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 4: Getting Started

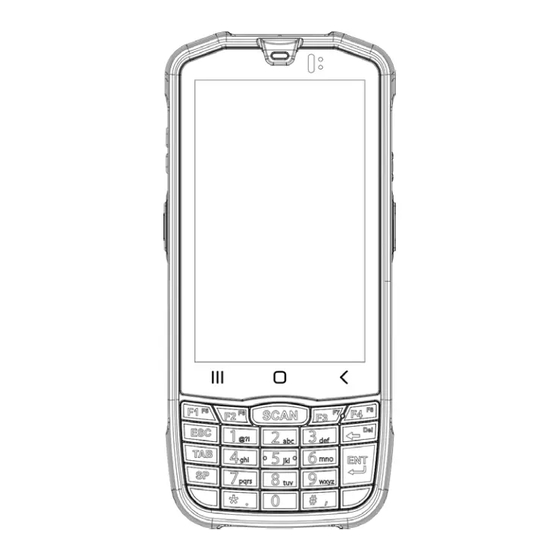

XM75WA Android 6.0.1 User Manual Getting Started Major Parts Major Parts Getting Started 1. Barcode Scanner 2. Speaker 3. Touch Screen 4. Pogo pin connector 5. micro USB © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 5 Major Parts Getting Started 1. Volume Key 2. Scanner Trigger 3. Flash Light 4. Camera 5. Battery Cover Lock 6. 3.5mm Audio Jack 7. Power Key 8. Scan Trigger Key © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 6: Accessary
XM75WA Android 6.0.1 User Manual Getting Started Acc essar y Accessary Getting Started AC/DC adapter Plug (US/ EU/ UK) LCD protection film Li-ion battery © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 7: Setup Xm75Wa
2. Pull up the Battery Cover from bottom side area Insert SIM card 1. Insert the SIM card into the slot. (Gold plate should face down) 2. To remove the card, gently slide it out of the slot. © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 8 2. To remove the microSD card, gently slide it out of the slot. Note: To avoid data loss and SD card damage, please ensure the SD card is unmounted from Android system “Settings – Storage - Unmount SD card” Getting Started © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 9 Insert “Battery” from top area first and then put in bottom area. Make sure battery contact “Battery Connector” Close the Battery Cover Insert “Battery Cover” from the top area first and then put in bottom area. Press battery cover with both hand firmly © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 10: Charge Xm75Wa
Charging time Standard Battery : About 6hours Note: Always use an original charger and cable from Janam Technologies LLC. Other chargers and cables may damage XM75WA. In addition, make sure connector, charger, cables are not wet. © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 11: Turn On/Off Xm75Wa
Turn On 1. Press and hold down the “Power Key” for a few seconds. 2. When XM75WA enter to the boot mode, it will display “SMART BEYOND RUGGED” logo with short vibration 3. Release the “Power Key” and wait until XM75WA finish booting Note: If you cannot turn on your XM75WA, try below steps To turn on XM75WA, battery needs to be charged certain level.
Page 12: Hot Swap The Battery
Hot s wap the batter y Hot swap the battery Getting Started When battery level is low, you can replace the battery without turning off and on XM75WA. Remove the Battery and replace to another one. Make sure the battery cover closed firmly.
Page 13: Learning The Basics
Adjusts the media volume. In camera preview Take the photo by pressing Volume Up or Down key. Scanner Triggers When “Scan Wedge” mode is activated By pressing, XM75WA scan the barcode. © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 14 From any apps or screens, press to return to the Home screen. Back key Press to go back to the previous screen, or to close a dialog box, options menu, notification panel, etc. Key Pad © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 15: Use A Touch Screen
One-finger press, wait, lift for “Select an item” Drag, Swipe, or Fling One-finger press, move, lift for “Scroll” or “Tilt” Long-press drag One-finger press, wait, move, lift for “Pick up and move” or “select multiple items” © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 16 Vertical or horizontal swipe in a single direction Pinch Open & Close Two-finger press, move outwards and inwords, lift for “Zoom in and out” Rotate When XM75WA is turning sideways, screen orientation is changing © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 17: Home Screen, Apps And Widget
Touch an icon to run an app, open folder, etc Favorite tray apps Touch to run an app Touch and hold to reorganize App Drawer Touch to enter “Apps and Widget” © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 18 Create “App Folder” Long press the app icon to other app icon. This will create the “App Folder” To set the folder name, touch the “Unnamed Folder” and rename it © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 19 App, you can check details by drag down the “Status Bar”. Quick setting panel You can access “Quick setting panel” by drag down the “Notification panel”. You can enable / disable functions or change modes easily. © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 20 Long press, specific app icon to place to the “Home Screen”. All available widgets are listed in the “Widgets” tab, alphabetically. Long press, specific widget to place to the “Home Screen”. © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 21: Status & Notifications Icons
Battery is partially drained Battery is low Battery is very low Battery is charging GPS is on Alarm is set Speaker phone is on Headset connected Vibrate mode/ Mute Phone mic is mute © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 22 Connected to VPN network Upcoming event Screenshot captured SD card removed, Preparing SD card unexpectedly OTG device connected File uploaded File downloaded There are more notification Other input method available © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 23: Make A Call
To make a call from your contact list, select “CONTRACTS” Touch to use a dialer Suggested phone number(s) Phone number can be saved to “CONTACTS” Touch and hold the dial pad #1, to access voicemail. © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 25: Add To A Contact
You can sync with your contacts in the Google account. IMPORT CONTACTS You can import contact in the storage (.vcf file) or SIM card Touch to add a new contact © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 26: Send A Message
Favorite tray apps Touch to use a dialer Touch to type a name, phone number or email Suggest contact display here. Touch “Contacts” to compose a message © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 27 Your message display here Touch to send the composed message You can attach photo, saved picture, voice or location Note: You may allow granting “Message App” access specific app or service. © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 28: Connect To Your Wi-Fi Network
Icon means: Open Wi-Fi network. You don’t need to enter the password Icon means: Secured Wi-Fi network. To connect this Wi-Fi, you need to enter the password © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 29 Connect to your Wi-Fi network Learning the basics Touch SSID, which you want to connect. To connect to secured network, enter the password Your XM75WA is obtaining the IP address from selected AP © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 30: Scanner Settings
Scanner Settings Default setting of Scanner is “Off” To use the Scanner, EmKit and then “ScanSetting” Touch “App Drawer” - “Settings” and Touch then “ScanSettings” Touch to turn on the Scanner © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 31 Use a Scanner Scanner Settings Now you can see “Scanner” icon in the “Status Bar” Note: When “Scanner” turned on, you can scan the barcode with “ScanDemo” in the EmKit © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 32 In the Wedge menu you can change, decode scan data’s result type handling “User Message”, “Keyboard Event”, “Clipboard’ or ‘Intent Broadcast’. Also you can set “Terminator” – “Space”, “Tab”, “LF” or “Tab & LF” © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 33 Window”, set “Decode mode”, “Power save mode” and enable / disable “Aimer” & “Illumination” In the “Notification”, you can set notification option. You can change the volume level, notification sound, LED and vibration option © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 34 Scanner Setti ngs Use a Scanner Scanner Settings In the “Wedge”, you can enable / disable “Barcode ID” and “Aim ID”, set “Group separator”, “Prefix” & “Suffix” and “Character set” © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 35 XM75WA Android 6.0.1 User Manual Scanner Setti ngs Use a Scanner Scanner Settings In the “Symbologies”, you can enable / disable specific barcode. By touching each “Symbology” name, you can set detail option. © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 36 XM75WA Android 6.0.1 User Manual Scanner Setti ngs Use a Scanner Scanner Settings In the ‘About’, you can check your Scanner’s information and restore Scanner’s settings to default © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 37: Scan A Barcode
Example of good Barcode reading Idle barcode scan Please aim the middle of barcode Even you aim the barcode slightly upper or down area or angle is tilted, you can read the barcode © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 38 If you aim the barcode wrong direction or tilt too much, you can’t read the barcode If you aim part of Barcode or aim two barcode together, you can’t read the barcode © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 39: Os Update
To update OS image, copy or place OS image file into the root folder of “Internal Storage” or “External Storage” “App Drawer” - “Settings” and then Touch “About phone” Touch “System Updates” © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 40 By touching the “CONTINUE” button, your XM75WA start to update the OS image. During this time, you cannot use your XM75WA. Please save the data before start, the OS update process. © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 41: Os Image Update From The Fota
XM75WA Android 6.0.1 User Manual OS U pdate OS Imag e update from the FOT A OS Image update from the FOTA OS Update icon for the advanced option Touch “FOTA Client” © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 42 OS U pdate OS Image update from the FOTA OS Update XM75WA will compare the OS image between FOTA server and current OS image. If there is newer OS image in the FOTA server, FOTA server will suggest downloading. Touch “OK” to start download the image in the FOTA server...
Page 43: Factory Data Reset
“Factory data reset” your XM75WA “App Drawer” - “Settings” and then Touch “Backup & reset” Touch “Factory data reset” © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 44 Please note, all apps and data in the internal storage will be deleted and restored to “Factory default” and this process cannot “Undo” Touch to start “Factory Reset” process Touch to confirm erase of “Apps and Data” © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 45: Force Factory Data Reset
Force Factory data reset Factory data reset Force Factory data reset your XM75WA You can perform “force” factory data reset your XM75WA. When your XM75WA turned off, press “Power” + “Volume up” + “Home” button all together. After short vibration from your XM75WA, you may release the buttons.
Page 46 Factor y data Res et Force Factory data reset Factory data reset Select “Wipe data/factory reset” Select “Yes” to perform the “Factory data reset” After that, your XM75WA start wiping the data © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 47 XM75WA Android 6.0.1 User Manual Factor y data Res et Force Factory data reset Factory data reset After data wiping, please select “Reboot system now” to finish the “Force Factory data reset” process © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 48: Emkit
EmKit Enterprise Mobility Kit – Truly, what Enterprise needs Janam Technologies LLC announces new software solution – called “EmKit” is new software solution for enterprise mobility users. Our every Android device shall have EmKit pre-installed and every use can access them for free of charge*.
Page 49: Emkit Secure
EmKit Sec ure EmKit Secure EmKit Power Launcher You can lock your XM75WA’s “Home Screen” and limit to access “Settings” from “Quick Setting” panel. This function as known as “Kiosk” mode Program Buttons You can assign Hardware buttons function to rich pre- assigned functions.
Page 50: Emkit Remote
XM75WA Android 6.0.1 User Manual EmKit Remote EmKit Remote EmKit Airwatch Agent preinstalled. Select option for enrollment process SOTI Mobi Control preinstalled Enter enrollment information for the next process © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 51 XM75WA Android 6.0.1 User Manual EmKit Remote EmKit Remote EmKit Teamviewer Quick Support App and Plugin, preinstalled. You may need to purchase “Teamviewer” license during remote access and control © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 52: Emkit Tools
EmKit Tools EmKit Backup & Restore You can create the “Golden sample” and then “Restore” I to other XM75WA easily ScanSetting You can set your XM75WA’s scanner option with intuitive menu © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 53 File will be saved to “bugreports” folder. Copy the file to the PC and then zip it to reduce the file size Share bug report file to the service center with “reproduce” steps. © 2006 – 2017 Janam Technologies LLC All rights reserved...
Page 54 This device is restricted to indoor use only within the 5.15 ~ 5.35GHz Band. Cet appareil est restreint à l'utilisation à l'intérieur seulement dans la bande 5.15 ~ 5.35GHz. © 2006 – 2017 Janam Technologies LLC All rights reserved...
