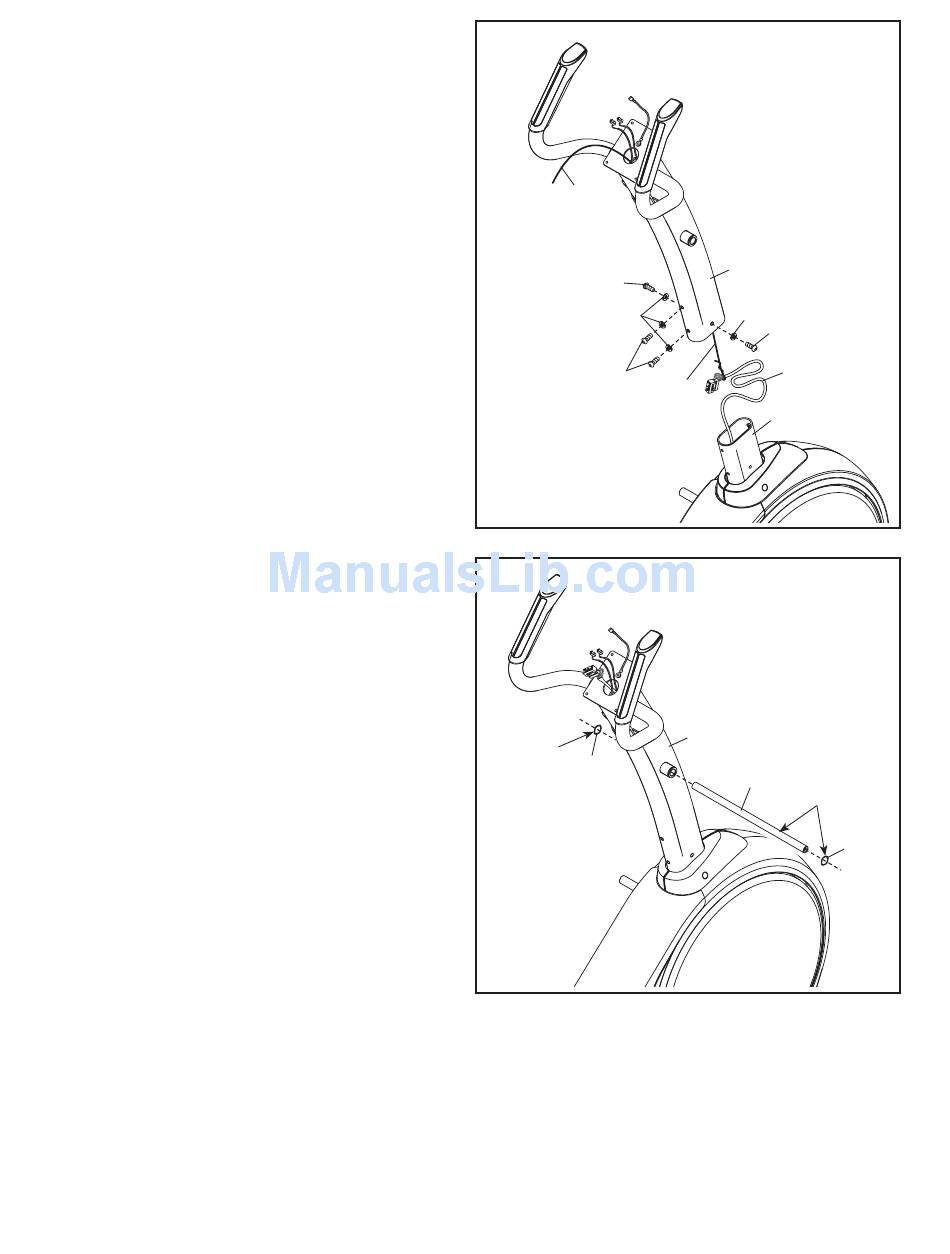

5. Have a second person orient the Upright (4) as
shown and hold it near the Front Frame (1).
Locate the wire tie in the Upright (4). Tie the
lower end of the wire tie to the Upper Wire
Harness (110). Next, pull the upper end of the
wire tie until the Upper Wire Harness is routed
xthrough the Upright. Then, untie and discard the
wire tie.
Tip: To prevent the Upper Wire Harness (110)
from falling into the Upright (4), secure the
Upper Wire Harness with a rubber band or
tape.
Tip: Avoid pinching the Upper Wire Harness
(110). Slide the Upright (4) onto the Front Frame
(1). Attach the Upright with four M8 x 19mm
Screws (82) and four M8 Split Washers (83); do
not tighten the Screws yet.
6. Using a plastic bag to keep your fingers clean,
apply a generous amount of the included
grease to the Pivot Axle (35) and to two Wave
Washers (95).
Insert the Pivot Axle (35) through the Upright (4)
and then center it.
Slide a Wave Washer (95) onto each end of the
Pivot Axle (35).
