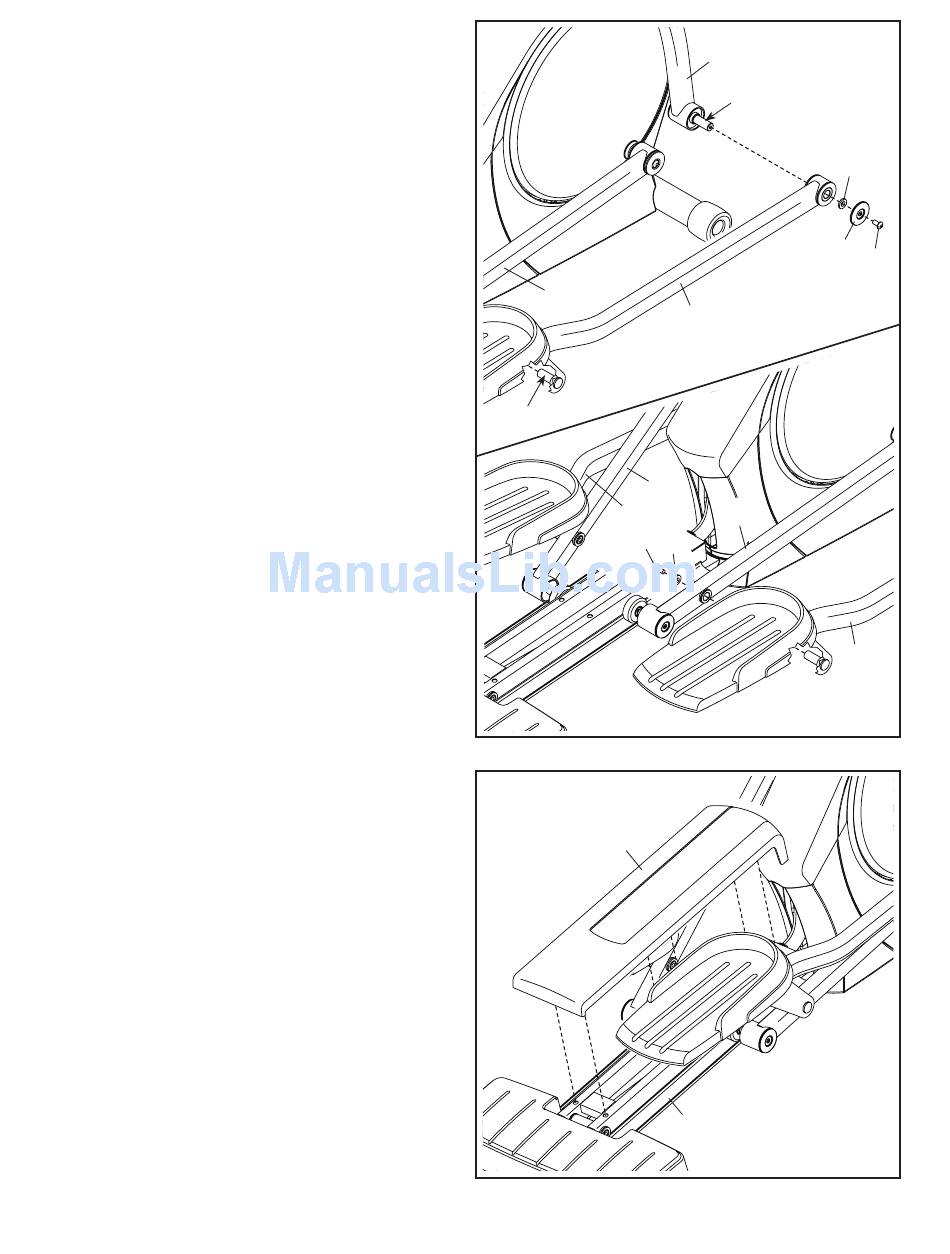

15. See the upper drawing. Apply a small amount
of grease to the axle on the Right Upper Body
Leg (60) and to the axle on the Right Pedal
Arm (58).
Orient the Right Pedal Arm (58) as shown. Slide
the Right Pedal Arm onto the Right Upper Body
Leg (60) and into the right Roller Arm (45) at the
same time.
Attach the Right Pedal Arm (58) to the Right
Upper Body Leg (60) with an M8 x 19mm Screw
(82), an Axle Cover (53), and an M8 x 25mm
Washer (98); to avoid breaking the Axle
Cover, do not overtighten the Screw.
See the lower drawing. Attach the right Roller
Arm (45) to the Right Pedal Arm (58) with an
M10 x 20mm Screw (66) and an M10 x 25mm
Washer (36).
Attach the Left Pedal Arm (44) to the Left
Upper Body Leg (not shown) and the left
Roller Arm (45) in the same way.
See step 5. Tighten the four M8 x 19mm
Screws (82).
16. Orient the Ramp Cover (10) as shown.
Align the mounts on the Ramp Cover (10) with
the holes in the Ramp (3). Then, press the Ramp
Cover (10) into the Ramp.
17. Make sure that all parts are properly tight-
ened before you use the elliptical. Note: Extra
parts may be included. Place a mat beneath the
elliptical to protect the floor.
15
45
Grease
44
66 36
16
10
14
60
Grease
58
45
45
3
98
53
82
58
