Pro-Form 790e Elliptical Manual page 13

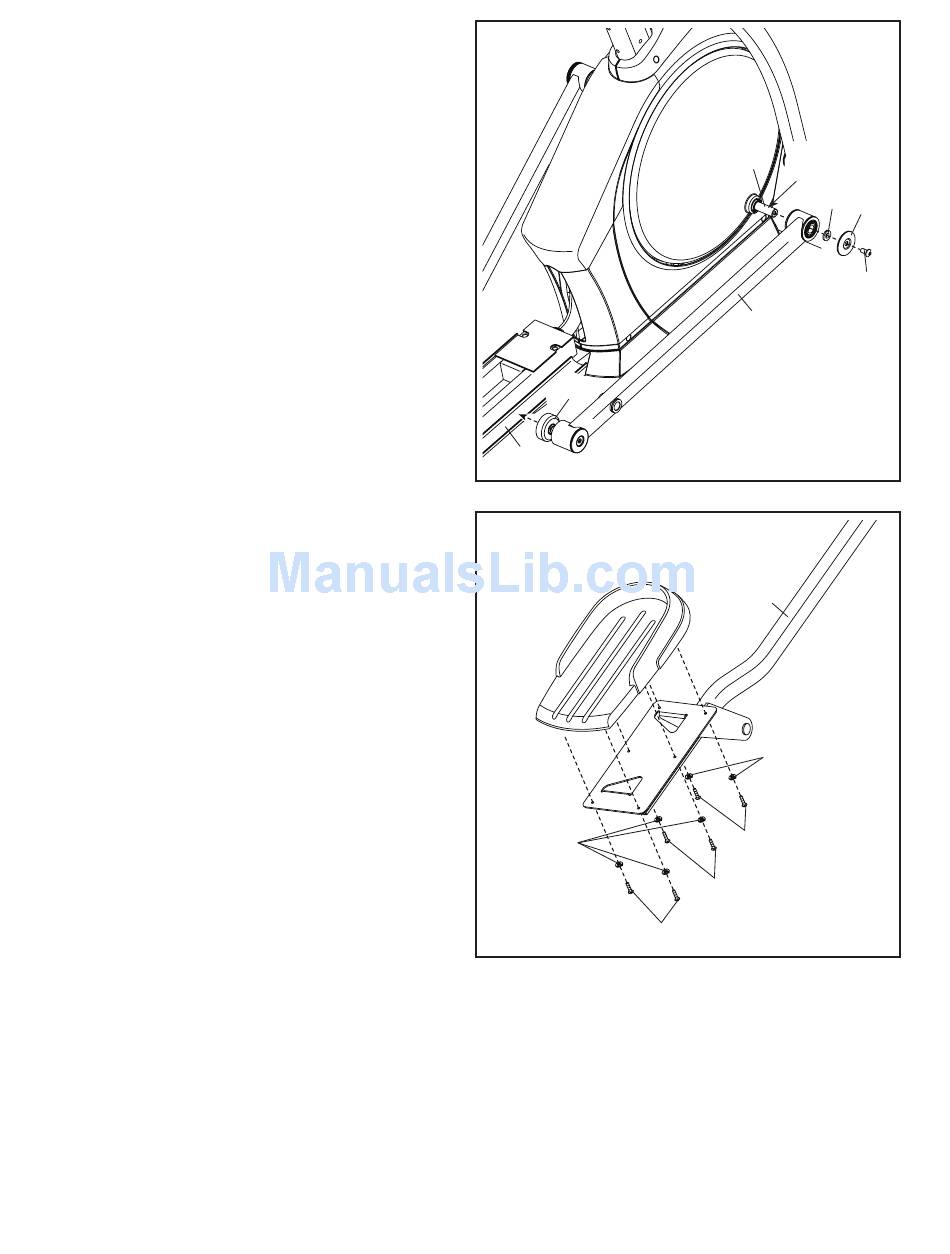

13. Apply a small amount of grease to the right
Crank Arm (20).
Orient a Roller Arm (45) so that the Roller (51)
is in the position shown.
Slide the Roller Arm (45) onto the right Crank
Arm (20) while setting the Roller (51) on the
Ramp (3).
Attach the Roller Arm (45) with an M8 x 19mm
Screw (82), an Axle Cover (53), and an M8 x
25mm Washer (98); to avoid breaking the Axle
Cover, do not overtighten the Screw.
Repeat this step on the other side of the
elliptical.
14. Identify the Right Pedal Arm (58) and orient it as
shown.
Then, orient a Pedal (49) as shown.
Attach the Pedal (49) to the Right Pedal Arm
(58) with six #10 x 12.7mm Screws (59) and six
M6 Split Washers (111).
Attach the other Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.
13
51
3
14
49
111
13
20
Grease
98
45
58
111
59
59
59
53
82
