Replacing the Batteries
NOTE:
Before proceeding, read "Battery Safety" on the preceding pages. HP recommends annual
replacement of rechargeable battery packs to ensure maximum performance.
Use the following procedure to change the reader's battery:
1.

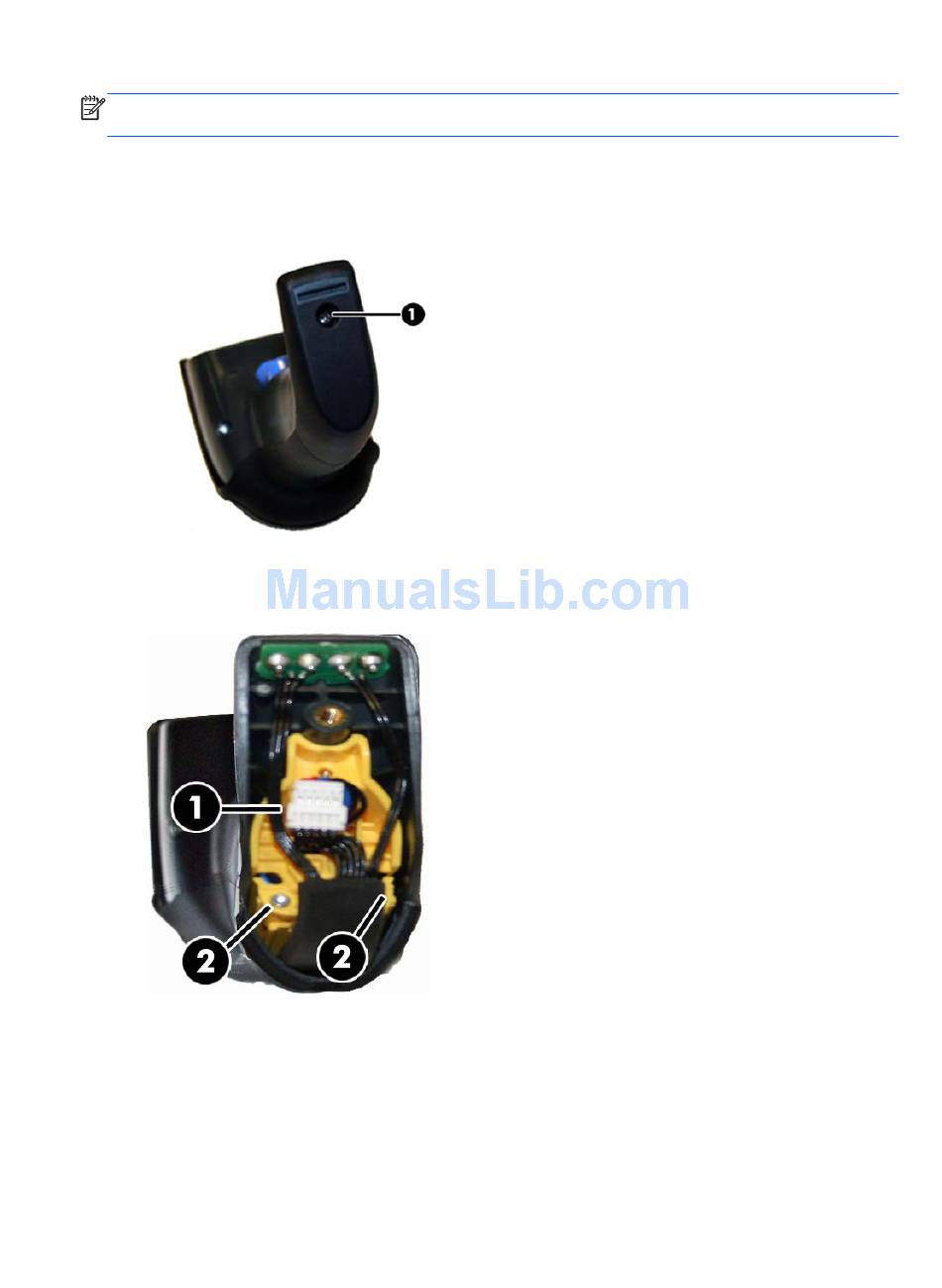

Using a screwdriver, unscrew the battery cover screw (1).
Figure 4-8
2.
Unplug the white connector (1), and remove the two screws (2) securing the battery holder.
Figure 4-9
16
Chapter 4 Setting Up and Using the Scanner
Removing the Battery Cover
Unscrewing the Battery Holder
