NOTE: A tool such as a rigid pen or a flat screwdriver can be used to change the mounts. Do not
allow it to touch the contacts.
1. Insert the appropriate parts for the desired base station position, as shown below. You can insert
parts for a standing, horizontal, or vertical position (1) or you can insert parts for a horizontal only
position (2).

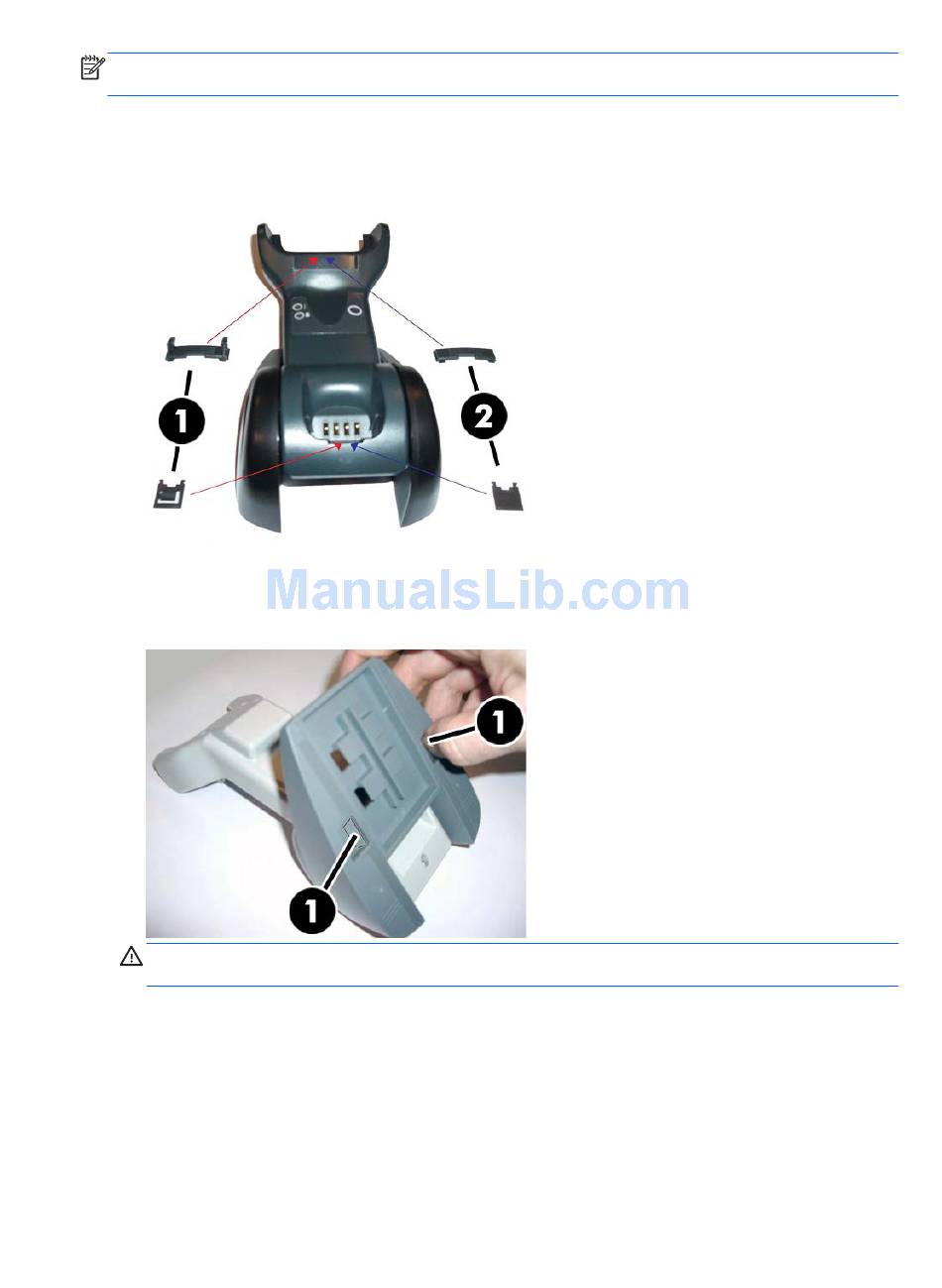

Figure 4-2
2. Using your thumbs, push open the plastic tabs (1) on the bottom of the base to free the wing
holders.
Figure 4-3
CAUTION:
different mount sets.
10 Chapter 4 Setting Up and Using the Scanner
Inserting Parts for Positioning the Base Station
Freeing the Wing Holders
To ensure best contact and performance, do not intermix the parts of the two
