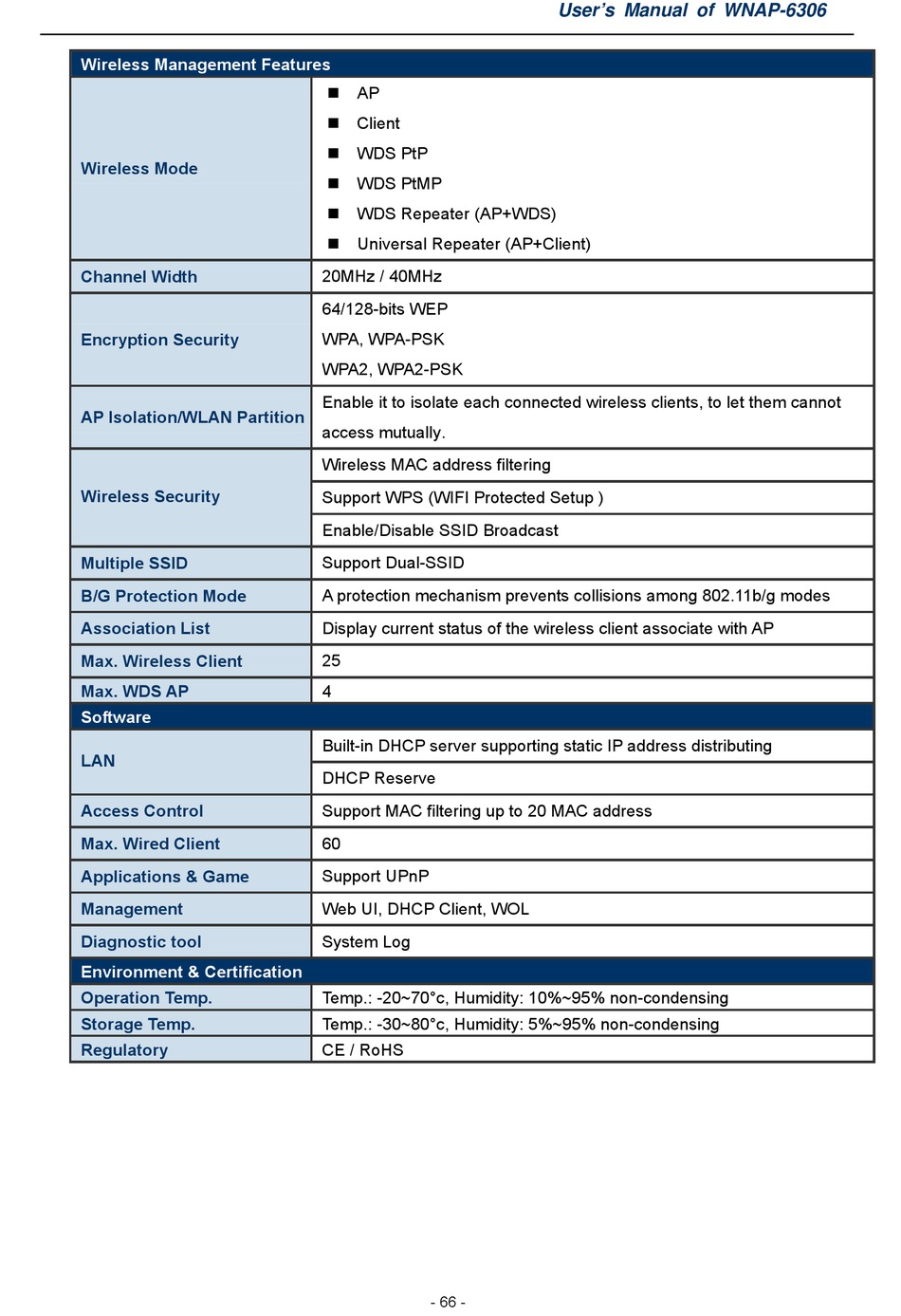

Wireless Management Features
Wireless Mode
Channel Width
Encryption Security
AP Isolation/WLAN Partition
Wireless Security
Multiple SSID
B/G Protection Mode
Association List
Max. Wireless Client
Max. WDS AP
Software
LAN
Access Control
Max. Wired Client
Applications & Game
Management
Diagnostic tool
Environment & Certification
Operation Temp.
Storage Temp.
Regulatory
AP
Client
WDS PtP
WDS PtMP
WDS Repeater (AP+WDS)
Universal Repeater (AP+Client)
20MHz / 40MHz
64/128-bits WEP
WPA, WPA-PSK
WPA2, WPA2-PSK
Enable it to isolate each connected wireless clients, to let them cannot
access mutually.
Wireless MAC address filtering
Support WPS (WIFI Protected Setup )
Enable/Disable SSID Broadcast
Support Dual-SSID
A protection mechanism prevents collisions among 802.11b/g modes
Display current status of the wireless client associate with AP
25
4
Built-in DHCP server supporting static IP address distributing
DHCP Reserve
Support MAC filtering up to 20 MAC address
60
Support UPnP
Web UI, DHCP Client, WOL
System Log
Temp.: -20~70°c, Humidity: 10%~95% non-condensing
Temp.: -30~80°c, Humidity: 5%~95% non-condensing
CE / RoHS
- 66 -
User's Manual of WNAP-6306
