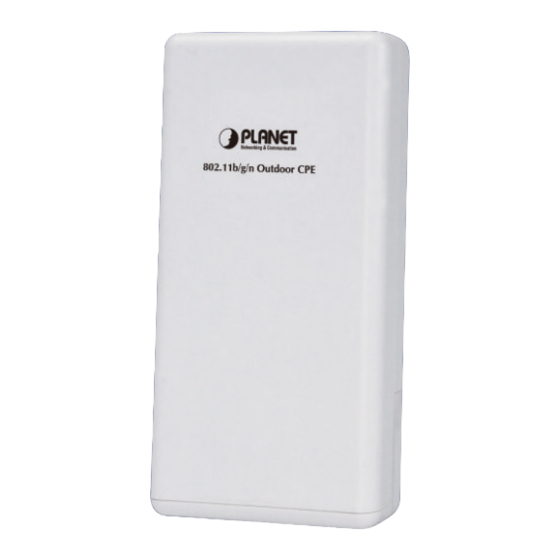

Planet WNAP-6325 User Manual

300mbps 802.11n wirless outdoor cpe
Hide thumbs Also See for WNAP-6325:
Table of Contents

Advertisement

Quick Links

Download this manual
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WNAP-6325 and is the answer not in the manual?

Questions and answers

Related Manuals for Planet WNAP-6325

Summary of Contents for Planet WNAP-6325

  • Page 2 Copyright Copyright  2015 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
  • Page 3 CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Energy Saving Note of the Device This power required device does not support Standby mode operation. For energy saving, please remove the DC-plug to disconnect the device from the power circuit.
  • Page 4 Revision User’s Manual of PLANET 300Mbps 802.11n Wireless Outdoor CPE Model: WNAP-6325 Rev: 1.0 (January, 2015) Part No. EM-WNAP-6325_v1.0 (2081-E10590-000)

  • Page 5: Table Of Contents

    CONTENTS Chapter 1. Product Introduction......................8 Package Contents .......................8 Product Description......................9 Product Features.......................10 Product Specifications ..................... 11 Chapter 2. Hardware Installation ......................13 Hardware Description .......................13 2.1.1 The Bottom Panel – Port ..................14 Chapter 3. Connecting to the AP ......................17 Preparation before Installation ..................17 3.1.1 Professional Installation Required ................17 3.1.2...
  • Page 6 Wireless Client Table ....................69 5.4.5 System Log......................70 Logout ..........................71 Appendix A: Troubleshooting......................72 Appendix B: Use Planet Smart Discovery to find AP ..............74 Appendix C: FAQ..........................75 Q1: How to set up the AP Client Connection................75 Q2: How to set up the WDS Connection ..................83...
  • Page 7 ..................24 IGURE AILED RESULT OF ING COMMAND 4-5 L ....................24 IGURE OGIN BY DEFAULT ADDRESS 4-6 L ........................25 IGURE OGIN INDOW 4-7 WNAP-6325 W UI S ..................26 IGURE CREENSHOT 4-8 C ....................26 IGURE HOOSE PERATION 4-9 C ..................27 IGURE ONFIGURE...
  • Page 8 5-26 DMZ S ........................51 IGURE ETTINGS 5-27 V ....................52 IGURE IRTUAL ERVER ETTINGS 5-28 IP F .......................52 IGURE ILTERING ETTINGS 5-29 P ....................53 IGURE ILTERING ETTINGS 5-30 M ....................53 IGURE ILTERING ETTINGS 5-31 B ..................54 IGURE ANDWIDTH ONTROL ETTINGS 5-32 SNMP S ........................55 IGURE ETTINGS...

  • Page 9: Chapter 1. Product Introduction

    User Manual of WNAP-6325 Chapter 1. Product Introduction 1.1 Package Contents Thank you for choosing PLANET WNAP-6325. Before installing the AP, please verify the contents inside the package box. WNAP-6325 Quick Installation Guide PoE Injector & Power Cord Plastic Strap x 1 If there is any item missing or damaged, please contact the seller immediately.

  • Page 10: Product Description

    Easy Deployment and Management With user-friendly Web UI and step-by-step setup wizard, the WNAP-6325 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with the Planet Smart Discovery Utility and...

  • Page 11: Product Features

    Easy Installation and Management Web-based UI and quick Setup Wizard for easy configuration   Planet Smart Discovery Utility allows administrator to discover and locate each AP  SNMP-based management interface  System status monitoring includes DHCP Client and System Log...

  • Page 12: Product Specifications

    User Manual of WNAP-6325 1.4 Product Specification WNAP-6325 Product 300Mbps 802.11n Wireless Outdoor CPE Hardware IEEE802.11b/g/n IEEE 802.3 Standard Support IEEE 802.3u IEEE 802.3x Chipset Atheros AR9344 64 Mbytes DDR SDRAM Memory 16 Mbytes Flash Passive PoE Wireless IEEE802.11b/g/n, 2T2R...
  • Page 13 User Manual of WNAP-6325 Operating Temperature -20~70°c Operating Humidity 10~95% non-condensing IP Level IP55 Regulatory CE, FCC, RoHS Software Built-in DHCP server supporting static IP address distributing Support 802.1d STP (Spanning Tree)  Static IP  Dynamic IP  PPPoE ...

  • Page 14: Chapter 2. Hardware Installation

    User Manual of WNAP-6325 Chapter 2. Hardware Installation Please follow the instructions below to connect the WNAP-6325 to the existing network devices and your computers. 2.1 Hardware Description  Dimensions: 127 x 63 x 254 mm (W x D x H)

  • Page 15: The Bottom Panel - Port

    User Manual of WNAP-6325 Rear Panel – LED Figure 2-2 LED LED Definition State Meaning System On Power System Off Wi-Fi On Wireless Wi-Fi Off Port linked. LAN 1 No link. Port linked. LAN 2 No link. Table 2-1 The LED indication 2.1.1 The Bottom Panel –...

  • Page 16: Figure 2-3 Bottom Panel

    Connect this port to the network equipment. LAN 2 When the option “Enable POE Passthrough” on the System Management ※ page is checked, the LAN2 can supply passive PoE power to the second WNAP-7325 or WNAP-6325 through LAN 2. -15-...
  • Page 17 Press the Reset button on the device or on the PoE injector over 5 seconds to return to factory default setting. ※ If you have connected with the thunder protector like PLANET Reset ELA-100, please DO NOT press the reset button on the PoE injector to prevent the ELA-100 from being damaged.

  • Page 18: Chapter 3. Connecting To The Ap

    To keep you safe and install the hardware properly, please read and follow these safety precautions. If you are installing the WNAP-6325 for the first time, for your safety as well as others’, please seek assistance from a professional installer who has received safety training on the hazards involved.
  • Page 19 User Manual of WNAP-6325 OUTDOOR INSTALLATION WARNING IMPORTANT SAFETY PRECAUTIONS: LIVES MAY BE AT RISK! Carefully observe these instructions and any special instructions that are included with the equipment you are installing. CONTACTING POWER LINES CAN BE LETHAL. Make sure no power lines are anywhere where possible contact can be made.

  • Page 20: Installing The Ap

    Step 1. Push the latch on the bottom of the WNAP-6325 to remove the sliding cover. Figure 3-1 Connect the Antenna Step 2. Plug the RJ45 Ethernet cable into the PoE LAN Port of the WNAP-6325. Then, slide back the cover of the WNAP-6325 to finish the installation.

  • Page 21: Figure 3-3 Connect The Poe Injector

    (as shown in picture 4 under Step 1) into the POE port of the PoE injector. Figure 3-3 Connect the PoE injector Step 4. Pole Mounting: Place the strap through the slot on the back of the WNAP-6325 and then around the pole. Tighten the strap to secure the WNAP-6325. Figure 3-4 Pole Mounting...

  • Page 22: Chapter 4. Quick Installation Guide

    Connect the WNAP-6325 with your PC via an Ethernet cable which is then plugged into a LAN port of the PoE injector with one end and into a LAN port of the PC with the other end. Then power on the WNAP-6325 via PoE injector or PoE switch.
  • Page 23 User Manual of WNAP-6325 Figure 4-1 TCP/IP Setting Now click OK to save your settings. Now, you can run the ping command in the command prompt to verify the network connection between your PC and the AP. The following example is in Windows 7 OS. Please follow the Steps below: Click on Start >...

  • Page 24: Figure 4-2 Windows Start Menu

    User Manual of WNAP-6325 Figure 4-2 Windows Start Menu Open a command prompt and type ping 192.168.1.253, and then press Enter. If the result displayed is similar to Figure 4-3, it means the connection between your PC and the AP has been established well.

  • Page 25: Starting Setup In The Web Ui

    DHCP request on newly installed adapters. 4.2 Starting Setup in the Web UI It is easy to configure and manage the WNAP-6325 with the web browser. Step 1. To access the configuration page, open a web browser and enter the default IP address http://192.168.1.253...

  • Page 26: Figure 4-6 Login Window

    User Manual of WNAP-6325 Figure 4-6 Login Window Default IP Address: 192.168.1.253 Default User Name: admin Default Password: admin If the above screen does not pop up, it may mean that your web browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.

  • Page 27: Figure 4-8 Choose Operation Mode

    User Manual of WNAP-6325 Figure 4-7 WNAP-6325 Web UI Screenshot Step 2. You can choose an Operation Mode. Please refer to the instructions in the next chapter for configuring the other Operation Modes. Figure 4-8 Choose Operation Mode Step 3.

  • Page 28: Figure 4-9 Configure Wireless Settings

    User Manual of WNAP-6325 Figure 4-9 Configure Wireless Settings -27-...

  • Page 29: Chapter 5. Configuring The Ap

    Figure 5-1 Main Menu 5.1 Operation Mode On this page, you can select different operation modes of the WNAP-6325, including Access Point, Client, WDS AP, WDS Client, AP Router and Wireless ISP. Figure 5-2 Operation Mode 5.1.1 Access Point Click “Operation Mode”...

  • Page 30: Figure 5-3 Basic Settings - Ap

    User Manual of WNAP-6325 Figure 5-3 Basic Settings - AP Object Description  Regulatory Domain Select your domain from the list. It is the wireless network name. The default SSID is  Network SSID WNAP-6325.  Site Survey Click “Site Survey” to check the signal of remote sites.

  • Page 31: Client

    User Manual of WNAP-6325 network, input a smaller value to reduce the radio transmission power.  Transmit Distance Select a specified distance of the two nodes.  TDMA Displays the System Time. Press “Setup” for more configurations. Please refer to 5.1.8 ...

  • Page 32: Wds Ap

    User Manual of WNAP-6325  Disable SSID Broadcasting Check it to disable SSID broadcasting. Check it to isolate each connected wireless clients so that they Enable Isolated cannot access each other. Enter the Mac address of the remote AP. Lock to AP MAC Select the channel width to “Auto Select”, “2G 11NG HT20”...

  • Page 33: Wds Client

    User Manual of WNAP-6325 Figure 5-5 Basic Settings – WDS AP 5.1.4 WDS Client Click “Operation Mode”  “WDS Client” and the following page will be displayed. This section allows you to configure the WDS Client mode. For each wireless parameter, please refer to section 5.1.2 Client for more information.

  • Page 34: Ap Router

    User Manual of WNAP-6325 Figure 5-6 Basic Settings – WDS Client 5.1.5 AP Router Click “Operation Mode”  “AP Router” and the following page will be displayed. This section allows you to configure the AP Router mode. -33-...

  • Page 35: Wireless Isp

    User Manual of WNAP-6325 Figure 5-7 Basic Settings – AP Router 5.1.6 Wireless ISP Click “Operation Mode”  “Wireless ISP” and the following page will be displayed. This section allows you to configure the Wireless ISP mode. -34-...

  • Page 36: Security Setting

    User Manual of WNAP-6325 Figure 5-8 Basic Settings – WISP 5.1.7 Security Setting Choose the operation mode you required, and then enter “Security Setting” by clicking the Setup button next to it and the following page will be displayed. This section allows you to configure the wireless security settings.

  • Page 37: Figure 5-10 Security Settings - Wep

    User Manual of WNAP-6325 Object Description Select the encryption that you need. None: No security required WEP: Input 5, 13 (ASCII) or 10, 26 (HEX) character for WEP key. WPA: Enter ASCII characters between 8 and 63 character or 8 ...

  • Page 38: Figure 5-11 Security Settings - Wpa Personal

    User Manual of WNAP-6325  Figure 5-11 Security Settings – WPA Personal Figure 5-12 Security Settings – WPA Enterprise Object Description Select “Personal (Pre-Shared Key)” or “Enterprise (RADIUS)”  Pre-Authentication encryption type.  Encryption Type Set the WPA to be TKIP, AES or Auto.

  • Page 39: Figure 5-13 Security Settings - Wpa2 Personal

    User Manual of WNAP-6325  EAP Set duration of session timeout in seconds between 300 and 3600. Reauthorization Period  RSN Enable or disable RSN reauthorization. Reauthorization  WPA Group Rekey Set duration of session timeout in seconds between 300 and 3600.

  • Page 40: Advanced Settings

    User Manual of WNAP-6325  WPA-Mixed Please refer to WPA for more information. Figure 5-15 Security Settings – WPA-Mixed Personal Figure 5-16 Security Settings – WPA-Mixed Enterprise 5.1.8 Advanced Settings Choose the operation mode you require, and then enter “Advanced Settings” by clicking Setup button next to it and the following page will be displayed.

  • Page 41: Figure 5-17 Advanced Settings

    User Manual of WNAP-6325 Figure 5-17 Advanced Settings Object Description When the length of a data packet exceeds this value, the router will send an RTS frame to the destination wireless node, and the latter will reply  RTS/CTS Threshold with a CTS frame, and thus they are ready to communicate.
  • Page 42 User Manual of WNAP-6325 single access to the medium by combining frames together into one larger frame. It creates the larger frame by combining smaller frames with the same physical source, destination end points, and traffic class (QoS) into one large frame with a common MAC header ...

  • Page 43: Access Control

    User Manual of WNAP-6325 WMM Capable Traditional IP data, medium throughput and delay. High throughput, non time sensitive bulk data e.g. FTP Time sensitive video data with minimum time delay. Time sensitive data such as VoIP and streaming media with minimum time delay.

  • Page 44: Wan Port Settings

    User Manual of WNAP-6325 Figure 5-19 Access Control Object Description You can choose “Disable”, “Allow Listed” or “Deny Listed”. Wireless Access Control Mode Mac Address The MAC address to be filtered. Comment Enter a comment of this setting. 5.1.10 WAN Port Settings Click “Operation Mode”...
  • Page 45 User Manual of WNAP-6325  Static Mode (Fixed IP) If your ISP offers you static IP Internet connection type, select “Static Mode" and then enter IP address, subnet mask, primary DNS and secondary DNS information provided by your ISP in the corresponding fields.

  • Page 46: Dynamic Dns Settings

    User Manual of WNAP-6325 Figure 5-22 WAN Port Settings – PPPOE Object Description  User Name Enter the User Name provided by your ISP.  Password Enter the password provided by your ISP.  Verify Password Enter the password again to verify if it is correct.
  • Page 47 User Manual of WNAP-6325 Object Description Disable: Disable DDNS function Enable Easy DDNS: Enable PLANET Easy DDNS  DDNS option Enable Dynamic DDNS: You are allowed to modify the DDNS settings.  Dynamic DNS Provider Select a server provider or disable the existing server.
  • Page 48 User Manual of WNAP-6325 Step 2. Configure the DDNS account that has been registered in Planet DDNS website. Account: Enter your DDNS host (format: xxx.planetddns.com, is the registered domain name) Password: Enter the password of your account. DDNS: Enter your DDNS host again.
  • Page 49 Example of Easy DDNS Settings: This service is not required to register any DDNS account. Please refer to the procedure listed as follows to configure using Planet Easy DDNS service. Step 1. Select “Enable Easy DDNS” to use the Planet Easy DDNS service.
  • Page 50 User Manual of WNAP-6325 Step 2. Go to “Remote Management” to enable remote access from WAN port. Step 3. Go to “WAN Port Settings” to configure WAN connection to Static Mode (fixed IP). -49-...

  • Page 51: Remote Management

    User Manual of WNAP-6325 Step 6. Save the setting and connect your WAN port of the Wireless AP to the internet via Ethernet cable. In a remote computer, enter the Easy Domain Name displayed in Step 1. Then, you should be able to login the WNAP-6325 remotely.

  • Page 52: Dmz Settings

    User Manual of WNAP-6325 Figure 5-25 DHCP Server Settings Object Description  DHCP Server Select as DHCP server or disable the function. Select the time for using one assigned IP from the dropdown  Lease Time list. After the lease time, the AP automatically assigns new IP addresses to all connected computers.

  • Page 53: Virtual Server Settings

    User Manual of WNAP-6325 5.1.15 Virtual Server Settings Click “Operation Mode”  “AP Router” or “Wireless ISP” and then enter the “Virtual Server Settings” by clicking the Setup button next to it. This section allows you to configure the virtual server.

  • Page 54: Port Filtering Settings

    User Manual of WNAP-6325 Object Description  Filtering Enable or disable IP Filtering.  Protocol You can choose TCP, UDP or Both.  IP Address Enter the IP address to be filtered.  Comment Set a name for the rule.

  • Page 55: Bandwidth Control

    User Manual of WNAP-6325 Object Description  Filtering Enable or disable Mac Filtering.  Mac Address Enter the Mac address to be filtered.  Comment Set a name for the rule. 5.1.19 Bandwidth Control Click “Operation Mode”  “AP Router” or “Wireless ISP” and then enter the “Bandwidth Control” by clicking the Setup button next to it.

  • Page 56: Snmp

    User Manual of WNAP-6325 5.1.20 SNMP Click “Operation Mode”  “AP Router” or “Wireless ISP” and then enter the “SNMP” by clicking the Setup button next to it. This section allows you to configure the SNMP. Figure 5-32 SNMP Settings...

  • Page 57: System Configuration

    User Manual of WNAP-6325 5.2 System Configuration On this page, you can configure the system of the WNAP-6325, including IP settings, Time settings, Password settings, System management, Ping Watchdog, Firmware upgrade, Configuration save and restore, Factory default, Reboot and Schedule reboot.

  • Page 58: Time Settings

     IP Subnet Mask WNAP-6325’s LAN subnet mask.  Gateway IP Address The Gateway IP address of WNAP-6325.  Primary DNS Server Enter the DNS server. The default is 8.8.4.4.  Secondary DNS Server Enter the DNS server. The default is 8.8.8.8.

  • Page 59: Password Settings

    User Manual of WNAP-6325 5.2.3 Password Settings Click “System Configuration”  “Password Settings” and the following page will be displayed. Figure 5-36 Password Settings Object Description  Current Password Set the access point’s administrator password. This is used to log in to the browser based on the configuration interface.

  • Page 60: Ping Watchdog

    Enable the POE Passthrough function. ※ When the option “Enable POE Passthrough” in the System Management page is checked, the LAN2 can supply passive PoE power to the second WNAP-7325 or WNAP-6325 through the LAN 2.  UPnP Check to enable the UPnP function.

  • Page 61: Firmware Upgrade

    User Manual of WNAP-6325  Action System will reboot when failing to ping the IP. 5.2.6 Firmware Upgrade Click “System Configuration”  “Firmware Upgrade” and the following page will be displayed. Figure 5-39 Firmware Upgrade Object Description  Browse Click Browse to select the firmware file, and click Upgrade to upgrade the firmware.

  • Page 62: Factory Default

    User Manual of WNAP-6325  SAVE Click SAVE to save the configuration to a management host.  Browse Click Browse to select the configuration file, and click Restore to restore the configuration file. 5.2.8 Factory Default Click “System Configuration”  “Factory Default” and the following page will be displayed.

  • Page 63: Figure 5-43 Schedule Reboot

    User Manual of WNAP-6325 Figure 5-43 Schedule Reboot -62-...

  • Page 64: Figure 5-44 Schedule Reboot - Example

    User Manual of WNAP-6325 Object Description  Schedule Reboot Enable or Disable this function.  Reboot Time Enter the time that you want to reboot this device.  Reboot Plane Select Weekday to reboot in the day you choose or Every day.

  • Page 65: Tools

    User Manual of WNAP-6325 5.3 Tools 5.3.1 Network Ping Click “Tools”  “Network Ping” and the following page will be displayed. Ping is a network tool used to test whether a particular host is reachable across an IP network. Enter the IP, Ping Count, and click “Ping”...

  • Page 66: Figure 5-46 Network Traceroute

    User Manual of WNAP-6325 Figure 5-46 Network Traceroute -65-...

  • Page 67: Device Status

    User Manual of WNAP-6325 5.4 Device Status Figure 5-47 Device Status 5.4.1 Device Information Click “Device Status”  “Device Information” and the following page will be displayed. -66-...

  • Page 68: Wireless Information

    User Manual of WNAP-6325 Figure 5-48 Device Information The page includes the following fields: Object Description  Firmware Version Displays current F/W version.  Device IP Displays IP of AP.  Device MAC Displays AP’s LAN MAC address.  Gateway IP Displays Gateway IP of AP.

  • Page 69: Lan Information

    User Manual of WNAP-6325 Figure 5-49 Wireless Information The page includes the following fields: Object Description  Operation Mode Displays current Operation Mode.  Physical address Displays AP’s Wireless MAC address. It is the wireless network name. The default SSID is ...

  • Page 70: Wireless Client Table

    User Manual of WNAP-6325 Figure 5-50 LAN Information The page includes the following fields: Object Description  Physical Address Displays AP’s LAN MAC address.  IP Address Displays IP of AP.  Network Mask Displays Network Mask of AP.  Default Gateway Displays Gateway IP of AP.

  • Page 71: System Log

    User Manual of WNAP-6325 The page includes the following fields: Object Description  No. Displays the number of connecting device.  Mac Address Displays Mac address of AP.  Connection Speed Displays connection speed of device. Display signal strength of device.

  • Page 72: Logout

    User Manual of WNAP-6325 5.5 Logout Select “Logout” to logout the system. Figure 5-53 Logout Figure 5-54 Re-login -71-...

  • Page 73: Appendix A: Troubleshooting

    Appendix A: Troubleshooting If you found the AP is working improperly or stop responding to you, please read this troubleshooting first before contacting the Planet Tech Support for help. Some problems can be solved by yourself within very short time. Scenario Solution a.
  • Page 74 User Manual of WNAP-6325 b. The antenna is properly secured. device. c. Are you too far from your AP? Try to get closer. d. Please remember that you have to input ESSID on your wireless client manually, if ESSID broadcast is disabled.

  • Page 75: Appendix B: Use Planet Smart Discovery To Find Ap

    Step 3: Click the “Refresh” button as shown below to update the list of the currently connected devices. Figure C-1 Step 3: Select the WNAP-6325 from the list and then click the “Connect to Device” button to login to the Web Management Configuration Page.

  • Page 76: Appendix C: Faq

    User Manual of WNAP-6325 Appendix C: FAQ Q1: How to set up the AP Client Connection Topology: Step 1. Use static IP in the PCs that are connected with AP-1 (Site-1) and AP-2 (Site-2). In this case, Site-1 is “192.168.1.100”, and Site-2 is “192.168.1.200”.
  • Page 77 User Manual of WNAP-6325 Step 2. In AP-1, go to “Operation Mode” to configure it to Access Point Mode. You can also configure it in “AP Router” mode if you want to connect the WAN port of the AP ※...
  • Page 78 User Manual of WNAP-6325 -77-...
  • Page 79 User Manual of WNAP-6325 Step 4. In AP-2, modify the default IP to the same IP range but different from AP-1. In this case, the IP is changed to 192.168.1.252. Step 5. In AP-2, configure it in “Client” mode and click “Setup”.
  • Page 80 User Manual of WNAP-6325 Step 6. Click “Setup” and then click Site Survey to find AP-1. Step 7. Select AP-1 from the list. -79-...
  • Page 81 User Manual of WNAP-6325 Step 8. Click “SET SECURITY” to configure the Pre-Shared Key and then click “Save” to close the window. Step 9. Click “OK” and “Save & Restart” to apply the setting. Step 10. In AP-1, go to “Device Status-> Wireless Client Table” to check whether AP-2 should be in the list.
  • Page 82 User Manual of WNAP-6325 Step 11. Use command line tool to ping each other to ensure the link is successfully established. From Site-1, ping 192.168.1.200; and in Site-2, ping 192.168.1.100. Step 12. Configure the TCP/IP settings of Site-2 to “Obtain an IP address automatically”.
  • Page 83 User Manual of WNAP-6325 Step 13. Use command line tool to ping the DNS (e.g. Google) to ensure Site-2 can access internet through the wireless connection. The attention of the following hints should be paid: The encryption method must be the same as that of both sites if configured.

  • Page 84: Q2: How To Set Up The Wds Connection

    User Manual of WNAP-6325 Q2: How to set up the WDS Connection Topology: Step 1. Use static IP in the PCs that are connected with WNAP-6325-1 (Site-1) and WNAP-6325-2 (Site-2). In this case, Site-1 is “192.168.1.100”, and Site-2 is “192.168.1.200”. -83-...
  • Page 85 User Manual of WNAP-6325 Step 2. In AP-1, go to “Operation Mode” to configure it Access Point Mode. Step 3. Click “Setup” to configure the following parameters and then click Save & Restart to save the settings. : set to a unique value...
  • Page 86 User Manual of WNAP-6325 Step 4. In AP-2, modify the default IP to the same IP range but different from AP-1. In this case, the IP is changed to 192.168.1.252. Step 5. In AP-2, configure it in “Client” mode and click “Setup”.
  • Page 87 User Manual of WNAP-6325 Step 6. Click “Setup” and then click Site Survey to find AP-1. Step 7. Select AP-1 from the list. Step 8. Click “SET SECURITY” to configure the Pre-Shared Key and then click “Save” to close the window.
  • Page 88 User Manual of WNAP-6325 Step 9. Click “OK” and click “Save & Restart” to apply the setting. Step 10. In AP-1, go to “Device Status-> Wireless Client Table” to check whether AP-2 should be in the list. Step 11. Use command line tool to ping each other to ensure the link is successfully established.
  • Page 89 User Manual of WNAP-6325 The attention of the following hints should be paid: The encryption method must be the same as that of both sites if configured. Both sites should be Line-of-Sight. For the short distance connection less than 1km, please reduce the "Transmit power" of both sites.
  • Page 90 CPEΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ disposições da Directiva 1999/5/CE. ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ Por medio de la presente, PLANET Technology Výrobca PLANET Technology Corporation, týmto Español Slovensky Corporation, declara que 300Mbps 802.11n deklaruje, že táto 300Mbps 802.11n Wireless...
