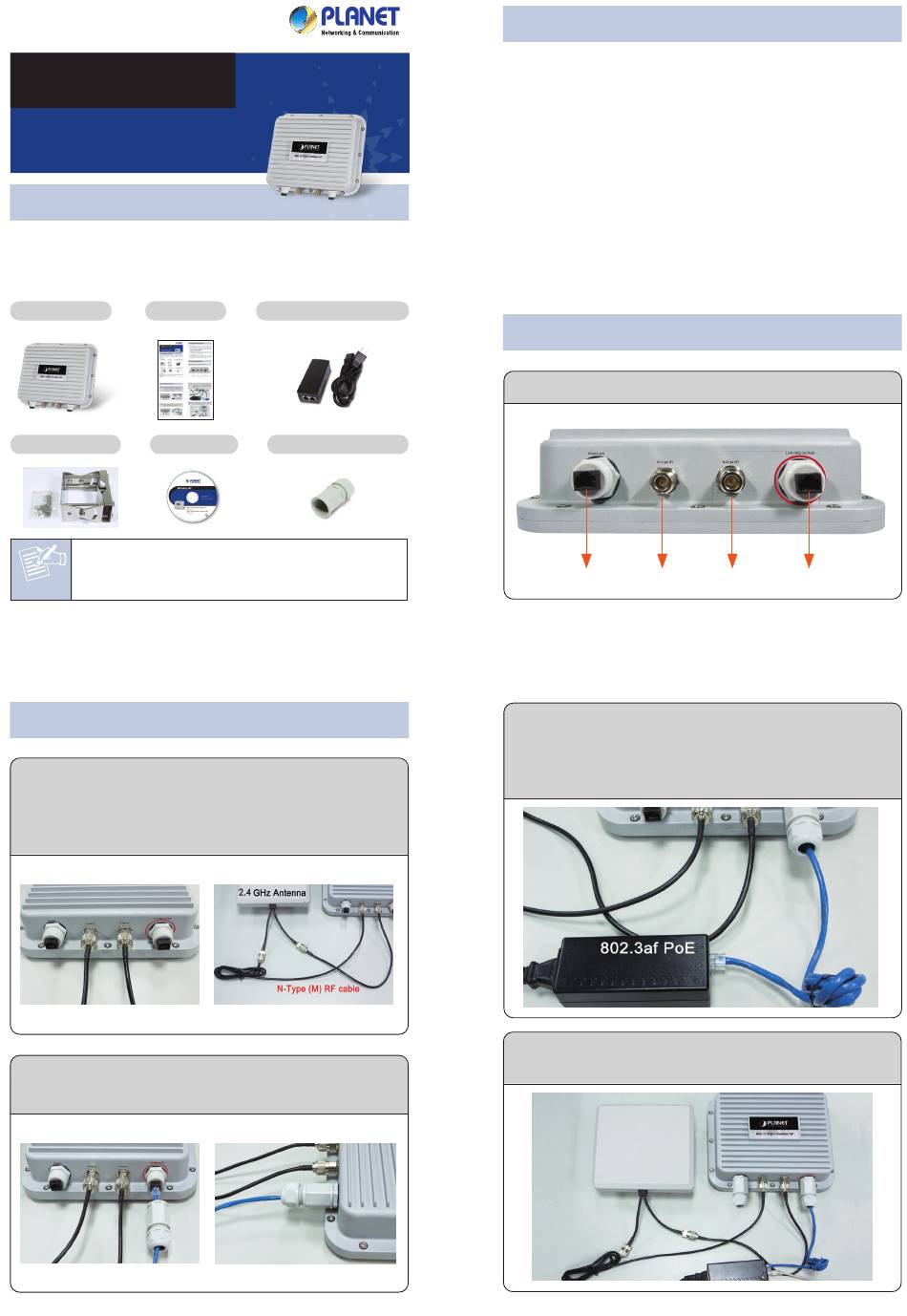

Planet WNAP-6350 Quick Installation Manual

Quick Installation Guide

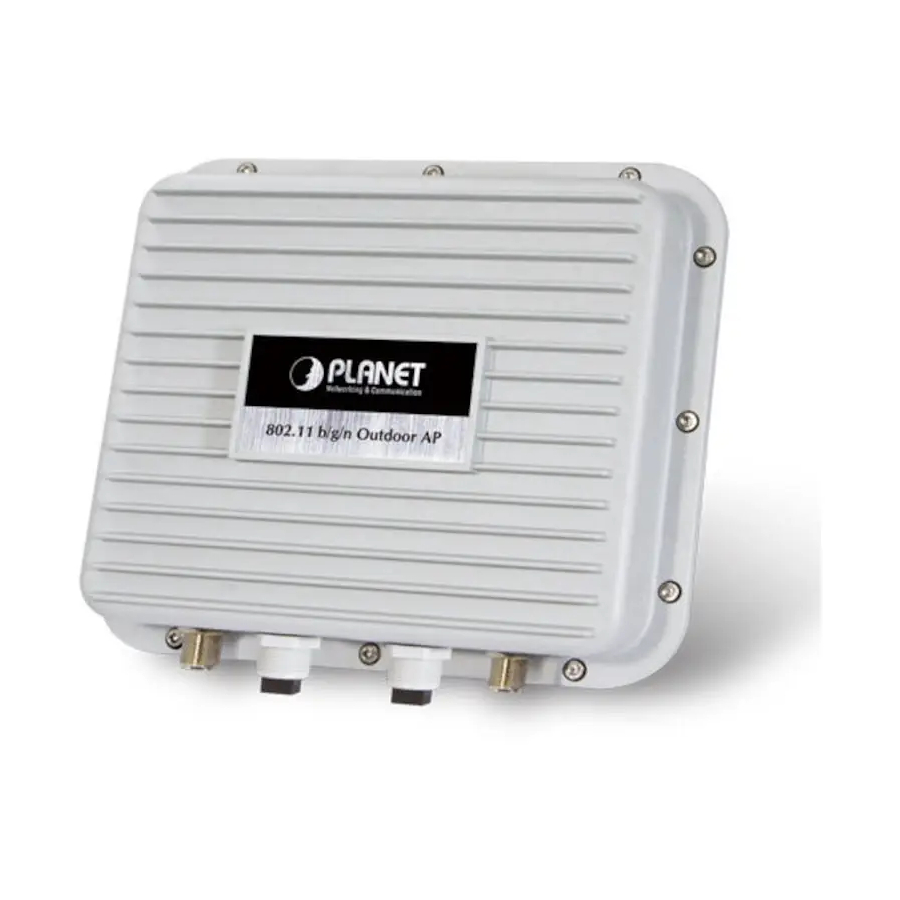

WNAP-6350
300Mbps 802.11b/g/n
Wireless Outdoor AP

1. Package Contents

Thank you for choosing PLANET WNAP-6350. Before
installing the AP, please verify the contents inside the
package box.
WNAP-6350 Quick Guide
Mounting Kit x 1 CD-ROM
If there is any item missed or damaged, please
contact the seller immediately.
Note

4. Hardware Installation

STEP 1: Plug the N-Type (M) to N-Type (M) RF cables into
the antenna connectors of the WNAP-6350, and
then connect the N-Type (F) antennas to the
other side of the RF cables.
STEP 2: Plug the RJ-45 Ethernet cable into the LAN Port of
WNAP-6350 through the waterproof kit.
PoE Injector & Power Cord
RJ-45 Waterproof Kit x 2
– 1 –
– 3 –

2. Installation Precautions

1. Users MUST use a proper and well-installed surge
arrestor and grounding kit with WNAP-6350; otherwise, a
random lightening could easily cause fatal damage to
WNAP-6350. EMD (Lightning) DAMAGE IS NOT
COVERED UNDER WARRANTY.
2. Users MUST use the "Power cord & PoE Injector" shipped
in the box with the WNAP-6350. Use of other options will
cause damage to the WNAP-6350.
3. Users MUST power off the WNAP-6350 first before
connecting the external antennas to it; otherwise,
damage might be caused to the WNAP-6350 itself.

3. Physical Introduction

Rear Panel Description – Port & Connector
WAN/LAN N-Type (F)
STEP 3: Take out the power cord and PoE injector, plug
the power cord into the DC port and plug the
other side of the RJ-45 cable into the POE port of
the PoE injector.
STEP 4: Plug the other waterproof kit to the WAN/LAN
port to complete the installation.
N-Type (F) LAN (802.3af PoE)
– 2 –
– 4 –
