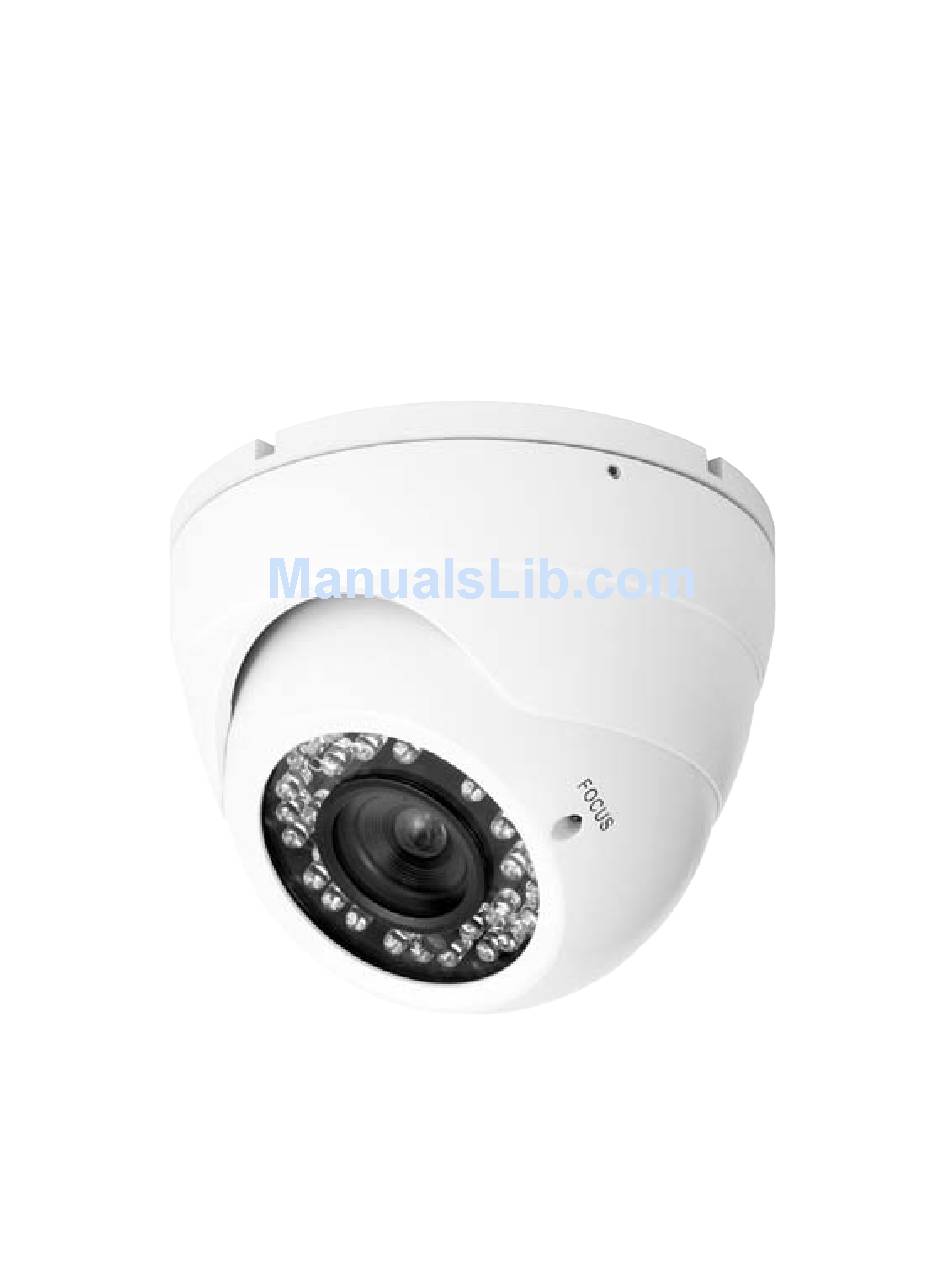

Infrared Turret Dome CCD Camera User Manual Products: CD80B, CD80W, CD80BHR, CD80WHR, CD80BVF, CD80WVF, CD80BHRVF, CD80WHRVF Please read this manual before installing and using this camera and always follow instructions for proper use. Save this manual for future reference. CD80_IM... - Page 2 CAUTION product and may cause a fire. © 2013 Observint Technologies. All rights reserved. 11000 N. Mopac Expressway, Building 300, Austin, TX 78759 1.800.335.9777 | Fax: 1.866.267.9777 For Sales/Support, please contact your supplier.
- Page 3 WARNINGS & CAUTIONS To prevent damage, do not drop the camera or subject it to strong shock or vibration. CAUTION If installed close to a TV, radio transmitter, magnet, electric motor transformer or audio speakers the magnetic field generated may interfere with or distort the image.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Table of Contents SECTION 1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1.1 Camera components . -
Page 5: Section 1 Features
SECTION 1: FEATURES Features SECTION 1 The CD80 series weatherproof, vandal resistant turret dome cameras are ideal for outdoor locations where surveillance in low-light environments is required. These cameras include: Advanced image sensors for greater picture clarity • Precision lenses to achieve the perfect view •... -
Page 6: Camera Components
SECTION 1: FEATURES 1.1 Camera components Video 75 Ohm Drop Cable 12 V DC Base Bezel set screw (2) Bezel Camera Housing Camera Module Focus Adjust (VF Models) Camera Lens IR LEDs Camera assembly www.observint.com... -
Page 7: Camera Connections
SECTION 1: FEATURES 1.2 Camera connections Connect Connect Single camera with monitor (above) Multiple camera system with DVR and monitor (below) Infrared Turret CCD Camera User Manual... -
Page 8: Section 2 Installation
SECTION 2: INSTALLATION Installation SECTION 2 2.1 What’s in the box The camera package contains: Camera assembly • Instruction manual • Hardware kit, including four 1" screws, four wall inserts and a hex wrench • 2.2 Tools you need To install the camera, you will need: Phillips #2 screwdriver •... -
Page 9: Installation Instructions
SECTION 2: INSTALLATION 2.3 Installation instructions Use the hex wrench provide to loosen the two bezel set screws, then remove the bezel from the camera assembly. Bezel set screw (1 of 2) Remove the bezel 2. Determine where the camera will be mounted. 3. - Page 10 SECTION 2: INSTALLATION Mounting Screw Holes Camera base 4. Drill mounting screw holes into the mounting surface. a. If the mounting surface is a soft material, such as a drywall, use a 3/16" bit to drill the mounting holes. Use a hammer to tap the wall inserts provided into each hole until they are flush with the surface.
- Page 11 SECTION 2: INSTALLATION b. If the mounting surface is a very soft material, such as ceiling tile, place a wood block behind the tile. Screws longer than 1" may be required. Drill holes for the mounting screws through the surface and into the wood block. c.
- Page 12 SECTION 2: INSTALLATION 3/4" Cable Routing Hole Use a #2 Phillips screwdriver to mount the base with the provided screws. 8. With the camera in the camera housing, route the drop cable through the 3/4" hole until the camera housing is fitted onto the base. Place the housing bezel over the camera housing and screw it onto the base until the camera and camera housing are held in place.
- Page 13 SECTION 2: INSTALLATION 10. Use a #2 Phillips screwdriver to mount the base with the provided screws. 11. Without allowing the camera to hang by the drop cable, place the camera module onto the base, cover with the camera housing, then move the bezel into place. Tighten the two bezel set screws enough to hold the assembly together.
- Page 14 SECTION 2: INSTALLATION Notice that power connectors on the BNC video/power cable are different at each end! CAUTION Connect To DVR/monitor To DVR/Monitor and power and Power Cable attachment www.observint.com...
-
Page 15: Section 3 Aiming The Camera
SECTION 3: AIMING THE CAMERA Aiming the Camera SECTION 3 Connect the video cable from the camera to a test monitor or to the BNC input on the DVR. 2. Apply 12 Vdc power to the camera. 3. Loosen the bezel set screws until the camera module and housing can be rotated on the base. -
Page 16: Section 4 Cleaning
SECTION 4: CLEANING Cleaning SECTION 4 Clean the camera lens and IR lamp shield with an approved glass cleaning solution and a lint free cloth. Dust can be removed from the unit by wiping it with a soft damp cloth. To remove •... -
Page 17: Section 5 Specifications
SECTION 5: SPECIFICATIONS Specifications SECTION 5 CD80B / CD80BHR / CD80BVF / CD80BHRVF / Model CD80W CD80WHR CD80WVF CD80WHRVF Image Sensor 1/4" Sharp CCD 1/3” SONY CCD 1/4” Sharp CCD 1/3” SONY CCD TV system NTSC CCD total pixels 537 (H) x 505 (V) -
Page 18: Section 6 Troubleshooting
SECTION 6: TROUBLESHOOTING Troubleshooting SECTION 6 Before sending the camera for repair, please check below to make sure that the camera is installed correctly. If it still does not perform adequately, please consult your supplier. No picture on the monitor screen. a. - Page 19 SECTION 6: TROUBLESHOOTING 2. The picture has interference. a. The camera may be close to a high voltage source, such as a power generator. b. The BNC cable is not terminated properly. c. The video cables are not connected properly. This camera is a precision instrument and when treated with care, will provide years of satisfactory performance.
- Page 20 www.observint.com...
