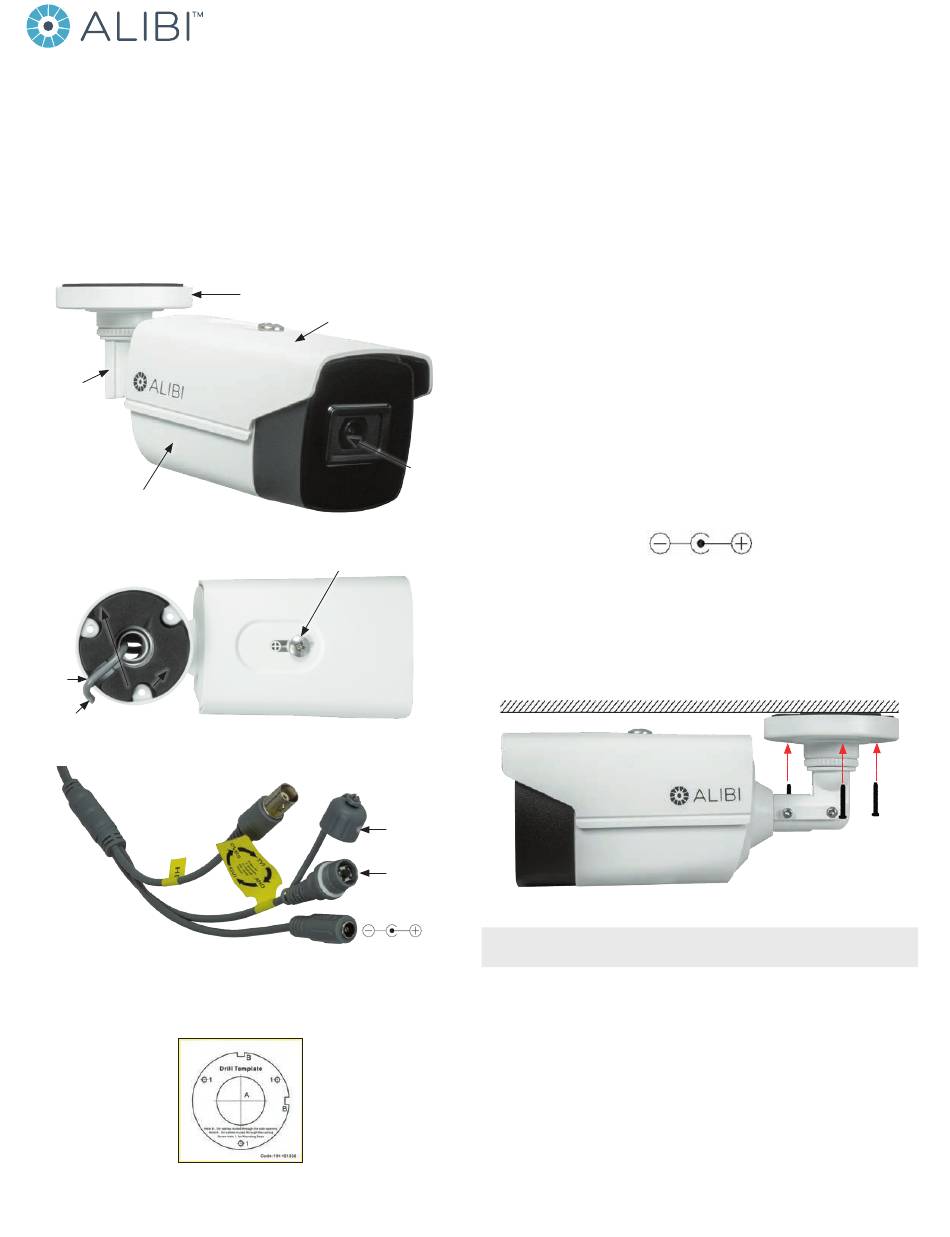

ALI-TP3125R 5 MP HD-TVI 65 ft
IR Outdoor Bullet Camera Quick
Installation Guide
This indoor / outdoor security bullet camera includes the following features:
5 MP, 2560 × 1944 resolution
•
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR minimum illumination
•
2.4 mm fixed focal lens
•
Smart IR, up to 65 ft IR distance
•
IP67
•
Adjustable
mounting
bracket
Camera body
ALI-TP3125R camera
Cable
channels
Camera drop cable
Camera top view with bracket up
* Switch Button: The Switch button is reserved for future feature enhancements
Camera drop cable connectors
What's in the box
Camera assembly
•
Mounting hardware
•
Drill template
•
This instruction guide
•
www.observint.com
1
Mounting base
Adjustable sun shield
Sun shield lock screw
HD video BNC connector
Cap for
switch
cable
Switch
button*
12 Vdc power terminals
What you need
To install the camera, you will need:
12 Vdc power source. See Specifications for requirements
•
Tools and additional fasteners (may be required) for mounting the camera
•
Phillips #2 screwdriver
•
Video and power extension cable
•
Installation
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the
•
camera.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
•
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
•
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension
—
cable to a compatible recorder.
Lens
Power connector: The camera can be powered by 12 Vdc (see Specification section for
—
requirements. When applying 12 Vdc power, observe the power polarity shown in the diagram
below.
Mounting the camera
An ALI-TP3125R camera can be mounted directly to a wall or ceiling, or with a junction box. The surface
should support at least three times the weight of the camera and junction box (if used). The video / power
drop cable from the camera can be routed either through mounting surface or through a cable channel in
the mounting base.
Mounting the camera directly to a wall or ceiling
•
If mounting the camera on a ceiling, orient the mounting base so that the cable channel is pointing
NOTE
away from any source of water, dust, and other contaminates.
a.
Using the drill template provided, mark the location of the screws that anchor the mounting
base to the mounting surface. See the note above. If you are routing the drop cable through
mounting surface, also mark the position of the hole for the drop cable.
b.
Drill holes for the screws that anchor the base to the mounting surface. The mounting
hardware provided is appropriate for most surfaces. However, depending on the surface
materials, more appropriate fasteners may be required.
c.
If routing the drop cable through the mounting surface, drill a 5/8" hole in the middle of the
drill template.
d.
Connect the camera drop cable to video and power extension cables as required.
e.
Connect the other end of the video extension cable to a compatible recorder.
Cleaning
Typical ceiling mounting
section.
ALI-TP3125R_CQ
190903
