Observint ALIBI ALI-NS2114VR Quick Installation Manual

Vari-focal ip dome camera

Advertisement

This document guides you through the basic steps to install and configure the ALI-NS2114VR network
vari-focal dome camera. This camera features:
1/2.5" 2560 × 1440 pixel Progressive Scan CMOS
2.8 ~ 12 mm motorized vari-focal lens
Low light 0.008 lux color minimum illumination
H.265, H.265+, H.264+, H.264, MJPEG video compression
120 dB Wide Dynamic Range
Back light compensation (BLC) / 3D dynamic noise reduction (DNR) / region of interest (ROI)
IP67, IK10 vandalproof rated, TVS 2000V Lightning Protection
Compatible with ALI-AF11 Flange Adapter
4 behavior analyses and face detection
For more information, refer to these documents - available from your equipment vendor:
ALIBI™ Tools Utility Installation and User Manual
ALIBI™ Witness 2.0 r3 App for Android or iOS Quick Start Guide
ALIBI™ IP Camera Firmware Version 5.4 User Manual (or later) provided at:
AlibiSecurity.com/resources

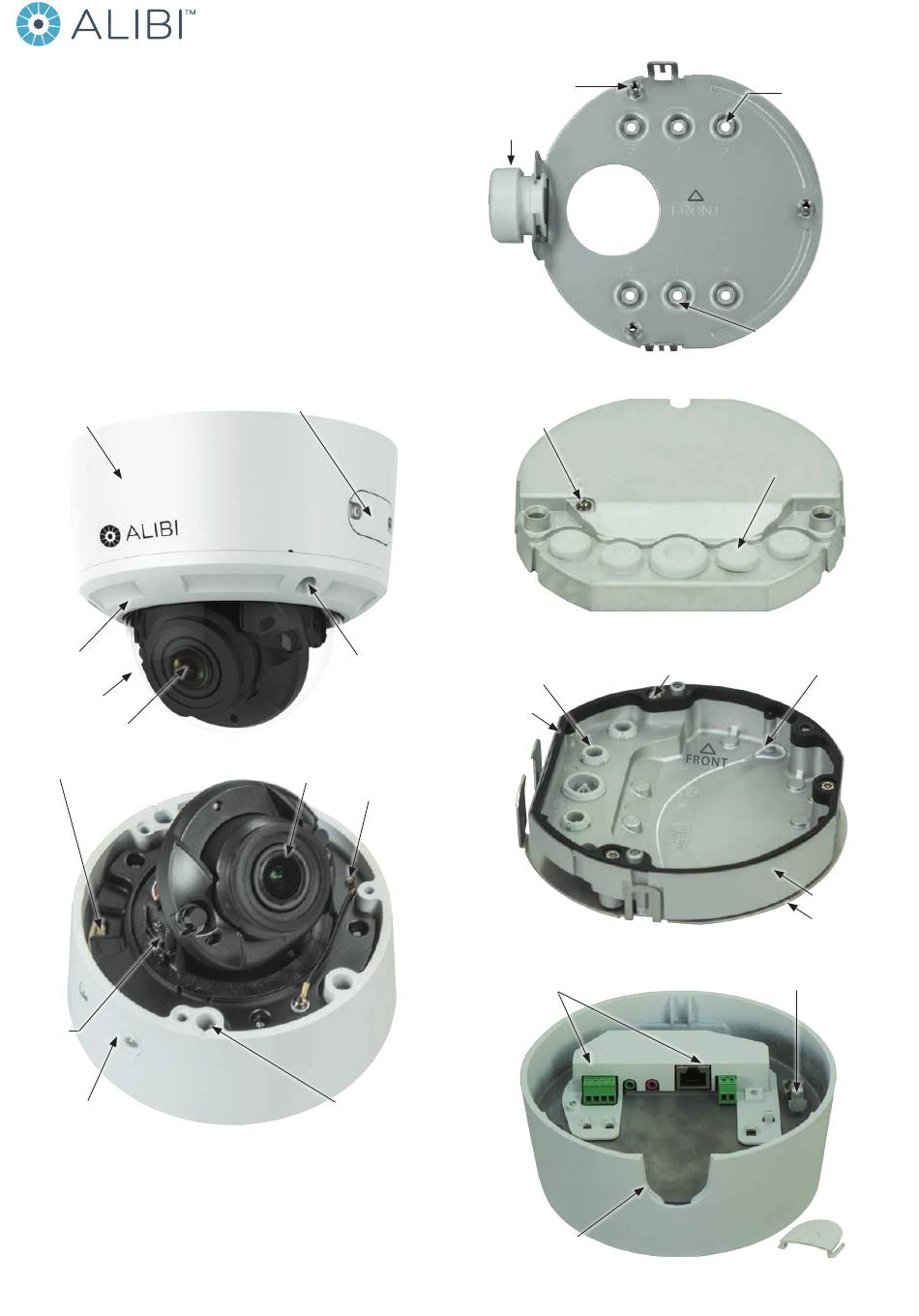

Adapter plate
and junction box
Camera body
Dome assembly
Dome
Lens
Connector for BNC video cable
Gimbal
camera
mount
Maintenance panel
(microSD slot, RESET)
Camera without dome assembly
1
www.observint.com
ALI-NS2114VR 4MP Vari-focal IP Dome Camera Quick Installation Guide
Maintenance panel
(microSD slot, RESET)
Dome
cover
screws
Motorized zoom lens
Dome safety cable
Captive screw for
junction box (3)
Screw stud for
junction box (3)
Conduit
adapter
Hole for
through-
surface cable
routing
Adapter plate (camera side)
Ground terminal
Junction box (adapter plate side)
Captive screws connect
Sealing plug
to adapter plate (3)
for interface wiring (5)
Seal (black)
Junction box (inside view) with adapter plate
Connector block terminals for
alarms, audio, LAN, power
Side inlet
Inside camera base (junction box removed)
Screw holes for
double-gang box
mounting - #2 (4))
FRONT
Screw holes for single-
gang box mounting #1 (2)
Sealing plug
for interface wiring (5)
Sealing plug
for LAN cable
Safety cable
Junction box
Adapter plate
Hook for safety cable
ALI-NS2114VR_CQ
Side
inlet
cover
180904

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALIBI ALI-NS2114VR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Observint ALIBI ALI-NS2114VR

  • Page 1 Hook for safety cable alarms, audio, LAN, power Gimbal camera mount Captive screw for Maintenance panel junction box (3) (microSD slot, RESET) Camera without dome assembly Side inlet cover Side inlet Inside camera base (junction box removed) www.observint.com ALI-NS2114VR_CQ 180904...
  • Page 2: Step 2. Install The Camera

    Un-package the camera and lay it upside down on a clean, soft surface. Use the security L-wrench provided to remove the small maintenance panel cover on the underside of the camera body. The cover conceals the microSD card slot RESET button. www.observint.com © 2018 Observint Technologies. All rights reserved.
  • Page 3 Slide the sealing plug down the cable past the RJ-45 connector. See c. device passwords. It can be installed on a Microsoft® Windows® operating system that has direct access Remove the insertion tool from the LAN cable. See d. www.observint.com © 2018 Observint Technologies. All rights reserved.
  • Page 4: Step 5. Modify Network Parameters

    These settings were determined to be compatible with the network router and other devices that share the same router. Click the Activate button. In the Activate window, you will create a password for the admin (administrator) username. www.observint.com © 2018 Observint Technologies. All rights reserved.
  • Page 5: Step 6. Login To The Camera

    WebComponents. When the following screen opens, click Finish. Right click on the Internet Explorer tile, and then select More | Run as administrator. Run as administrator The Live View screen with the camera video image should appear. www.observint.com © 2018 Observint Technologies. All rights reserved.
  • Page 6 In the Live View display, find the PTZ camera you installed. Click on the camera to open the Quick Setting toolbar. To adjust the rotation, grasp the soft ring around lens and turn as needed to produce a horizontal image. www.observint.com © 2018 Observint Technologies. All rights reserved.
  • Page 7: Specifications

    60 Hz: 30 fps (1280 ×720, 640 × 360, 352 × 240) Log into the NVR with administrative privileges. Image Enhancement BLC / 3D DNR Open the firmware Image menu. Go to Menu | Camera Management | Image www.observint.com © 2018 Observint Technologies. All rights reserved.
  • Page 8 14 (4) 36 (10) Dimensions Φ 6.04” × 5.24” (Φ 153.4 × 133.1 mm) 5.4 (1.5) 8.5 (2.4) 13 (4) 34 (10) Weight Camera: 2.84 lb (1287 g) Options ALI-AF11 Flange Adapter www.observint.com © 2018 Observint Technologies. All rights reserved.
