High Resolution Indoor/Outdoor
IR Color CCTV Bullet Camera
User Manual
Products: BC600 Series, BC601 Series, BC700 Series Cameras

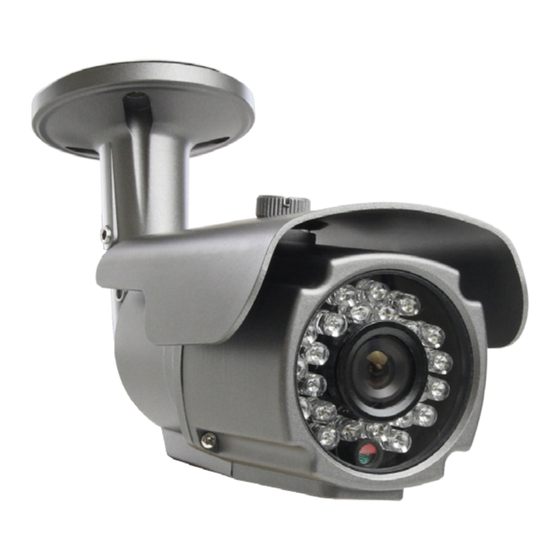

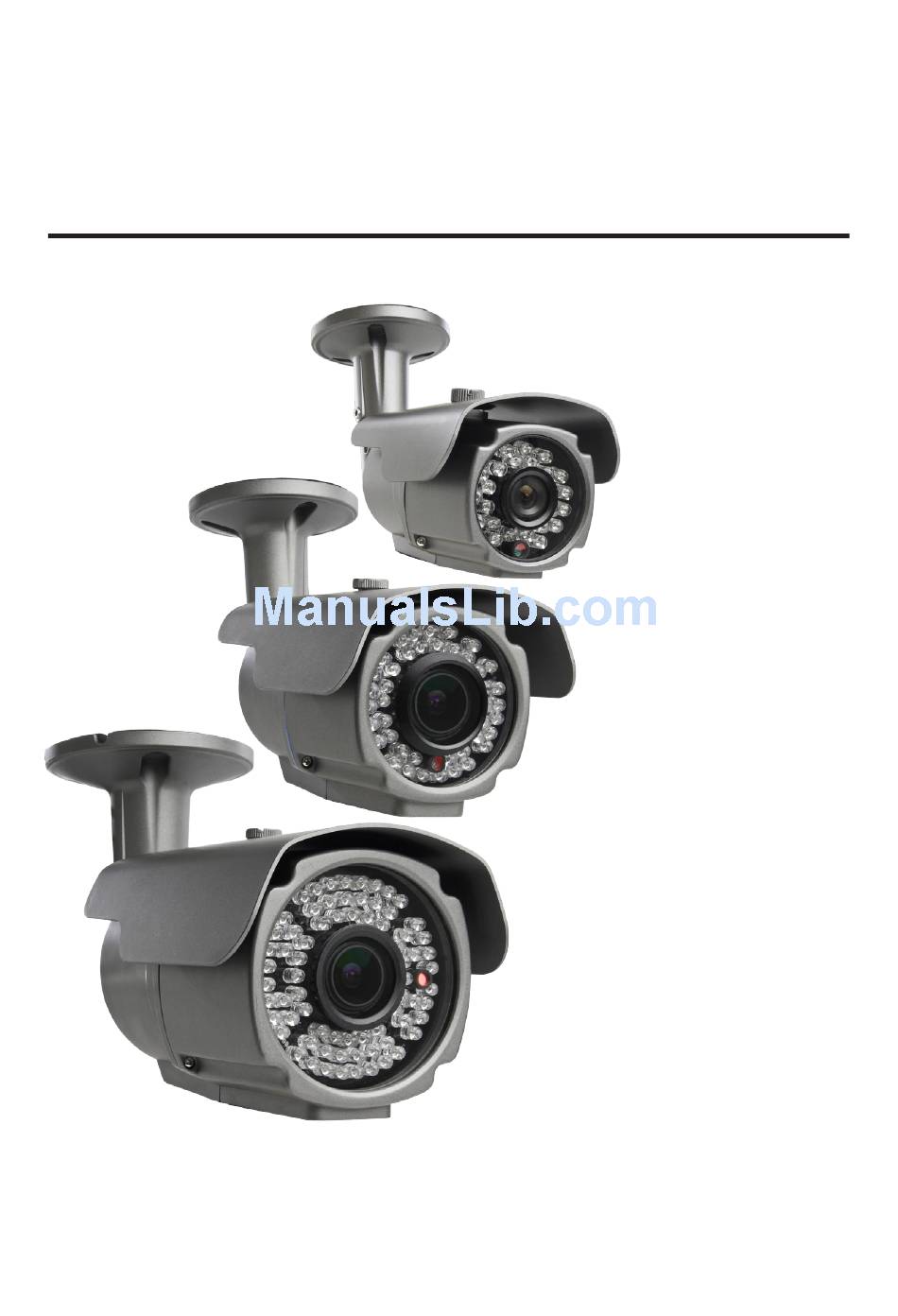

BC600 Camera
BC700VF Camera
BC700VFE Camera
Please read this manual before using your camera, and always follow the instructions for
safety and proper use. Save this manual for future reference.
BC600-BC601-BC700_CM
11/7/2013
Advertisement
Table of Contents
Related Manuals for Observint BC600 Series
Summary of Contents for Observint BC600 Series
-
Page 1: User Manual
High Resolution Indoor/Outdoor IR Color CCTV Bullet Camera User Manual Products: BC600 Series, BC601 Series, BC700 Series Cameras BC600 Camera BC700VF Camera BC700VFE Camera Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. - Page 2 Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Observint disclaims any proprietary interest in trademarks and trade names other than its own.
-
Page 3: Table Of Contents
Table of Contents SECTION 1 Introduction ............... 1 1.1 What’s in the box . - Page 4 Precautions This camera should be installed by qualified personnel only. • There are no user serviceable parts inside. • Do not disassemble this camera other than to make initial adjustments. • Use a UL approved regulated 12 volt DC power supply. •...
-
Page 5: Introduction
SECTION 1: INTRODUCTION SECTION 1 Introduction Features High resolution color sensor: 600 TV Lines (BC600, BC601 series), 700 TV Lines (BC700 series) • OSD control functions (BC700 seriess) • 12 Vdc power • Integrated Mounting Bracket CDS Sensor Vari-focal Lens (2.8 mm - 12 mm) ( -VF, -VFE cameras only) IR LED Array... - Page 6 SECTION 1: INTRODUCTION Base Sun shield Hold Down Screw Mounting Bracket Adjustment Screws BC600, BC601, BC700 Series Cameras Side View OSD Controller (BC700 Series Only) Power Input (12 Vdc) Cable Channel Video Output BC700VF Camera Top View...
-
Page 7: What's In The Box
SECTION 1: INTRODUCTION Focus, Zoom Adjusters (vari-focal ( -VF, -VFE) cameras only) Product Label BC700VFE Camera Bottom 1.1 What’s in the box Your camera includes the following: Camera assembly • Hex wrench • Mounting hardware • This manual • 1.2 Tools you need To install the camera, you will need: 12 Vdc power source. -
Page 8: Installation
SECTION 2: INSTALLATION SECTION 2 Installation 2.1 General Guidelines Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR array shield becomes • soiled, clean it only with approved products. See the Cleaning section later in this manual. Monitor impedance: Set the monitor impedance switch to 75 Ω. -
Page 9: Camera Adjustments
SECTION 2: INSTALLATION Position the base plate so that the cable guide in the mounting bracket is pointing away from any source of water, NOTE dust, and other contaminates. Drill holes for the screws that anchor the base to the mounting surface. The mounting hardware provided is appropriate for most surfaces. -
Page 10: Osd Setup (Bc700 Series Cameras Only)
SECTION 2: INSTALLATION Sun Shield Use for Hold Down Horizon Line Screw Adjustment Use for Direction, Elevation Adjustment 90° 360° Adjust the sun shield (forward or back) to reduce glare, if necessary. If your camera has a varifocal lens ( -VF or -VFE models), use the hex wrench provided to adjust the video zoom and focus. The adjustment screws are located on the bottom of the camera. - Page 11 SECTION 2: INSTALLATION OSD MENU OPTIONS MANUAL LENS TYPE: DC / VIDEO AUTO MODE: CLOSE / AUTO/OPEN SPEED: 0-255 HIGH LUMINANCE MODE: SHUT+AUTO IRIS / AUTO IRIS BRIGHTNESS: 0-255 AUTO LOW LUMINANCE MODE: OFF / AGC SHUTTER/ AGC BRIGHTNESS: ×0.25, ×0.5, ×0.75, ×1 MODE: SHUT+AGC MANUAL SHUTTER: 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 s...
-
Page 12: Cleaning
SECTION 3: CLEANING SECTION 3 Cleaning Clean the camera dome with an approved glass cleaning solution and a lint free cloth. Dust can be removed from the unit by wiping it with a soft damp cloth. To remove stains, gently rub the surface with a soft •... -
Page 13: Specifications
SECTION 4: SPECIFICATIONS SECTION 4 Specifications Table 1. Specifications for BC600 series, BC601 series cameras Model BC600 BC601 BC601VF BC601VFE Sensor 1/3" CMOS 1/3" SHARP 1/3" SHARP 1/3" SHARP Effective Picture 728 (H) x 488 (V) 768 (H) x 494 (V) - Page 14 SECTION 4: SPECIFICATIONS Table 2. Specifications for BC700 series cameras Model BC700 BC700VF BC700VFE Sensor 1/3" Sony Super-HAD CCD II 1/3" Sony Super-HAD CCD II 1/3" Sony Super-HAD CCD II Effective Picture Ele- 976 (H) x 494 (V) 976 (H) x 494 (V) 976 (H) x 494 (V) ments (H×V) Horizontal Resolution...
-
Page 15: Appendix A Troubleshooting
APPENDIX A: TROUBLESHOOTING APPENDIX A Troubleshooting Problem Possible Cause Nothing appears on the screen - Check the power connection. - Check the video signal cable connection to the monitor. The video image is dim or not clear. - If the camera lens is dirty, clean it with a soft, clean cloth. - Adjust the monitor controls, if necessary.
