ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own phillips screwdriver
and rubber mallet

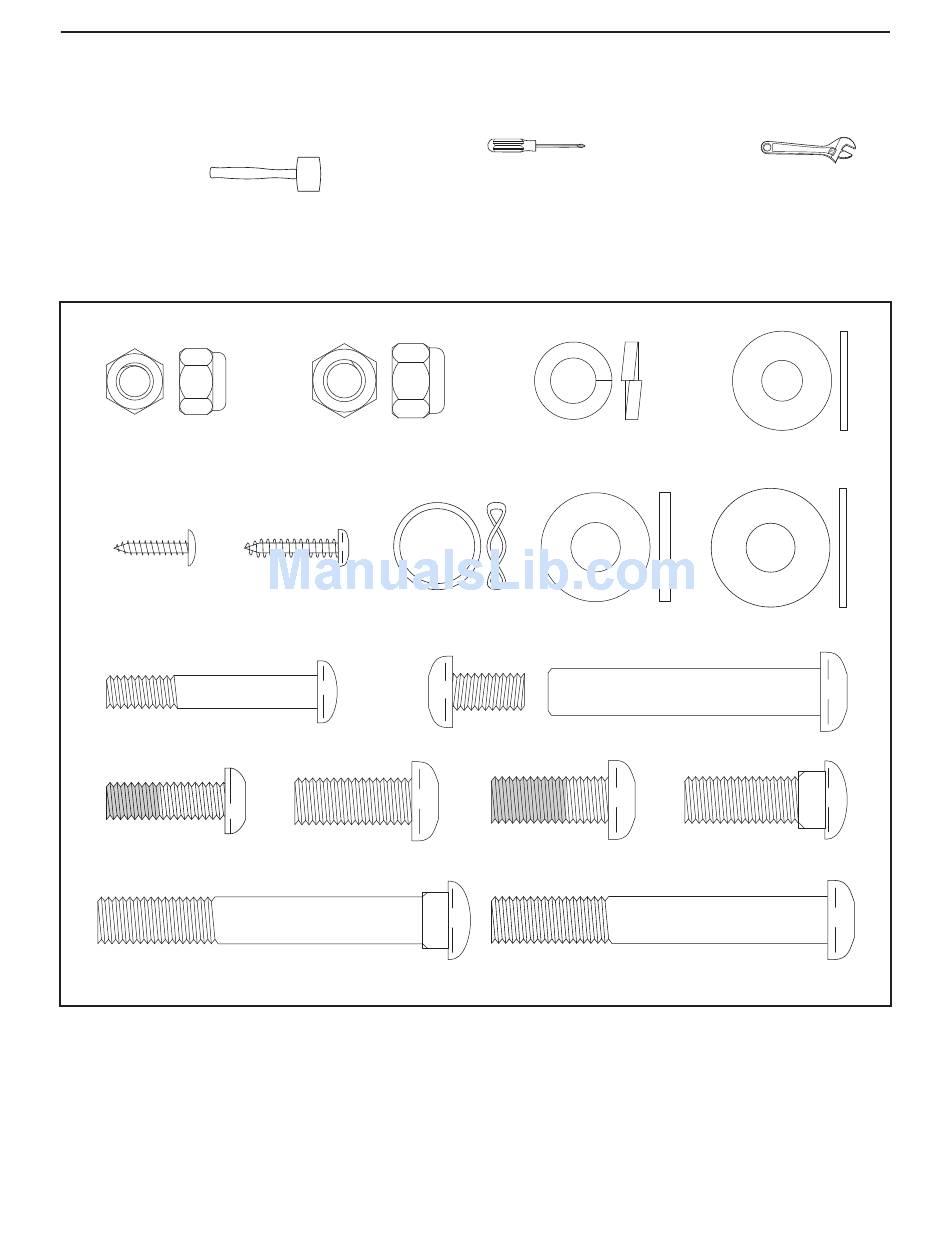

Use the drawings below to identify the small parts used for assembly. The number in parenthesis below each
drawing is the key number of the part, from the PART LIST on page 22. The number following the key number is
the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled.
M8 Nylon
Locknut (38)–4
M4 x 16mm
Screw (52)–4
M8 x 45mm Button Bolt (50)–4
M8 x 25mm Patch
Screw (56)–2
M10 x 75mm Carriage Bolt (34)–4
.
M10 Nylon
Locknut (33)–6
M4 x 19mm
Screw (86)–2
Wave Washer
(43)–2
M10 x 25mm
Button Screw (67)–3
, adjustable spanner
M10 Split
Washer (59)–7
M10
Washer (78)–2
M10 Bolt Set (74)–2
M10 x 27mm
Patch Screw (40)–2
M10 x 72mm Button Bolt (84)–2
5
,
Handlebar
Washer (55)–2
Spring Bracket
Washer (35)–2
M10 x 30mm
Carriage Bolt (80)–2
