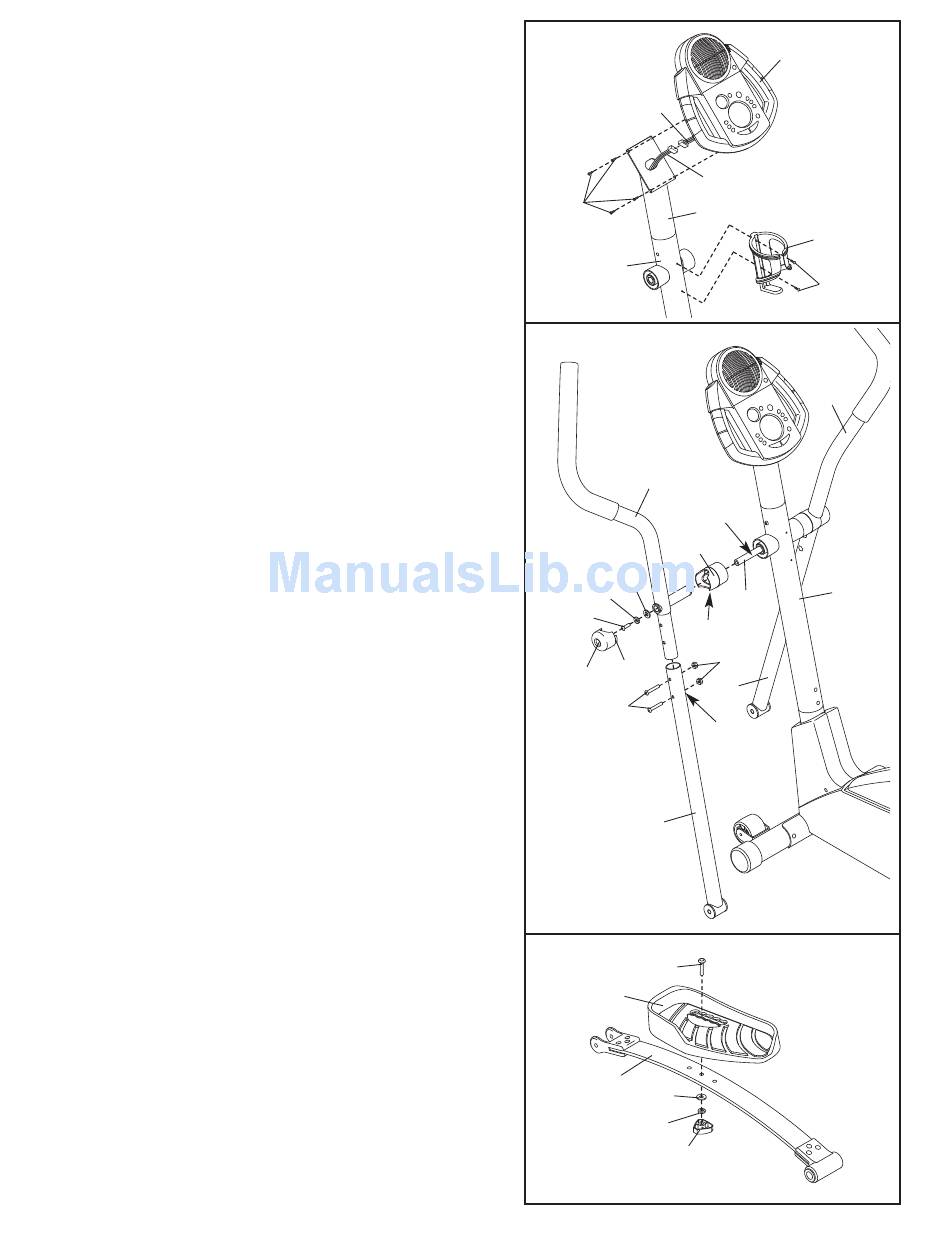

5. Whilst another person holds the Console (23) in the
position shown, connect the wire harness on the
Console to the Extension Wire Harness (44). Insert the
excess wire harness into the Upright Extension (73).
Attach the Console (23) to the Upright Extension (73)
with four M4 x 16mm Screws (52). Be careful to avoid
pinching the wire harnesses.
Attach the Water Bottle Holder (65) to the Upright (2)
with two M4 x 19mm Screws (86).
6. Identify the Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (5); make sure that the Handlebar
Leg is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar to the
Handlebar Leg with two M8 x 45mm Button Bolts (50)
and two M8 Nylon Locknuts (38). Make sure that the
Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.
Insert the Pivot Axle (7) into the Upright (2), and center
the Pivot Axle. Apply a generous amount of the includ-
ed grease to both ends of the Pivot Axle.
Turn a Handlebar Spacer (47) so that the small arrow on
the Handlebar Spacer is pointing toward the floor, and
slide the Handlebar Spacer onto the post on the Left
Handlebar (6). Next, slide the Left Handlebar onto the
Pivot Axle (7).
Slide a Handlebar Washer (55) and a Wave Washer (43)
onto an M8 x 25mm Patch Screw (56), and tighten the
Patch Screw into the Pivot Axle (7). Then, press the tabs
on a Handlebar Cap (46) into the Handlebar Spacer
(47).
Assemble the Right Handlebar (8) and the other
Handlebar Leg (5) in the same way.
7. Identify the left Pedal Spring (11), which is marked with
a sticker. Attach the Left Pedal (13) to the left Pedal
Spring with an M10 x 30mm Carriage Bolt (80), an M10
Washer (78), an M10 Split Washer (59), and a Pedal
Knob (81) as shown. Note: The Left Pedal can be
attached in several positions using the five positions in
the Left Pedal and the three holes in the Pedal Spring.
Attach the Right Pedal (not shown) in the same way.
Make sure that both Pedals are in the same hole and in
the same pedal position.
5
Wire Harness
52
2
6
6
43
55
56
46 Tabs
50
7
13
11
59
7
23
44
73
65
86
8
Grease
47
7
Arrow
38
5
Hexagonal
Holes
5
80
78
81
2
