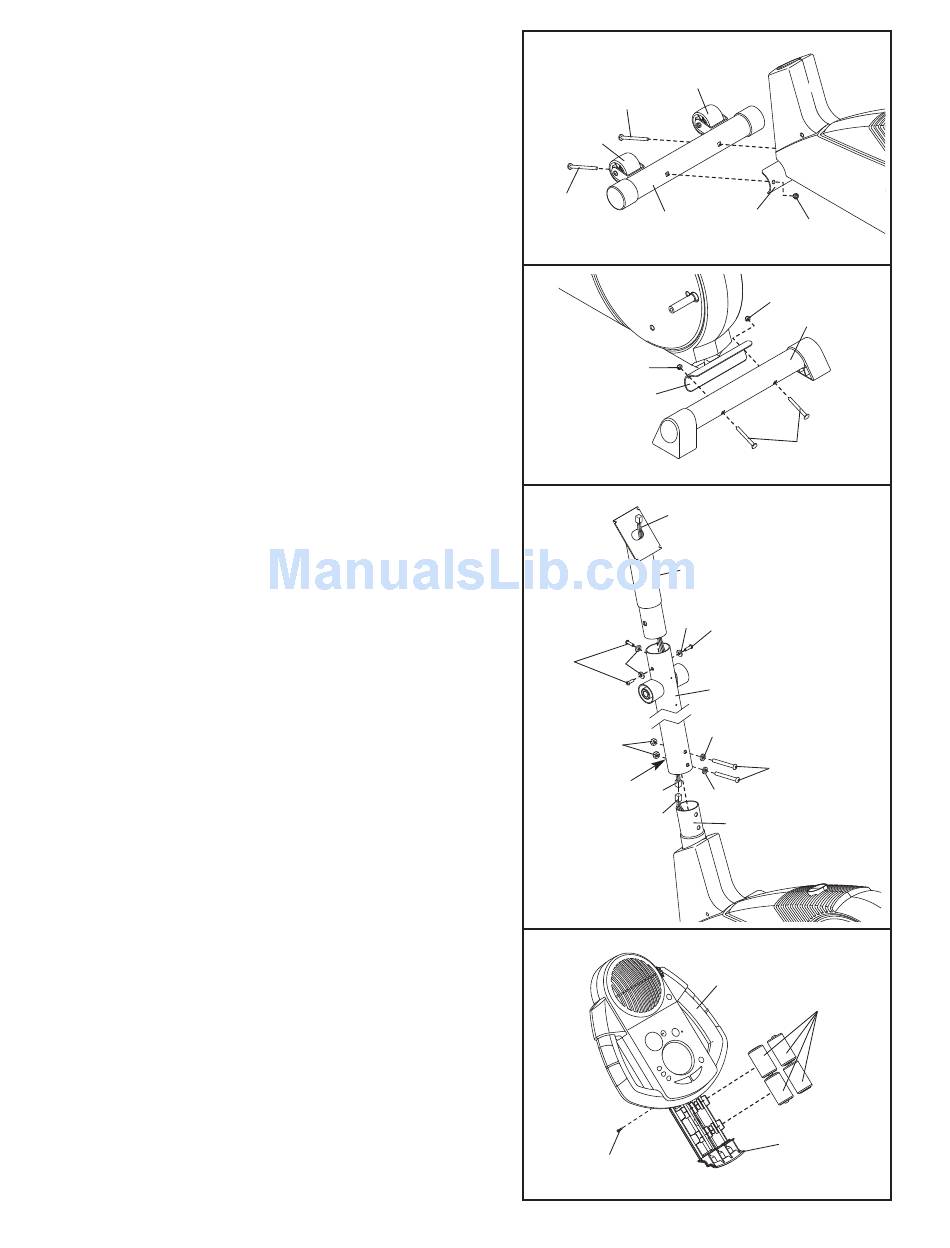

1. Identify the Front Stabiliser (10). Whilst another person
lifts the front of the Frame (1), attach the Front
Stabiliser to the Frame with two M10 x 75mm Carriage
Bolts (34) and two M10 Nylon Locknuts (33). Make
sure that the Front Stabiliser is turned so the
Wheels (22) are not touching the floor.
2. Whilst another person lifts the back of the Frame (1),
attach the Rear Stabiliser (9) to the Frame with two
M10 x 75mm Carriage Bolts (34) and two M10 Nylon
Locknuts (33).
3. Whilst another person holds the Upright (2) in the posi-
tion shown, connect the Extension Wire Harness (44)
to the Wire Harness (79). Carefully pull the upper
end of the Extension Wire Harness to remove any
slack, and slide the Upright onto the Frame (1). Be
careful not to pinch the Wire Harnesses. Attach the
Upright with two M10 x 72mm Button Bolts (84), two
M10 Split Washers (59), and two M10 Nylon Locknuts
(33).
Feed the upper end of the Extension Wire Harness (44)
through the Upright Extension (73). Whilst holding the
upper end of the Extension Wire Harness, insert the
Upright Extension into the Upright (2). Be careful not
to pinch the Extension Wire Harness. Attach the
Upright Extension with three M10 x 25mm Button
Screws (67) and three M10 Split Washers (59). Make
sure that the Nylon Locknuts are inside of the
hexagonal holes.
4. The Console (23) requires four 1.5V "D" batteries;
alkaline batteries are recommended. Remove the indi-
cated screw from the battery drawer, and pull the bat-
tery drawer open. Insert four batteries into the battery
drawer; make sure that the batteries are oriented
as shown by the markings inside of the battery
drawer. Close the battery drawer and reattach the
screw. Note: When the batteries are installed correctly,
the fan will turn on for a moment.
