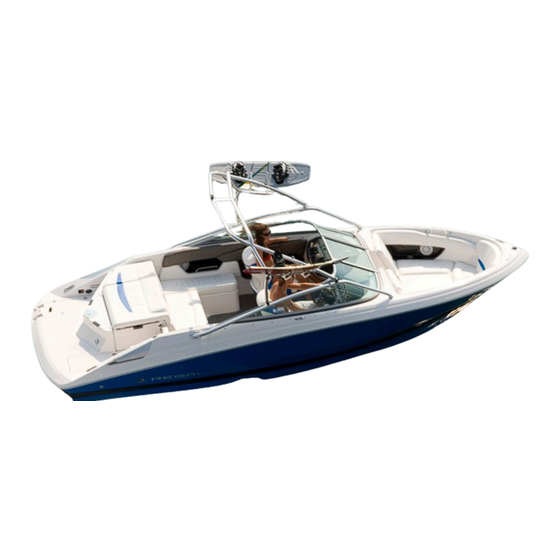

Regal 2200 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
2200-2250

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2200 and is the answer not in the manual?

Questions and answers

Roy Kraynyk
June 29, 2025

does an 1989 regal valanti have a horn relay

0

Related Manuals for Regal 2200

Summary of Contents for Regal 2200

  • Page 1 OWNER’S MANUAL 2200-2250...
  • Page 2 OWNER’S MANUAL 2200/2250 REGAL# 783067 10/06 REVISION...

  • Page 3: Table Of Contents

    INTRODUCTION 5 VESSEL OPERATION Your Regal Owner’s Manual Getting Underway General Information Fueling Regal Warranty Starting & Stopping Steering 1 SAFETY ON BOARD Fenders 5-10 Dock Line Basics 5-11 Steps To Stern Drive Docking 5-14 Safety Labels Stern Drive Maneuvering...
  • Page 4 Table Of Contents 7 COSMETIC CARE & MAINTENANCE Cosmetic Care Maintenance 7-11 8 TROUBLESHOOTING Diagnostic Charts 9 STORAGE/WINTERIZATION Decomissioning Checklist Recomissioning Checklist 10 TRAILERING Before Trailering 10-1 Driving 10-5 Launching 10-6 Loading Boat 10-8 11 GLOSSARY & INDEX Glossary 11-1 Index 11-5 12 TECHNICAL INFORMATION...
  • Page 5 Welcome To Regal Dear Regal Owner, I know I speak for everyone at Regal when I wel- come you to the ever-growing family of Regal boat owners. You’ve chosen a craft that is recognized worldwide for its standard of excellence. Each step...
  • Page 6 Mission Statement With God’s help and a steadfast commitment to integrity, we will develop a team of exceptional people and relationships to provide exceptional customer satisfaction. INT-5...
  • Page 7 Notes INT-6...
  • Page 8 Also, your Regal dealer carries a line of factory approved parts and accessories. Your Regal dealer can provide information regarding national training organizations such as the U.S.

  • Page 9: General Information

    YOUR REGAL OWNER’S MANUAL Your Regal owner’s manual has been developed to assist you in operating your vessel with safety and pleasure. Be sure to read and become familiar with the contents before operating your craft. Your owner’s manual has been divided into general chapters to assist you in becoming more knowledgable with your Regal boat.

  • Page 10: Hull Identification Number

    It is recommended that you locate and write down the HIN for future reference. It can be especially useful when ordering parts from your Regal dealer. A second HIN number is found in a hidden location. This second HIN is useful to authorities if for example the boat is stolen and the original transom HIN is modified or eliminated.
  • Page 11 VESSEL INFORMATION SHEET Owner: Address: City & State: Home Phone: Business Phone: In Case Of Emergency Notify: Address: City:__________________________________State: Phone: Insurance Agent’s Name: Policy#: USCG Phone: ___________ Local Police: Marina Phone: _________________ Slip (Dock#): Hull Serial #: RGM __ __ __ __ __ __ __ __ __ Key #:__________ Engine Serial #: Outdrive Serial #: Key #:__________ Cabin Door: (If Applicable)

  • Page 12: Float Plan

    Introduction FLOAT PLAN Owner: Safety Equipment Aboard: Address: Life Jackets City & State: First Aid Kit Telephone#: Flares Cell Phone#: Flashlight VHF Radio Person Filing Report: Anchor Name: Compass Home Telephone#: Food Cell Phone #: Water Make Of Boat: Destination: Registration#: Leave From: Length:...

  • Page 13: Launch & Cruise Checklist

    LAUNCH & CRUISE CHECKLIST Obtain a current weather report. Inspect the hull and propeller for damage. Check all electrical system switches for proper operation. If your boat has been in the water, run the bilge pump until the flow of water stops. If your boat has been out of the water, check to see that all bilge water has drained out.

  • Page 14: Electrical

    Introduction SUGGESTED TOOLS, PARTS & GEAR SUGGESTED TOOLS SPARE PARTS Allen Wrenches Fuel Filter Jack Knife Spark Plugs Phillips Screwdriver Set Water Pump Belt Slotted Screwdriver Set Propellers Regular Pliers Alternator Belt Combination Wrench Set Anti-Siphon Set Ratchet & Socket Set Propeller Nut &...
  • Page 15 Capacity Plate Close to the helm on Regal boats up to 26’ in length is a capacity plate. This plate represents manufacturers who participate in the National Marine Manufacturer’s Association small boat certification program. A similar yacht certification plate for boats over 26’ covers many of the above guidelines and othes from ABYC into the yacht program.Your...
  • Page 16 Your boat has undergone rigid quality assurance inspections before leaving the factory. However, your dealer has been trained to perform final pre-delivery checks and to service your Regal boat prior to your pick-up. Your dealer’s responsibilities include: ♦ A complete orientation in the operation of your Regal boat, including matters relating to the safe operation of your craft.
  • Page 17 Owner’s Responsibility You are entitled to all the benefits and services outlined in your Regal boat warranty. However, you have certain responsibilities to ensure warranty satisfaction. These are: ♦ To read the warranty materials and understand them fully. ♦ To examine the boat in detail at the time of delivery.
  • Page 18 Introduction INT-17...
  • Page 19 Industries, Inc. warrants to the original retail purchaser of this boat if purchased from an authorized Regal dealer that the selling dealer or Regal will repair or replace the fiberglass hull if it is found to be structurally defective in material or workmanship for as long as the original retail purchaser owns the boat.

  • Page 20: Registration Information

    In addition to above hull warranties, Regal warrants to the original purchaser of this boat if purchased from an authorized dealer that the dealer or Regal will repair or replace any parts found to be defective in materials or workmanship for a period of one (1) year from the date of delivery, subject to all limitations and conditions contained herein.
  • Page 21 (b) Gelcoat surfaces including, but not limited to, cracking, crazing, discoloration or blister- ing except as noted above; (c) Accessories and items which were not part of the boat when shipped from the Regal factory, and/or any damage caused thereby;...
  • Page 22 Regal reserves the right to change or improve the design of its boats without obligation to modify any boat previously manufactured. This limited warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. Regal shall in no way be responsible PRE-AUTHORIZED...
  • Page 23 Notes INT-22...

  • Page 24: Safety Labels

    Safety On Board Safety awareness can’t be over emphasized. Safety on board needs to be the skippers number one priority. In this manual you will find many safety precautions and symbols to identify safety related items. Heed all safety precaution information. Remember, the skipper is responsible for the safety of his passengers and crew.
  • Page 25 Precautionary Labels Read and understand all safety labels affixed to your Regal boat. Most of the safety labels are found close to the helm, aft cockpit and or swim platform. The location of the labels may vary by model. The label list does not cover everything! Use common sense to analyze the result of an action on board your vessel.

  • Page 26: General Boating Safety

    Safety On Board GENERAL BOATING SAFETY We understand that you are eager to get your Regal boat on the water. However, we strongly suggest that you thoroughly familiarize yourself and friends or members of your family with safe boating practices before setting out.
  • Page 27 CHAPTER 1 You must provide a Coast Guard approved personal flotation device (PFD) for every person on board. These PFD’s should be in good condition and easily accessible. Insist that non-swimmers and children on board weara PFD at all times. Any time you encounter rough weather conditions, make sure everyone on board is wearing a PFD, including yourself.
  • Page 28 Safety On Board Never drink and drive! As captain, you are responsible for the safety of your passengers and yourself. Alcohol and boating can be a dangerous combination. DO NOT mix them. Alcohol impairs the boat operators ability to make conscious decisions and react to emergency situations quickly.
  • Page 29 Encourage a periodic maintenance check on all safety equipment. Contact your Regal dealer or marine professional for more information. Again, remember that the captain is responsible for his passengers and vessel.

  • Page 30: Required Safety Equipment

    Safety On Board REQUIRED SAFETY EQUIPMENT Personal Flotation Devices All personal flotation devices (PFD’s) must be Coast Guard approved, in good working condition, and must be the correct size for the wearer. All PFD’s must be readily accessible. This means being able to wear them in a reasonable amount of time in case of an emergency (fire, boat sinking, etc.).
  • Page 31 CHAPTER 1 • TYPE I- Also known as an off-shore jacket, it provides the most buoyancy. It is a PFD for all waters and is especially useful in rough waters where rescue may encompass additional time. It is designed to turn most unconscious users in the water to a face-up TYPE I PFD position.
  • Page 32 Safety On Board • TYPE V- This is the least bulky of all PFD’s. It contains a small amount of inherent buoyancy, and an inflatable chamber. It is rated even to a Type I, II, or III PFD (as noted on the jacket label) when inflated.

  • Page 33: Fire Extinguishers

    CHAPTER 1 FIRE EXTINGUISHERS General Information Fire extinguishers are classified by a letter and numeric symbol. The letter references the type of fire the unit is designed to extinguish. (For example, type B extinguishers commonly used on boats are designed to put out flammable liquids such as grease, oil and gasoline. The number indicates the general size of the extinguisher (minimum extinguishing agent weight).
  • Page 34 Safety On Board U. S. Coast Guard approved fire extinguishers are required on all Regal boats. Besides the minimum Coast Guard requirements always check state and local agencies for additional requirements and equipment. Coast Guard approved extinguishers are hand-portable, either B-I or B-II classification.

  • Page 35: Visual Distress Signals

    CHAPTER 1 Another type of liquified gas used today is Halon.This gas is colorless and odorless, heavier than air and sinks to the lower bilge to extinguish fires. Since the year 2000 ingredients for Halon has changed to a more environmental friendly formula. Halon is used in portable- hand units along with making up the majority of boat automatic fire extinguishing systems.
  • Page 36 Safety On Board All in all, each distress signal has certain advantages and disadvantages. There is no distress signal that is best under all situations. Pyrotechnics are recognized world-wide as superior distress signals. A downfall is they emit a very hot flame that can cause burns and or ignite flammable materials.

  • Page 37: International Distress Signals

    CHAPTER 1 INTERNATIONAL DISTRESS SIGNALS POSITION DYE MARKER HAND-HELD INDICATING (ANY COLOR) FLARE RADIO BEACON 1-14...

  • Page 38: Navigation Lights

    Safety On Board SOUND PRODUCING DEVICES According to both Inland and International Rules, all boats must carry some way of producing an efficient sound signal. If your vessel is 12 meters (39’ 4”) or longer, a power whistle, power horn or bell must be carried.
  • Page 39 CHAPTER 1 NAVIGATION LIGHT RULES 1-16...

  • Page 40: Marine Sanitation Devices

    Safety On Board MARINE SANITATION DEVICES Recreational vessels under 65’ with installed toilet facilities must have an operable marine sanitation device (MSD) on board. Vessels 65’ and under may use Type I, II, or III MSD. All installed MSD’s must be U.S. Coast Guard certified.
  • Page 41 CHAPTER 1 You must immediately notify the U. S. Coast Guard if your vessel discharges oil or hazardous substances in the water. Call toll free 800- 424-8802. Report the following information: location, source, size, color, substances and time observed. Garbage The Act to Prevent Pollution from Ships places limitations on the discharge of garbage from vessels.
  • Page 42 Safety On Board 1-19...

  • Page 43: Life Rafts

    CHAPTER 1 Communications It is a good idea to carry communication gear such as a VHF-FM and/or HF transceivers set EPIRB up for your operating area. Also, cell phones are useful in many coastal areas. Be sure to carry extra batteries. Also, mainly for offshore vessels, EPIRBs are designed to quickly and accurately alert rescue forces, indicate an accurate distress position, and guide units to...

  • Page 44: Exhaust & Carbon Monoxide

    2. Do not disable the carbon monoxide alarms that come with your Regal boat. Test the unit in accordance with the alarm manufacturers instructions. 3. Do not operate the engine for extended periods of time while in a confined area or where exhaust outlets face a wall or bulkhead.
  • Page 45 CHAPTER 1 Blockage of exhaust outlets can cause carbon monoxide to accumulate in the cabin and cockpit area even when the hatches, windows, portholes and doors are open. Exhaust from another vessel alongside your boat, while docked or anchored, can emit poisonous CO gas inside the cabin and cockpit areas of your boat.
  • Page 46 Thoroughly ventilate cabin and cockpit areas. Determine the probable source of the carbon monoxide and correct the condition immediately. Regal has installed CO detectors on your boat. Have these detectors professionally calibrated at regular intervals. To help prevent carbon monoxide accumulation, ventilate your cabin and cockpit while underway.
  • Page 47 CHAPTER 1 WARNING EXHAUST FUMES CAN KILL! INSPECT THE EXHAUST SYSTEM COMPONENTS BEFORE EACH OUTING. Each Outing Make sure all exhaust clamps are in place and secure. Look for exhaust leaking from the exhaust system components, indicated by rust and or black streaking, water leaks, or corroded or cracked fittings.

  • Page 48: Boating Under The Influence

    Safety On Board BOATING UNDER THE INFLUENCE WARNING FEDERAL LAWS PROHIBIT OPERATING A VESSEL UNDER THE INFLUENCE OF ALCOHOL OR DRUGS. THESE LAWS ARE VIGOROUSLY ENFORCED BY ALL ENFORCEMENT AGENCIES. Operating a vessel while intoxicated became a specific federal offense effective in 1988.
  • Page 49 CHAPTER 1 Alcohol Myths And Facts Myth: Beer is less intoxicating than other alcoholic beverages. Fact: One 12 oz. can of beer has about the same amount of alcohol as a 5oz. glass of wine or a shot of liquor. Myth: Black coffee, fresh air, and a shower will sober the effects of alcohol.

  • Page 50: Boating Accidents

    Safety On Board BOATING ACCIDENTS The following is a list of common causes of boating accidents. Be aware of them and take the necessary steps to ensure that yourself and crew are educated and prepared to act in an emergency. Mixing boating and alcohol.

  • Page 51: Rendering Assistance

    CHAPTER 1 Passengers, especially children that are not wearing the proper life saving devices. Skipper or passengers not seated in the boat. Running a craft that is mechanically marginal. Reporting Boating Accidents According to the Federal Boat Safety Act of 1971 involving collision, accident or other casualty, the operator must make a formal report within 48 hours to the nearest state boating authority when the incident involves:...

  • Page 52: Water Sports

    Safety On Board WATER SPORTS Besides learning the safety precautions for safe boating, as well as understanding and knowing required rules and regulations, you are obligated to be particularly careful around other water sportsman, such as scuba divers, water skiers, wakeboarders, and fisherman. Skin &...
  • Page 53 CHAPTER 1 General safety procedures for towing skiers and wakeboarders include the following: Know your hand signals and make sure all your passengers know them. See the illustration. Do not allow non-swimmers to ski or wakeboard. You’re asking for trouble! Always have an observer onboard whose sole job is to watch the skier/wakeboarder and communicate with the driver.

  • Page 54: Swim Platform

    Safety On Board If the skier falls, return promptly to retrieve him, circling wide from the starboard side, to bring his rope within easy grasp. See illustration. Ski Tow Insert the ski tow line as shown for safe operation. It provides a tight fastening for sking while allowing the line to be readily removed if needed.
  • Page 55 CHAPTER 1 WATER SKI & WAKEBOARD SIGNALS FASTER SLOWER CAUTION OR FALLEN SKIER; PICK ME UP SKIER OK AFTER FALL STOP SHUT ENGINE SPEED OK RETURN TO DROP OFF AREA STARBOARD TURN PORT TURN 1-32...
  • Page 56 Safety On Board WARNING AVOID SERIOUS INJURY OR DEATH! DO NOT OPERATE THE BOAT WITH PEOPLE IN THE WATER OR ON TOP OR HOLDING ON TO THE SWIM PLATFORM STRUCTURE OR HARDWARE. Fishing Most boaters fish from time to time. With the propulsion systems of today it is possible to fish in out-of-the-way places.

  • Page 57: Weather & Water Conditions

    CHAPTER 1 WEATHER & WATER CONDITIONS Before a boating outing check the weather conditions. As we all know the weather can change rapidly in many parts of the country. It does so sometimes without being predicted. NOAA weather radio reports are continuously available on designated frequencies installed on VHF radios and various handhelds.
  • Page 58 Safety On Board Waves & Fog As the wind blows across water waves are created. The stronger the wind and increased distance across the water enlarges the wave action. Other factors that can cause problem situations for vessels are fog, currents, and tidal changes. Fog can develop inland on clear, calm mornings.
  • Page 59 CHAPTER 1 Marine Weather Symbols Although the National Weather Service has discontinued the use of the day flags and night lights, many marinas and ports of call still use them. 1-36...

  • Page 60: Navigation Rules Defined

    Rules Of The Road NAVIGATION RULES DEFINED The Navigation Rules set forth actions to be followed by boats to avoid collision. They are referred to as the “Rules of the Road”. There are two main parts referred to as the inland and international rules. The inland rules apply to vessels operating inside the boundaries of the United States.

  • Page 61: Navigation Rules

    CHAPTER 2 NAVIGATION RULES Right Of Way 1. Cross waves at right angles. 2. When caught in heavy water or squalls, head either directly into the waves or at a slight angle. Reduce speed, but maintain enough power to maneuver your boat safely. 3.

  • Page 62: Rules Of The Road

    Rules Of The Road • Sailboats; they have the right-of-way over powerboats. However, if a sailboat is using a prop to move forward, it is considered a powerboat even if the sails are up. • Remember the unwritten “rule of tonnage”. Basically a smaller tonnage vessel should take every effort to avoid close quarters with a larger tonnage vessel.
  • Page 63 CHAPTER 2 NAVIGATION RULES The Navigation Rules set forth 3 types of crossing situations- crossing, meeting, and overtaking. In each case, both boats are governed by special procedures. In a head-on meeting, both vessels must sound a single blast to give way toward starboard and pass to port.
  • Page 64 Rules Of The Road NAVIGATION RULES An overtaking boat is burdened, and is not the priveleged craft, enen though it approaches the danger zone of the overtaken boat. The overtaking boat first signals with a single blast if that boat desires to pass on the starboard side of the boat ahead, or a double blast if passing to port.

  • Page 65: Navigation Aids

    CHAPTER 2 Navigation Aids Navigation aids are placed along coasts and navigable waters as a guide for mariners in determining their position in reference to land and hidden danger. Each aid provides specific information. They form a continous system of charted markers for accurate piloting on paper and on the water.
  • Page 66 Rules Of The Road LATERAL AIDS Port Side Starboard Side Odd Numbers Even Numbers Chart Symbol Chart Symbol Lighted Buoy Lighted Buoy (Green Light Only) (Red Light Only) Chart Symbol Chart Symbol Can Buoy Nun Buoy (Unlighted) (Unlighted) Chart Symbol Chart Symbol Daymark Daymark...
  • Page 67 CHAPTER 2 MID-CHANNEL MARKERS Chart Symbol Chart Symbol Chart Symbol REGULATORY MARKERS Diamond Shape Diamond Shape With Cross- Warns Of Danger Boats Keep Out Circle Marks Area Controlled For showing information such as As Indicated locations, distances and directions...

  • Page 68: Night Running

    Rules Of The Road NIGHT RUNNING Boats operating between sunset and sunrise ( hours vary by state), or in conditions of reduced visibility, must use navigation lights. Nighttime operation, especially during bad weather and fog, can be dangerous. All Rules of the Road apply at night, but it is best to slow down and stay clear of all boats regardless of who has the right-of-way.

  • Page 69: Bridge Clearance

    CHAPTER 2 BRIDGE CLEARANCE Be aware that your vessel requires a specified bridge clearance height. This height is a measured estimate from the waterline to the top of the highest object usually the radar arch, radar or the masthead light depending on what arch equipment is installed.

  • Page 70: Engines

    Extensive damage can result if proper winter storage is not followed. Your Regal dealer has been factory trained on Regal boat systems. Consult your Regal dealer for futher information regarding technical issues and parts..

  • Page 71: Engine Removal

    It should be checked after each 50 hours of operation or if the vessel has run aground or hit a submerged object. Alignment should be checked by a Regal dealer or marine professional since special tools and procedures are required.

  • Page 72: Propulsion

    Pay careful attention to the sections on winterization if you live in freezing climates. Extensive damage can result if proper winter storage is not followed. Refer to the maintenance section of this manual for more information or call your nearest Regal dealer. Propellers...
  • Page 73 Aluminum prop with paint coming off near blade tip (ventilation symptom). Check the propeller pressed in rubber hubfor slippage. Contact a propeller shop or your closest Regal dealer if any of the above symptoms exist. They have special equipment to refurbish both stainless steel and aluminum propellers. After making any blade alternations the propellers are “repitched”...

  • Page 74: Controls

    Engines & Controls CONTROLS Instrumentation The helm station is equipped with a complete set of instruments that allows you to monitor the condition of the engines. Close observation of the gauges may save the engines from damage. The dash instrument panel is powered and protected by a main 20 amp ignition breaker located at the dash itself.
  • Page 75 CHAPTER 3 TYPICAL HELM Tachometer Speedometer Depth Sounder Trim Temperature Remote Control Ignition Panel Fuel Switch Panel Volts...
  • Page 76 Engines & Controls Gauge Operation Following is a general description of gauge operations. An alert skipper monitors his gauges constantly for any system malfunctions. The gauges are lighted for night operation. Gauges are an early warning system for engines just as they are for an automobile. For more information refer to the engine manufacturer’s manual in the owner’s pouch.
  • Page 77 CHAPTER 3 Temperature Gauge: The temperature gauge monitors the cooling system of the engine. A sudden increase in the temperature could be a sign that the engine cooling system is malfunctioning. Shut down the engine immediately and investigate the problem. Consult your engine manual for allowable limits.
  • Page 78 Engines & Controls Trim Gauge: This gauge measures the stern drive tilt and indicates the relative position of the bow, up or down when the boat is on plane. The power trim normally begins in the down position when used to accelerate the boat onto a plane position.The gauge can be helpful in achieving the most economical running condition.
  • Page 79 CHAPTER 3 Optional Gauges & Indicators The optional gas vapor detector determines if there is a level of gasoline vapors that is unsafe in the engine room of the boat. If installed, turn on the unit and wait about one minute for it to do its safety test.

  • Page 80: Audible Alarms

    Engines & Controls Audible Alarms Most Mercruiser and Volvo engines use audible alarms. They are designed to use sensors which pick up deviations from the normal operating parameters. Oil pressure and temperature sensors send a signal to a buzzer under the dash which sounds a high pitched alarm indicating a possible problem.

  • Page 81: Ignition Switch

    CHAPTER 3 Ignition Switch The ignition switch features 4 positions. In a clockwise direction they are auxillary, off, run, and start. The start position is spring loaded and the key should be held in this position to engage the starter. Once the engine has started release the key from the start position.

  • Page 82: Remote Control

    Engines & Controls REMOTE CONTROL Your vessel uses a single Forward Reverse lever remote control NEUTRAL RELEASE LEVER similar to the illustration. To help visualize the operating principals we have used a clock mode. The lever in the straight- up or 12 o’clock (neutral) position is detended and features a push button (see illustration)which...
  • Page 83 CHAPTER 3 You will hear a distinct sound and will “feel” the remote control in the detended neutral position. If you turn the key to the “start” position and the engine starter doesn’t crank over the engine make sure the remote control is in the detented neutral position. Remember these points when shifting : 1.
  • Page 84 Engines & Controls Safety Lanyard (Interrupt Switch) The safety lanyard (used on selected remote controls) is sometimes called an interrupter switch is attached to the operator and the remote control panel (See the illustrations). Should the operator lose control of the vessel and become dislodged from his seat or fall overboard the lanyard will shut the engine off.
  • Page 85 CHAPTER 3 Notes 3-16...
  • Page 86 There are two types of electrical systems available on most vessels. One is called direct current ( DC for short). Regal boats primarily use 12 volt DC current. It is called DC because in a circuit it flows one way only.
  • Page 87 CHAPTER 4 WIRE COLOR CODES (solid color/stripe) Color Gauge Function Battery Cable To Engine Black 16 to 4 All Grounds Black/White 16 Halon Fire Extinguisher Brown Water Pressure Pump Brown Aft Bilge Pump/Manual Brown Fwd. Bilge Pump/Manual Brown/Black 10 Overboard Discharge Pump Brown/White 16 Aft Auto Bilge Pump Brown/Red...
  • Page 88 Systems WIRE COLOR CODES (CON’T.) Color Gauge Function Blue Cabin Light Main Feed Blue/White Transom Courtesy Lights Gray Bow, Navigation Lights Gray/White Mast Light (Fwd. Running) Gray/Black Mast Light (Anchor Light) Red/Black Windlass Up Red/White Windlass Down Gas Vapor Detector, Stereo Remote, Breaker To Dash Feed Leads Main DC Panel Feed...
  • Page 89 This practice could result in fire or component failure. DC Switches Following is a summary of direct current switches used on Regal boats. Your boat may not have some of these switches since electrical components and specifications can change at any time. These switches may be located at the dash, cockpit or part of a DC control panel.
  • Page 90 Systems sunrise. Should you anchor or stop the vessel at night the 360 degree light is required to be lit. Cockpit Lights This switch controls the courtesy lights in the cockpit area. Using these lights is especially useful when boarding or exiting the vessel at night. Horn This switch controls the audible horn signal.
  • Page 91 CHAPTER 4 Docking Lights This switch controls the hull docking lights. They are very useful for night maneuvering and docking. Engine Hatch This switch controls the engine hatch used on selected models. It supplies power to a hydraulic ram which opens the hatch. Be sure all persons and objects are clear of the engine hatch area and before activating the switch.
  • Page 92 Systems DC BREAKER & FUSE LISTING Function Breaker/Fuse Fuse Or Breaker Size In Amps Accessory Plug Either Water Pressure Pump 15 Either Waste Pump Either Refrigerator Either Cabin Lights Either Cockpit Lights Either Stereo Fuse Stereo Memory Fuse CO Monitor Either Fuse Bilge Pump...

  • Page 93: Battery Switch

    CHAPTER 4 Battery Switch There are two styles of battery switches used. One type displays on and off positions with a selection knob. With this style switch the operator simply turns the knob to the “off ” position when exiting the boat.
  • Page 94 Systems TYPICAL BATTERY SWITCH BOX BREAKER BATTERY SWITCH STEREO MEMORY FUSE AFT BILGE PUMP FUSE NOTICE AVOID DAMAGE TO THE ALTERNATOR AND OR CHARGING SYSTEM COMPONENTS. NEVER TURN THE BATTERY SWITCH TO THE “OFF” POSITION WITH THE ENGINE RUNNING...

  • Page 95: Fuel Tank

    CHAPTER 4 FUEL The fuel system consists of a fuel tank, fuel fill fittings marked “gas” or “diesel”, fuel hoses, fuel vents, anti-siphon valve, fuel filter, fuel gauge and sender. Each one of these components plays an important role in providing an uninterrupted flow of fuel while operating your boat.
  • Page 96 Systems Fuel Vents Fuel tanks are vented overboard for the fumes to escape. While the tank is filled, air is displaced by the incoming fuel is relieved through the fuel vent. When the fuel tank is near or full slow down or stop the nozzle flow to keep the fuel from splashing out the vent.

  • Page 97: Fuel Filters

    Do not remove the anti-siphon valve or its components from the fuel tank. Clean or replace a clogged or stuck anti-siphon valve. Contact your closest Regal dealer or marine professional for more information Fuel Gauge & Sender The dash fuel gauge is only an indication of the on board fuel supply.
  • Page 98 Systems WATER Water System Description Selected models are equipped with a fresh water supply system. It consists of a water tank, fill and vent, sink, and a hand pump or a faucet supplied by a water pressure switch. One type of fresh water system uses a water tank with a dockside water fill.
  • Page 99 CHAPTER 4 gauge. Before each outing, check the waste level since it is illegal to dump waste within and extending out 3 miles from United States territorial waters. Be sure to use the proper chemicals and paper in the unit that are biodegradable and environmentally friendly. Chemical toilet supplies are available at most marine oultle stores and marinas.

  • Page 100: Getting Underway

    Vessel Operation This chapter explores the many faucets of running your vessel from casting off to docking and handling emergencies. We cover the basics but suggest you read other information on the chapter topics. Also, become familiar with your engine owner’s manual since many of the items discussed are found there in more detail.
  • Page 101 CHAPTER 5 Is the operator sober, alert and ready to skipper the vessel? Have all passengers been fitted for life jackets? Has a float plan been filed and left with a component person? Has the bilge been sniffed and the fuel system leak checked? Are the seacocks open (if applicable)? Is all communication equipment in good operating condition? Has a second person been briefed on operational procedures...

  • Page 102: Fueling

    Vessel Operation Disembarking Questionaire Have you removed the keys from the ignition and secured them? Have all systems been checked for leaks? Has the battery switch been turned to the “off ” position? Are all hatches and portholes secured and seacocks closed? Has the fuel tank been filled enough to prevent condensation? Is the vessel properly tied and covered with equipment stored? FUELING...

  • Page 103: Before Fueling

    CHAPTER 5 CAUTION SINCE GASOLINE IS AVAILABLE IN VARIOUS OCTANE LEVELS, REFER TO THE ENGINE MANUFACTURER’S OWNER’S MANUAL FOR THE CORRECT ONE FOR YOUR ENGINE. USING IMPROPER OCTANE FUEL CAN CAUSE ENGINE DAMAGE AND VOID THE WARRANTY. Before Fueling Make sure a working fire extinguisher is at close hand. Stop engines and any device that can cause a spark.

  • Page 104: During Fueling

    Vessel Operation During Fueling Keep the fuel nozzle in contact with the fuel fill to guard against static sparks. The fuel fill pipe is grounded through the fuel system wiring to protect against static electricity. Avoid overfilling the fuel tank. Leave room for expansion. Also, if fuel exits the fuel vent indicating the tank is full, this situation is dangerous and unfriendly to the environment.

  • Page 105: Starting & Stopping

    CHAPTER 5 STARTING & STOPPING The following general information covers starting and stopping your engine. Read and understand all previous infor mation on remote controls, fueling and operational procedures. Pay particular attention to all labels. Refer to the engine owner’s manual for in depth propulsion system information.
  • Page 106 Vessel Operation Turn the ignition key to the momentarly start position. You will hear the starter cranking over the engine. When the engine starts release the key switch. It will automatically align itself in the run position (ignition). If the engine does not start, refrain from cranking the engine over 10- 12 seconds.

  • Page 107: Steering

    Above all, use common sense. STEERING Your Regal uses a rotary or rack style steering system. These systems transfer helm mechanical motion to the engine. There is a hydraulic steering cylinder which with the assistance of a steering pump sends fluid force to the stern drive steering arm changing the course of the boat, depending on the direction the steering wheel is turned.
  • Page 108 Vessel Operation...

  • Page 109: Fenders

    CHAPTER 5 FENDERS Fender Usage Fenders are normally made of a rubberized plastic and are usually filled with air. Most have a fitting like a basketball so they can be inflated or deflated. Fenders are available in a wide range of sizes and shapes to fit both small and large vessels.

  • Page 110: Dock Line Basics

    Vessel Operation DOCK LINE BASICS Most skippers use dock line terminology fairly loose but there is more to the basics than just bow or stern lines. There are several lines that can be secured to the bow and stern and depending on their direction and use, can be called other names.
  • Page 111 CHAPTER 5 Bow springs are secured at the vessels’ bow area. Forward spring lines lead forward from the boat to the dock and control movement sternward. After springs stem aft from the vessel, and stop movement ahead. Spring lines are used to prevent movement in a berth, ahead or astern.
  • Page 112 Vessel Operation The bow and stern lines should be relatively at a 45 degree angle with the dock. The stern line can be attached to the near-shore quarter cleat, but will work more efficiently to the offshore quarter cleat. The longer line will allow the boat flow with the tide with less time checking the vessel.

  • Page 113: Steps To Stern Drive Docking

    CHAPTER 5 disturbing the other. If another line is dropped over yours, simply reverse the process. Secure a little slack in the other dock line, then slip your eye up through its loop and over the top of the pile. Your line can be dropped through the other eye.
  • Page 114 Vessel Operation B. Continue backing up the boat with the wheel hard to port. Keep an eye on the bow, and begin to straighten the wheel as the boat enters the slip. * Control in reverse idle position, Outdrive to port. C.

  • Page 115: Stern Drive Maneuvering

    Large horsepower stern drive boats do produce more thrust and steering torque but Regal boats have the advantage of power steering. Below is some basic information on how single stern drive boats handle in normal conditions.
  • Page 116 Vessel Operation effect decreases. Sometimes the trim tab may need adjustment on stern drive models. Contact your Regal dealer for further information or consult your engine manufacturer’s handbook. Turning Once the boat has gathered headway, with the boat planing at the correct bow angle and the stern drive unit and helm straight the boat tends to stay on a uniform course heading.
  • Page 117 CHAPTER 5 When the vessel begins to gather speed to stern, the water passing by the lower gearcase housing will continue to increase steering torque. If the helm wheel is turned to starboard, and will direct the propeller thrust to port, tracking the stern to starboard. Wind and current will affect how a vessel backs.

  • Page 118: Trim Angle

    Vessel Operation of the water hitting the lower gearcase, the propeller thrust is directed by turning the stern drive, whic can add to the steering torque. The prop tends to throw the stern to port. This is why experienced skippers undertake a portside landing when wind and current conditions permit.
  • Page 119 CHAPTER 5 In short, it is a way of fine-tuning the ride of your boat and will enable you to get the most efficient and comfortable ride possible, whatever the conditions. Use Of Power Trim The power trim is normally used prior to accelerating onto a plane, after reaching the desired RPM or boat speed and when there is a change in water or boating conditions.
  • Page 120 Vessel Operation Operation In “Bow Up” Position The “bow up” or out position is normally used for crusing, running with a choppy wave condition, or running at full speed. Excessive “bow up” trim will cause propeller ventilation resulting in propeller slippage.

  • Page 121: Shallow Water Operation

    OR “BOW DOWN” POSITIONS. BOAT STABILITY AND STEERING TORQUE CAN ALSO VARY DUE TO CHANGING WATER CONDITIONS. IF YOU EXPERIENCE BOAT INSTABILITY AND/OR HIGH STEERING TORQUE, SEE YOUR AUTHORIZED REGAL DEALER Shallow Water Operation Operating your vessel in shallow water presents DANGER various hazards.
  • Page 122 Vessel Operation TRIMMED “TO FAR IN” POSITION TRIM TRIMMED “TOO FAR OUT” POSITION TRIM WELL TRIMMED “LEVEL” POSITION TRIM CAUTION DO NOT RUN ENGINE ABOVE 1000 RPM WITH THE STERN DRIVE TRIMMED FOR SHALLOW WATER MANUVERING SINCE THE STERN DRIVE IS OUT BEYOND THE GIMBAL RING SIDE SUPPORT BRACKETS.

  • Page 123: Anchoring

    Selecting the correct anchor is an important decision. The anchor style in part depends on the usage and boat type. Regal boats designate an anchor type and or model. Some models incorporate chain, line with an optional windlass. Contact an authorized Regal dealer for more information.
  • Page 124 Vessel Operation you need to adjust one later so the line is accessible. If two anchors are used ahead of a boat, make sure to set the rodes at an angle than in a straight line to reduce the chances of tangeling as the boat moves in wind and current.
  • Page 125 CHAPTER 5 ADMIRALTY LAW The Admiralty law sometimes referred to as the salvage law was founded primarily on English law fundamentals and basically says that a vessel distressed, in danger of flounder, if rendered assistance from a towing company or private agency, can be forced to relinquish a portion of the vessels’...
  • Page 126 Vessel Operation DANGER AVOID DEATH OR SERIOUS BODILY INJURY! DO NOT USE DECK HARDWARE INCLUDING CLEATS FOR TOWING. Knots Knots are useful in docking, towing and other emergency situations. Learning to tie knots requires practice. As they say “ Practice makes perfect”.

  • Page 127: Emergencies

    CHAPTER 5 EMERGENCIES Always be ready to help others on the water if possible, but do not take any unnecessary risks. Use equipment to save a life, but do not risk a life to save equipment. Consult earlier information in this manual concerning accidents, etc.

  • Page 128: First Aid

    Vessel Operation FIRST AID Knowing first aid can save lives. A first aid kit and the ability to use it are important ingredients for the safety of a skippers’ passengers, crew and vessel. Having confidence and competence in handling medical emergencies on board is a must for the skipper.

  • Page 129: Hypothermia

    CHAPTER 5 HYPOTHERMIA Hypothermia is a condition where the body temperature decreases because the body can’t generate enough heat to maintain its normal temperature. It can be serious and usually occurs where victims have been immersed in water (under 68 degrees) for periods of time. If you encounter a possible hypothermia victim call for help on the radio and get the person out of the water.

  • Page 130: Environmental Awareness

    Vessel Operation ENVIRONMENTAL AWARENESS There are numerous vessels operating on our waterways on a daily basis. Each boat has as impact on our environment. Boat operation habits, marine sanitation, and maintenance all play a role in a delicate battle to keep the ecosystem clean. Each of us has a role in doing our part as a environmentally conscious skipper to conserve our waterways.
  • Page 131 CALIFORNIA AIR RESOURCE BOARD (CARB) LABEL Your Regal boat may have a star shaped label affixed to the bow, port hullside. It is located at the front of the state registration numbers. This label is part of the California Air Resource Board (Carb) SD/I rule.
  • Page 132 Vessel Operation CALIFORNIA PROP 65 Proposition 65 relates to the state of California and is an additional requirement added to their Safe Drinking & Toxic Enforcement Act of 1986. Prop 65 basically summarized states that: “No person in the course of doing business shall knowingly discharge or release a chemical known to the state to cause cancer or reproductive toxicity into water or onto land where such chemical passes or probably will pass into any source of drinking water ..”...

  • Page 133: Marpol Treaty

    CHAPTER 5 MARPOL TREATY The USCG now enforces the International Convention for the Prevention of Pollution from ships, referred to commonly as the MARPOL TREATY (marine pollution). This international treaty prohibits the overboard dumping of all oil, garbage, ship-generated plastic and chemicals. There is a placard on vessels over 26’ that explains the garbage and plastic dumping laws in detail.

  • Page 134: Drain Plug

    Some of the equipment described may not be installed on your boat or the pictorials may not exactly resemble equipment on your boat. Remember, Regal is constantly improving its product line and therefore may make changes in parts and specifications without notice.

  • Page 135: Bilge Pump

    CHAPTER 6 Bilge Pump/Automatic Float Switch Before each outing be sure to check operation of the bilge pump and automatic switch. Periodically check for bilge debris around the grates of both components. Refer to the bilge pump switch description in Chapter 4 where system details are described and the illustration below.

  • Page 136: Equipment Operation

    Equipment Operation 2. Find the pressure water breaker switch. Turn the switch to the “on” position. The pressure water tank will fill the entire system with fresh water. 3. Open the faucet to allow any air to escape. Close the faucet when there is a steady stream of water without air.

  • Page 137: Bucket Seat Operation

    CHAPTER 6 Bucket Seat Operation The bucket seat features a handle mechanism that operates multiple seat functions. The separate handles prevent the seat from roatating and sliding fore and aft during operation of the vessel. This provides the operator with a safety margin. Do not alter the seat slide system. To adjust the seat slider follow the instructions and refer the the illustration.
  • Page 138 Equipment Operation BUCKET SEAT HANDLE A HANDLE B HANDLE C SEAT SLIDER PEDESTAL FLOOR INSERT...

  • Page 139: Swim Platform/Ladder

    CHAPTER 6 Swim Platform/Ladder On integrated or optional swim platforms you should make periodic inspections of the swim ladder and hardware that supports the platform to insure that all connections and TYPICAL LABEL SHOWN fittings are tight and in good condition before using it to support weight.

  • Page 140: Center Windshield Latch

    Equipment Operation Center Windshield Latch The center windshield should be closed and locked at all times the boat is moving. Make sure the 2 locking latches are firmly seated in a horizonal position against the windshield framework. When the boat is not moving it is acceptable to open the center windshield and secure it with the magnetic holders.

  • Page 141: Berth Set-Up

    CHAPTER 6 Berth Set-Up On the 2250, the berth cushions can be set up to make a berth. Start by inserting the cushion support bar in the two support brackets. Make sure the bar is seated. Next, remove the port and starboard backrests. Install them as shown in the illustration.

  • Page 142: Stereo

    Equipment Operation Typical Stereo The stereo system features an AM-FM stereo CD player with matched speaker sets. A 10 amp automotive style fuse is located at the rear of the stereo unit. See chapter 7. The Kenwood stereo features 50 watts x 4 power, CD player, and uses marine speakers.
  • Page 143 CHAPTER 6 Power To energize the stereo, first turn on the stereo breaker located on the main DC panel. This is turn supplies 12 volts to the stereo unit. Next, press the SRC button. To deactivate the unit, press the SRC button and hold it down for 1 second.
  • Page 144 Equipment Operation System Q When playing different types of music this feature lets you recall the best sounding preset. Select the source to set by pressing the SRC button. Select the sound type by pressing the Q button. Each time the button is pressed the sound setting changes.
  • Page 145 CHAPTER 6 Adjustment Item Display Range Base level -8 to +8 Mid level -8 to +8 Treble level -8 to +8 Balance Left 15-Right 15 Fader Rear 15-Front 15 Exit the audio control mode by pressing AUD. Clock Adjustment Select the clock display by pressing the CLK button. Enter the clock adjustment mode by pressing the CLK button for at least 2 seconds.
  • Page 146 Equipment Operation Tuning Mode To select the tuning mode press the AUTO button. Each time the button is pressed the tuning mode switches as shown below. Tuning Mode Display Operation Auto Seek Auto1 Automatic station search indicator Preset station Auto 2 Search in order of preset seek indicator...
  • Page 147 CHAPTER 6 Station Preset Memory Select the band by pressing the AM or FM button. Select the frequency to put in the memory by pressing the << or >> button. Put the frequency in the memory by pressing the #1 to #6 buttons for at least 2 seconds.
  • Page 148 Equipment Operation CD General Hints & Recommendations Following are some general principles regarding the use and care of CD’s: 1. Keep from touching the recording surface of the CD. Hold it by the edges. 2. Remember CD-R and CD-RW are easier to damage than musical CD’s.
  • Page 149 CHAPTER 6 CD FUNCTIONS Playing A CD Insert a CD by pressing the SRC button. Select the CD display. The in indicator should be on. Ejecting A CD Press the eject button. Fast Forwarding & Reversing To fast forward hold down the >> button. Release the button at this point to play the CD.
  • Page 150 Equipment Operation Track/File Search This feature lets you search for a song on the disc or in the MP3/ WMA folder. Press the << or >> button. Direct Track/File Search This feature does a track/file search by entering the track/file num- ber.

  • Page 151: Sirius Satellite Radio

    CHAPTER 6 Sirius Satellite Radio Sirius satellite radio features over 120 channels of music entertainment completely commercial-free along with sports and news channels. Sirius emphasizes the music and entertainment you want. Channels use the most updated digital filtering available for the clearest sound. Sirius uses three satellites flying over the United States for coast to coast coverage with high elevation angles.

  • Page 152: Performance Package

    Use the same type and fuse capacity. Ipod Adapter A further option available through Regal is a Kenwood ipod conversion box. With a complete option package onboard your vessel and the addition of an iPod (purchased separately at your favorite music store), songs can be downloaded and played through the system above with all electrical connections compete per manufacturer’s...

  • Page 153: Electronics

    CHAPTER 6 Electronics Your vessel may be equipped with an optional VHF marine radio. It features ship to ship, ship to shore, weather station and U. S. Coast Guard channels. Before each outing check to make sure it is operating properly along with receiving weather data.
  • Page 154 Equipment Operation TYPICAL VHF CONTROL FUNCTIONS 1. Volume Control (On/Off) Turns the radio on/off and controls the volume of the output to the speaker. 2. Up & Down Keys These keys are used to move the channel numbers up or down. The channel number can be increased or decreased by one with each key press, or will continue to increase or decrease the number as the key is held.
  • Page 155 CHAPTER 6 6. MON/1/25 key When pressed once, the radio enters the MONITOR mode and “MON” is displayed on the LCD. In this mode the radio will scan (monitor) 16 plus priority channel, a selected working channeland a weather channel for the weather alert tone. When pressed and held for 2 seconds this key toggles the transmitter output power between 1 watt (1 watt is displayed and 25 watts ( “1 watt”...
  • Page 156 Equipment Operation 1. SCAN Will flash by itself when All-Scan mode is to be initiated or will flash in unison with “MEM” when memory scan is to be initiated. 2. 1 W (High/Low Power) Will be displayed when the transmitter circuits are providing 1 watt of power to the antenna.
  • Page 157 CHAPTER 6 5. MON (Monitor) Will be displayed when the MON/INT key is pressed. This indicates the radio is in the monitor mode. 6. INT (International/USA) Will be displayed when international channels are programmed for use. “INT” is not displayed when US channels are programmed for use.
  • Page 158 Equipment Operation NOTICE WHEN THE POWER IS ON, THE SYNTHESIZER AUTOMATICALLY PROGRAMS FOR THE USA CHANNEL FREQUENCIES AND SELECTS THE CALLING CHANNEL 16. REFER TO 16 PLUS OPERATION TO CHANGE THIS CHANNEL. Turning On the Volume 1) Rotate the ON/OFF/VOLUME control clockwise to turn the radio on.
  • Page 159 CHAPTER 6 To Transmit 1) Select the desired mode (USA or INT) by pressing and holding the WX/INT key for 2 seconds. When “INT” is displayed International mode is selected. When extinguished, USA mode is active. Then press the PUSH-TO-TALK switch and speak into the microphone using a clear normal voice.
  • Page 160 Equipment Operation The 16 PLUS (priority) Channel The 16 Plus channel has been preset to channel 16 prior to shipment from the factory, but the 16 Plus channel can be changed to another number, the the exception of all weather channels. 1) Press the up or down key to select the desired channel.
  • Page 161 CHAPTER 6 If the scan has stopped on a received signal, you may resume scanning by pressing the SCAN key. To cancel the scan mode, press the SCAN key once while the radio is scanning. 2) Memory Scan Mode If one or more channels are stored in memory, when the SCAN key is pressed “SCAN”...
  • Page 162 Equipment Operation As an example, let’s say we have selected channel 68 as our working channel. WX2 as our weather channel and the 16 PLUS key is programmed for channel 16. When MON/1/25 is pressed, the radio begins to scan Priority Channel 16, the working channel 68 and weather channel WX2.
  • Page 163 CHAPTER 6 & o i t & l a i s s i s s i r h t o i t o i t & e l t r e t l a i r e t ) y l n i l l a i &...
  • Page 164 Equipment Operation o i t & i c r . l a l i a e l r s s i s s i o i t i c r . l a d i r s s i s s i .
  • Page 165 CHAPTER 6 CAUTION THE TRANSMITTER OF YOUR VHF IS DISABLED WHEN CHANNEL 15, 75, 76, OR WX0-WX9 IS DISPLAYED. 6-32...
  • Page 166 Equipment Operation Channel Discription & Usage Guide 6-33...
  • Page 167 CHAPTER 6 6-34...
  • Page 168 Equipment Operation 6-35...
  • Page 169 CHAPTER 6 6-36...
  • Page 170 Equipment Operation 6-37...
  • Page 171 CHAPTER 6 6-38...

  • Page 172: General Description

    Equipment Operation Depth Finder/Sounder In theory the depth gauge picks up a bottom signal sent through a transducer to the helm gauge unit which is converted to readings in feet, meters, or fathoms and displayed on the gauge. The unit features shallow or deep water alarms, both of the audio and visual type, DEPTH GAUGE W/ FUNCTIONS...
  • Page 173 CHAPTER 6 Operation Power On. When the helm is powered up by the key switch 12 volt DC energy is available at the depth gauge along with the remainder of the instrument cluster. You do not need to press the “ON/OFF MODE”...
  • Page 174 Equipment Operation Keel Offset. By pressing the “ON/OFF MODE” keypad again dis- plays the “KL” keel offset setting. It can be set so the depth finder shows the depth below the transducer or the depth under the keel. Press the “UP” or “DOWN” arrow keypads to adjust the reading to the desired depth no further than 19.9 feet.

  • Page 175: Canvas

    CHAPTER 6 Canvas Standard canvas includes a bimini top with boot, bows and hardware. Also, side and aft curtains are available. A tonneau cover protects the bow seating area. To install a typical bimini top, unzip the top boot and remove it from the bimini top.
  • Page 176 Equipment Operation TYPICAL COCKPIT COVER Cockpit Cover The cockpit cover shown above installs over the windshield and snaps to the deck. To install the cockpit cover, note that on the bow end of the cover there is a seam on the inside which separates the port and starboard sides.
  • Page 177 CHAPTER 6 WINDSCREEN BIMINI TOP TYPICAL CANVAS-FRONT VIEW AFT CURTAIN BIMINI TOP SIDE CURTAIN TYPICAL CANVAS-SIDE VIEW 6-44...
  • Page 178 Equipment Operation CAUTION PREVENT POSSIBLE INJURY AND/OR PROPERTY DAMAGE! THE COCKPIT COVER IS DESIGNED TO PROTECT THE BOAT FROM THE ELEMENTS. DO NOT TRAVEL WITH THE COCKPIT COVER INSTALLED AS IS NOT DESIGNED FOR HIGHWAY USE! CAUTION PREVENT BODILY INJURY AND PROPERTY DAMAGE. DO NOT TOW BOAT WITH CANVAS UP.

  • Page 179: Volvo Neutra-Salt System

    The manufacturer recommends using the system at the end of the boating outing. Extra solution (Volvo # 41103103 available in quarts and gallons)should be available from your Regal dealer. FILL & TEST SYSTEM 1. Pour the quart bottle of Neutra-Salt concentrate into the reservior.
  • Page 180 Equipment Operation 6. Hold the rocker switch on for 45 seconds. Turn the engine off and then release the switch. 7. Check the reservoir; the fluid level should have dropped 1/4”. If the reservoir does not drop 1/4” it may be necessary to repeat steps 1-6.
  • Page 181 CHAPTER 6 Notes 6-48...

  • Page 182: Cosmetic Care & Maintenance

    Cosmetic Care & Maintenance COSMETIC CARE This section covers the care and maintenance of your Regal boat. Many cosmetic care topics including exterior hardware, upholstery, fiberglass and canvas are described. Also, major equipment and systems are covered. As always, refer to the owner’s information pouch and the manufacturer’s...
  • Page 183 CHAPTER 7 Powdered abrasives, steel wool, or industrial strength cleaners are not recommended for cleaning our vinyl. Lacquer solvents will cause im- mediate damage. Dilute chlorine bleach before using. Do not wax the vinyl as it may cause cracking. Always wear protective gloves and make sure there is sufficient ventilation when cleaning vinyl.

  • Page 184: Interior Fabrics

    Cosmetic Care & Maintenance Interior Fabrics Clean flat good interior fabrics with dry cleaning fluid style cleaners approved for use with soft fabrics. Allow adequate ventilation and follow the label instructions carefully. Use a soft cleanser with feldspar to clean stubborn marks or stains on wallpaper. Normal interior vinyl such as the headliner and head need a mild soap and water solution.
  • Page 185 CHAPTER 7 Use a mild detergent such as dishwashing powder or liquid. Do not use automatic dishwasher detergent. Avoid any kind of alkaline clean- ers such as tri-sodium phosphate (TSP), abrasives, bleaches and am- monia. For best results use cleaners that are recommended for fiber- glass.

  • Page 186: Minor Repairs

    Specify a number 25 which is a coarser compound up to a number 55 being less coarse. Various glazes and polishes are available as needed. Ask your marine professional or Regal dealer for more information. Fiberglass hulls are strong but they can be dam- aged.
  • Page 187 CHAPTER 7 For minor repairs refer to the following procedure: 1. Clean the area to be repaired and get rid of any wax or grease residues. 2. Clean out scratches, chips, and nicks. 3. Sand area to be repaired so gelcoat will bond. 4.

  • Page 188: Sunbrella Cleaning Instructions

    Cosmetic Care & Maintenance These elements can cause serious damage if left unchecked. The boat top and other canvas supplied on your Regal boat are manu- factured from top quality materials to provide you with years of trouble free service. The following information on the care, cleaning and proper...
  • Page 189 CHAPTER 7 Soak the fabric in a solution that has been mixed to the following proportions.: 1/2 cup of Clorox bleach and 1/4 cup of Ivory or Lux soap (liquid or soap) per each gallon of lukewarm water. Allow the fabric to soak until the bleach has killed the mildew and the stains can be brushed out with a common kitchen scrub brush.

  • Page 190: Hull Bottom

    The bottom of your boat needs to be clean since the build up of natural coatings from water or marine life can potentially create drag and affect your boat’s performance. Contact a marine professional or Regal dealer for more information.
  • Page 191 CHAPTER 7 FREQUENT STAINS/CLEAN-UP STEPS 1 Coffee, Tea, Chocolate........Permanent Marker*........Household Dirt..........Grease............... Ketchup, Tomato Products......Latex Paint............Oil Base Paint..........Mustard............. Suntan Oil............Asphalt/Road Tar........... Crayon.............. Engine Oil............Spray Paint............Chewing Gum..........Shoe Polish*............. Ballpoint Pen*..........Lipstick............. Eyeshadow............Mildew*............

  • Page 192: Maintenance

    Cosmetic Care & Maintenance MAINTENANCE Propellers Out-of-balance or nicked props will effect performance or cause vibration. Damaged props should be replaced, but those that are chipped or bent can usually be reconditioned by a marine dealer or a propeller repair facility. When cruising, consider carrying a spare set of props onboard because many marinas do not carry a full inventory of replacement propellers.
  • Page 193 CHAPTER 7 VOLVO SINGLE PROPELLER SX INSTALLATION 1. Coat the propeller shaft with marine grease. 2. Place the thrust bushing on prop shaft with inner taper toward gearcase to match taper on propeller shaft (A & B). 3. Slide propeller on shaft completely (C). 4.
  • Page 194 Cosmetic Care & Maintenance MERCRUISER ALPHA & BRAVO ONE MERCRUISER BRAVO THREE 7-13...
  • Page 195 CHAPTER 7 Steering Regals feature rack or rotary style steering systems that features a cable with assistance through the engine power steering pump. As you turn the wheel the force is applied through the system to a hydraulic cylinder atached at the engine rear and attached through the engine power steering pump hoses.
  • Page 196 Cosmetic Care & Maintenance WARNING TO PREVENT BODILY INJURY! WEAR GOGGLES, RUBBER GLOVES AND A PROTECTIVE APRON WHEN WORKING WITH A BATTERY. BATTERY ELECTROLYTE CAUSES SEVERE EYE DAMAGE AND SKIN BURNS. IN CASE OF SPILLAGE, WASH AREA WITH A SOLUTION OF BAKING SODA AND WATER. clean both the both the terminals and the connectors with a wire brush.
  • Page 197 At the helm end check to make sure the control box hardware is tightly secured. Contact your Regal dealer for further assistance. 7-16...
  • Page 198 Cosmetic Care & Maintenance Seating The bucket seat slider needs periodic inspection and maintenance. Loosen the swivel knob located on the slider and pull the slider off the pedestal. Inspect all fasteners and metal for fatigue. Lubricate the points shown in the illustration with a marine type lithium grease.

  • Page 199: Bilge Pump

    CHAPTER 7 Bilge Pump The bilge pump is usually installed in the engine compartment just below the engine front. Check for foreign materials stuck in the strainer area or discharge hose. Check all clamps and electrical connections for tightness. A quick check of the bilge pump automatic float switch is afforded by lifting up on the float and listening for the pump operating.
  • Page 200 Make sure the black ground wire is tightly secured. For further information, contact your closest Regal dealer or marine professional. Chemical Toilet/ Pump Out Fittings This self-contained unit requires periodic rinsing with soap and water.
  • Page 201 The fuse panel is located at the helm area. Carry extra fuses for emergencies. Fuses can be purchased from a marine store or you Regal dealer. TYPICAL FUSE PANEL FUSE BLOCK There is an access under the dash to many of the wires.
  • Page 202 Cosmetic Care & Maintenance Stereo The stereo requires little maintenance. Protect the unit from water, dirt and ultra-violet damage.When washing the interior do not discharge water directly at the stereo unit. As with any CD unit clean your CD’s to keep them from skipping. This process also aids in keeping dust out of the unit.
  • Page 203 CHAPTER 7 VOLVO MAINTENANCE GUIDE i l o , l i , l i t f i , d i e t t e t t o i t s t l r e l 7-22...
  • Page 204 Cosmetic Care & Maintenance VOLVO MAINTENANCE GUIDE CONT. o l l & l f i t l i l l e , l i , l i e t l l l e & e l t g i l &...
  • Page 205 CHAPTER 7 MERCRUISER MAINTENANCE GUIDE , l i , l i , l i , d i i r e t l a i l o r e t e t i e t t i t c r e l t f a t n i &...
  • Page 206 Cosmetic Care & Maintenance MERCRUISER MAINTENANCE GUIDE CONT. , s t n i l & o l l i r a & r e l , s t i t i , s t , r o s t l &...
  • Page 207 Because of the advanced ignition and fuel injection systems used on marine engines it is best to contact your Regal dealer for more of the detailed service procedures. CAUTION...
  • Page 208 Add the recommended oil to maintain the proper level. 2. Recheck the engine oil dipstick level. Note: All fluid recommendations are based on this manuals printing date. Regal is not responsible for the accuracy of the information since it can change at any time.
  • Page 209 CHAPTER 7 NOTICE PREVENT ENGINE DAMAGE! DO NOT ALLOW THE CRANKCASE OIL LEVEL TO RECEDE BELOW THE ADD MARK, AND DO NOT FILL ABOVE THE FULL MARK. OVERFILLING RESULTS IN REDUCED ENGINE LIFE, HIGH OPERATING TEMPERATURES, FOAMING & LOSS OF POWER. Checking the Power Trim/Tilt Fluid Level 1.
  • Page 210 Cosmetic Care & Maintenance Checking Power Steering Fluid 1. Check the power steering fluid before each boating outing. Remove the steering reservoir and check the fluid level. If the engine has not been running use the “COLD” mark. Use the “HOT” mark for engines that have been running at normal operating temperature as indicated by the temperature gauge.
  • Page 211 If the oil color is milky in appearance there probably is water in the unit normally caused by a leaking seal. No metal flakes should be present in the oil. If the abov e conditions exist contact a Regal dealer. 7-30...
  • Page 212 Note: Above are basic recommendations. Regal is not responsible for the accuracy of the information since it can change at any time. For more detailed information and procedures check your engine operators manual or call a Regal dealer servicing the product line.
  • Page 213 If any water is visible at the bottom of the reservoir or there are any metal chips in the drive oil do not run the engine since component damage can result. Contact your Regal dealer for more information. Filling the Sterndrive 1.
  • Page 214 3. Fill to line with Quicksilver Power Trim & Steering Fluid (Merc # 92-802880A1) or Dextron III automatic transmission fluid. If you can not see any fluid in the power steering reservoir contact your Regal dealer since a leak must of developed in the system.
  • Page 215 Use Power Trim & Steering Fluid (92- 802880A1). 3. Install the cap. Changing Power Trim Fluid 1. Power steering fluid does not require changing unless it becomes comtaminated with water or debris. Contact a Regal dealer to change the fluid. 7-34...
  • Page 216 2. The coolant level in the heat exchanger should be at the bottom of the filler neck. A low coolant level means you should contact your Regal dealer. 3.Install the cap onto the heat exchanger. 4. When reinstalling the pressure cap, be sure to tighten it until it seats on the filler neck.
  • Page 217 2. Fill to the “FULL” line with Extended Life Antifreeze/Coolant Mercury part # 92-877770K1. 3. Reinstall the cap onto the coolant recovery canister. Changing Engine Coolant Call your Regal dealer to change coolant in the entire system. 7-36...
  • Page 218 Cosmetic Care & Maintenance Electrolysis Protection Sacrificial zinc anodes usually found on the outdrive housing, trim cylinders or propshaft to protect softer metals exposed to the water. Electrolysis attacks the least noble metals first. Because zinc is a less noble metal, it will decompose before other metals. Check these zinc anodes periodically and have them replaced when they are 50% gone.
  • Page 219 CHAPTER 7 7-38...

  • Page 220: Troubleshooting

    Additional assistance is available in the engine manufacturer’s manual. Also, you can contact your closest Regal dealer or marine professional for more information. Most defects can be found by doing a logical sequence of elimination.
  • Page 221 CHAPTER 8 l o r a e l a c i f i t i t a / r i t o r e l t l o r t o r e l t i t a ) l a o l l n i t r e f...
  • Page 222 Troubleshooting l a i i t c l a i l l e i s r e l l l l a i s s i t a l l e l l e l l e p i l l l e i r t i r t...
  • Page 223 CHAPTER 8 l i F r i a n i l l i t . r i & s e l r i a l l i f i t c t l i a r t n i l t l i i t c c s i...
  • Page 224 Troubleshooting l a c u l f i h s h t i e r f r e t l l i h t i e r f r e t e v l i o t t e l l l u s t i l a c...
  • Page 225 CHAPTER 8 e t t o " " f f o " " n i t i i t i t l o e t t e t t t l e t l e e t t y t l e t l / r i e t l...

  • Page 226: Storage/Winterization

    Use the enclosed checklists to help you identify areas of concern and maintenance. These lists cover land stored boats either inside or outside. Call a Regal dealer or marine professional for further information.

  • Page 227: Decomissioning Checklist

    CHAPTER 9 DECOMISSIONING CHECKLIST ENGINE Run engine. Pour a fuel stabilizer/conditioner in the fuel tank. Allow timefor it to circulate through the fuel system. Change all engine fluids as referenced in the engine manufacturer’s owners manual. Drain cooling and exhaust system or have a marine professional “pickle”...
  • Page 228 Storage & Winterization Remove battery (ies). Charge as needed. Remove all loose gear from boat such as life jackets, etc. Inspect and store in cool, dry environment. Remove drain plug. Clean drain plug hole of debris as needed. Enclose drain plug in plastic bag and tie to steering wheel. Make sure bow is higher than stern to permit proper drainage.
  • Page 229 CHAPTER 9 FRESH WATER SYSTEM 1. Turn on the fresh water pump switch. 2. Open all faucets including transom shower (if equipped) and allow tank to empty. 3. Drain the water tank. Shut off fresh water pump switch. 4. Mix non-toxic antifreeze with water in accordance with the manufacturer’s recommendations.

  • Page 230: Recomissioning Checklist

    Storage & Winterization RECOMISSIONING CHECKLIST ENGINE/STERN DRIVE Check all components per engine manufacturer’s owners manual especially fluid levels. Run engine on “ear muffs” before launching. Check for fuel, exhaust, oil, and water leaks. BOAT Install drain plug. Install battery and tighten all terminals. Check all equipment, switches, alarms, gauges and breakers for proper operation.
  • Page 231 Notes CHAPTER 9...

  • Page 232: Trailering

    Trailering This chapter covers trailering basics including equipment, maintenance, and techniques of trailer usage. Check with state and local agencies for detailed information on required equipment, safety issues, and licensing. BEFORE TRAILERING Before trailering your boat, be sure to check the air pressure of your tires for the recommended inflation rating.
  • Page 233 CHAPTER 10 10-2...
  • Page 234 Trailering BEARING LUG NUT WHEEL LEAF SPRING TYPICAL WHEEL PARTS DESCRIPTION BOW CHAIN WINCH/CABLE WINCH STAND TONGUE JACK MASTER CYLINDER BRAKE ACTUATOR COUPLER TYPICAL TONGUE SECTION 10-3...
  • Page 235 Be certain that your trailer is of rated capacity for the size and weight of your boat, including the weight for all fuel, water and gear. Your authorized Regal dealer can advise you on the proper trailer capacity and tongue weight ( the weight exerted on the rear of your vehicle).

  • Page 236: Driving

    Trailering Check the wheel bearings for wear periodically by a professional. On most trialers, there is a zerk fitting on the wheel hub to add the proper lubricant to the wheel bearing with a grease gun that can be purchased at a supply house of marine store. Finally, make sure everything is secured in the boat.

  • Page 237: Launching

    CHAPTER 10 LAUNCHING Serious accidents can occur at the launching ramp. Therefore, it is imperative you be alert and attentive during launching and docking activities. Study the ramp area and surrounding water for any potential hazards, such as a short ramp or one with a drop off at the end. If you are uncertain of the conditions, ask someone else who has just used the ramp if there are any peculiarities to the area.

  • Page 238: Backing A Trailer

    Trailering BACKING A TRAILER LAUNCHING RAMP A trailer backs in a direction opposite to an automobile. In 1, driver swings the rig near the launching ramp. In 2, the driver cuts the vehicle toward the driveway. In 3, the driver cuts the vehicle wheels to the left and then backs into the ramp as the trailer moves to the right.

  • Page 239: Loading Boat

    CHAPTER 10 LOADING BOAT The most important thing to remember when getting your boat out of the water is that often the ramp will be crowded. As you approach the ramp, make a visual inspection of the traffic, both at the ramp and all around you.
  • Page 240 Trailering After pulling your boat away from the ramp, be sure to go through all the checks involved before departure. Reinstall the harness connector and check the lights, brakes, safety chain, winch, hitch, wheel bearing and tie downs. Make sure the boat is covered properly and all loose gear is stowed.
  • Page 241 Notes CHAPTER 10 10-10...

  • Page 242: Glossary

    Glossary & Index Below is a brief list of nautical terms useful in everyday boating experiences and communications. For more detailed glossaries of nautical terminology, we recommend you check your local library or a marine store for boating books. GLOSSARY Abeam: at right angles to the fore and aft line and off the boat Aboard: on or in the boat Above: the part of the boat on a bavin vessel which is above the interor...
  • Page 243 CHAPTER 11 Cast off: to let go or release Chine: the line fore and aft formed by the intersection of the side and bottom of the boat Chock: deck fitting used to secure or guide anchor or tie lines Cleat: deck fitting with protruding arms around which lines are secured Cockpit: the seating space used to accomodate passengers Cuddy: a small cabin in the fore part of the boat Deck: the open flooring surface on which crew and passengers walk...
  • Page 244 Glossary & Index Head: toilet Hull: the part of the hull from the deck down Keel: the lowest point of a boat; the backbone of the vessel Knots: a measurement of speed indicating nautical miles per hour Lee: the side opposite that from which the wind is blowing: the side sheltered from the wind BEARING LUG NUT...
  • Page 245 CHAPTER 11 Trim: the boat’s balance when properly loaded Wake: the path of a boat left astern in the water Windward: the direction from which the wind blows; opposite of leeward 11-4...

  • Page 246: Glossary & Index

    Glossary & Index INDEX Dealer Responsibilities Int-15R Accidents 1-27 Depth Sounder Accident Reporting 1-28 Direct Current (DC) Admirality Law 5-26 Distress Signals 1-12 Aids To Navigation 1-13 Alcohol 1-25 Anchor Light 1-16 Diver’s Flag 1-29 Anchoring 5-24 Docking 5-14 Audible Alarms 3-11 Dock Lines 5-11...

  • Page 247: Index

    CHAPTER 11 INDEX Loading 5-20 Garbage Placard 1-18 Int-14 Gas Grill Lanyard 3-15 Gathering Headway 5-16 Gauges (Instrumentation) Launch & Cruise Checklist Int-12 Gear Shift 3-13 Gelcoat Maintenance General Boating Safety Maneuvering 5-16 Getting Underway Maintenance Schedule Grounding 7-23 Maintaining PFD’S Marpol Treaty 5-33 Masthead Light...
  • Page 248 Glossary & Index Personal Flotation Devices Stereo 7-23 1-19 Stern Drive Plastics 3-13 Power Trim 5-19 Precautionary Safety Labels 5-14 Pre-departure questionaire 5-16 Propellers 5-19 7-11 7-11 7-25 Propulsion 7-26 Pump Out Fittings 7-21 Stern Light 1-16 Sunbrella canvas cleaning Recomissioning Swim Ladder Registration Information...
  • Page 249 CHAPTER 11 Ventilation 1-21 7-24 Visibility 5-23 Visual Distress Signals 1-12 Volt Meter Volvo 7-13 7-25 Wake 1-33 Warning Labels Warranty Int-18 Waste 4-13 7-21 Water Skiing 1-29 Weather 1-34 Winterizing Zinc Anodes 7-25 11-8...

  • Page 250: Technical Information

    For the location of your nearest authorized dealer call 407-851-4360 or you can contact Regal through the internet: www.regalboats.com Your Regal dealer has received special factory training on the entire product line and his services should be employed to solve more technical problems.
  • Page 251 " 2 " 2 " 6 " 3 " 2 " 9 & 12-2...
  • Page 252 AT ALL TIMES. READ OWNER'S MANUAL BEFORE USE GENERATOR OR ENGINES IN CONFINED SPACES OR AT DOCKSIDE. DO NOT ALLOW HULL EXHAUST OUTLETS TO NOTE: 2200 SHOWN BECOME BLOCKED OR EXHAUST FUMES CAN BECOME TRAPPED IN AND AROUND THE CONFINES OF YOUR BOAT, DURING IDLE AND SLOW CRUISE CONDITIONS, BILGE BLOWERS SHOULD BE USED.

  • Page 253: Fuel System

    2200 & 2250 FUEL SYSTEM FUEL TANK ANTI-SIPHON FUEL FILL VALVE HOSE FUEL FEED HOSE FUEL VENT FUEL/ VENT HOSE DECK FILL BLOWER 12-4...
  • Page 254 Technical Information 2200 & 2250 FRESH WATER & WASTE SYSTEM 2250 CHEMICAL HEAD DECK PUMP- OUT FITTING (OPTIONAL) WET BAR FAUCET WATER PUMP WATER TANK WATER FILL/ VENT TRANSOM SHOWER (OPTIONAL) 12-5...
  • Page 255 ROUTE TO ENG ROUTE TO ENG TELEPHONE (407) 851-4360 TELEPHONE (407) 851-4360 GROUND STUD GROUND STUD DRAWING TITLE: DRAWING TITLE: 2200-2250 BATTERY CABLE ROUTING 2200-2250 BATTERY CABLE ROUTING GROUND BLOCK GROUND BLOCK DATE: DATE: LATEST REV LET: LATEST REV LET:...
  • Page 257 Technical Information 12-8...
  • Page 258 ORLANDO FLORIDA 32809-7895 TELEPHONE (407) 851-4360 TELEPHONE (407) 851-4360 DRAWING TITLE: DRAWING TITLE: SHEET 2 OF 2 SHEET 2 OF 2 2200/2250 (DK/DJ) BATTERY SWITCH BOX 2200/2250 (DK/DJ) BATTERY SWITCH BOX DATE: DATE: LATEST REV LET: LATEST REV LET: SCALE: SCALE: DR.
  • Page 259 REVISION DESCRIPTION DR. BY: APP. BY: REV. DATE: REGAL MARINE INDUSTRIES 2300 JETPORT DRIVE ORLANDO FLORIDA 32809-7895 TELEPHONE (407) 851-4360 DRAWING TITLE: 2200-2250 DK/DJ SUMP LAYOUT DATE: LATEST REV LET: SCALE: 07-15-02 APP. BY: DWG. NO.: DR. BY: MDK23A 12-10...
  • Page 260 Technical Information TRAILER CONNECTOR PLUG INSERTS INTO BOAT BOW RECEPTACLE 16 GAUGE BLACK 16 GAUGE GREEN 16 GAUGE YELLOW/BLACK 16 GAUGE GREEN 16 GAUGE YELLOW 16 GAUGE BROWN 16 GAUGE WHITE TRAILER TRAILER HARNESS CONNECTOR PLUG BOAT BOW RECEPTACLE TYPICAL TRAILER PLUG 12-11...
  • Page 261 Regal Marine Industries, Inc. 2300 Jetport Drive Orlando, FL 32809-7895 (407) 851-4360 Internet Address: http://www.RegalBoats.com EMail Address: Regal@RegalBoats.com...
