Navigational mode

Map layout

The map layout varies according to the
current mode of operation of the Traffic
Assists.

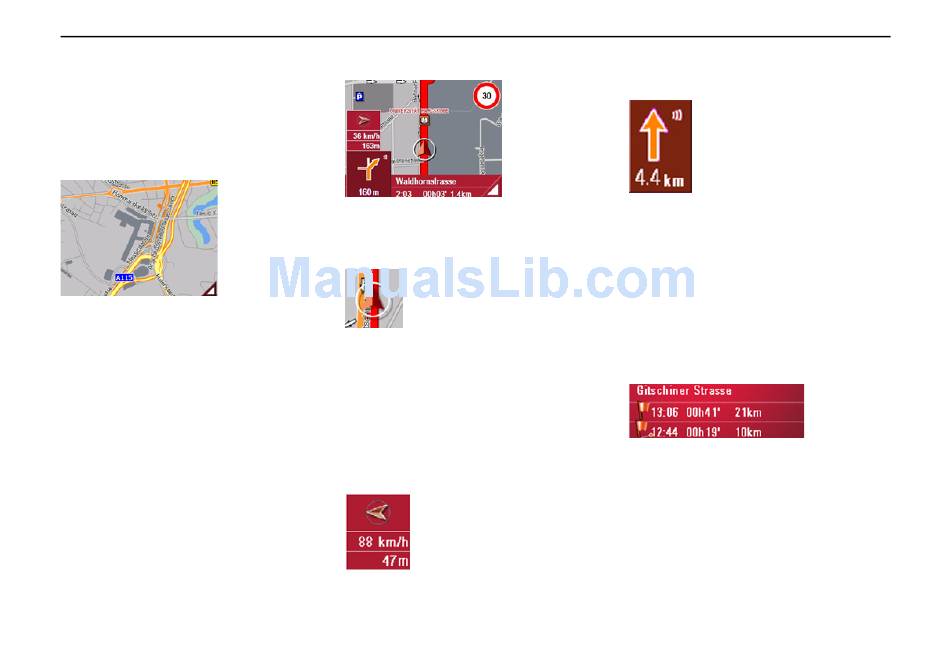

Map display without driving guidance

6028
If the navigation function has not
been activated, the map display will co-
ver virtually all of the touchscreen. An
icon for switching to configuration
mode with a toolbar is always displayed
in the lower right-hand corner of the
map.
60

Map display with driving guidance

6029
If the navigation function has been acti-
vated, the position icon will indicate
your current location on the map.
6030
Depending on which setting was made
in option mode, the position icon may re-
main stationary while the map moves, or
vice versa.
The info box on the left side of the screen
displays a compass diagram pointing
north, your current speed and the height
above sea level in metres.
Information appears in the bottom left
corner of the preview area.
6032
The distance remaining is indicated by
means of the number of kilometres (or
miles) below an arrow. If there are two
impending driving manoeuvres in quick
succession, a small arrow appears over
the first manoeuvre to indicate that ano-
ther one is coming up.
Additional rows displayed at the bottom
of the screen provide more information.
6033
Depending on the settings selected in the
Settings menu options, a total of three
information rows may appear, each con-
taining specific details.
