AURATON 2005 TX User Manual page 4

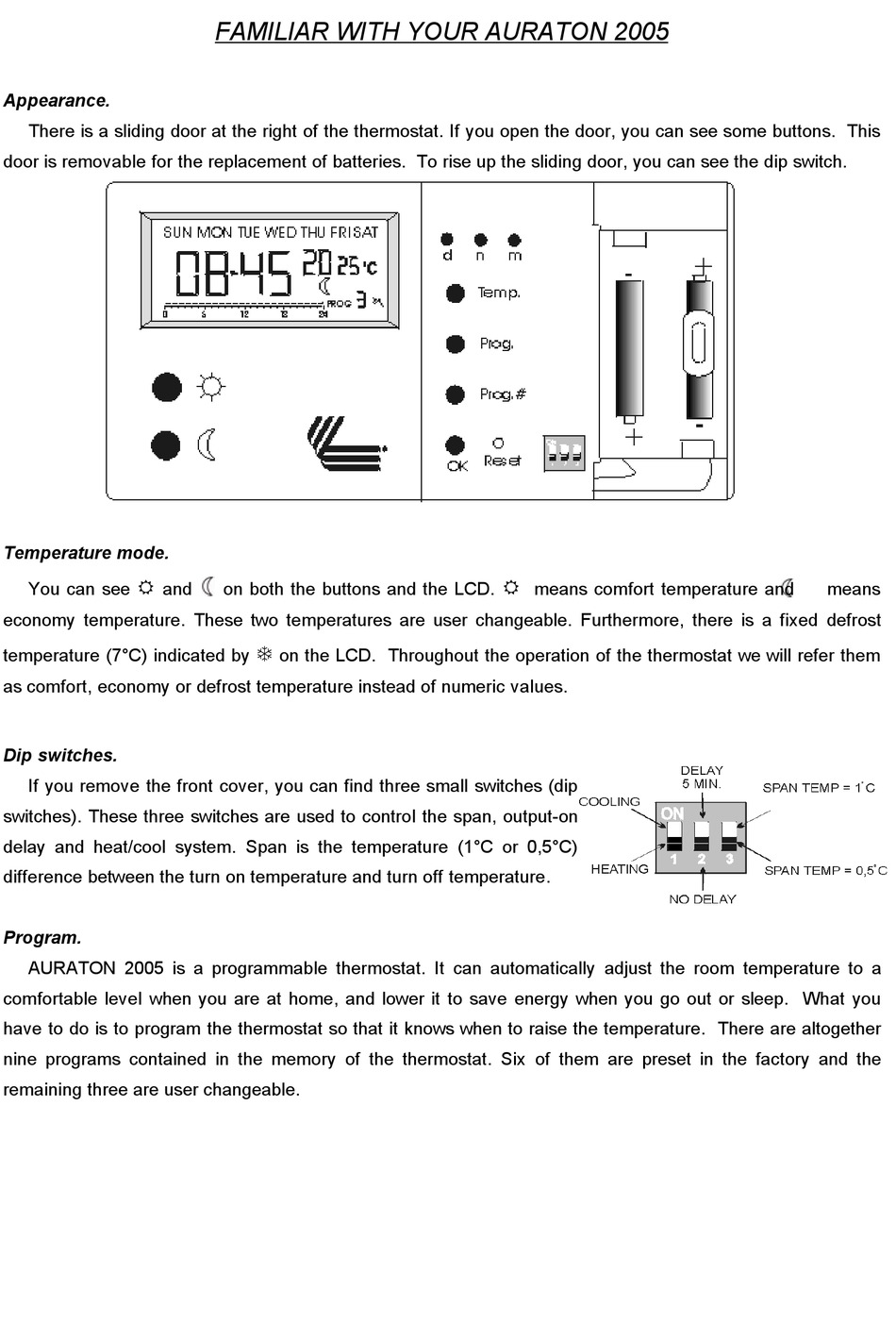

Appearance.
There is a sliding door at the right of the thermostat. If you open the door, you can see some buttons. This
door is removable for the replacement of batteries. To rise up the sliding door, you can see the dip switch.
Temperature mode.

You can see and
economy temperature. These two temperatures are user changeable. Furthermore, there is a fixed defrost
temperature (7°C) indicated by
as comfort, economy or defrost temperature instead of numeric values.
Dip switches.
If you remove the front cover, you can find three small switches (dip
switches). These three switches are used to control the span, output-on
delay and heat/cool system. Span is the temperature (1°C or 0,5°C)
difference between the turn on temperature and turn off temperature.
Program.
AURATON 2005 is a programmable thermostat. It can automatically adjust the room temperature to a
comfortable level when you are at home, and lower it to save energy when you go out or sleep. What you
have to do is to program the thermostat so that it knows when to raise the temperature. There are altogether
nine programs contained in the memory of the thermostat. Six of them are preset in the factory and the
remaining three are user changeable.
FAMILIAR WITH YOUR AURATON 2005
on both the buttons and the LCD.

on the LCD. Throughout the operation of the thermostat we will refer them

means comfort temperature and means
