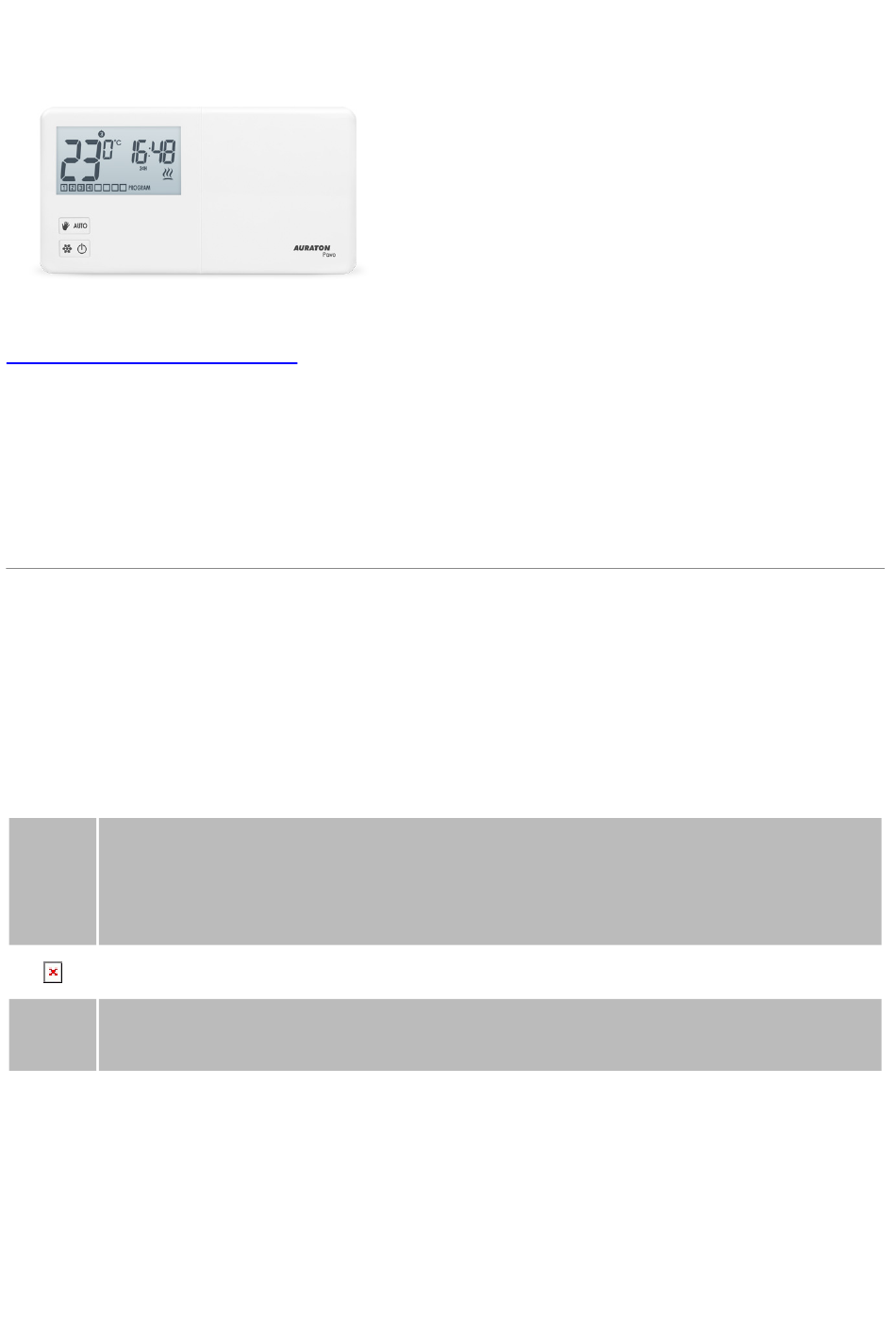

AURATON Pavo
Instruction manual version 20201130
The document contains information on the safety, installation, and use of the AURATON Pavo.
Weekly, wired thermostat

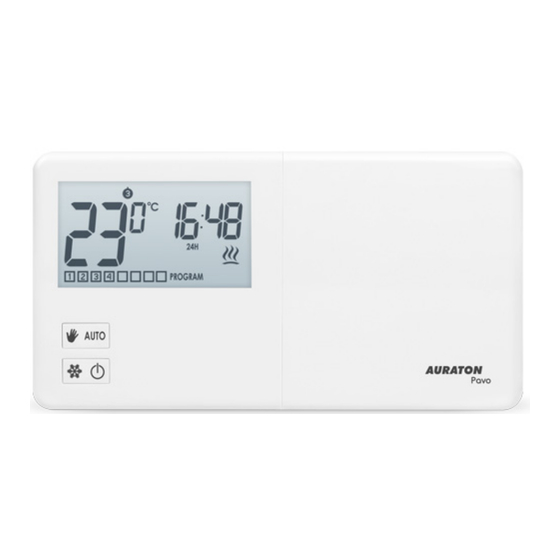

AURATON Pavo is a weekly, wired thermostat designed to work with a gas or electric heating device.
ST
8 independent temperatures per day
AURATON Pavo allows you to set up to eight independent temperatures per day with an
accuracy of one minute. The user can choose time intervals for different temperatures
UV
depending on his/her requirements.
Calibration of temperature indications (offset)
It allows temperature adjustment with a tolerance of ±3°C.
Backlit LCD display
LCD
Due to a backlit display, we can monitor the operation of the device even in a poorly lit
room (3 backlight colours to choose from).
