IVE EASY STEPS TO INSTALL THE
The HT488 is designed for easy configuration and easy installation. Configure the HT488 following the
directions in the Configuration section of this manual.
1. Connect a standard touch-tone analog telephone to the PHONE port.
2. Insert a standard RJ11 telephone cable into the LINE port and connect the other end of the
telephone cable to a wall jack.
3. Insert the Ethernet cable into the WAN port of HT488 and connect the other end of the Ethernet
cable to an uplink port (a router or a modem, etc.)
4. Connect a PC to the LAN port of HandyTone 488 if HT488 is used as a router.
5. Insert the power adapter into the HandyTone 488 and connect it to a wall outlet.

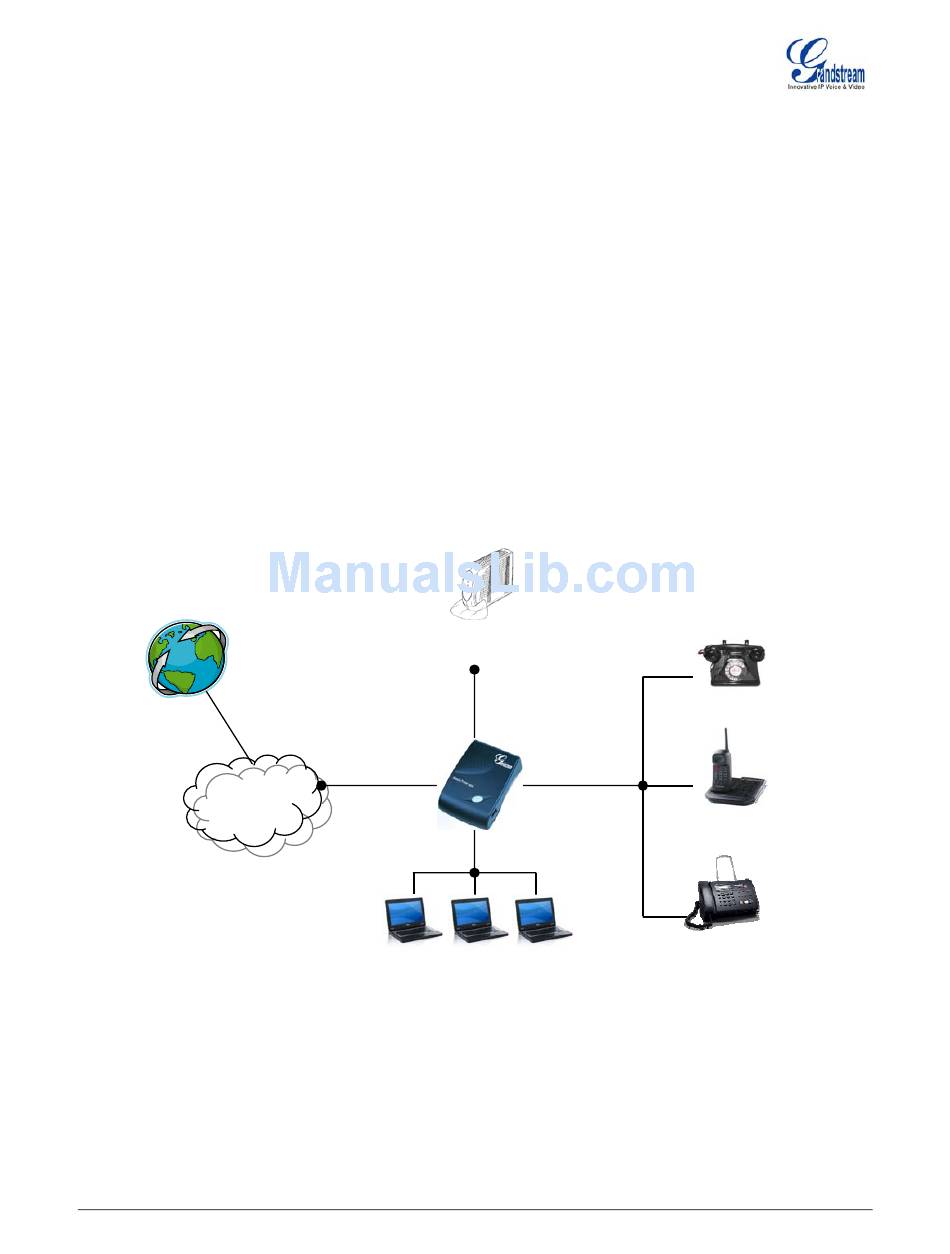

F 2: I
IGURE NTERCONNECTION
PSTN
Cloud
Grandstream Networks, Inc.

HT488

D HT488
IAGRAM OF THE
Internet
ADSL/Cable
Modem Ethernet
FXO
HT488 User Manual
Firmware 1.0.3.64
WAN
FXS
LAN
Analog Phone
Cordless Phone
Fax
