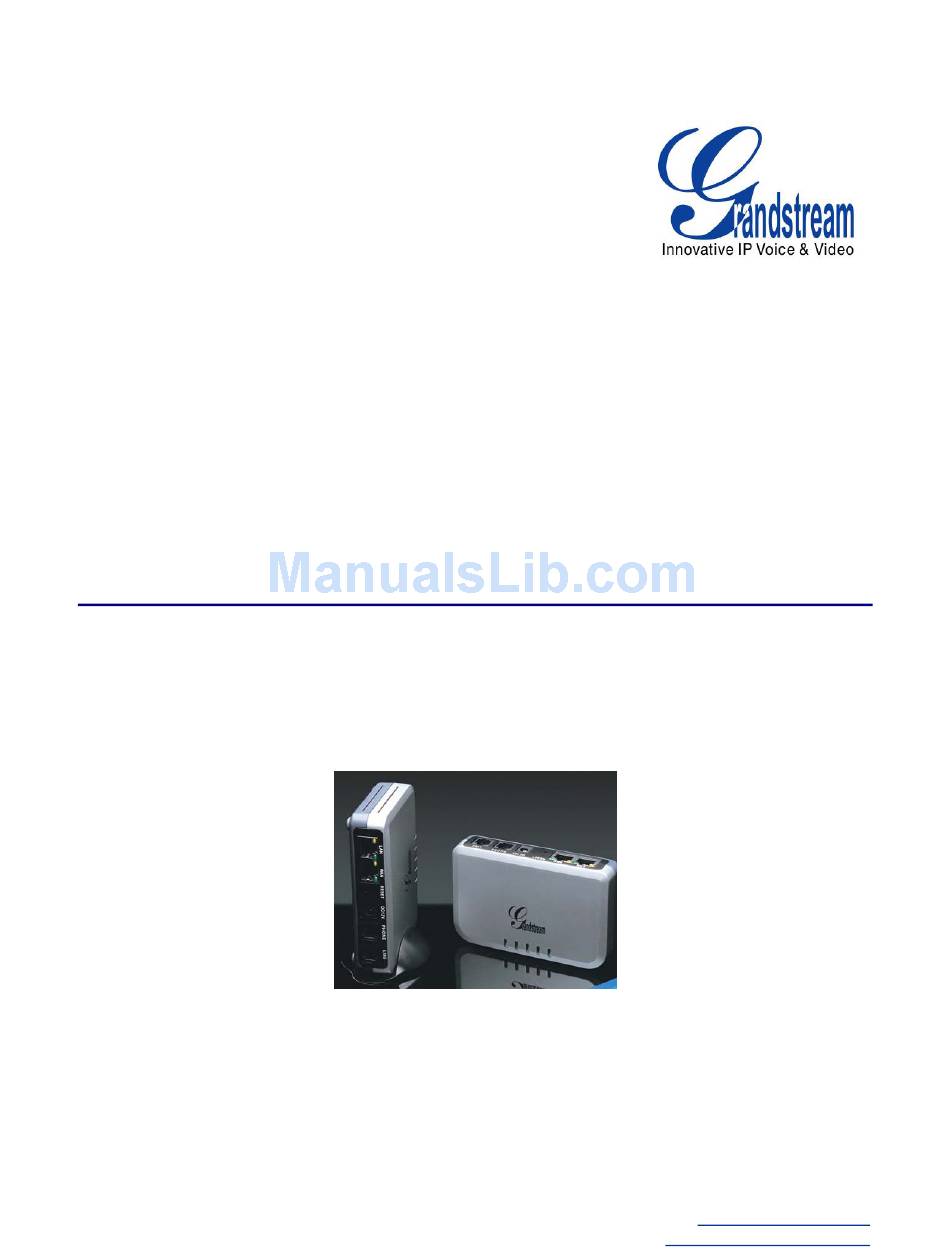

- Page 1 Grandstream Networks, Inc. HT503 FXS/FXO Port Analog Telephone Adaptor HT503 User Manual www.grandstream.com Firmware Version 1.0.0.9 support@grandstream.com...
-
Page 2: Table Of Contents
Configuration File Download... 36 Firmware and Configuration File Prefix and Postfix ... 36 Managing Firmware and Configuration File Download ... 36 ESTORE ACTORY EFAULT ETTING Grandstream Networks, Inc. ABLE OF ONTENTS HT503 U ANUAL ... 37 HT503 User Manual Firmware 1.0.0.9... - Page 3 CREENSHOT OF CCOUNT 7. S CREENSHOT OF ROGRESS 8. S CREENSHOT OF AVED ONFIGURATION 9. S CREENSHOT OF EBOOT Grandstream Networks, Inc. ABLE OF IGURES HT503 U ANUAL HT503 ... 6 ... 19 ... 33 ABLE OF ABLES HT503 U ANUAL ...
-
Page 4: Ht503 User Manual
Changes or modifications to this product not expressly approved by Grandstream, or operation of this product in any way other than as detailed by this User Manual, could void your manufacturer warranty. • This document is contains links to Grandstream GUI Interfaces. Please remember to download these examples http://www.grandstream.com/user_manuals/GUI/GUI_HT503.rar •... -
Page 5: Installation
Connect the WAN port to the internal LAN network or router. PHONE (RJ-11) FXS port to be connected to analog phones / fax machines. LINE (RJ-11) FXO port should be connected to the PSTN line Grandstream Networks, Inc. HT503 Back View RJ-45 Ports Power... -
Page 6: Five Easy Steps To Install The Ht503
5. Insert the power adapter into the HT503 and connect it to a wall outlet. 2: I IGURE NTERCONNECTION IAGRAM OF THE PSTN Cloud Grandstream Networks, Inc. HT503 HT503 Internet ADSL/Cable Modem Ethernet HT503 User Manual Firmware 1.0.0.9 Analog Phone... -
Page 7: Product Overview
Pass-through (pending), Fax Data pump V.17, V.19, V.27ter, V.29 for T.38 fax relay Security DIGEST authentication and encryption using MD5 and MD5-sess Physical Design Stylish and compact design; small universal power supply, ideal for travel Grandstream Networks, Inc. HT503 User Manual Firmware 1.0.0.9 Page 7 of 37 Last Updated: 9/2007... -
Page 8: Hardware Specification
Power Adaptor Dimension Weight Temperature Humidity Compliance Grandstream Networks, Inc. 1xRJ45 10/100 Mbps Port 1xRJ45 10/100 Mbps Port 1 x FXS (RJ11) 1x PSTN pass-through and life line port Power, WAN, LAN, PHONE, and LINE (Green) Input: 100–240 VAC, 50-60 Hz Output: 12VDC, 0.5A, UL certified... -
Page 9: Basic Operations
Firmware Version Firmware Upgrade “Direct IP Calling” “RESET” “Invalid Entry” Grandstream Networks, Inc. Options Press “*” for the next menu option Press “#” to return to the main menu Enter 01-05, 07,12-17,47 or 99 menu options Press “9” to toggle the selection If using “Static IP Mode”, configure the IP address information using... -
Page 10: Placing Phone Calls
4. At voice prompt “Direct IP Calling” and dial tone, enter a 12-digit target IP address to make a call. Destination ports can be specified by using “*4” (encoding for “:”) followed by the port number. Grandstream Networks, Inc. HT503 User Manual Firmware 1.0.0.9... -
Page 11: Call Hold
2. Then dials *87, then dials C’s number, and then presses # can hang up. NOTE: “Enable Call Feature” has to be set to “Yes” in web configuration page. Grandstream Networks, Inc. HT503 User Manual Firmware 1.0.0.9 are in Page 11 of 37... -
Page 12: 3-Way Conferencing
Assume that parties are in conversation. Party way conference: Grandstream Networks, Inc. In bad network scenarios, this could also happen, can hang up to complete transfer. can press “flash” back to talk to B. presses FLASH to bring B, in the conference. -
Page 13: Pstn Pass Through
PIN, the HT503 times out after 10 seconds. Users may press the “#” key to indicate the end of an input or wait 4 seconds. Grandstream Networks, Inc. presses FLASH to bring B, C in the conference. can press FLASH back to talk to HT503 User Manual Firmware 1.0.0.9... -
Page 14: Pstn-To-Voip Calls
PSTN. An normal # would be: {L: 617x+|x+} or {x+| L: 617x+} For example, if “Route Call to PSTN” is configured as {L: 626x+}, all outgoing calls starting with 626 will be initiated from the PSTN line. Grandstream Networks, Inc. HT503 User Manual Firmware 1.0.0.9... -
Page 15: Forward Calls To Pstn
T.38, please use this method by selecting Fax mode to be T.38 (default). If the service provider does not support T.38, pass-through mode may be used. To send or receive faxes in fax pass through mode, users must select all the Preferred Codecs to be PCMU/PCMA (G.711-µ/a). Grandstream Networks, Inc. HT503 User Manual Firmware 1.0.0.9... -
Page 16: Call Features
WAN LED LAN LED PHONE/ LINE LED Note: Slow blinking of POWER, WAN, and LAN LEDs together indicate firmware upgrade/provisioning state. Grandstream Networks, Inc. EFINITIONS Indicates Power. Remains ON when power is connected Indicates LAN (or WAN) port activity Indicates PC (or LAN) port activity Indicates the status of the FXS port and FXO ports on the back panel. -
Page 17: Configuration Guide
TFTP and HTTP. IRMWARE PGRADE Select voice menu option 17 to choose firmware upgrade mode. There are three options: 1) always check, 2) check when pre/suffix changes, and 3) never upgrade Grandstream Networks, Inc. OICE ROMPT HT503 User Manual Firmware 1.0.0.9... -
Page 18: Configuring Ht503 With Web Browser
Only an administrator can access the “ADVANCED SETTING” configuration page. Please reference the GUI pages using the following link: Once this HTTP request is entered and sent from a Web browser, the HT503 will respond with the following login screen: Grandstream Networks, Inc. ROWSER Password: Web pages allowed:... -
Page 19: Figure 3: Screenshot Ofc
• FXS Port user has set Do Not Disturb. • FXS Port user has set his calls to be forwarded unconditionally to ext 613. FXO Port user has set his calls to forward to 614 when his phone is busy. Grandstream Networks, Inc. EFINITIONS Hook... -
Page 20: Table 8: Ht503 Basic Settings
NAT Maximum Ports The number of ports that can be managed while in NAT router mode. Range: 0 – 4096, default is 1024. Typically one port per connection. Grandstream Networks, Inc. EFINITIONS number indicates Month: 1,2,3.., 12 (for Jan, Feb, .., Dec) number indicates the nth iteration of the weekday: (1 number indicates weekday: 0,1,2,..,6( for Sun, Mon, Tues,..,Sat) - Page 21 VoIP extension if it is not answered. User can configure the number of rings before forwarding calls to the VoIP extension. Configure number of rings using the “number of rings” parameter located in the FXO Port Configuration page. Grandstream Networks, Inc. HT503 User Manual Firmware 1.0.0.9...
-
Page 22: Advanced Configuration And Fxs/Fxo Ports Parameters
Via HTTP Server The URL for the HTTP server used for firmware upgrade and configuration via HTTP. For example, http://provisioning.mycompany.com:6688/Grandstream/1.0.0.6 “:6688” is the specific TCP port where the HTTP server is listening; Omit if using default port 80. Note: If Auto Upgrade is set to No, F/W will download at boot time. - Page 23 This is a special feature that enables the user to create a text file backup of your Configuration existing configuration. Grandstream Networks, Inc. If set to “Auto”, in case of power loss or loss of SIP registration, the PSTN line will be seamlessly connected to analog phone connected to FXS port.
-
Page 24: Table 10: Ht503 Fxs Port S
SIP T1 Timeout T1 is an estimate of the round-trip time between the client and server transactions. If the network latency is high, select larger value for more reliable usage. Grandstream Networks, Inc. AGES EFINITIONS HT503 User Manual Firmware 1.0.0.9... - Page 25 Example 2: {^1900x+ | <=1617>xxxxxxx} – • Block any number of leading digits 1900 and add prefix 1617 for any dialed 7 digit numbers Grandstream Networks, Inc. xx+ - at least 2 digits number; xx. – at least 2 digits number; ^ - exclude;...
- Page 26 Softswitch vendors. Session Expiration Grandstream implemented SIP Session Timer. The session timer extension enables SIP sessions to be periodically “refreshed” via a SIP request (UPDATE, or re-INVITE. Once the session interval expires, if there is no refresh via a UPDATE or re-INVITE message, the session will be terminated.
- Page 27 North American frequencies. Frequencies should be configured with known values to avoid high pitch sounds. Grandstream Networks, Inc. Rx is a gain level for signals transmitted by FXS Tx is a gain level for signals received by FXS.
-
Page 28: Table 11: Ht503 Fxo Port S
SIP T1 Timeout T1 is an estimate of the round-trip time between the client and server transactions. If the network latency is high, select larger value for reliable usage. Grandstream Networks, Inc. AGES EFINITIONS HT503 User Manual Firmware 1.0.0.9... -
Page 29: Ht503 User Manual
Default: Outgoing - {x+} Subscribe for MWI Default is No. When set to “Yes” a SUBSCRIBE for Message Waiting Indication will be Grandstream Networks, Inc. a. xx+ - at least 2 digits number; b. xx. – at least 2 digits number;... - Page 30 Softswitch vendors. Session Expiration Grandstream implemented SIP Session Timer. The session timer extension enables SIP sessions to be periodically “refreshed” via a SIP request (UPDATE, or re-INVITE. Once the session interval expires, if there is no refresh via a UPDATE or re-INVITE message, the session will be terminated.
- Page 31 AC Termination AC Termination is a configurable value of impedance of the line provided by different Grandstream Networks, Inc. via SIP from - PSTN CID is in the SIP From field via P-Asserted-Identity - SIP From field uses the pre-configured account user Id.
-
Page 32: Saving The Configuration Changes
The administrator can remotely reboot the HT503 by clicking on the “Reboot” button at the bottom of the configuration page. Once done, the following screen will be displayed to indicate that rebooting is underway. You can login again after about 30 seconds. Grandstream Networks, Inc. HANGES HT503 User Manual Firmware 1.0.0.9... -
Page 33: Figure 4: Screenshot Ofr
The device is rebooting now... You may relogin by clicking on the link below in 30 seconds. Click to relogin All Rights Reserved Grandstream Networks, Inc. 2004 NOTE: Interrupting the ‘booting up’ process could permanently damage the device. Grandstream Networks, Inc. -
Page 34: Configuration Through A Central Server
MAC address of each device, GAPS provision the devices with redirection settings so that they will be redirected to customer’s TFTP or HTTP server for further provisioning. Grandstream also provide GAPSLITE software package which contains our NAT friendly TFTP server and a configuration tool to facilitate the task of generating device configuration files. -
Page 35: Software Upgrade
LAN environment if possible. For users who do not have a local firmware upgrade server, Grandstream provides a NAT-friendly TFTP server on the public Internet for firmware upgrade. Please check the Services section of Grandstream’s Web site to obtain our public TFTP server’s IP address. -
Page 36: Configuration File Download
ONFIGURATION OWNLOAD Grandstream SIP Device can be configured via Web Interface as well as via Configuration File through TFTP or HTTP. “Config Server Path” is the TFTP or HTTP server path for configuration file. It needs to be set to a valid URL, either in FQDN or IP address format. The “Config Server Path” can be same or different from the “Firmware Server Path”. -
Page 37: Restore Factory Default Setting
Restoring the Factory Default Setting will DELETE all configuration information of the phone. Please BACKUP or PRINT out all the settings before you approach to following steps. Grandstream will not take any responsibility if you lose all the parameters of setting and cannot connect to your VoIP service provider.
