  • Page 1 Grandstream Networks, Inc. HT801/HT802 User...

  • Page 2: Product Overview

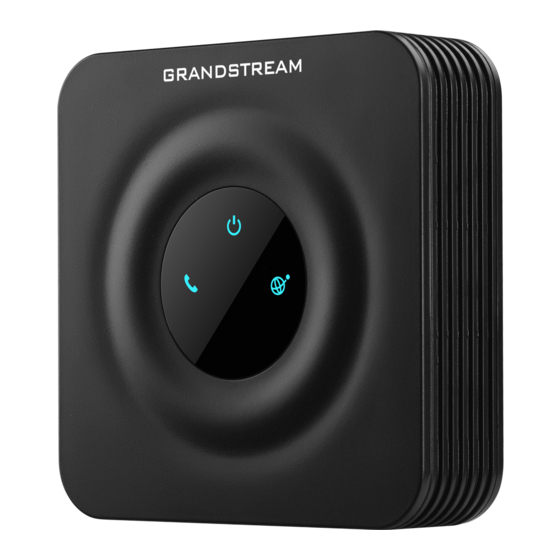

    The Grandstream handy tones HT801/HT802 are new additions to the popular handy tone ATA product family. This manual will help you learn how to operate and manage your HT801/HT802 analog telephone adaptor and make the best use of its many upgraded features including simple and quick installation, 3-way conferencing, direct IP-IP Calling, and new provisioning support among other features.
  • Page 3 Network One (1) 10/100Mbps auto-sensing Ethernet port (RJ45) Interface POWER, INTERNET, PHONE1, POWER, INTERNET, PHONE Indicators PHONE2 Factory Reset Button Voice, Fax, Modem Telephony Caller ID display or block, call waiting, ash, blind or attended transfer, forward, hold, do not disturb, 3-way Features conference.

  • Page 4: Getting Started

    HT801 Package Contents The HT802 ATA package contains: HT802 Package Contents Check the package before installation. If you find anything missing, contact your system administrator. HT80x Ports Description The following figure describes the different ports on the back panel of the HT801.
  • Page 5 Power, Ethernet and Phone LEDs will be solidly lit when the HT801/HT802 is ready for use. Connecting the HT801/HT802 HT80x LEDs Pattern There are 3 LED buttons on HT801 and 4 LED buttons on HT802 that help you manage the status of your Handy Tone.

  • Page 6: Configuration Guide

    Obtain HT80x IP Address via Connected Analog Phone HT801/HT802 is by default configured to obtain the IP address from DHCP server where the unit is located. To know which IP address is assigned to your HT801/HT802, you should access to the “Interactive Voice Response...
  • Page 7 The HT801/HT802 has a built-in voice prompt menu for simple device configuration which lists actions, commands, menu choices, and descriptions. The IVR menu work with any phone connected to the HT801/HT802. Pick up the handset and dial “***” to use the IVR menu.

  • Page 8: Configuration Via Web Browser

    Dial *98 to announce the extension number of the port. Configuration via Web Browser The HT801/HT802 embedded Web server responds to HTTP GET/POST requests. Embedded HTML pages allow a user to configure the HT801/HT802 through a web browser such as Google Chrome, Mozilla Firefox and Microsoft’s IE.

  • Page 9: Saving The Configuration Changes

    When changing any settings, always submit them by pressing the Update or Apply button on the bottom of the page. After submitting the changes in all the Web GUI pages, reboot HT801/HT802 to have the changes take effect if necessary;...

  • Page 10: Changing User Level Password

    6. Press Apply at the bottom of the page to save your new settings. Admin Level Password Changing User Level Password 1. Access your HT801/HT802 web UI by entering its IP address in your favorite browser. 2. Enter your admin password (default: admin). 3. Press Login to access your settings.

  • Page 11: Nat Settings

    Viewer Level Password Changing HTTP Web Port 1. Access your HT801/HT802 web UI by entering its IP address in your favorite browser. 2. Enter your admin password (default: admin). 3. Press Login to access your settings and navigate to Basic Settings > Web Port.

  • Page 12: Preferred Vocoder (Codec)

    Select voice menu option 01 to allow the HT801/HT802 to use DHCP. STATIC IP MODE Select voice menu option 01 to allow the HT801/HT802 to enable the STATIC IP mode, then use option 02, 03, 04, 05 to set up IP address, Subnet Mask, Gateway and DNS server respectively.
  • Page 13 After applying your configuration, your account will register to your SIP Server, you can verify if it has been correctly registered with your SIP server or from your HT801/HT802 web interface under Status > Port Status > Registration (If it displays Registered, it means that your account is fully registered, otherwise it will display Not Registered so in this case you must double check the settings or contact your provider).

  • Page 14: Call Features

    Wait 30 seconds to log in again. CALL FEATURES The HT801/HT802 support all the traditional and advanced telephony features. Call Features Forcing a Codec (per call) *027110 (PCMU), *027111 (PCMA), *02723 (G723), *02729 (G729), *027201 (iLBC), *02722 (G722).
  • Page 15 Toggles between active call and incoming call (call waiting tone). If not in Flash/Hook conversation, ash/hook will switch to a new channel for a new call. Pressing pound sign will serve as Re-Dial key. HT801/HT802 Call Features...

  • Page 16: Call Operations

    Both HT801/HT802 and other VoIP Device are on the same LAN using private IP addresses, or Both HT801/HT802 and other VoIP Device can be connected through a router using public or private IP addresses (with necessary port forwarding or DMZ).

  • Page 17: Call Waiting

    4. If phone C does not answer the call, phone A can press “flash” to resume call with phone B. When attended transfer fails and A hangs up, the HT801/HT802 will ring back user A to remind A that B is still on the call. A can...

  • Page 18: Call Return

    3-way Conferencing The HT801/HT802 supports Bellcore style 3-way Conference. To perform the 3-way conference, we assume that the call is established between phone A and B are in conversation. Phone A(HT801/HT802) wants to bring third phone C into conference: 1. Phone A presses FLASH (on the analog phone, or Hook Flash for old model phones) to get a dial tone.

  • Page 19: Restore Factory Default Settings

    3. If phone C answers the call, phones A and C are in conversation. Then A can press “Flash + 4” to complete transfer. 3-Way Conferencing: Assume that the call is established, and phone A and B are in conversation. Phone A(HT801/HT802) wants to bring third phone C into conference: 1.

  • Page 20: Change Log

    For example: if the MAC address is 000b8200e395, it should be keyed in as “0002228200333395”. CHANGE LOG This section documents significant changes from previous versions of the user guide for HT801/HT802. Only major new features or major document updates are listed here. Minor updates for corrections or editing are not documented here.
  • Page 21 Added the support to verify if configured Gateway is on the same subnet as the configured IP address. Firmware Version 1.0.11.6 No major changes. Firmware Version 1.0.10.6 Add support for codec G722. [HT801/HT802 Technical Specifications] Firmware Version 1.0.9.3 No major changes. Firmware Version 1.0.8.7...
  • Page 22 Firmware Version 1.0.5.11 Changed default “Upgrade Via” from HTTP to HTTPS. [Upgrade Protocol] [UPGRADE PROTOCOL] Added support for 3 level access through RADIUS authorization (Admin, User and viewer). Firmware Version 1.0.3.7 No major changes. Firmware Version 1.0.2.7 No major changes. Firmware Version 1.0.2.3 No major changes.
