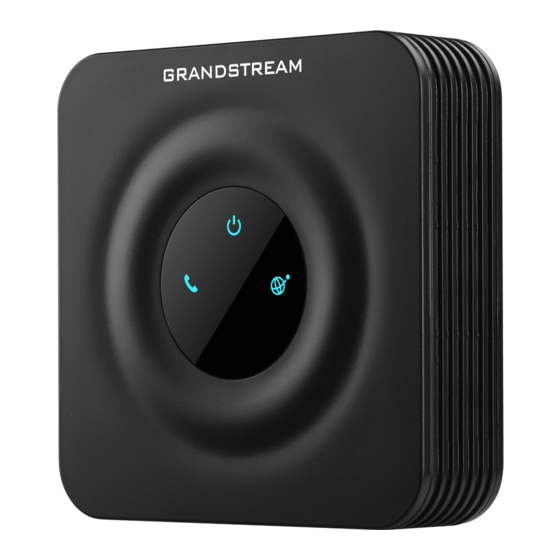

Grandstream Networks HT801 User Manual
Analog telephone adaptor
Hide thumbs
Also See for HT801:
- User manual ,
- Administration manual (71 pages) ,
- Quick installation manual (21 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Grandstream Networks HT801
Summary of Contents for Grandstream Networks HT801
- Page 1 Grandstream Networks, Inc. HT801 Analog Telephone Adaptor User Guide...
- Page 2 Grandstream Networks, Inc. is not permitted. The latest electronic version of this user manual is available for download here: http://www.grandstream.com/support Grandstream is a registered trademark and Grandstream logo is trademark of Grandstream Networks, Inc. in the United States, Europe and other countries. CAUTION Changes or modifications to this product not expressly approved by Grandstream, or operation of this product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
-
Page 3: Gnu Gpl Information
GNU GPL INFORMATION HT801 firmware contains third-party software licensed under the GNU General Public License (GPL). Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public License (GPL) for the exact terms and conditions of the license. -
Page 4: Table Of Contents
Connecting HT801 ..........................13 HT801 LEDs Pattern ..........................14 CONFIGURATION GUIDE .................... 15 Obtain HT801 IP Address via Connected Analogue Phone ..............15 Understanding HT801 Interactive Voice Prompt Response Menu ............15 Configuration via Web Browser ......................17 Accessing the Web UI ........................17 Web UI Access Level Management .................... - Page 5 Attended transfer .......................... 25 3-Way conferencing ..........................26 Call Return ............................26 RESTORE FACTORY DEFAULT SETTINGS ............... 27 Using the Reset Button ........................27 Using the IVR Command ........................27 EXPERIENCING HT801 ....................28 P a g e HT801 User Guide...
- Page 6 Table of Tables Table 1: HT801 Features at a Glance ......................10 Table 2: HT801 FXS Analog Telephone Adapter Technical Specifications ..........10 Table 3: Definition of the HT801 Connectors ....................13 Table 4: HT801 LEDs Pattern Description ....................14 Table 5: Voice Prompt Menu ........................
-
Page 7: Document Purpose
DOCUMENT PURPOSE This document describes the basic concept and tasks necessary to use and configure your HT801. And it covers the topic of connecting and configuring the HT801, making basic operations and the call features. Please visit http://www.grandstream.com/support to download the latest “HT801 Administration Guide”. -
Page 8: Change Log
CHANGE LOG This section documents significant changes from previous versions of user guide for HT801. Only major new features or major document updates are listed here. Minor updates for corrections or editing are not documented here. Firmware Version 1.0.3.2 ... -
Page 9: Gui Interface Examples
GUI INTERFACE EXAMPLES http://www.grandstream.com/sites/default/files/Resources/HT801_web_gui.zip 1. Screenshot of Login Page 2. Screenshots of Status Page 3. Screenshots of Basic Settings Page 4. Screenshots of Advanced Settings Page 5. Screenshots of FXS Port Page P a g e HT801 User Guide... -
Page 10: Welcome
WELCOME The HT801 is a 1 port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analog phones and enables service providers to offer high quality IP service. -
Page 11: Product Overview
PRODUCT OVERVIEW The HT801 is a 1 port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analog phones and enables service providers to offer high quality IP service. - Page 12 Dimension and Weight Dimension: 100mm x 100mm x 29.5 mm Weight: 102g Compliance Compliance FCC : Part15B CE : EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/NZS CISPR22, AS/NZS60950.1, S003 P a g e | 11 HT801 User Guide...
-
Page 13: Getting Started
Figure 1: HT801 Package Contents Note: Check the package before installation. If you find anything missing, contact your system administrator. HT801 Ports Description The following figure describes the different ports on the back panel of the HT801. Internet Micro USB... -
Page 14: Connecting Ht801
2. Insert the Ethernet cable into the internet or LAN port of the HT801 and connect the other end of the Ethernet cable to an uplink port (a router or a modem, etc.) 3. -
Page 15: Ht801 Leds Pattern
HT801 LEDs Pattern There are three (3) LED buttons that help you manage the status of your Handy Tone HT801. Figure 4: HT801 LEDs Pattern Table 4: HT801 LEDs Pattern Description LED Lights Status Power LED The Power LED lights up when the HT801 is powered on and it flashes when the HT801 is booting up. -
Page 16: Configuration Guide
Obtain HT801 IP Address via Connected Analogue Phone HT801 is by default configured to obtain the IP address from DHCP server where the unit is located. In order to know which IP address is assigned to your HT801, you should access to the “Interactive Voice... - Page 17 “*” shifts down to the next menu option and “#” returns to the main menu. “9” functions as the ENTER key in many cases to confirm or toggle an option. P a g e | 16 HT801 User Guide...
-
Page 18: Configuration Via Web Browser
When changing any settings, always submit them by pressing the Update or Apply button on the bottom of the page. After submitting the changes in all the Web GUI pages, reboot HT801 to have the changes take effect if necessary; most of the options under the Advanced Settings and FXS Port page require reboot. -
Page 19: Changing Admin Level Password
Changing Admin Level Password 1. Access your HT801 web UI by entering its IP address in your favorite browser. 2. Enter your admin password (default: admin). 3. Press Login to access your settings and navigate to Advanced Settings > Admin Password. -
Page 20: Nat Settings
Select voice menu option 01 to allow the HT801 to use DHCP. STATIC IP MODE Select voice menu option 01 to allow the HT801 to enable the STATIC IP mode, then use option 02, 03, P a g e... -
Page 21: Register A Sip Account
“Always check, check when pre/suffix changes, and never upgrade”. Register a SIP Account The HT801 supports 1 FXS port which can be configured with 1 SIP account. Please refer to the following steps in order to register your account via web user interface. -
Page 22: Rebooting The Ht801 From Remote
After applying your configuration, your account will register to your SIP Server, you can verify if it has been correctly registered with your SIP server from your HT801 web interface under Status > Port Status > Registration (If it displays Registered, it means that your account is fully registered, otherwise it will display Not Registered so in this case you must double check the settings or contact your provider). -
Page 23: Call Features
CALL FEATURES The HT801 supports all the traditional and advanced telephony features. Table 6: HT801 Call Features Call features Forcing a Codec (per call) *027110 (PCMU), *027111 (PCMA), *02723 (G723), *02729 (G729), *0272616 (G726-r16), *0272624 (G726-r24), *0272632 (G726-r32), *0272640 (G726-r40), *027201 (iLBC), *027202 (OPUS). - Page 24 Toggles between active call and incoming call (call waiting tone). If not in conversation, Flash/ Hook flash/hook will switch to a new channel for a new call. Pressing pound sign will serve as Re-Dial key. P a g e | 23 HT801 User Guide...
-
Page 25: Call Operations
Both HT801 and other VoIP Device are on the same LAN using private IP addresses, or Both HT801 and other VoIP Device can be connected through a router using public or private IP addresses (with necessary port forwarding or DMZ). -
Page 26: Call Hold
2. Phone A dials the phone C’s number followed by # (or wait for 4 seconds). 3. If phone C answers the call, phones A and C are in conversation. Then A can hang up to complete transfer. P a g e | 25 HT801 User Guide... -
Page 27: 3-Way Conferencing
4. If phone C does not answer the call, phone A can press “flash” to resume call with phone B. Note: When attended transfer fails and A hangs up, the HT801 will ring back user A to remind A that B is still on the call. -
Page 28: Restore Factory Default Settings
To reset default factory settings using the reset button please follow the steps above: 1. Unplug the Ethernet cable. 2. Locate the reset hole on the back panel of your HT801. 3. Insert a pin in this hole, and press for about 7 seconds. -
Page 29: Experiencing Ht801
Thank you again for purchasing Grandstream analogue telephone adapter, it will be sure to bring convenience to both your business and personal life. P a g e | 28 HT801 User Guide...
