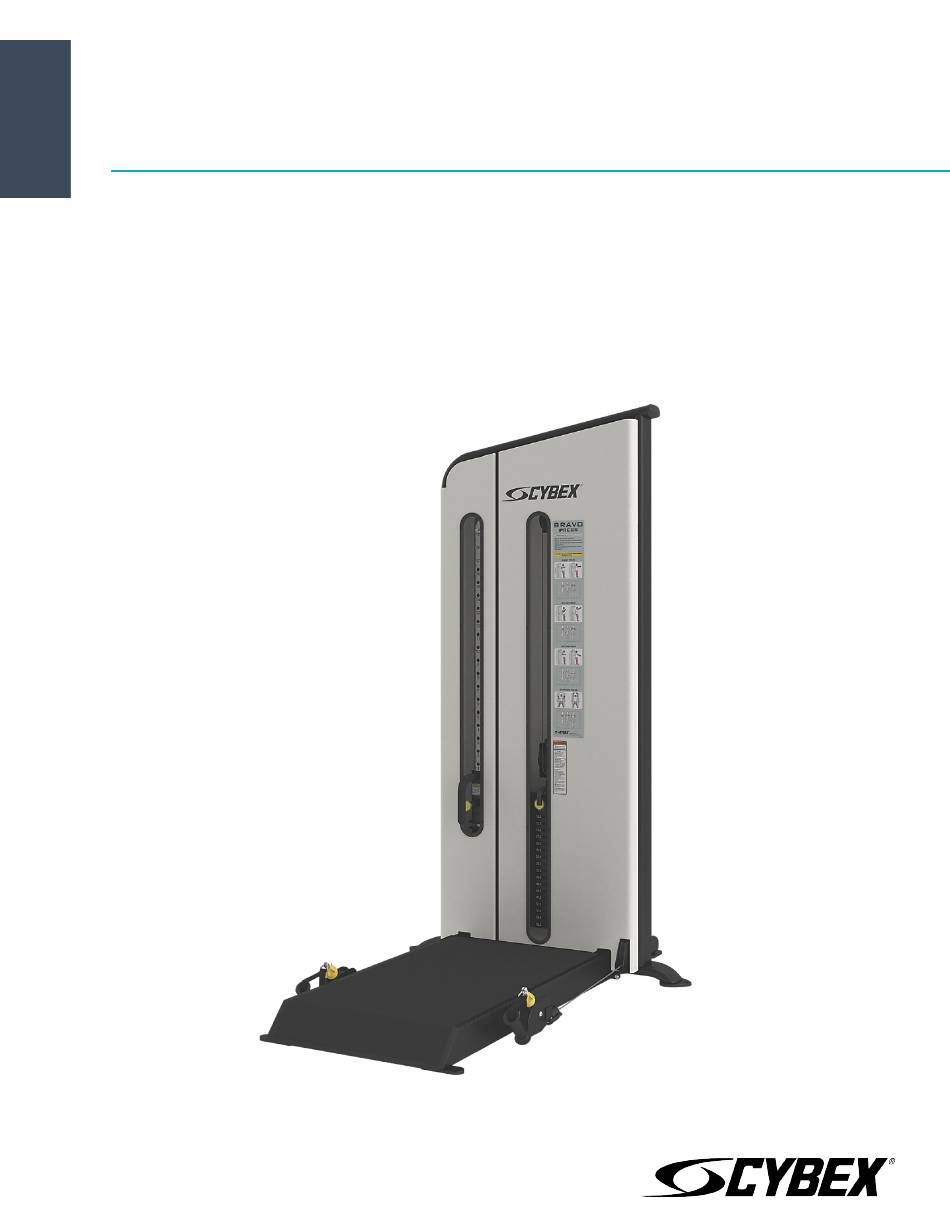

  • Page 1 ® Bravo Lift Owner's Manual Part Number 18030-999-4 AC...

  • Page 3: Table Of Contents

    Cybex International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.

  • Page 4: Safety Guidelines And Practices

    • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.

  • Page 5: User Safety Precautions

    • DO NOT pin weights on selectorized equipment in an elevated position or use the machine if found in this position • DO NOT increase weight resistance on equipment by any means other than those provided by Cybex. • DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving parts.

  • Page 6: Label Placement

    Label Placement The following diagram shows where each label is located. Page 6 of 25...
  • Page 7 Description DE000001-X DE000005-X Page 7 of 25...

  • Page 8: Assembly

    Assembly Machine Specifications Total Weight and Size: 18030 Bravo Lift Weight Machine Dimensions at Rest Machine Dimensions at Use 747 Lbs 46.69” W × 71.39” L × 83.63” H Same 339 Kg 118.62 cm W × 181.330 cm L × 212.43 H Same Maximum User Weight Maximum Training Weight...

  • Page 9: Verify Parts List Shown Below

    Climatic dry air may cause static electricity. During workout, user may experience a shock due to build up of static electricity on the body and the discharge path of the unit. If static electricity is experienced, increase humidity to a comfortable level through the use of a humidifier. Do not install, use or store the unit in an area of high humidity, such as in the vicinity of a steam room, sauna, indoor pool or outdoors.
  • Page 10 • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.
  • Page 11 6. Remove spiral pin connecting pulley using a hammer and a 3/16” pin punch. Description Pulley bracket Cable Top weight connector Roll pin Weight selector pin 7. Move pulley and cable connection out of the way. 8. Remove guide rod caps. Guide rod cap contains a compression spring that will fly if grasp is not released slowly.
  • Page 12 3. Remove the BHSCS and locknut securing the pulley using a 7/32” Allen wrench and a 9/16” wrench. Description Screw Locknut Pulley 4. Move pulley and cable out of the way. 5. Repeat steps above for opposite handle, ball stop, pulley and cable. Separate frame 1.
  • Page 13 4. Install each weight plate, one at a time, so wide edge of bushing faces upward (1) and narrow edge of bushing (2) faces downward. Correct: Wide bushing edge upward Incorrect: Narrow bushing edge downward. 5. Install lifting post. 6. Install compression spring and top guide rod cap onto guide rod. Slide spring loaded top guide rod cap down guide rod until cap is clear of guide rod plate and install.
  • Page 14 5. Remove front sheet, do not peel decals off of weight plates. Description Weight plate decal Weight stack selector pin 6. Repeat above steps for other half of the weight plate decals. Cable routing 1. Place a small amount of Loctite® on BHSCS and inside threads of ball stop. 2.
  • Page 15 • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.

  • Page 16: Exercise

    Exercise Intended Use The intended commercial use of this machine is to aid exercise and improve general physical fitness. Instructions TIP: Read and understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual. All adjustment points on the machine have yellow handles or knobs.
  • Page 17 Stiff-legged Deadlift Lunge Page 17 of 25...

  • Page 18: Maintenance

    Cybex International, Inc. is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording. Cybex International, Inc. representatives are available to answer any questions that you may have. Warnings TIP: Read all warnings in this chapter.

  • Page 19: Weekly Procedures

    Then Dampen a soft white cloth with rubbing alcohol. More Difficult Stains Gently rub stained area. (Alternative Method) Dampen a clean soft cloth in water and rinse area. Apply a light coat of furniture wax for 30 seconds. Restoring Luster Lightly rub area using a clean white cloth.
  • Page 20 The following conditions may indicate a worn cable: Condition of Cable Diagram A tear or crack in the cable sheath that exposes the cable A kink in the cable A curled sheath Necking - A stretched cable sheath Bars and Handles Inspect bars and handles for wear, paying particular attention to tab area connection points.

  • Page 21: Yearly Procedures

    • Hammer • 3/16” Pin punch Four types of cable tension adjustment are used on Cybex Strength Systems: Jam Nut Adjustment This type of adjustment uses a jam nut and a tension adjustment nut at the cable cam end as the primary adjustment.
  • Page 22 Description Qty. Roll pin Top weight connector Cam End Adjustment This type of adjustment uses an adjustment bolt on the pulley bracket. Loosen nut and rotate cam bolt to adjust cable. Description Qty. Cam bolt adjustment Page 22 of 25...

  • Page 23: Customer Service

    To speak with a customer service representative, call 800-351-3737 (for customers living within the USA) or 847-288-3700 (for customers outside the USA). The following information located on the serial number decal will assist our Cybex representatives in serving you. • Unit Serial Number, Product Name and Model Number •...

  • Page 24: Damaged Parts

    At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned.
