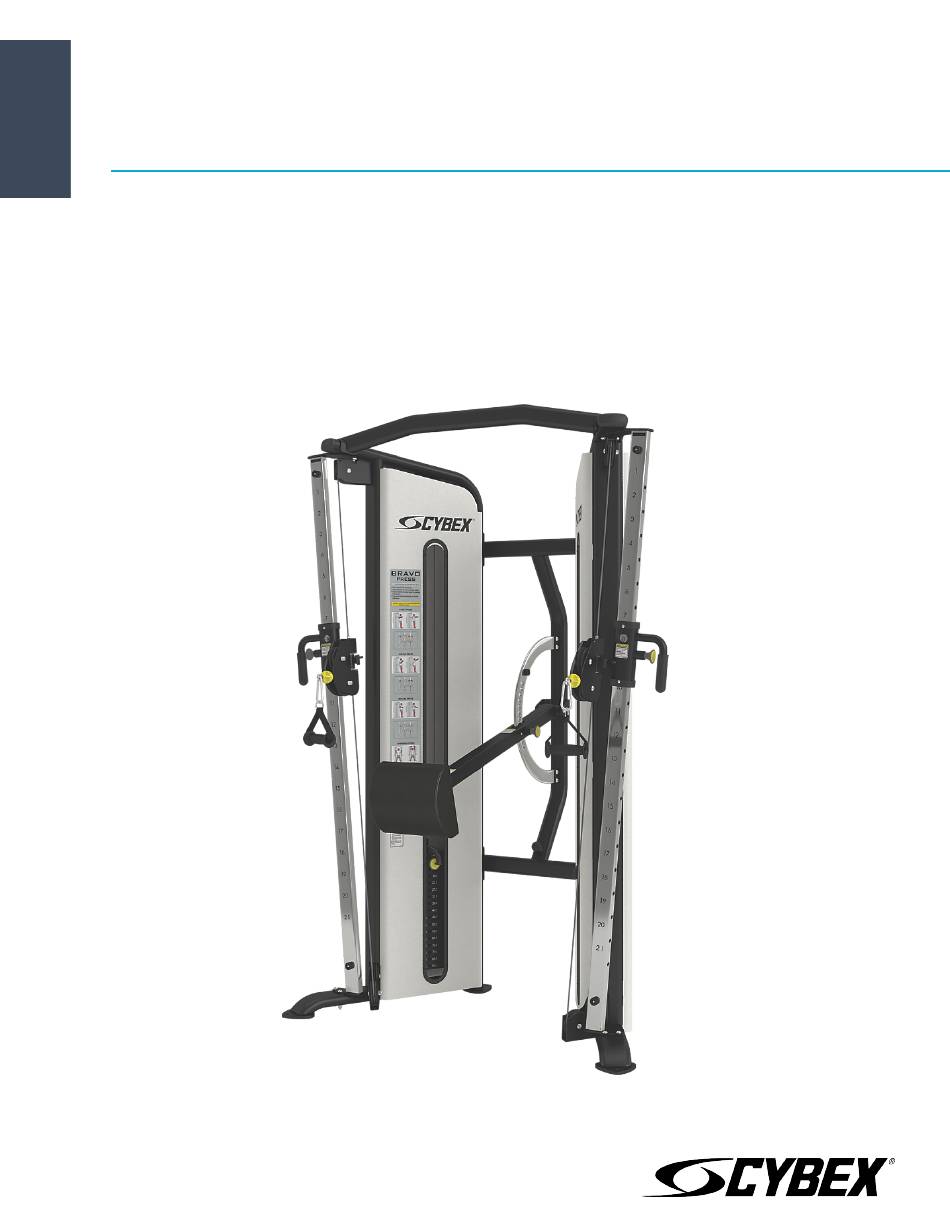

- Page 1 ® Bravo Press Owner's Manual Part Number 18010-999-4 AC...
-
Page 3: Table Of Contents
Cybex International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes. -
Page 4: Safety Guidelines And Practices
• Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. -
Page 5: User Safety Precautions
• DO NOT pin weights on selectorized equipment in an elevated position or use the machine if found in this position • DO NOT increase weight resistance on equipment by any means other than those provided by Cybex. • DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving parts. -
Page 6: Label Placement
Label Placement The following diagram shows where each label is located. Page 6 of 25... - Page 7 Description DE000001-X DE000005-X 8500-025-X 8800-442-X Page 7 of 25...
-
Page 8: Assembly

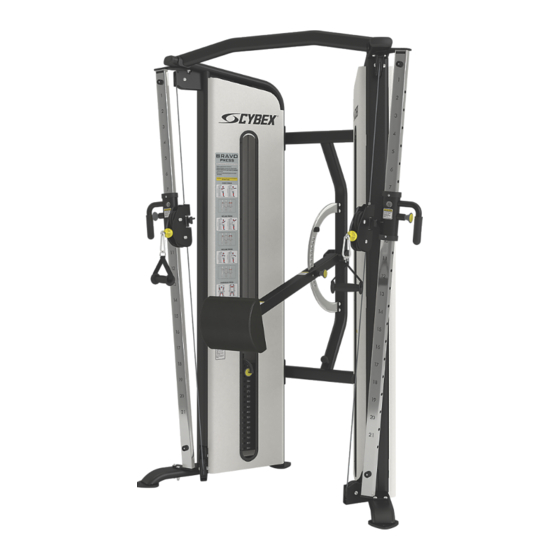

Assembly Machine Specifications Total Weight and Size: 18010 Bravo Press Weight Machine Dimensions at Rest Machine Dimensions at Use 719 Lbs 53.38” W × 35.31” L × 83.43” H 53.38” W × 45.08” L × 83.43” H 326 Kg 135.57 cm W × 89.70 cm L × 211.90 H 135.57 cm W ×... -
Page 9: Verify Parts List Shown Below
Temperature The unit is designed to function normally in an environment with an ambient temperature range of 50° F (10° C) to 104° F (40° C). The unit can be shipped and stored in an environment with an ambient temperature range of 32° F (0°... - Page 10 • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.
- Page 11 5. Verify weight stack pin is disengaged. 6. Remove spiral pin connecting pulley using a hammer and a 3/16” pin punch. Description Cable Pulley bracket Roll pin Top weight connector Weight selector pin 7. Move pulley and cable connection out of the way. 8.
- Page 12 12. Loosen the two button head socket cap screws (BHSCS) securing handle bar to frame using a 7/32” Allen wrench. Description Screw Thread block Chin up bar 13. Hold threaded block in place with fingers and remove the BHSCS. Do not let threaded block fall down in tube. 14.
- Page 13 4. Install each weight plate, one at a time, so wide edge of bushing faces upward (1) and narrow edge of bushing (2) faces downward. Correct: Wide bushing edge upward Incorrect: Narrow bushing edge downward. 5. Install lifting post. 6. Install compression spring and top guide rod cap onto guide rod. Slide spring loaded top guide rod cap down guide rod until cap is clear of guide rod plate and install.
- Page 14 5. Remove front sheet, do not peel decals off of weight plates. Description Weight plate decal Weight stack selector pin 6. Repeat above steps for other half of the weight plate decals. Cable routing 1. Place a small amount of Loctite® on BHSCS and inside threads of ball stop. 2.
- Page 15 • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.
-
Page 16: Exercise
Exercise Intended Use The intended commercial use of this machine is to aid exercise and improve general physical fitness. Instructions TIP: Read and understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual. All adjustment points on the machine have yellow handles or knobs. - Page 17 Decline Press Overhead Press Page 17 of 25...
-
Page 18: Maintenance
Cybex International, Inc. is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording. Cybex International, Inc. representatives are available to answer any questions that you may have. Warnings TIP: Read all warnings in this chapter. -
Page 19: Weekly Procedures
Then Dampen a soft white cloth with rubbing alcohol. More Difficult Stains Gently rub stained area. (Alternative Method) Dampen a clean soft cloth in water and rinse area. Apply a light coat of furniture wax for 30 seconds. Restoring Luster Lightly rub area using a clean white cloth. - Page 20 The following conditions may indicate a worn cable: Condition of Cable Diagram A tear or crack in the cable sheath that exposes the cable A kink in the cable A curled sheath Necking - A stretched cable sheath Bars and Handles Inspect bars and handles for wear, paying particular attention to tab area connection points.
-
Page 21: Yearly Procedures
• Hammer • 3/16” Pin punch Four types of cable tension adjustment are used on Cybex Strength Systems: Jam Nut Adjustment This type of adjustment uses a jam nut and a tension adjustment nut at the cable cam end as the primary adjustment. - Page 22 Description Qty. Roll pin Top weight connector Cam End Adjustment This type of adjustment uses an adjustment bolt on the pulley bracket. Loosen nut and rotate cam bolt to adjust cable. Description Qty. Cam bolt adjustment Page 22 of 25...
-
Page 23: Customer Service
To speak with a customer service representative, call 800-351-3737 (for customers living within the USA) or 847-288-3700 (for customers outside the USA). The following information located on the serial number decal will assist our Cybex representatives in serving you. • Unit Serial Number, Product Name and Model Number •... -
Page 24: Damaged Parts
At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned. - Page 26 Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com...
