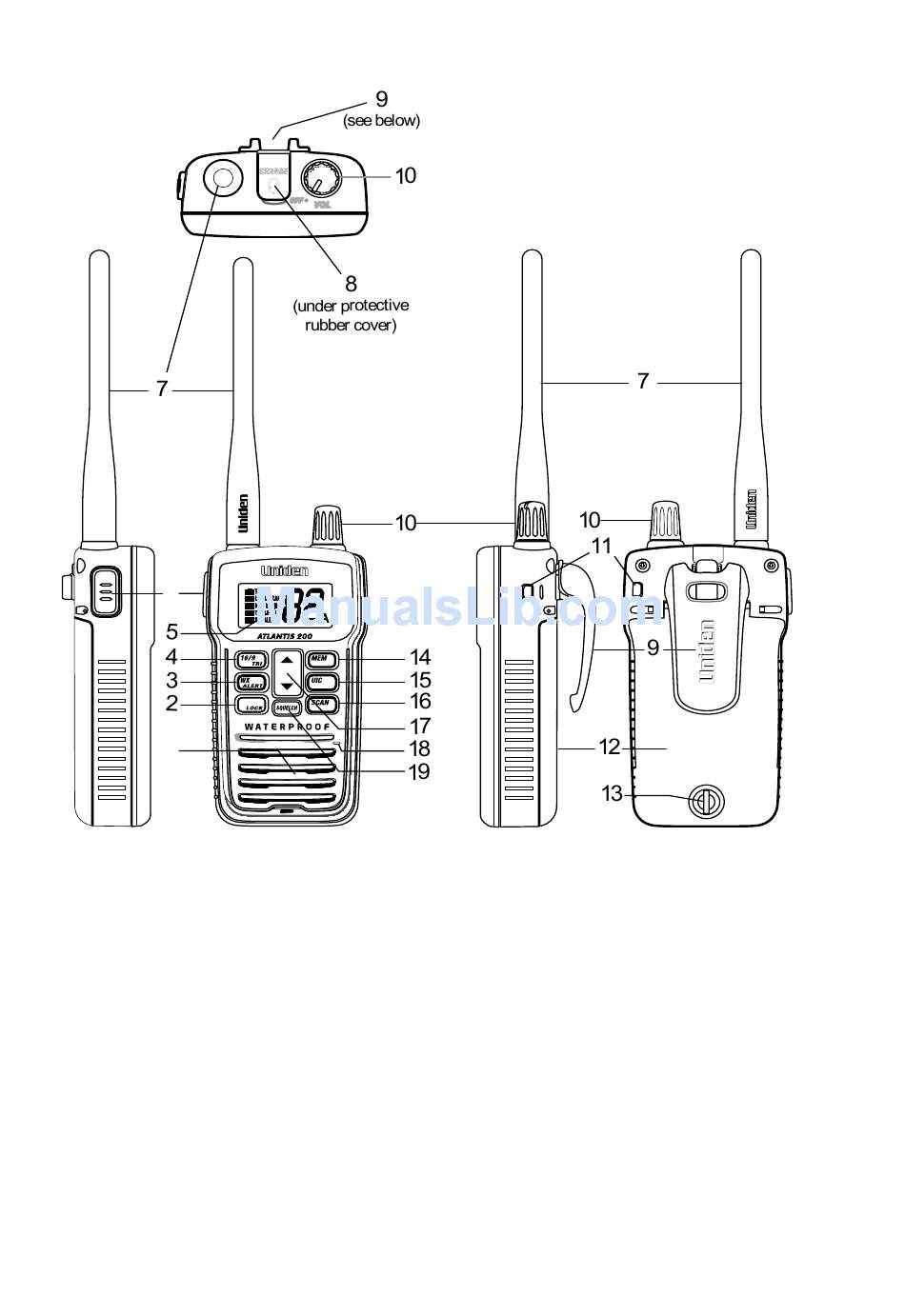

Controls and Indicators

6
8
1
1. Speaker
2. PWR H/L - LOCK Key (H: 3.5W) 11. Lanyard Hole
3. WX - ALERT Key
4. 16/9 - TRI Key
5. LCD Display
6. PTT Button
7. Antenna
8. Multifunction Jack (Ext.
Speaker/Headphone/CHARGE) 18.
9 Belt Clip
4
CHARGE
PWR
H / L
10. On/Off/Vol Knob
12. Battery Case Cover
13. Battery Case Cover Screw
14. MEM Key
15. UIC Key
16. SCAN Key
17. Up/Down Channel Selector
Microphone
SQUELCH Key
19.
