NOTE
LCD Indicators appear
when selected by
pressing the
corresponding button.

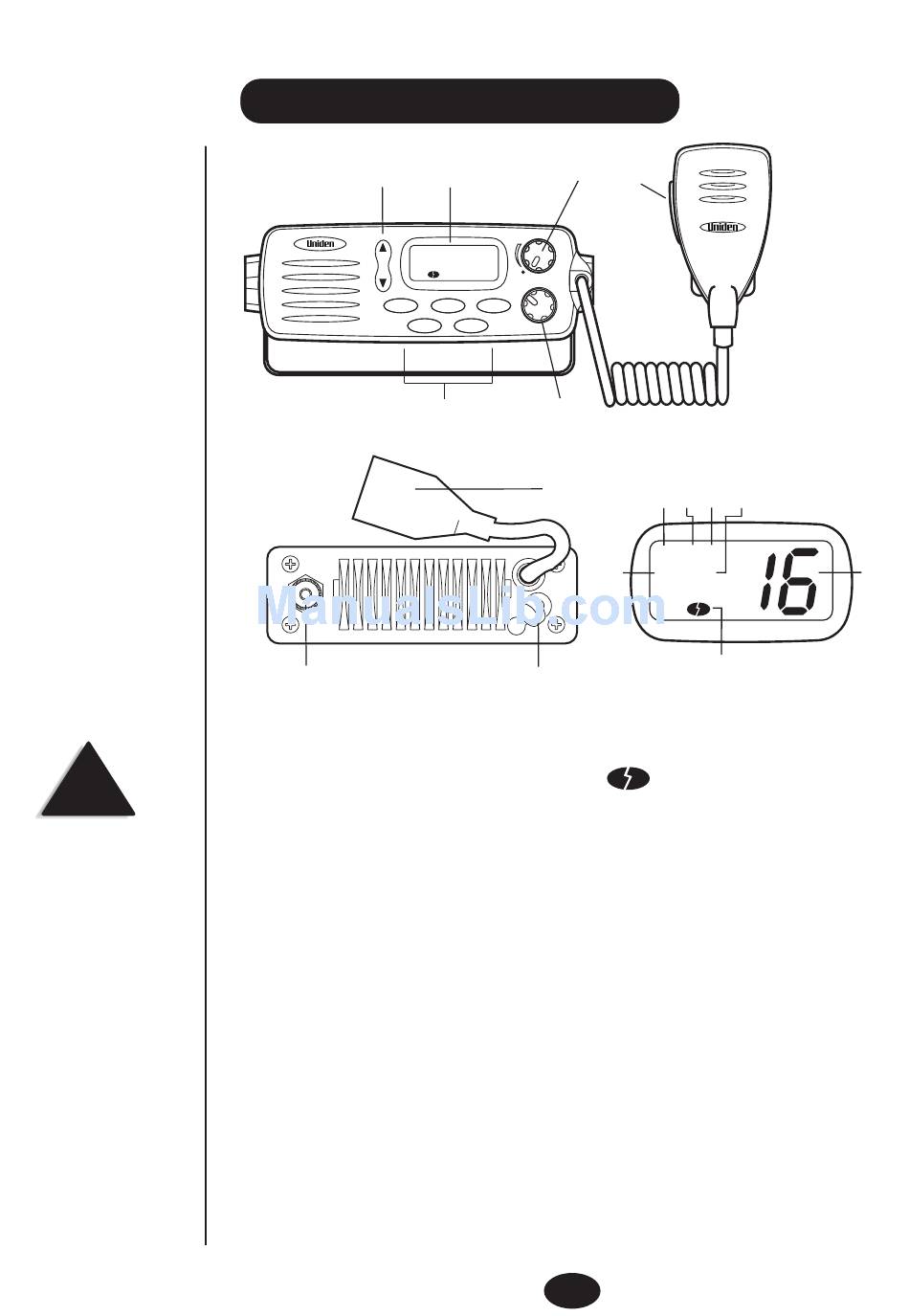

CONTROLS AND INDICATORS

Front Panel

5
C H A N
L I T E
MC1010

Rear Panel

9
1
PTT - Microphone - 'Push To Talk' button.
2
VOLUME (On/Off/Volume) -
Turns the MC 1010 On or Off and varies
the audio volume.
3
SQUELCH - Eliminates background
noise when no signal is being received.
4

LCD Panel

5
CHAN - Used to manually select
the desired Communication Channel
6
'Multi Function Buttons' see page 5.
7
DC Power - Connect to the supplied
Power Cord.
8
Remote Speaker Jack - An external, 4 Ohm,
4 Watt speaker may be connected to this
jack. The connecting wire must have a
miniature plug.
9
Antenna Connector - Connect the antenna
here using a type PL259 plug.
2
4
VOLUME
T X
H I L O
SCAN M E M
1
2
0
3
SCAN
M E M
S T E P
DUAL
1 6
H / L
SQUELCH
6
3
7
8
10
11
12
13
14
15
16
4
1
LCD Panel
13 14 15 16
TX
HI LO
12
SCAN MEM
11
LCD Numerical Channel Display -
Indicates Channel Number in use.
(Dual Watch) - Indicates Dual
Watch has been selected.
SCAN - Indicates that you are scanning
the channels in memory.
TX (Transmit) - Indicates when
transmitting.
HI (High) - Indicates transmitted output
power is 25 Watts.
LO (Low) - Indicates transmitted output
power is 1 Watt.
MEM (Memory) - Indicates if the
displayed channel is in memory for
scanning.
10
