CyberData 10860 Installation Quick Reference Manual page 2

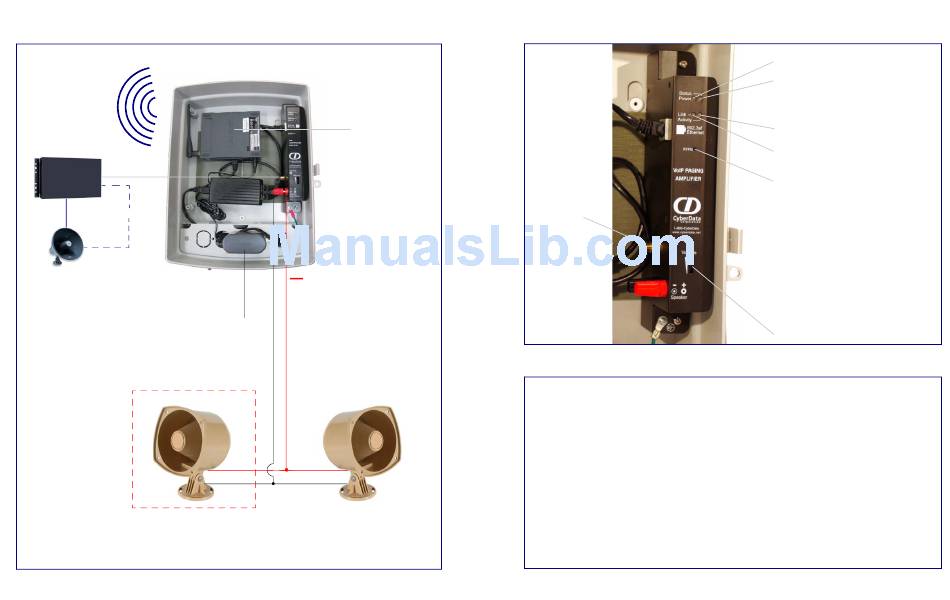

Connecting Power to the Loudspeaker Amplifier
Amplifier
RCA cable
Existing System
Optional 2 Speaker Configuration
8 Ohms
2 speakers in parallel (4 Ohm total)
© 2009, CyberData Corporation, ALL RIGHTS RESERVED
Wireless Bridge
+
~
*This AC connection needs to be
AC Input*
installed by a certified electrician.
Standard 1 Speaker Configuration
8 Ohms
930115H
Loudspeaker Amplifier Features
Audio Line Out
Setting Up the Wireless Bridge
To set up the wireless bridge for access to the loudspeaker amplifier web configuration access:
1. Set up the host PC ethernet IP address to 192.168.3.xxx where xxx is anything but 226 (default wireless bridge
address) or 010 (default loudspeaker amplifier IP address).
2. Connect an access point to the pc and set the ip address of the access point to 192.168.3.xxx where xxx is not 226,
010, or the ip address of the PC.
3. Set the access point ssid to linksys.
4. Power up the loudspeaker amplifier.
5. Open a web browser and enter the url: http://192.168.3.10. The amplifier speaker configuration page login page
should come up.
6. Follow the configuration instructions in the manual to configure the ip address and parameters for your network.
7. After configuration is complete, use the Bridge Setup Utility supplied with the amplifier to configure the wireless
bridge to the desired network configuration.
Quick Reference Quick Reference
Speaker Power LED (blue/green)
Speaker Status LED (green)
A blinking light confirms that the speaker is
operational.
Network Activity LED (green)
Network Link LED (green/yellow)
RTFM Switch
To broadcast a speaker's current IP address,
press the RTFM switch on the speaker face.
When the speaker beeps after pressing the
switch for one second, release the switch to
hear the IP address announcement.
Press and hold the RTFM switch for 20
seconds. The speaker will beep after one
second. Continue to hold the switch until the
speaker beeps again after 20 seconds. Then,
release the switch. The speaker settings are
restored to the factory defaults. The speaker
broadcasts the restored default IP address, and
then announces that it is rebooting.
Speaker Volume
930115H © 2009, CyberData Corporation, ALL RIGHTS RESERVED
