Summary of Contents for Vision Fitness Fitness Cycle
- Page 1 Fitness Cycle Owner’ s Manual “It All Starts With a Vision”...
- Page 2 Congratulations on choosing a Vision Fitness Cycle. You’ve taken an important step in developing and sustaining an exercise program! Your Vision Fitness Cycle is a tremendously effective tool for achieving your personal fitness goals. Regular use of your Vision Fitness Cycle can improve the quality of your life in so many ways.
- Page 3 ABOUT HOME EXERCISE Your Vision Fitness Cycle is the ideal choice to help you maintain year round fitness. You can use your Vision Fitness Cycle as the core of your exercise program, or as a supplement to other fitness activities. Many people will ride their bikes, hike, or swim in the more pleasant months, only to lose their improved fitness with the arrival of inclement weather.
-
Page 4: Table Of Contents
Assembly ....13 C. INDEXED CONSOLES Moving Your Vision Fitness Cycle .13 (Models R2100, E3100, E4100) Leveling the Feet...13 Installing Batteries . -
Page 5: Semi-Recumbents
Two Piece Seat Semi-Recumbent Positioning Enclosed Casing Magnetic Resistance Foot Levelers Front Wheels PART 1 Vision Fitness Semi-Recumbents... -
Page 6: Part
• Further noise dampening. • Protects internal mechanics from dust and corrosive sweat. Foot Levelers • For a solid ride on uneven floors. Front Wheels • Makes it easy to move your Fitness Cycle around your home. PART 1 Features and Benefits... -
Page 7: Upright Cycles
Ergonomic Handlebar Design Wide Padded Saddle Magnetic Resistance Enclosed Casing Front Wheels Foot Levelers PART 1 Vision Fitness Uprights... -
Page 8: Front Wheels
• Further noise dampening. • Protects internal mechanics from dust and corrosive sweat. Foot Leveler • For a solid ride on uneven floors. Front Wheels • Makes it easy to move your Fitness Cycle around your home. PART 1 Features and Benefits... -
Page 9: Dual Action Cycles
Dual Action Handlebar Design Wide Padded Saddle Enclosed Magnetic Resistance Casing Foot Levelers Front Wheels PART 1 Vision Fitness Dual Action... - Page 10 • Further noise dampening. • Protects internal mechanics from dust and corrosive sweat. Foot Levelers • For a solid ride on uneven floors. Front Wheels • Makes it easy to move your Fitness Cycle around your home. PART 1 Features and Benefits...
-
Page 11: Synchronized Arm & Leg
25% more efficiently compared to other types of exercise. Synchronized Arm and Leg Connection The pedals and arms on your Vision Dual Action Fitness Cycle are linked together to reproduce a natural walking motion. When walking or running, your arm motion serves as your body's natural counterbalance, and the synchronized action of the Vision Dual Action Cycle duplicates this benefit. -
Page 12: Upper Body Toning
Upper Body Toning The total body workout of a dual action bike also helps tone your arm, shoulder, chest, and back muscles at the same time you enjoy the benefits of a superior aerobic exercise. You can focus the toning benefit on either your triceps (outer arm) and shoulder muscles or your biceps and chest muscles simply by changing your grip on the handlebar. -
Page 13: Part 2 Getting Started
2. Never operate this Vision Fitness Cycle if it has a damaged cord or plug, it is not working properly, if it has been damaged, or immersed in water. Return the fitness cycle to a dealer for examination and repair. -
Page 14: Cleaning
MOVING YOUR VISION FITNESS CYCLE Your Vision Fitness Cycle has a pair of transport wheels built into the front legs. It is easy to move your Vision Fitness Cycle by rolling it on the front trans- port wheels. PLACEMENT IN YOUR HOME... -
Page 15: Adjusting The Seat
A larger person may want to use the fore position to provide more saddle support. To change the bottom seat cushion position, remove the four bolts that hold the seat cushion to the frame and use the alternate mounting holes. Quick Release Seat Adjust PART 2 Setting Up Your Fitness Cycle... -
Page 16: Upright Models Seat Height
POWER SUPPLY (MODELS R2200 & E3200 ONLY) Your Vision Fitness Cycle uses a wall mount external power supply. Only use the power supply supplied with the bike. If you misplace this power supply, please contact your authorized Vision Fitness dealer for an original replacement. -
Page 17: Part 3 - Consoles

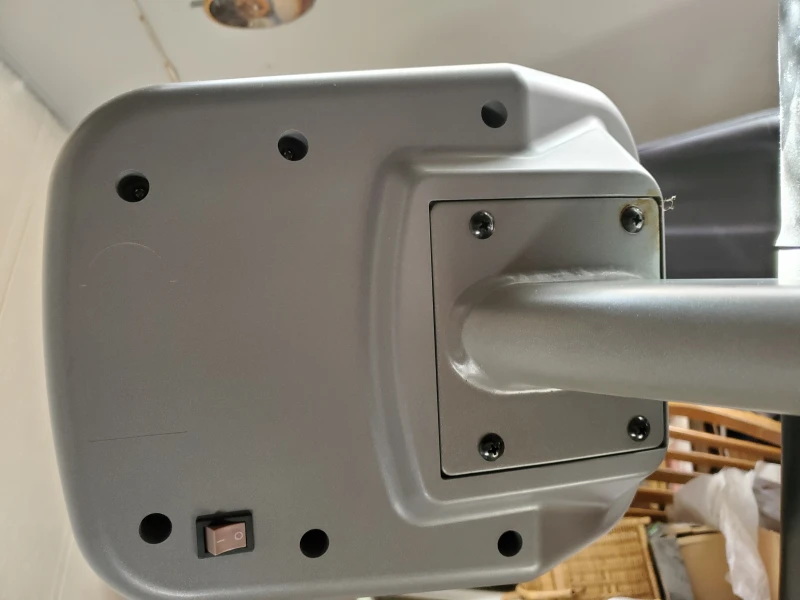

TURN POWER ON The On/Off switch for your fitness cycle is located next to the power supply cord plug in. Flip this switch to the ‘ON’ position. You will hear a beep and the console will light up. You are ready to use your console. -
Page 18: Choosing The Workout Level
CHOOSING THE WORKOUT LEVEL The function light next to PROGRAM LEVEL will now begin to flash. The flashing number showing in the number screen indicates the current Program Level. Each Program has 8 different Levels to choose from, except for the Race Program which has 17 levels. You vary the Program Level by pressing either the UP or the DOWN arrow. -
Page 19: Entering Weight (Optional)
START•STOP button to begin the program. You may choose to skip the weight step by pressing START•STOP immediately after pressing ENTER following your time selection. If you skip this step, the Vision Fitness console will calculate feedback for a 150 pound person. START YOUR FITNESS CYCLE PROGRAM You are now ready to start exercising. -
Page 20: Special Programmable Console Features
2 seconds. The column of red program lights will flash and the console profile screen will show the Mountain Program. Auto-Reset If your Vision Fitness Cycle is not used for 5 minutes, it will automatically reset itself. (Auto-reset will not work when timer is operating in count up mode.) PART 3... -
Page 21: Ten Feedback Functions
TEN FEEDBACK FUNCTIONS Once a program has begun, you may use the SELECT button to view the data of your choice on the number screen. The light next to the function name indicates which data is currently displayed. The following functions can be viewed: DISPLAY DATA USE THIS FUNCTION TO: LOAD (Watts) -
Page 22: Program Details
PROGRAM DETAILS MOUNTAIN PROGRAM Preset Time: 24 Minutes Primary Fitness Goal: General conditioning Course Description: The Mountain Program simulates a gradual climb up a mountain grade with a quicker descent for the cool down phase. It is a good general conditioning program that strengthens your leg muscles and improves your cardiovascular system. -
Page 23: Rolling
ROLLING PROGRAM Preset Time: 32 Minutes Primary Fitness Goal: Weight Maintenance Course Description: The Rolling Program simulates rolling terrain with slow and gradual changes. This is a lower intensity cardiovascular workout that is ideal for weight maintenance. WEIGHT LOSS PROGRAM Preset Time: 48 Minutes Primary Fitness Goal: Weight Loss Course Description: With regular use, the Weight Loss Program is a... -
Page 24: Race
Course Description: The Race Program is one of the most exciting and challenging programs on your Vision Fitness Cycle. It’s a great motivating program for competitive individuals. With the Race Program, you compete with the computer pacer across the length of the profile screen. The pacer moves across the screen at a rate that puts it at the finish line in exactly the time entered. -
Page 25: Manual
MANUAL PROGRAM Preset Time: None Primary Fitness Goal: Customized Workouts Course Description: The Manual Program allows you to choose your own load levels any time during the program, or simply to maintain a constant load level throughout your workout. When the UP or DOWN arrows are pressed during the manual program operation, the load level of the entire program changes. -
Page 26: Heart Rate Control
Once these electrodes are moistened, center the transmitter just below the breast or pectoral muscles with the Vision Fitness logo centered on the chest and facing out. Adjust the length of the elastic belt so that the transmitter presses securely against your skin, but not so tight as to be uncomfortable. -
Page 27: Determining Target Heart Rate
HEART RATE CONTROL This console has an easy to operate heart rate control program that operates using the same sequence of steps as the other programs. The heart rate control program will take you through a warm-up phase, and gradually increase the resistance levels automatically until your actual heart rate is equal to your inputted target level (plus or minus five beats). -
Page 28: Indexed Consoles
INDEXED CONSOLE (Models R2100, E4100, E3100) Your easy to use Vision Fitness Indexed compute console provides the information you need to monitor your progress toward your personal fitness goals. INSTALLING BATTERIES Your Vision Indexed console uses two size AA batteries. These batteries are locat- ed in a snap open battery compartment in the back of the console. -
Page 29: Selecting Screen
To extend battery life, the console will turn itself off if there is no RPM input for 10 minutes. Position Sensor Check Your Vision Indexed Fitness Cycle can provide accurate work load readouts because the computer knows what position the magnet is in through a sensor located at the base of the tension knob. To check this sensor, remove and reinstall the batteries. -
Page 30: Six Feedback Functions
6 FEEDBACK FUNCTIONS DISPLAY DATA USE THIS FUNCTION TO: TIME View the time remaining if the count down mode is used, or view the elapsed time if the count up mode is used. LOAD (Watts) Evaluate your fitness progress over time. SPEED Compare your performance to simulated outdoor cycling speed. - Page 31 Your Vision Fitness Manual console uses two size AA batteries. These batteries are located in a snap open battery compartment in the back of the console. If your Fitness Cycle batteries have not already been installed by your dealer, please install Vision Manual Console them now.
- Page 32 CHANGING RESISTANCE There are two ways to increase your workload. You can pedal faster, or you can turn the tension knob which is located below the console. During the warm up and cool down phase of your workout, use a lower setting to gradually warm up and cool down your muscles.
-
Page 33: Developing Afitness Program For You Stretch First
Keep your heels flat and hold this position for a count of 10. Do not bounce. Standing Quadriceps Stretch Using the saddle of your Fitness Cycle to provide balance, grab your left ankle with your left hand and hold your foot against the back of your thigh for a count of 10. -
Page 34: Exercise Guidelines
How Hard? How hard you workout is also determined by your goals. If you use your Vision Fitness Cycle to prepare for rac- ing, you will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long term goals, always begin an exercise program at low intensity. -
Page 35: Target Heart Rate
The Vision Fitness Programmable and Indexed consoles have a workload readout. Workload is meas- ured on your Vision Fitness Cycle in watts. You can use the workload readout to help you gauge your cur- rent workout intensity and make adjustments as needed. -
Page 36: Achieving Your Fitness Goals
An important step in developing a long term fitness program is to determine your goals. Is your primary goal for exercising on your Vision Fitness Cycle to lose weight? Improve muscle tone? Burn stress? Prepare for the spring racing schedule? Knowing what your goals are will help you develop a more successful exercise program. -
Page 37: Weekly Log Sheets
PART 4 Weekly Log Sheets... -
Page 38: Weekly Log Sheets
PART 4 Weekly Log Sheets... -
Page 39: Annual Log Sheet
PART 4 Monthly Log Sheets... - Page 40 PART 4 Monthly Log Sheets...
-
Page 41: Common Product Questionspage
COMMON PRODUCT QUESTIONS Are the sounds my bike makes normal? Our bikes are some of the quietest available because they use belt drives and friction free magnetic resist- ance. We use the highest grade bearings and belts to minimize noise. However, because the resistance sys- tem itself is so quiet, you will occasionally hear some slight mechanical noises. - Page 42 What kind of routine maintenance is required? We use sealed bearings throughout our bike so lubrica- tion is not needed. The most important maintenance step is to simply wipe your perspiration off the bike after each use. Will the magnets wear out over time? No, we use permanent magnets that will retain their brak- ing force indefinitely in this application.
-
Page 43: Further Reading
FURTHER READING ON FITNESS ACSM Fitness Book American College of Sport Medicine Leisure Press Exercise and Your Heart Pamphlet by the American Heart Association See your local American Heart Association Office The New Fit or Fat Covert Bailey Houghton Mifflin Company Fit or Fat for the 90’s A 60 Minute Video Covert Bailey Pacific Arts... -
Page 44: Warranty
LABOR - ONE YEAR VISION FITNESS shall cover the Labor cost for the repair of the device for a period of one year from the date of original purchase, so long as the device remains in the possession of the original owner. - Page 45 LABOR - TWO YEARS VISION FITNESS shall cover the labor cost for the repair of the device for a period of two years from the date of original purchase, so long as the device remains in the possession of the original owner.
