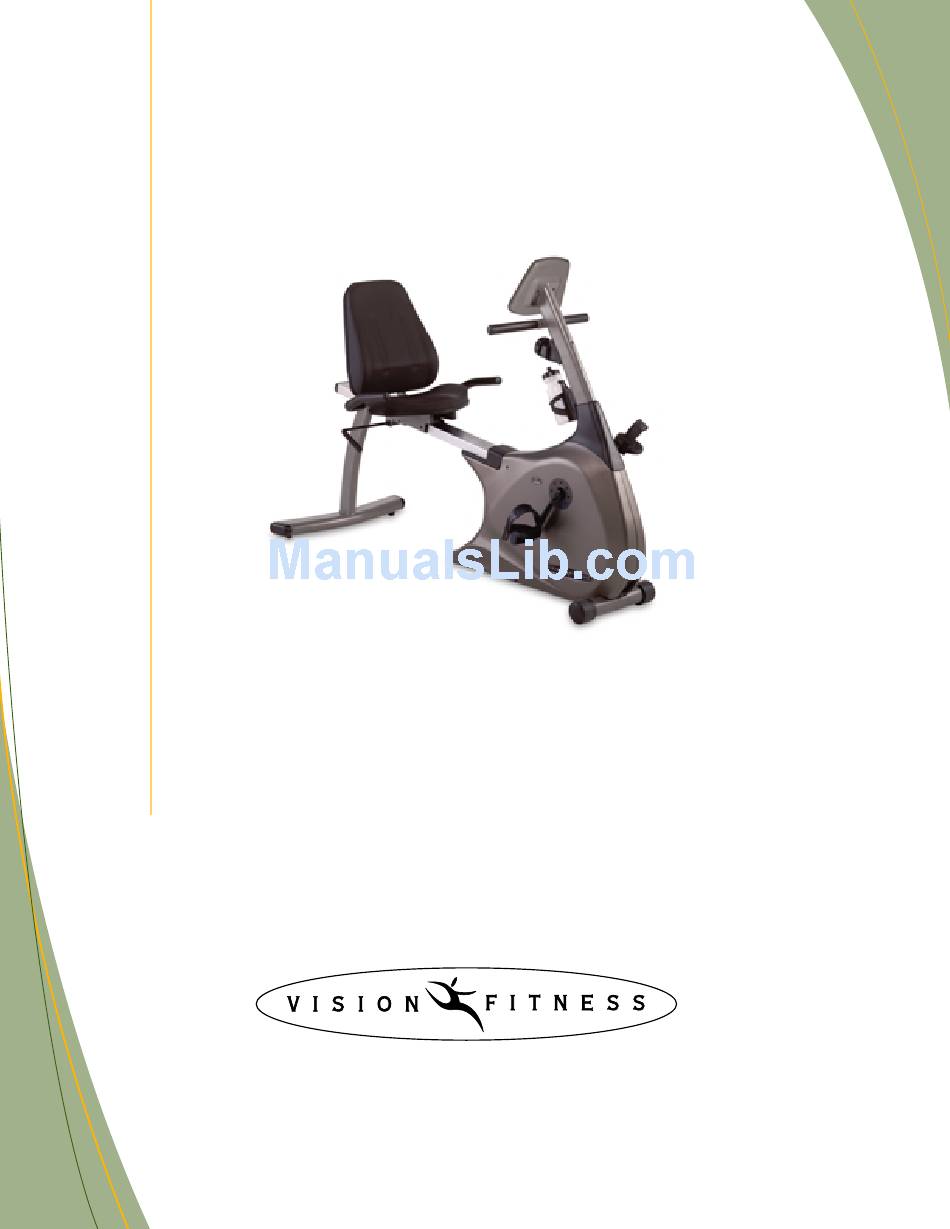

- Page 1 A s s e m b l y G u i d e R2100 R2000 SEMI-RECUMBENT FITNESS CYCLES...
- Page 2 A s s e m b l y G u i d e R2100 R2000 SEMI-RECUMBENT FITNESS CYCLES To avoid possible damage to this Fitness Cycle, please follow these assembly steps in the correct order. Before proceeding, find your new Fitness Cycle’s serial number located on the front axle tube, and enter here: Refer to this number when calling for service, and enter this serial number on your Warranty Card and in your own records.
- Page 3 Tension Knob and bracket, Qty: 1 (R2000 ONLY) Water Bottle & Cage, Qty: 1 Warter Bottle Bracket, Qty:1 (R2000 ONLY) Power Supply, Qty: 1 (R2100 ONLY) Color-coded Hardware Bags, Qty: 1 Owner’s Guide, Qty: 1 Assembly Guide, Qty: 1 Warranty Card, Qty: 1...
-
Page 4: Hardware Included
HARDWARE INCLUDED ORANGE BAG PINK BAG M8 Lockwasher M8 Lockwasher M8 x 12L Screw M8 x 15L Screw Quantity: 4 Quantity: 4 Quantity: 4 Quantity: 4 BLUE BAG M6 x 35L Screws Quantity: 8 M8 Lockwasher M6 Arc Washer M8 x 12L Screw Quantity: 3 Quantity: 8 Quantity: 3... - Page 5 ORANGE BAG STEP • Slide the seat frame onto the seat rail. • Connect the rail support to the bottom of the seat rail. Attach with four screws (M8x12L) and four lock washers (M8). Tighten with the 5 Allen wrench. STEP BLUE BAG STEP...
- Page 6 PINK BAG STEP • Put the seat handlebar onto the seat frame. Attach with four screws (M8x15L) and four lock washers (M8), using the 5 Allen wrench. • Secure the seat cushions to the seat frame by inserting the eight screws (M6x35L) and eight arc washers (M6).
- Page 7 (M5x15L) using screwdriver. Insert the water bottle into the cage. • R2100 ONLY: Attach the water bottle to the console mast with two screws (M5x15L) using screwdriver. Insert the water bottle into the cage.
- Page 8 15 pedal wrench. STEP 500 South CP Avenue • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com 2002 Vision Fitness. All Rights Reserved. 8.02 Part #Z20RB55-AG1817PRD AG18.17PRD REV1...
