Vision Fitness E3000 Assembly Manual
Upright fitness cycles
Hide thumbs
Also See for E3000:
- Assembly manual (8 pages) ,
- Assembly instructions manual (8 pages) ,
- Owner's manual (64 pages)
Related Manuals for Vision Fitness E3000
Summary of Contents for Vision Fitness E3000

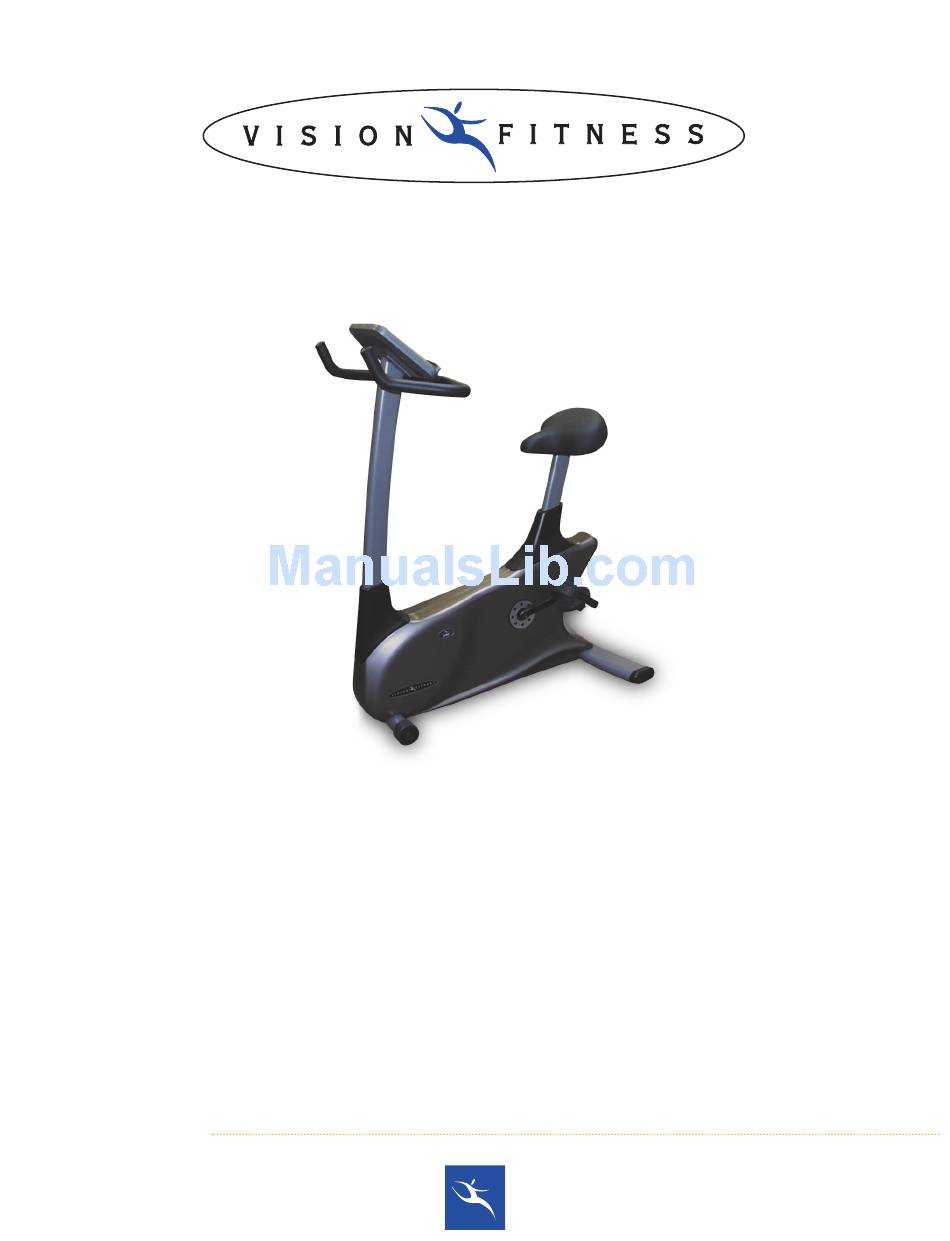

- Page 1 A s s e m b l y G u i d e E 3 0 0 0 , E 3 1 0 0 , E 3 2 0 0 & E 3 2 0 0 H R T U P R I G H T F I T N E S S C Y C L E S...
- Page 2 E 3 0 0 0 E 3 2 0 0 E 3 2 0 0 H R T E 3 1 0 0 upright fitness cycles To avoid possible damage to this Fitness Cycle, please follow these assembly steps in the correct order. Before proceeding though, find your new Fitness Cycle’s serial number located on the front axle tube, and enter here: Refer to this number when calling for service, and also enter this serial number on your Warranty Card and in your own records.
- Page 3 Water Bottle & Bracket, Qty: 1 Heart Rate Chest Strap, Qty: 1 (E3200HRT only) Power Supply, Qty: 1 (E3200 & E3200HRT only) Tension Control Knob and bracket, Qty: 1 (E3000 only) Transport Wheels, Qty: 2 (NOT E3000) Front Axle, Qty: 1 (NOT E3000)
-
Page 4: Hardware Included
M8 x 65L Bolt Quantity: 2 M8 x 19L Bolt Quantity: 2 PINK BAG M8 Washer Quantity: 2 M8 x 20L Bolt M8 x 15L Bolt Quantity: 2 Quantity: 7 M5 x 70L Screw Quantity: 1 (E3000 only) M8 Lock Washer Quantity: 8... - Page 5 Secure with two bolts (M8x65L) and two lock washers (M8) to the inside holes. Tighten with the 5 Allen wrench. MODEL E3000 ONLY: Proceed to Step 3 after completion of Step 1. STEP BLUE BAG STEP • Slide the front axle into the plastic sleeve of the front foot.
- Page 6 PINK BAG STEP • MODEL E3000 ONLY: Slide the console mast cover onto the console mast. With the included wire-tie, pull the sensor wire and resistance cable through the console mast. Place the console mast into the console mast mounting-bracket and secure with seven bolts (M8x15L) and six lock washers (M8).
- Page 7 15 Pedal wrench. STEP 621-D East Lake Street • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com 2001 Vision Fitness. All Rights Reserved. 3.01 Part #Z32CB26-AG18.11PRD AG18.11PRD REV1...
