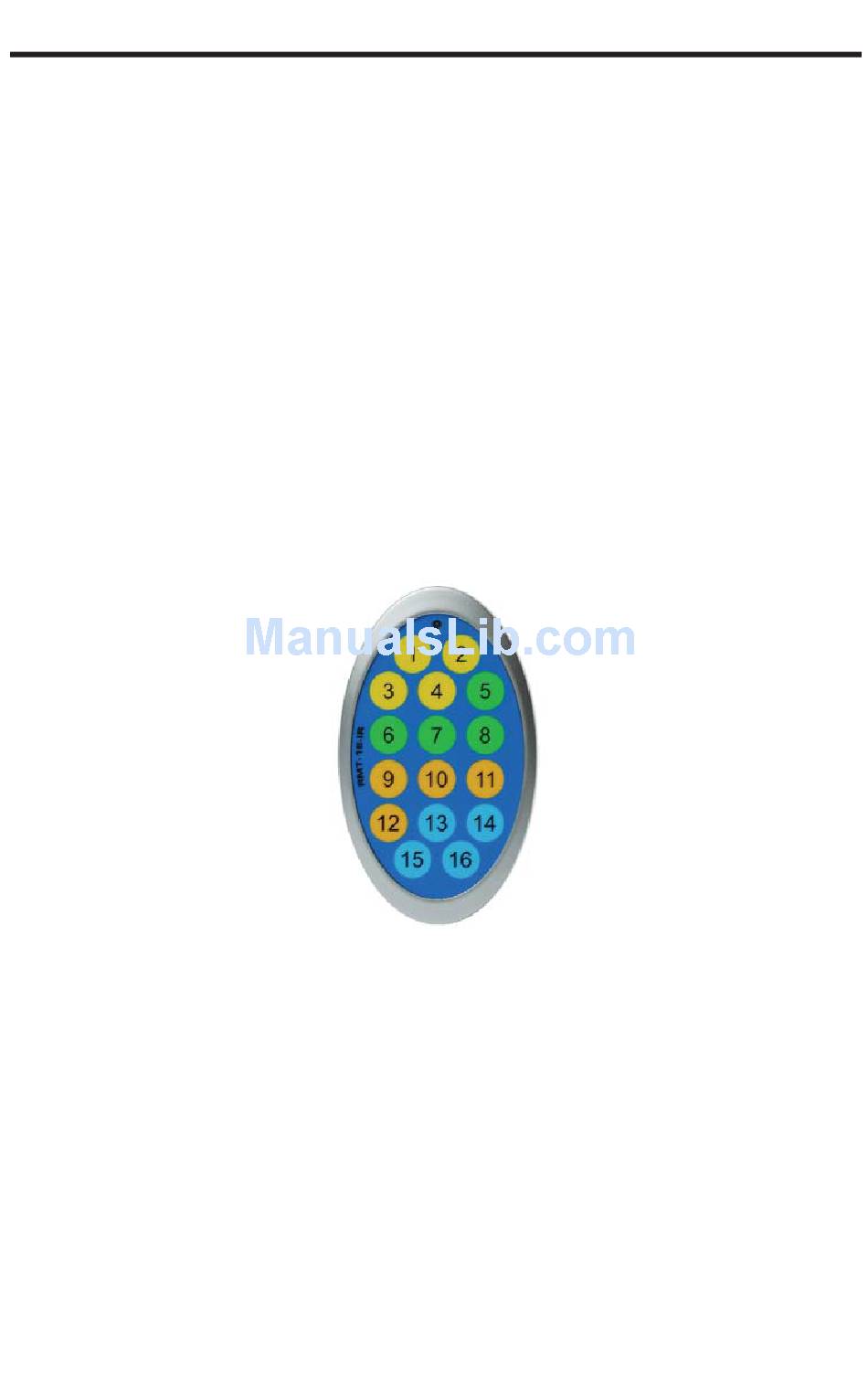

RMT16-IR Installation

1. Remove battery cover from the back of the RMT16-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side fac-

ing up. The side that is not marked must be facing down.

4. Test the RMT16-IR remote by pressing ONLY one button at a time. The

indicator light on the remote will ﬂ ash once each time you press a button.

WARNING: Do not press multiple buttons simultaneously and do NOT press

buttons rapidly. These actions will cause the remote to reset and steps 1-4 will

have to be repeated.

Note: The RMT16-IR ships with two batteries. One battery is required for

operation, the second battery is complimentary.
